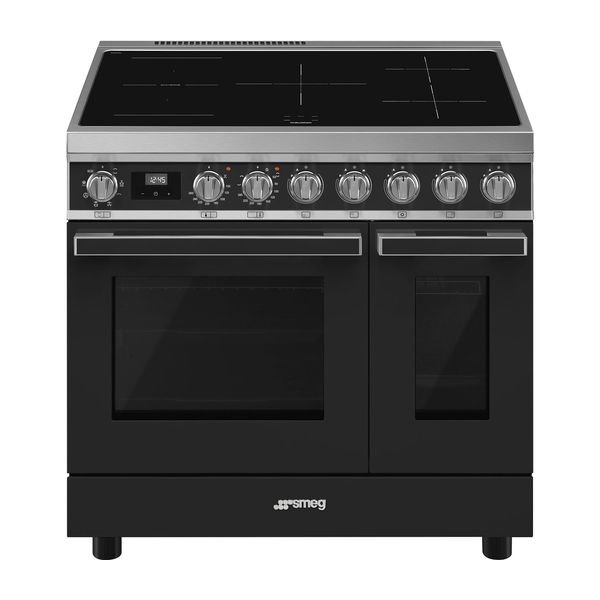

Smeg CPF92IMA Portofino Induction Range Cooker

The SMEG CPF92IMA is a 90x60 cm Portofino cooker in anthracite with a stainless steel induction hob and double electric ovens. It features a thermo–ventilated main oven and a static second oven, both rated energy efficiency class A. With seven main oven functions, Vapor Clean assisted cleaning, touch display and a storage compartment, it is designed for flexible home cooking with easy maintenance and clear visibility inside the cavities.

SKU:CPF92IMA

EAN:8017709300401

Category::Freestanding Cookers

Quantity:

Key Features

90x60 cm cooker size with Portofino aesthetics and flush fit design.

Double electric ovens with 2 cavities carrying an energy label.

Induction hob with 5 cooking zones, including 1 flexible multizone area.

Thermo–ventilated main oven offering 7 cooking functions, including Circulaire, ECO and fan grill (large).

Static second oven with 3 traditional functions: static, small grill and bottom.

Vapor Clean system in the main oven for assisted steam cleaning.

Easy clean enamel cavities with removable doors and full glass inner doors.

Energy efficiency class A for both main and second cavity.

Electronic temperature control in the main oven and electro–mechanical control in the second oven.

Touch display and control knobs with stainless steel SMEG Portofino handles and controls.

Storage compartment with door at the base for accessories or cooking utensils.

Tangential cooling system and safety thermostat on both cavities.

Multilevel cooking with 5 shelf positions in the main oven and 4 in the second oven.

Internal lighting with halogen lamp in the main oven and incandescent lamp in the second oven.

Compatible accessories include Airfry racks and trays, pizza stone, BBQ plate, telescopic guides and induction griddles.

Technical Spec

ModelCPF92IMA

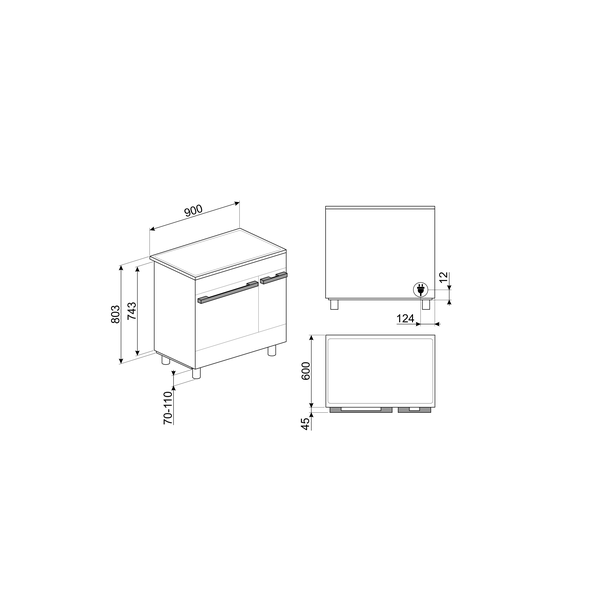

Cooker size90x60 cm

Number of cavities with energy label2

Cavity heat sourceElectric

Hob typeInduction

Type of main ovenThermo–ventilated

Type of second ovenStatic

Cleaning system main ovenVapor Clean

EAN code8017709300401

Energy efficiency class – main cavityA

Energy efficiency class – second cavityA

DesignFlush fit

AestheticsPortofino

ColourAnthracite

Command panel finishEnamelled metal

LogoAssembled st/steel; position: facia below the oven

Hob colourStainless steel

Type of control settingControl knobs

Control knobsSmeg Portofino

Controls colourStainless steel

Number of controls8

Serigraphy colourSilver

DisplayTouch

DoorWith frame; full glass inner door; removable inner door

Glass typeGrey

HandleSmeg Portofino, colour Anthracite

Storage compartmentDoor

FeetBlack

Number of cooking functions (main oven)7

Traditional cooking functions (main oven)Static; Fan assisted; Circulaire; ECO; Large grill; Fan grill (large); Fan assisted base

Other functionsDefrost by time

Cleaning functionsVapor Clean

Cooking functions cavity 23

Traditional cooking functions, cavity 2Static; Small grill; Bottom

Total number of cook zones5

Number of flexible zones1

Front left zoneInduction – multizone – 2.10 kW – Booster 2.30 kW – 21.0x19.0 cm

Rear left zoneInduction – multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm

Central zoneInduction – single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm

Rear right zoneInduction – single – 1.20 kW – Booster 1.40 kW – Ø 18.0 cm

Front right zoneInduction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm

Main oven – number of lights1

Main oven – fan number1

Net volume of main cavity70 litres

Gross volume of main cavity79 l

Main cavity materialEasy clean enamel

Main oven shelf positions5

Type of shelves (main)Metal racks

Light type (main)Halogen, 40 W

Cooking time setting (main)Start and Stop

Light when oven door is open (main)Yes

Main oven door openingFlap down; removable door; full glass inner door; removable inner door

Total number of door glasses (main)3 (2 thermo–reflective)

Safety thermostat (main)Yes

Cooling system (main)Tangential

Usable cavity space dimensions (main)360x460x425 mm (HxWxD)

Temperature control (main)Electronic

Lower heating element power (main)1200 W

Upper heating element power (main)1000 W

Grill element power (main)1700 W

Large grill power (main)2700 W

Circular heating element power (main)2000 W

Grill type (main)Electric

Timer (main)Yes

End of cooking acoustic alarm (main)Yes

Minimum temperature (main)50 °C

Maximum temperature (main)260 °C

Net volume of second cavity35 litres

Gross volume of second cavity36 l

Second cavity materialEasy clean enamel

Shelf positions (second)4

Type of shelves (second)Metal racks

Number of lights (second)1

Light type (second)Incandescent, 25 W

Door opening (second)Flap down; removable door; full glass inner door; removable inner door

Total door glasses (second)3 (2 thermo–reflective)

Safety thermostat (second)Yes

Cooling system (second)Tangential

Usable cavity space dimensions (second)311x206x418 mm (HxWxD)

Temperature control (second)Electro–mechanical

Lower heating element power (second)700 W

Upper heating element power (second)600 W

Grill element power (second)1300 W

Large grill power (second)1900 W

Grill type (second)Electric

Minimum temperature (second)50 °C

Maximum temperature (second)245 °C

Accessories included – main oven & hobChrome shelf with back and side stop (1); 20 mm deep tray (1); 40 mm deep tray (1); Grill mesh (1); Telescopic guide rails, total extraction (1)

Accessories included – secondary ovenChrome shelf with back and side stop (1); Wide baking tray (1); Grill mesh (1)

Max power draw11000 W

Current33 A

Voltage220–240 V

Voltage 2380–415 V

Type of electric cableYes, Single phase

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

Downloads

Download product documentation, manuals, and specification sheets.

CPF92IMA Spec

PDF

Frequently Asked Questions

What type of hob does the SMEG CPF92IMA have?

It has a stainless steel induction hob with 5 cooking zones, including a flexible multizone area. The induction system generates heat directly in the base of suitable cookware through electromagnetic induction.

How many ovens are included and what are their capacities?

The cooker includes two electric ovens. The main thermo–ventilated oven has a net volume of 70 litres and a gross volume of 79 l. The second static oven has a net volume of 35 litres and a gross volume of 36 l.

What cleaning features are available?

The main oven uses the Vapor Clean assisted steam cleaning function to loosen food residue and spills. Both cavities have easy clean enamel interiors, and the inner door glass panels are removable to facilitate complete cleaning.

What are the energy efficiency ratings?

Both the main oven cavity and the second cavity are rated energy efficiency class A.

Which accessories are supplied with the cooker?

Supplied accessories for the main oven and hob include a chrome shelf with back and side stop, a 20 mm deep tray, a 40 mm deep tray, a grill mesh and one set of telescopic guide rails with total extraction. The second oven includes a chrome shelf with back and side stop, a wide baking tray and a grill mesh.

What are the electrical connection requirements?

The maximum power draw is 11000 W with a current of 33 A. It is designed for 220–240 V, with an additional voltage option of 380–415 V. It supports single phase with an electric cable, plus double and three phase connection modalities, at 50/60 Hz with a 5–pole terminal block.
