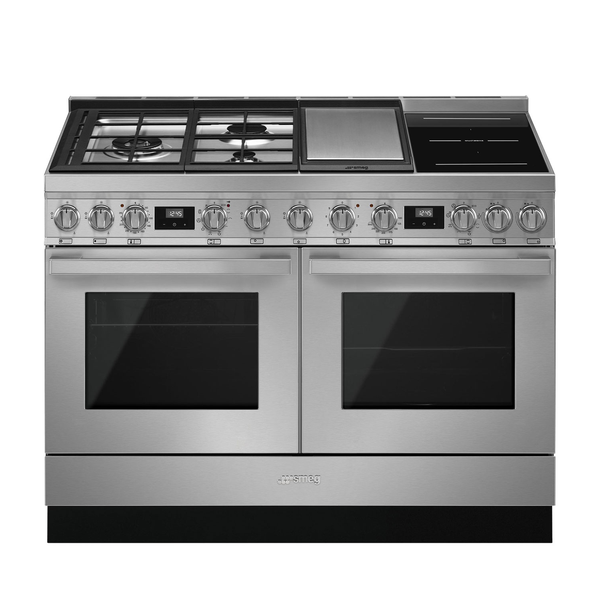

Smeg CPF120IGMPX Portofino Dual Fuel Range Cooker

The Smeg CPF120IGMPX is a 120x60 cm Portofino cooker with a mixed hob and two thermo–ventilated electric ovens. Designed for flush fit installation, it features brushed stainless steel finishes, finger friendly stainless steel command panel and robust cast iron pan stands. With pyrolytic cleaning in the main oven, Vapor Clean in the second oven, nine main oven functions and an A+ energy efficiency class, it offers flexible cooking performance and easy maintenance.

SKU:CPF120IGMPX

EAN:8017709278267

Category::Freestanding Cookers

Quantity:

Key Features

Size & design: 120x60 cm cooker with Portofino aesthetics, flush fit design and brushed stainless steel finish.

Dual electric ovens: Two thermo–ventilated cavities with 70 litres and 63 litres net volume.

Energy performance: Main cavity energy efficiency class A+; second cavity energy efficiency class A.

Mixed hob: Six cooking zones combining gas, induction multizone and central teppanyaki.

Gas burner power: Left centre dual burner 4.20 kW, rear centre rapid 3.00 kW, front centre semi rapid 1.80 kW.

Induction zones: Front right multizone 2.10 kW (Booster 2.30 kW), rear right multizone 1.60 kW (Booster 1.85 kW).

Teppanyaki plate: Central teppanyaki zone rated at 1.40 kW.

Pan support: Heavy duty cast iron pan stands and matte black enamelled burner caps.

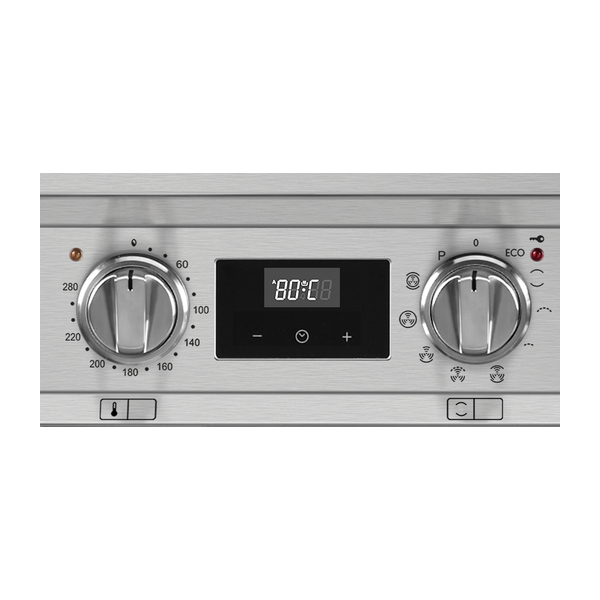

Control interface: Smeg Portofino stainless steel control knobs with touch display and 11 controls.

Main oven functions: 9 cooking functions including Static, Fan assisted, Circulaire, Turbo, ECO, Small grill, Large grill, Fan grill (large) and Fan assisted base.

Second oven functions: 8 cooking functions including Static, Fan assisted, Circulaire, ECO, Large grill, Fan grill (large) and Fan–assisted bottom.

Direct Steam technology: Cooking function Termo–ventilato (Circolare + Ventola) with manual steam addition.

Pyrolytic cleaning: Main oven pyrolytic cleaning function for easy oven cleaning.

Vapor Clean: Second cavity cleaning function using steam to loosen deposits.

Easy clean cavities: Both ovens with easy clean enamel and metal racks on 5 shelf positions.

Door construction: Full glass inner doors, removable doors and inner glass; 4 glasses (3 thermo–reflective) on main oven, 3 glasses (2 thermo–reflective) on second oven.

Soft close doors: Soft Close system on both ovens for silent closing.

Lighting: Multilevel halogen lighting with 2x 40 W lights per cavity and light on when door is open.

Temperature range: Main oven 50 °C to 280 °C; second oven 50 °C to 260 °C.

Safety features: Safety thermostat, automatic switch off when hob overheats, residual heat indicator, automatic pan detection and heating suspended when oven door is opened.

Cooling system: Tangential cooling with airflow from door to splashback for isothermic cavity and cold door benefit.

Storage drawer: Lower drawer storage compartment with sliding compartment for accessories or utensils.

Adjustable installation: Adjustable height to keep cooker top flushed with the working area; black plinth and integrated upstand.

Electrical connection: Max power draw 10900 W, 32 A, 220–240 V or 380–415 V, single, double or three phase options.

Optional accessories: Compatible with AirFry racks and trays, BBQ plates, trays, telescopic guides, splashback, depth and height kits, pizza shovel and more.

Alternative colours: Available in related Portofino models in white, red, black and turquoise (alternative product codes).

Technical Spec

ModelCPF120IGMPX

Cooker size120x60 cm

Number of cavities with energy label2

Cavity heat sourceElectric

Hob typeMixed

Type of main ovenThermo–ventilated

Type of second ovenThermo–ventilated

Cleaning system main ovenPyrolytic

Cleaning system second cavityVapor Clean

Energy efficiency class (main cavity)A+

Energy efficiency class (second cavity)A

EAN code8017709278267

AestheticsPortofino

ColourStainless steel

FinishingBrushed

DesignFlush fit

Command panel finishFinger friendly stainless steel

Hob colourStainless steel

Type of pan standsCast Iron

Type of control settingControl knobs

Control knobsSmeg Portofino

Controls colourStainless steel

No. of controls11

DisplayTouch

Serigraphy colourBlack

DoorWith frame, flap down, full glass inner door, removable door and removable inner door

Glass typeBlack

HandleSmeg Portofino, brushed stainless steel

Storage compartmentDrawer with sliding compartment

UpstandYes

PlinthBlack

Total number of cook zones6

Number of flexible zones1

Left centre burnerGas – 2UR (dual) – 4.20 kW

Front centre burnerGas – Semi Rapid – 1.80 kW

Rear centre burnerGas – Rapid – 3.00 kW

Front right zoneInduction multizone – 2.10 kW – Booster 2.30 kW – 21.1x19.1 cm

Rear right zoneInduction multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm

Central zoneTeppanyaki – 1.40 kW

Type of gas burnersStandard

Automatic electronic ignitionYes

Burner capsMatte black enamelled

Automatic switch off when overheatYes

Automatic pan detectionYes

Minimum pan diameter indicationYes

Selected zone indicatorYes

Residual heat indicatorYes

Main oven – net volume70 litres

Main oven – gross volume79 l

Main oven cavity materialEasy clean enamel

Main oven shelf positions5, metal racks

Main oven lights2 x 40 W halogen, multilevel halogen light

Usable cavity dimensions (HxWxD)360x460x425 mm (both cavities)

Main oven temperature controlElectro–mechanical

Main oven lower heating element power1200 W

Main oven upper heating element power1000 W

Main oven grill element power1700 W

Main oven large grill power2700 W

Main oven circular heating element power2000 W

Main oven grill typeElectric

Main oven fans1 fan (single turbine) with circular heating element (Circulaire)

Main oven minimum temperature50 °C

Main oven maximum temperature280 °C

Second oven net volume63 litres

Second oven gross volume79 l

Second oven cavity materialEasy clean enamel

Second oven shelf positions5, metal racks

Second oven lights2 x 40 W halogen

Second oven temperature controlElectro–mechanical

Second oven lower heating element power1200 W

Second oven upper heating element power1000 W

Second oven grill element power1700 W

Second oven large grill power2700 W

Second oven circular heating element power2000 W

Second oven grill typeElectric, tilting grill

Second oven minimum temperature50 °C

Second oven maximum temperature260 °C

Main oven door glasses4 total, 3 thermo–reflective (cold door, quadruple glazed)

Second oven door glasses3 total, 2 thermo–reflective (triple glazed)

Safety thermostatYes (both cavities)

Heating suspended when door openedYes (both cavities)

Cooling systemTangential cooling (air cooling system)

Door lock during pyrolysisYes

Cooking time settingStart and Stop (both cavities)

TimerYes, with touch control and end of cooking acoustic alarm

No. of cooking functions (main oven)9

Cooking functions cavity 28

Max power draw10900 W

Current32 A

Voltage220–240 V; 380–415 V (Voltage 2)

Type of electric cableYes, Single phase

Additional connection modalitiesYes, Double and Three Phase

Frequency50/60 Hz

Terminal block5 poles

Downloads

Download product documentation, manuals, and specification sheets.

CPF120IGMPX Spec

PDF

Frequently Asked Questions

What are the oven capacities of the Smeg CPF120IGMPX?

The main oven has a net volume of 70 litres and a gross volume of 79 litres. The second oven has a net volume of 63 litres and a gross volume of 79 litres. Both cavities have usable space dimensions of 360x460x425 mm.

What type of hob does this cooker have?

The cooker has a mixed hob with six zones: three gas burners (dual 4.20 kW, rapid 3.00 kW and semi rapid 1.80 kW), two induction multizone zones (2.10 kW with 2.30 kW booster and 1.60 kW with 1.85 kW booster) and a central 1.40 kW teppanyaki zone. It includes cast iron pan stands, automatic electronic ignition, automatic switch off when overheating, automatic pan detection, minimum pan diameter indication and residual heat indicators.

How does the pyrolytic cleaning work on this model?

The main oven is equipped with pyrolytic cleaning cycles that can be selected as necessary. During these cycles, high temperatures burn off residues inside the cavity, making cleaning easier. The door locks during pyrolysis for safety, and the easy clean enamel helps reduce grease adherence.

What are the energy efficiency classes of the ovens?

The main cavity has an energy efficiency class of A+. The second cavity has an energy efficiency class of A. Class A+ helps to save up to 10% energy compared to class A while maintaining performance.

Which accessories are supplied and which are optional?

Supplied accessories include chrome shelves with back and side stop, 20 mm and 40 mm deep trays, grill meshes, telescopic guide rails with total extraction for each cavity and a meat probe for the main oven. Optional compatible accessories include AirFry racks and trays, BBQ plates, universal griddles and plates, telescopic guides, splashback and extension kits, pizza shovel, scraper, child lock, silicone moulds and WOK support.

What electrical supply is required for installation?

The maximum power draw is 10900 W with a current of 32 A. It can operate at 220–240 V or 380–415 V with single phase, double phase or three phase connection modalities. It uses a supplied single phase electric cable, supports 50/60 Hz frequency and has a 5–pole terminal block.
