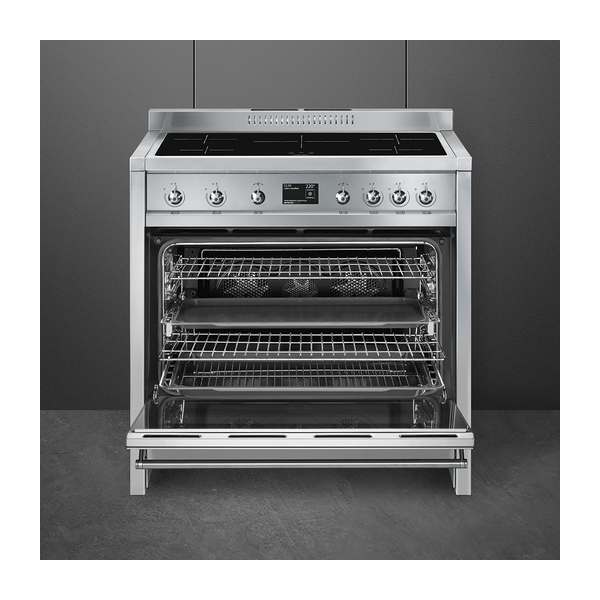

Smeg A1PYID-9 Opera Induction Range Cooker

The Smeg A1PYID-9 is a 90x60 cm Opera cooker combining a 5-zone induction hob with a large 115 litre thermo-ventilated electric oven. Designed with a Classic stainless steel aesthetic and fingerprint–proof finish, it offers 11 cooking functions, pyrolytic cleaning and triple fan technology. With an A+ energy efficiency class, TFT display and soft close door, it is suited to home cooks seeking professional–style performance and flexible cooking on five oven levels.

SKU:A1PYID-9

EAN:8017709243692

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm for generous hob space and a wide main oven cavity.

5-zone induction hob with single zones ranging from 1.40 kW to 2.60 kW and booster power up to 3.70 kW.

Thermo-ventilated main oven featuring triple fan technology and 11 cooking functions, including Circulaire and turbo modes.

Large 115 litre net oven capacity with five cooking levels for flexible multi-level cooking.

Pyrolytic cleaning system with standard and Eco pyrolytic functions for automatic interior cleaning.

Energy efficiency class A+ for high performance with reduced energy consumption.

Professional design in stainless steel with fingerprint proof finish and Classic Smeg control knobs.

TFT display with multiple languages including EN, DE, FR, IT, ES, NL, PL, PT, RU, DA and SV.

Soft Close oven door with full glass inner door and four door glasses, including one thermo–reflective pane.

Safety features including safety thermostat, overheat protection, residual heat indication and automatic switch–off when overheating.

Easy clean enamel cavity with removable inner door, telescopic guide rails and metal racks.

Drawer storage compartment with sliding compartment beneath the oven.

Customisable recipes and automatic programmes with 10 customisable recipes and 50 automatic programmes.

Wide temperature range from 50 °C to 280 °C with precise electronic temperature control.

Technical Spec

ModelA1PYID-9

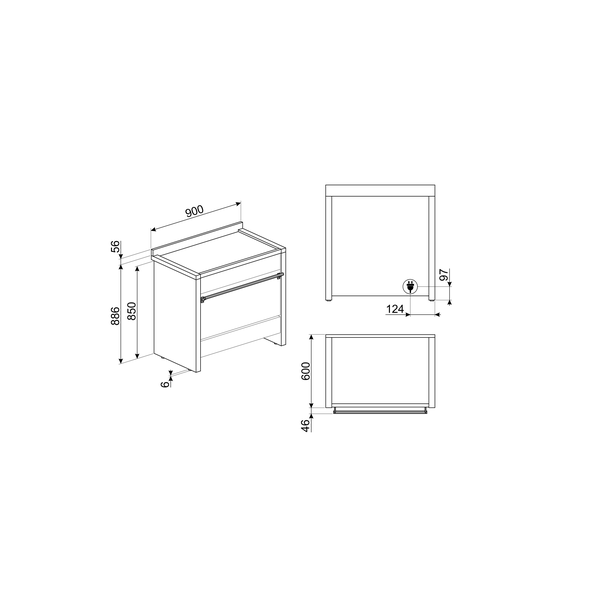

Cooker size90x60 cm

Series / DesignOpera – Professional

AestheticsClassic

Colour / finishStainless steel, fingerprint proof (finger friendly/fingerproof)

Hob typeInduction, 5 cook zones

Front left zoneInduction single – 1.40 kW – Booster 2.20 kW – Ø 14.5 cm

Rear left zoneInduction single – 1.85 kW – Booster 3.00 kW – Ø 18.0 cm

Central zoneInduction single – 2.60 kW – Booster 3.70 kW – Ø 27.0 cm

Rear right zoneInduction single – 2.30 kW – Booster 3.70 kW – Ø 21.0 cm

Front right zoneInduction single – 1.40 kW – Booster 2.20 kW – Ø 14.5 cm

Main oven typeThermo-ventilated electric oven

No. of cavities with energy label1

Net oven volume115 litres

Gross volume (1st cavity)129 l

Usable cavity dimensions (HxWxD)371x724x418 mm

No. of cooking functions11 traditional cooking functions

Cleaning system main ovenPyrolytic and Pyrolytic Eco

Cavity materialEasy clean enamel with antacid lining (enamel interior)

Fan number3 (triple fan technology)

Shelf positions5 levels, metal racks, telescopic rails (1 level, partial extraction)

Light type / powerHalogen, 40 W (side lights mentioned in glossary)

No. of oven lights4

Door openingFlap down, soft close system, removable door, removable inner door

Door construction4 glasses total, 1 thermo-reflective glass, full glass inner door, all glass inner door

HandleSmeg Classic, brushed stainless steel

Control typeControl knobs (Smeg Classic), stainless steel, 8 controls, TFT display

Display languagesDA, DE, EN, ES, FR, IT, NL, PL, PT, RU, SV

Energy efficiency classA+

Cooking temperature rangeMinimum 50 °C – Maximum 280 °C (electronic temperature control)

Main heating elementsLower 1700 W; Upper 1200 W; Grill 1700 W; Large grill 2900 W; Circular element 1500 W

Grill typeElectric, large grill and fan grill options

Safety thermostatYes

Cooling systemTangential, air cooling system to ensure safe surface temperatures

Indicators (hob)Minimum pan diameter indication, selected zone indicator, residual heat indicator

Overheat protectionAutomatic switch off when control unit overheats

Timer and alarmsTimer, end of cooking acoustic alarm, cooking time start and stop setting

Storage compartmentDrawer, sliding compartment

UpstandYes

Max power draw11400 W

Current50 A

Voltage220–240 V; Voltage 2: 380–415 V

Frequency50/60 Hz

Electric cableYes, single phase

Additional connection modalitiesYes, double and three phase; terminal block 5 poles

Included accessories (main oven)1 chrome shelf with back and side stop; 1 x 20 mm deep tray; 1 x 40 mm deep tray; 1 grill mesh; telescopic guide rails, partial extraction (1 level)

EAN code8017709243692

Downloads

Download product documentation, manuals, and specification sheets.

A1PYID-9 Spec

PDF

Frequently Asked Questions

What is the capacity of the main oven?

The main oven has a net capacity of 115 litres and a gross volume of 129 litres, with five cooking levels available.

How many cooking functions does the oven have?

The oven provides 11 traditional cooking functions, additional functions such as defrost by time, defrost by weight, plate rack/warmer, proving and Sabbath, plus 10 customisable recipes and 50 automatic programmes.

What cleaning options are available?

The cooker features a pyrolytic cleaning system with both standard and Eco pyrolytic functions. These automatically clean the oven interior, and the Eco cycle is suitable for lighter soiling with a maximum duration of 1.5 hours.

What safety features does the cooker include?

Safety features include a safety thermostat, tangential cooling system, automatic switch off when overheating, residual heat indicators on the hob, quadruple glazed oven door with thermo-reflective glass, and a soft close door mechanism.

Which accessories are supplied with the main oven?

The main oven is supplied with one chrome shelf with back and side stop, one 20 mm deep tray, one 40 mm deep tray, one grill mesh and partially extractable telescopic guide rails (one level).

Are there compatible accessories available?

Compatible accessories listed include the AIRFRY9 air fryer rack, BBQ9 grid, BN920 and BN940 enamelled trays, GRILLPLATE and TPKPLATE universal griddles/plates for multiple hob types, GTP and GTT telescopic guides, KIT2A1-9 plinth, KITH95A1X height extension kit, KITIA1-9 cover strip, PALPZ pizza shovel, SCRP scraper, SFLK1 child lock and SMOLD silicone mould set.
