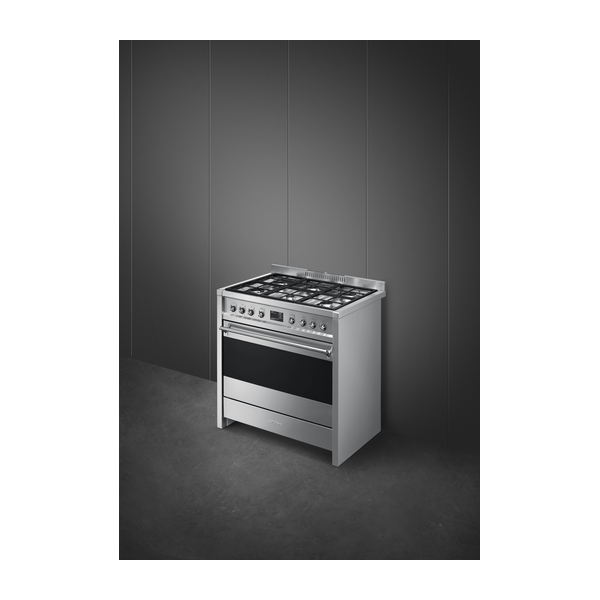

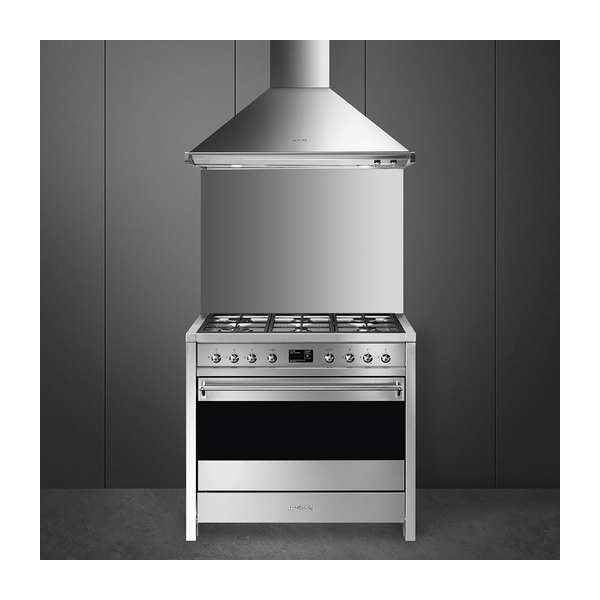

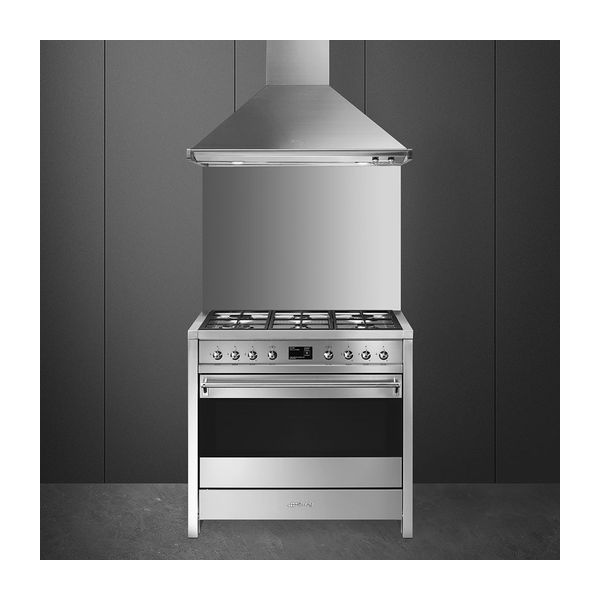

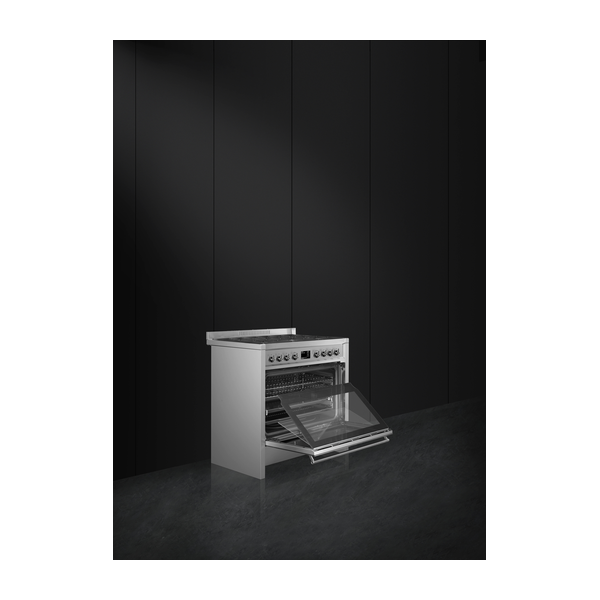

Smeg A1-9 Dual Fuel Range Cooker

This professional-style Smeg Opera A1-9 cooker combines a 90x60 cm stainless steel gas hob with a large 115 litre thermo-ventilated electric oven. Designed with Classic aesthetics, fingerproof stainless steel and heavy duty cast iron pan stands, it offers 10 cooking functions, triple fan technology and A+ energy efficiency. Catalytic panels and Vapor Clean simplify maintenance, while features such as Soft Close, electronic temperature control and child lock compatibility enhance everyday cooking.

SKU:A1-9

EAN:8017709229160

Category::Freestanding Cookers

Quantity:

Key Features

Cooker size 90x60 cm for generous hob space and a large single oven cavity.

6 gas cooking zones including 2UR dual, Rapid, Semi Rapid and AUX burners up to 4.20 kW.

Thermo-ventilated main oven with triple fan technology for uniform heat on all five levels.

Large 115 litre net cavity (129 l gross) providing substantial cooking capacity.

Energy efficiency class A+ for reduced energy consumption compared to class A.

Catalytic cleaning system with three self-cleaning panels to help remove grease and odours.

Vapor Clean function using steam to loosen deposits inside the oven cavity.

Professional stainless steel design with fingerproof finish and Classic Smeg styling.

Heavy duty cast iron pan stands for maximum stability and strength on the hob.

10 cooking functions including Static, Fan assisted, Circulaire, Turbo, ECO and multiple grill options.

Additional functions such as Defrost by time, Defrost by weight, plate rack/warmer, Proving and Sabbath.

Soft Close door system for smooth and quiet oven door closing.

Triple glazed oven door with 3 glasses and 2 thermo-reflective panes for improved insulation.

Easy clean enamel cavity with antacid lining to help reduce grease adherence.

Electronic temperature control maintaining oven temperature within 2–3 °C.

Finger friendly stainless steel command panel and fingerprint proof stainless steel surfaces.

TFT display with multiple languages including EN, DE, FR, IT, ES and others.

Automatic electronic ignition and gas safety valves on all burners.

Two halogen side lights for increased visibility inside the oven cavity.

Storage drawer compartment beneath the oven for convenient accessory storage.

Customisable recipes and automatic programmes with 10 customisable recipes and 50 automatic programmes.

Wide temperature range from 50 °C to 280 °C for diverse cooking needs.

Air cooling system to ensure safe surface temperatures.

Installation in column option supported for flexible kitchen planning.

Technical Spec

Product name / SeriesOpera A1-9 – Series Opera

Cooker size90x60 cm

Number of cavities with energy label1

Cavity heat sourceElectric

Hob typeGas

Type of main ovenThermo-ventilated

Cleaning system main ovenCatalytic + Vapor Clean

EAN code8017709229160

Energy efficiency classA+

Design / AestheticsProfessional – Classic aesthetics

Colour / FinishStainless steel, Fingerproof / Finger friendly stainless steel command panel

Hob colourStainless steel

UpstandYes

Type of pan standsCast iron – Heavy duty cast iron pan stands

Controls / Control knobsControl knobs, Smeg Classic, knobs control, stainless steel, 8 controls, serigraphy colour black

DisplayTFT display

Display languagesDA, DE, EN, ES, FR, IT, NL, PL, PT, RU, SV

DoorWith 2 horizontal strips, dark grey glass, triple glazed (3 glasses)

HandleSmeg Classic, brushed stainless steel, position: facia below the oven logo

Storage compartmentDrawer

Total number of cook zones6

Front left burnerGas – 2UR (dual) – 4.20 kW

Rear left burnerGas – Rapid – 3.00 kW

Front centre burnerGas – AUX – 1.00 kW

Rear centre burnerGas – Semi Rapid – 1.80 kW

Front right burnerGas – Semi Rapid – 1.80 kW

Rear right burnerGas – Rapid – 3.00 kW

Burner capsMatte black enamelled

Automatic electronic ignitionYes

Gas safety valvesYes

Net volume of cavity115 litres

Gross volume, 1st cavity129 l

Cavity materialEasy clean enamel with antacid lining

Shelf positions5 cooking levels with metal racks

Light type / powerHalogen, 40 W, 2 side lights, light when oven door is open

Door openingFlap down, removable door, full glass inner door, removable inner door

No. of thermo-reflective door glasses2

Safety thermostatYes

Heating suspended when door is openedYes

Cooling systemTangential air cooling system

Usable cavity space (HxWxD)371x724x418 mm

Temperature controlElectronic control, precision 2–3 °C

Lower heating element power1700 W

Upper heating element power1200 W

Grill element power1700 W

Large grill power2900 W

Circular heating element power1500 W

Grill typeElectric

Soft Close systemYes

Cooking time settingStart and Stop, timer, end of cooking acoustic alarm

Minimum temperature50 °C

Maximum temperature280 °C

Accessories included (main oven & hob)Cast iron wok support: 1; Chrome shelf with back and side stop: 1; 20mm deep tray: 1; 40mm deep tray: 1; Grill mesh: 1; Catalytic panels: 3; Telescopic guide rails, partial extraction: 1

Max power draw3200 W

Current14 A

Voltage220–240 V

Frequency50/60 Hz

Type of electric cableYes, single phase

Power supply cable length120 cm

Terminal block3 poles

Overall appliance dimensionsWidth 900 mm; height 885–915 mm (approx. from drawing); depth 600 mm; depth with handle approx. 630 mm; rear clearance 50 mm; front clearance 50 mm; hob overhang 48 mm; plinth set-back 124.5 mm. Exact height range not stated in source; values derived from diagram scale.

Downloads

Download product documentation, manuals, and specification sheets.

A1-9 Spec

PDF

Frequently Asked Questions

What type of cooker is the Smeg Opera A1-9?

It is a 90x60 cm cooker with a gas hob and an electric thermo-ventilated main oven. The hob uses standard gas burners, while the single oven cavity is electric with multiple fan and heating element combinations.

How large is the oven and how many levels does it have?

The main oven has a net volume of 115 litres (129 l gross) and provides five cooking levels with metal racks. The usable cavity dimensions are 371x724x418 mm.

What cleaning systems does this cooker use?

It features catalytic cleaning panels coated with special enamel to progressively eliminate grease and odours, a Vapor Clean function using steam to loosen deposits, and an easy clean enamel cavity with antacid lining. The all-glass inner door and removable inner glass further help with cleaning.

What safety features are included?

Safety features include gas safety valves on the burners, a safety thermostat, heating suspended when the door is opened, a tangential air cooling system for safe surface temperatures, and a triple glazed door with two thermo-reflective glasses. A child lock accessory (SFLK1) is also available.

What is the energy efficiency rating and power requirement?

The cooker has an energy efficiency class of A+. Maximum power draw is 3200 W, with a current of 14 A at 220–240 V and 50/60 Hz. It is supplied with a single phase electric cable of 120 cm and a 3-pole terminal block.

Which accessories are supplied with the appliance?

Included accessories are a cast iron wok support, one chrome shelf with back and side stop, a 20mm deep tray, a 40mm deep tray, a grill mesh, three catalytic panels and one set of partially extractable telescopic guide rails.
