Smeg DFFABBL Dishwasher

The SMEG DFFABBL is a 60 cm free–standing dishwasher with a commercial height of 85 cm and a 13 place setting capacity. It features an Inverter 2.0 motor, Planetarium washing system and natural condenser drying with Dry Assist+ automatic door opening. With 10+1 programmes, flexible 3–basket FlexiDuo layout and B energy efficiency class, it is designed for effective dishwashing performance with varied cycles and loading options.

SKU:DFFABBL

EAN:8017709307868

Category::Dishwashers

Quantity:

Key Features

60 cm free–standing dishwasher with commercial height of 85 cm and 13 place settings.

Inverter 2.0 motor designed for greater efficiency, durability, high performance and lower energy consumption and noise level.

10+1 programmes including Soak, Express 27', Crystal, Full express–60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%.

Hygiene 99.9% high–temperature programme with 75 °C rinse to remove 99.9% of germs and bacteria, ideal for sanitising.

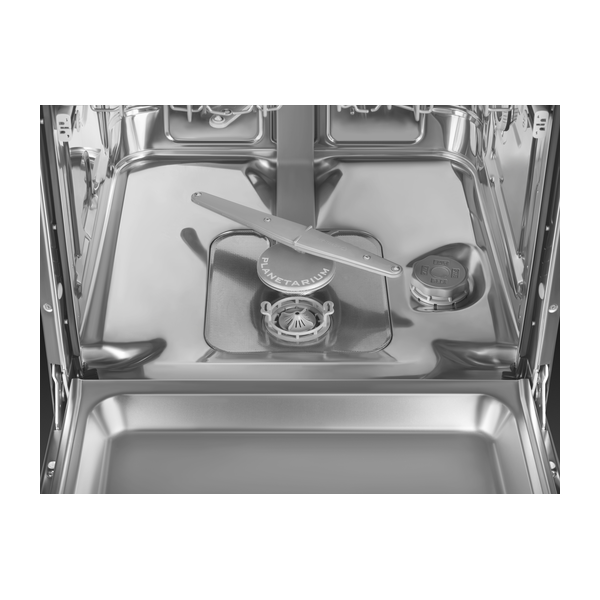

Planetarium washing system with third single spray arm for thorough washing coverage.

Dry Assist+ drying system using natural condenser drying with automatic door opening at the end of the cycle.

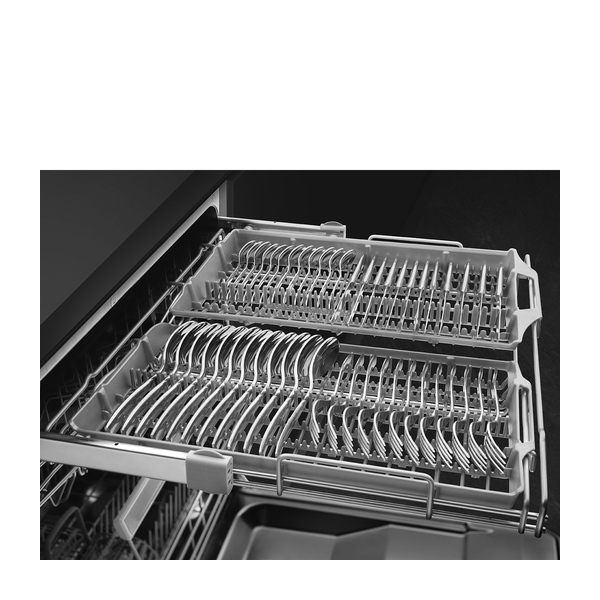

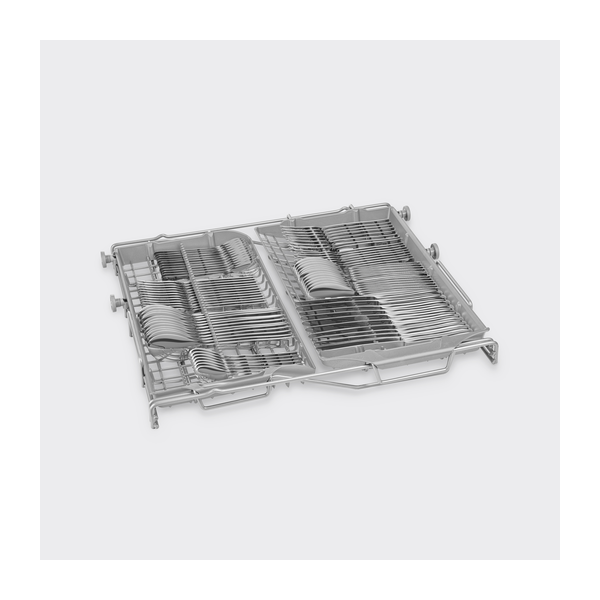

FlexiDuo 3rd cutlery basket made of two separate, moveable modules to arrange cutlery, small cups, ladles or bulky utensils.

Three grey baskets with FlexiZone 1/2 load option for varied distribution and efficient washing of reduced loads.

Upper basket with EasyGlide, 3 foldable racks, glass holder and height adjustment on three levels.

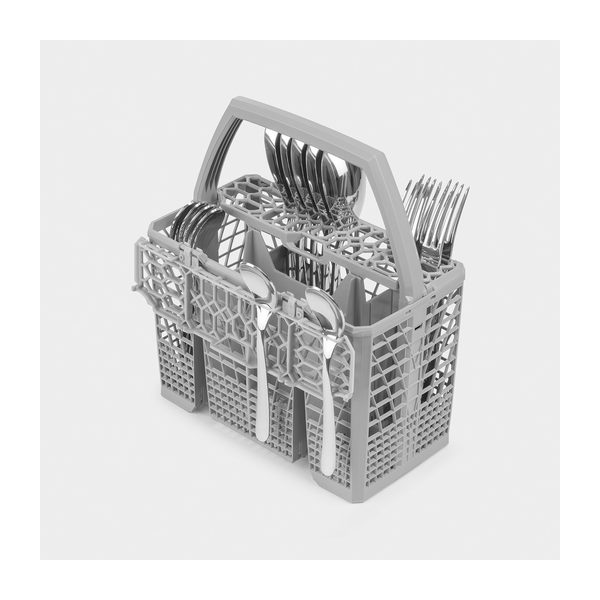

Lower basket with 4 foldable racks, anti–drip inserts and cutlery basket, loading dishes up to 30.0 cm diameter.

Quiet (–2 dB) option supported by excellent insulation and special devices to keep noise to a minimum.

Aquatest turbidity sensor measuring water clarity in auto programmes to ensure minimum water and energy consumption.

Total Acquastop flood protection monitoring water levels and detecting hose leaks to switch off water supply when necessary.

Electronic controls with 1–digit display, delayed start indication, symbols and label programme graphics.

Energy Efficiency Class B with 63 kWh per 100 cycles (eco programme) and water consumption of 9.0 litres per cycle.

Water supply flexibility with single cold or hot water inlet up to 60 °C and energy saving with hot water up to 35%.

Stainless steel tank and filter with concealed heating element for a clean internal finish.

UK–specific plug (G) UK e Singapore with 220–240 V, 50 Hz single–phase electrical connection.

Compatible accessories available including KITGH glass holder kit, KITINC top fixing bar and KITPLV2 2 m extension kit.

Alternative colour option available as model DFFABCR in cream.

Technical Spec

Product familyDishwashers

ModelDFFABBL

InstallationFree–standing

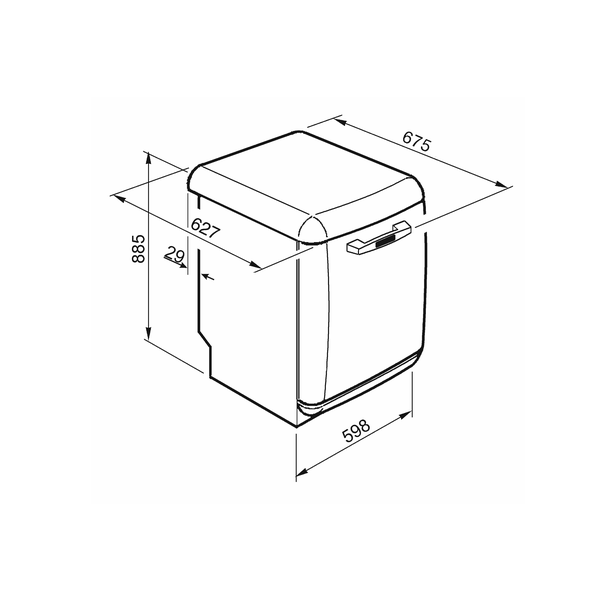

Width60 cm / 598 mm

Commercial height / Product height85 cm / 885 mm

Depth627 mm

Depth with open door1171 mm

Rated capacity13 place settings (ps)

Number of baskets3, FlexiDuo

Basket colourGrey

Basket components colourGrey

Inner components colourGrey

Largest loadable dish – upper basket19.0 cm

Largest loadable dish – lower basket30.0 cm

HandleIn plastic on upper and lower basket

Upper basketWith 3 foldable racks, glass holder, height adjustment on three levels, EasyGlide system

Lower basketWith 4 foldable racks, anti–drip inserts

Cutlery basketYes

MotorInverter 2.0

Washing systemPlanetarium

Third spray armSingle

Water softenerWith electronic setting

Turbidity sensorAquatest

Flood protection systemTotal Acquastop

Water supplySingle; cold/hot water max. 60 °C – energysave with hot water up to 35%

Max water hardness100°fH; 58°dH

Drying systemNatural condenser drying, with Dry Assist+ automatic door opening system at end of cycle

Tank materialStainless steel

FilterStainless steel

Concealed heating elementYes

HingesSelf balancing with fixed hinges

Adjustable feetJust for levelling

Back coverYes

Top coverIn plastic

ControlsElectronic

Display type1 digit

Display functionsDelayed start

Programme graphicsSymbols and label

On/off indicatorYes

Salt light indicatorLight

Rinse aid indicatorLight

End of cycle indicatorAcoustic signal

Energy Efficiency Class (washing cycle)B

Energy consumption (per 100 cycles, eco)63 kWh

Water consumption (per cycle)9.0 litres

Programme duration (eco)4:25 h:min

Airborne acoustical noise emissions45 dB(A) re 1 pW

Noise emission classC

Energy Efficiency Index (EEI)37.9

Connected power1800 W

Current13 A

Voltage220–240 V

Frequency50 Hz

Type of connectionSingle–phase

Power supply cable length140 cm

Plug(G) UK e Singapore

Downloads

Download product documentation, manuals, and specification sheets.

DFFABBL Spec

PDF

Frequently Asked Questions

What is the capacity of the SMEG DFFABBL dishwasher?

The dishwasher has a rated capacity of 13 place settings. The number of plate settings is indicated by symbols associated with the dishwasher.

Which washing programmes are available?

There are 10+1 programmes: Soak, Express 27', Crystal, Full express–60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%. Additional programmes such as Normal, Rapid 27 mins, Crystals, Eco, Soak and Auto 45°–65° are described in the symbols glossary.

How does the Hygiene 99.9% programme work?

The Hygiene 99.9% high–temperature washing programme uses a 75 °C rinse. This guarantees the removal of 99.9% of germs and bacteria, making it ideal for sanitising.

What is the FlexiDuo 3rd basket?

FlexiDuo is the 3rd cutlery basket made of two separate and moveable modules. It allows you to arrange cutlery, small cups, ladles or bulky utensils as required for flexible loading.

Can I wash a small load efficiently?

Yes. The 1/2 load FlexiZone option lets you wash a reduced load while saving energy, water and time. There are no restrictions on where items are placed in the baskets.

What flood protection does this dishwasher have?

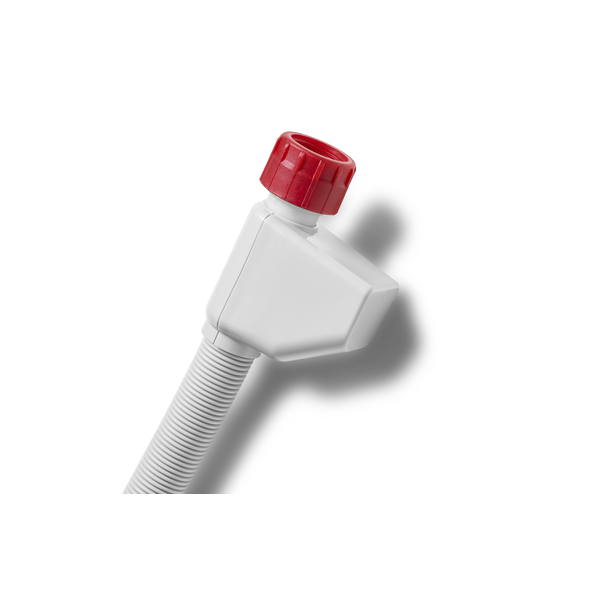

The dishwasher uses Total Acquastop. An electronic device on the water intake hose monitors water levels, detects leaks in the hose and switches off the water supply immediately when necessary.
