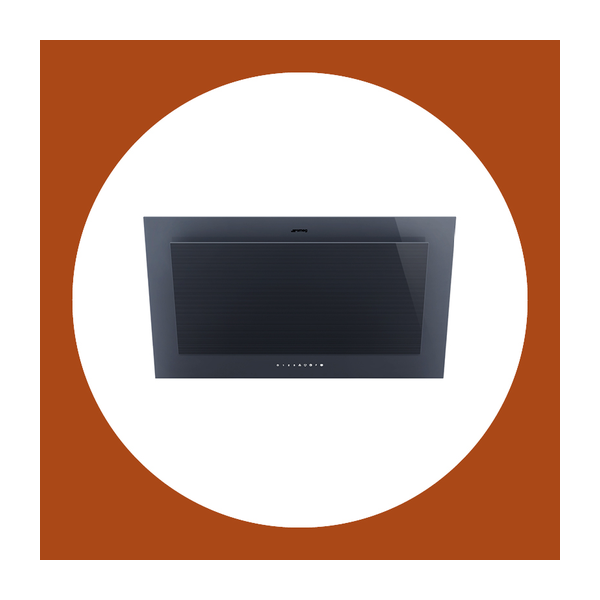

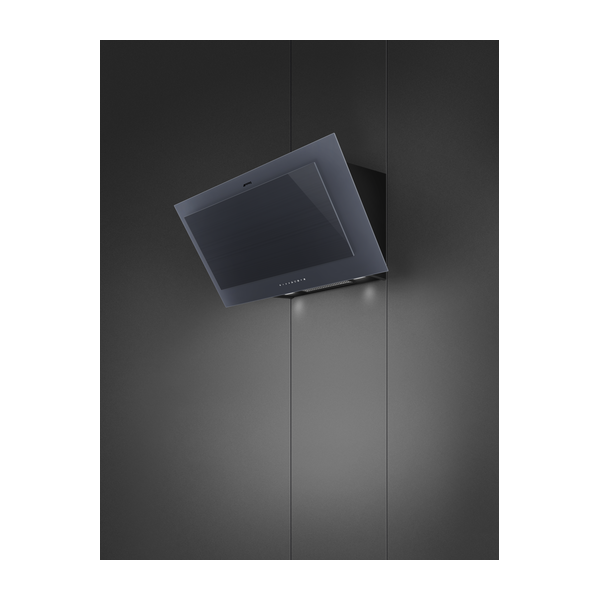

Smeg KV194G Linea Angled Chimney Hood

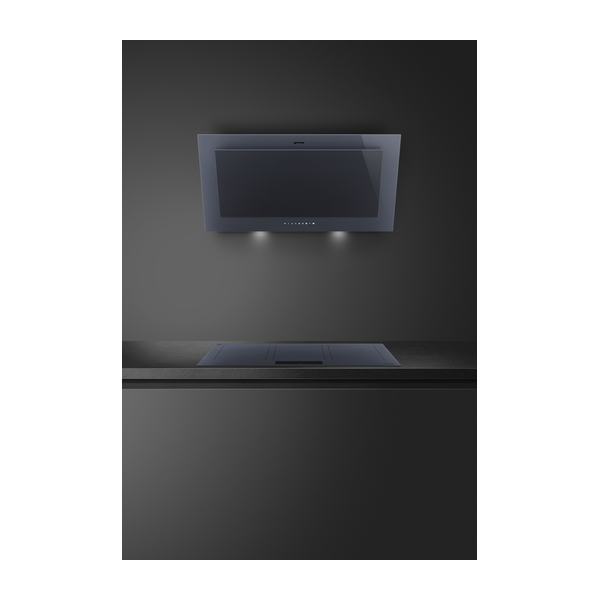

The SMEG KV194G is a 90 cm angled chimney cooker hood in Neptune Grey glass from the Linea aesthetic range. It offers ducted out or recirculation extraction, with perimeter extraction and stainless steel anti–grease filters. Touch control settings with white LED back–lighting provide access to three speeds plus intensive, 24 hour air filter function, time–setting options and Auto–Vent 2.0. Energy efficiency class A+ supports efficient kitchen ventilation.

SKU:KV194G

EAN:8017709327897

Category::Cooker Hoods

Quantity:

Key Features

Product family & type: Hood – Chimney Cooker Hoods with angled design.

Installation options: Extraction can be ducted out or re–circulation is possible.

Perimeter extraction: Perimeter extraction panels are very efficient and aid noise reduction.

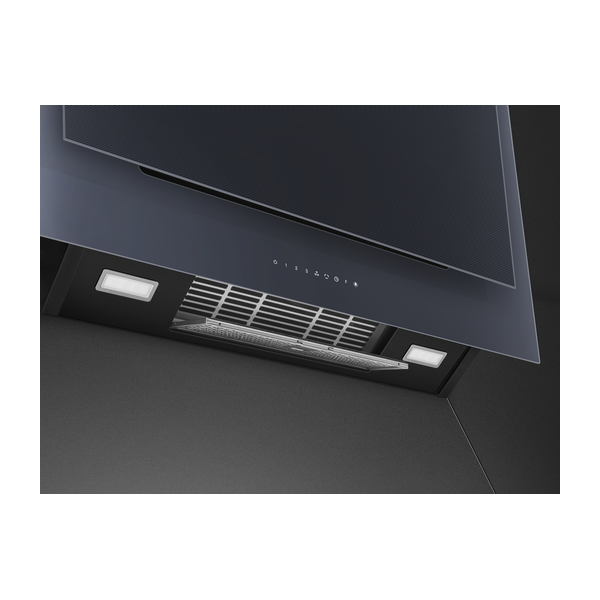

Touch controls: Electronic touch control, back–lighted in white for easy operation.

Speeds: 3 standard speeds plus intensive/turbo setting when extra fast extraction is required.

24 h air filter function: When selected, this function refreshes the air for about 10 minutes every hour over a 24 hour period at minimum speed and an imperceptible noise level.

Time–setting options: Includes a special setting to run after the end of cooking for a pre–set time and then switch off automatically.

Auto–Vent 2.0: Connection between hob and hood (further details Not stated in source).

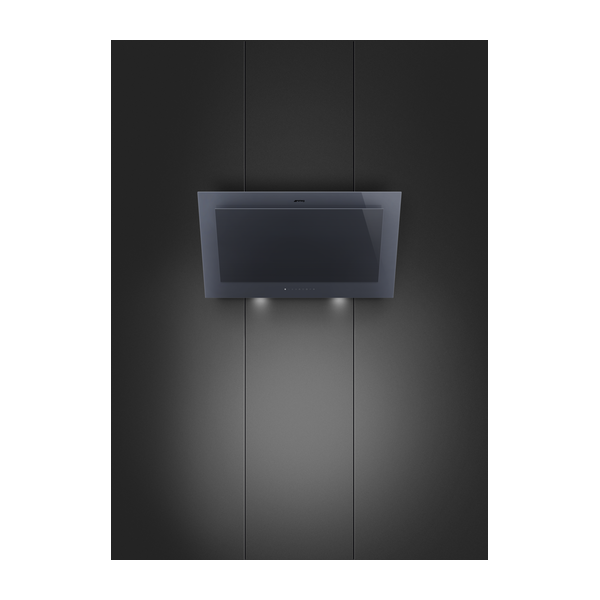

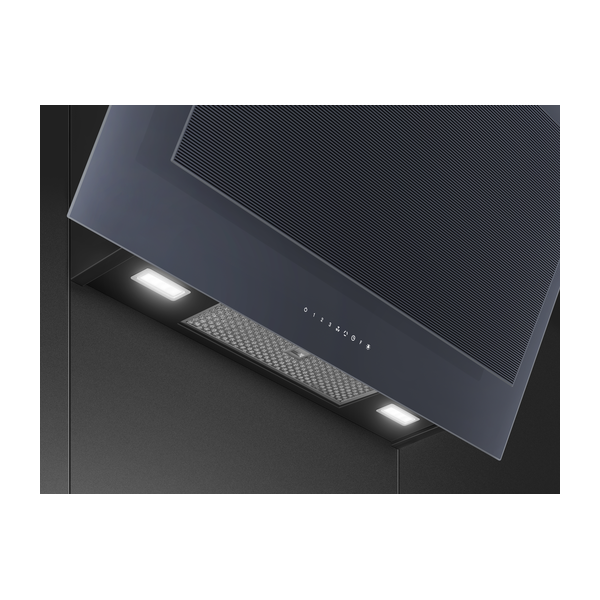

Lighting: 2 LED lights, 2.1 W each, with dimmer mode and adjustable colour temperature range 2700–4000 K to illuminate the cooking area or add to kitchen ambience.

Energy performance: Energy efficiency class A+ with Annual Efficiency Consumption 41 kWh/year.

Extraction performance: Free outlet maximum capacity 820 m³/h and intensive extraction rate 782 m³/h.

Noise levels: Airborne acoustical A–weighted sound power emissions from 50 dBA at minimum speed to 72 dBA at intensive speed.

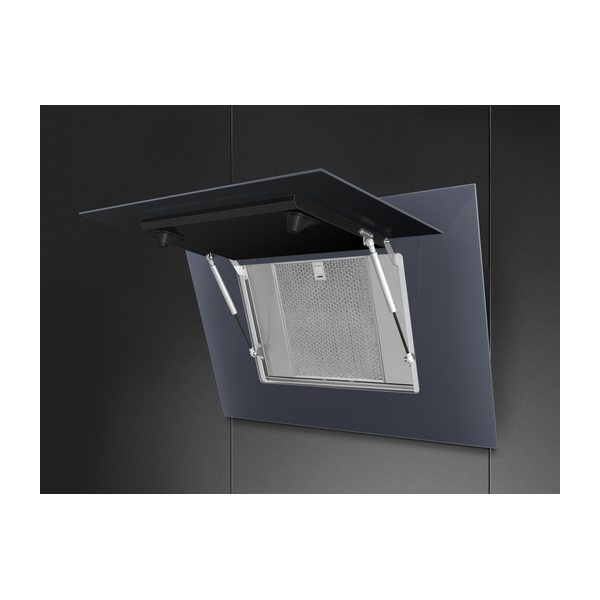

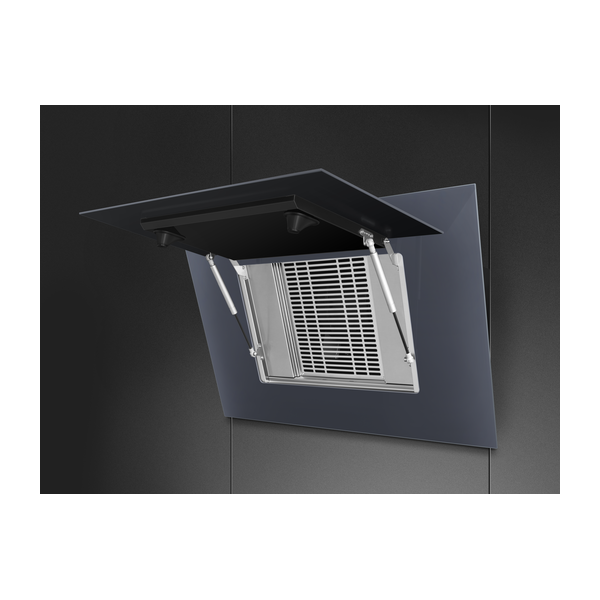

Filters: Stainless steel anti–grease filters with filter replacement indicator and charcoal filters included.

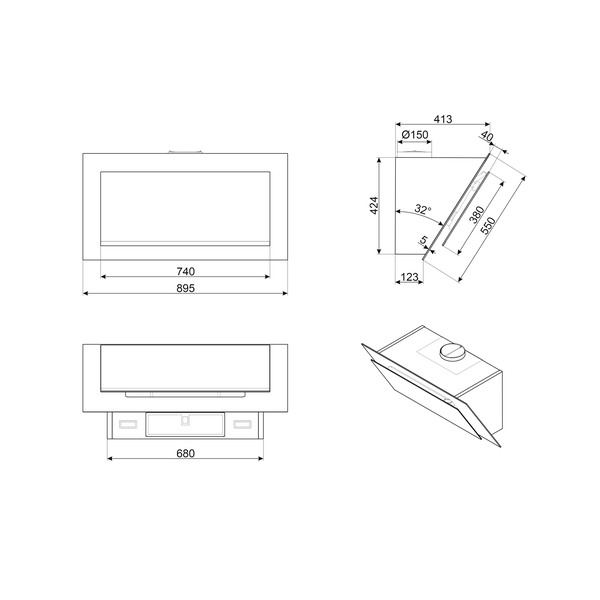

Dimensions & clearances: Hood width 90 cm; minimum distance from gas hob 650 mm and from electric hob 450 mm.

Vent outlet: 150 mm vent outlet with non return valve included.

Electrical connection: Nominal power 279 W, voltage 220–240 V, frequency 50–60 Hz, with 1500 mm power supply cable.

Materials & finish: Glass material with Neptune Grey colour, black glass type, grey serigraphy and silk screen logo.

Alternative colour available: Black version available as model KV194B3.

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignAngled

AestheticsLinea

ColourNeptune Grey

MaterialGlass

Glass typeBlack

Serigraphy colourGrey

LogoSilk screen

EAN code8017709327897

ModelKV194G

Hood width90 cm

Electronic controlYes

Control settingTouch control back–lighted

Back–light colourWhite

Extraction typeDucted out or re–circulation possible

Perimeter extractionYes

Free outlet maximum capacity820 m³/h

Air flow at minimum speed (Qmin)277 m³/h

Maximum extraction rate636 m³/h

Intensive extraction rate782 m³/h

Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)50 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)71 dBA

Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)72 dBA

Sound power level at highest setting (Lwa)71 dBA

Speed 1 – extraction rate / noise277 m³/h – 50 dBA

Speed 2 – extraction rate / noise406 m³/h – 63 dBA

Speed 3 – extraction rate / noise636 m³/h – 70 dBA

Intensive speed – extraction rate / noise782 m³/h – 72 dBA

Motor power275 W

Measured air flow rate at best efficiency point (Qbep)403 m³/h

Measured air pressure at best efficiency point (Qbep)479 Pa

Measured electric power input at best efficiency point (Wbep)148 W

Number of lights2

Light typeLED

Light power2,1 W

Dimmer modeYes

Light colour temperature range2700 – 4000 K

Normal power of the light system (Wl)5 W

Average illumination on cooking surface (Emiddle)139 lux

Anti–grease filtersStainless steel

Number of filters2

Charcoal filters includedYes

Filter replacement indicatorYes

Vent outlet150 mm

Non return valveYes

Minimum distance from gas hob650 mm

Minimum distance from electric hob450 mm

Energy efficiency class (EEC)A+

Annual Efficiency Consumption (AEChood)41 kWh/year

Fluid Dynamic Efficiency (FDE)36,2

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)34,8 lux/W

Lighting Efficiency class (LEC)A

Grease Filtering Efficiency (GFE)64,3 %

Grease Filtering Efficiency class (GFEC)E

Time increase factor (F)0,7

Energy Efficiency Index per first cavity41,2

Nominal power279 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1500 mm

Extraction rate IEC 61591Values as per speed breakdown above

Noise level IEC 60704–2–13Values as per speed breakdown above

Downloads

Download product documentation, manuals, and specification sheets.

KV194G Spec

PDF

Frequently Asked Questions

Can this hood be used in recirculation as well as ducted mode?

Yes. Extraction can be ducted out or re–circulation is possible. Charcoal filters are included to support recirculation use.

How many speeds does the SMEG KV194G have?

The hood has 3 speeds plus an intensive speed for extra fast extraction when required.

What is the maximum extraction rate?

The maximum extraction rate is 636 m³/h, with an intensive extraction rate of 782 m³/h and a free outlet maximum capacity of 820 m³/h.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 650 mm and from an electric hob is 450 mm.

Does the hood indicate when filters need changing?

Yes. There is a filter replacement indicator and warning light to advise when filters need changing.

What is the energy efficiency class of this hood?

The energy efficiency class is A+. This helps to save up to 10 % energy compared to class A, with maximum performance and minimum consumption guaranteed.
