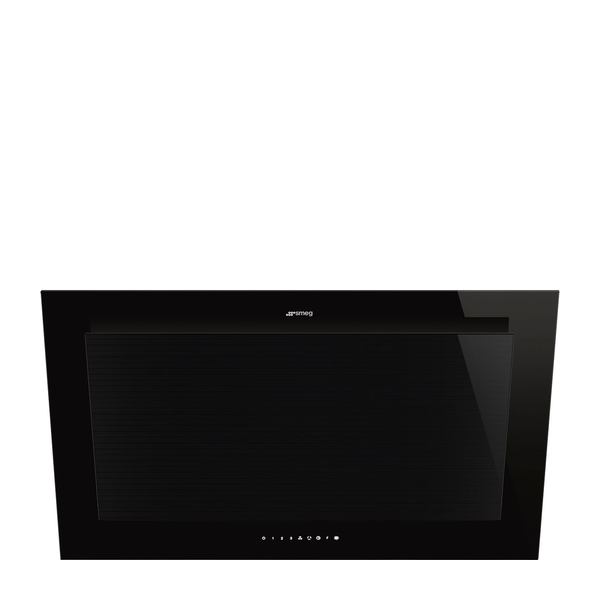

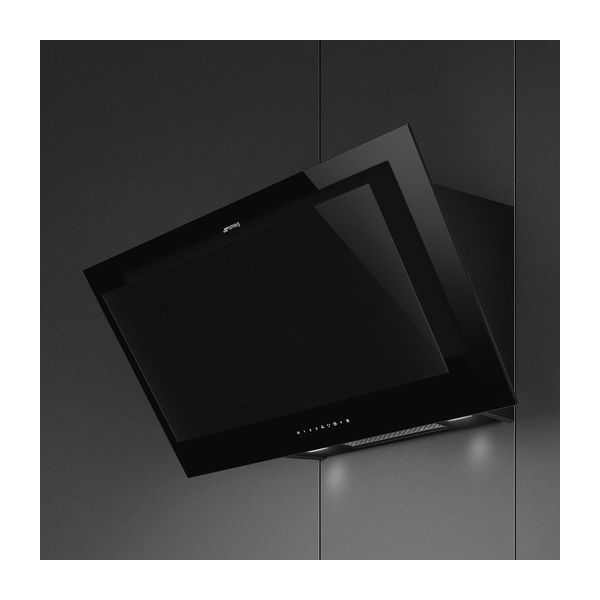

Smeg KV194B3 Linea Angled Chimney Hood

The KV194B3 is a 90 cm angled chimney cooker hood from the Linea aesthetics range in black glass. It offers ducted out or recirculation extraction with perimeter extraction and touch control back–lighted white controls. With an A+ energy efficiency class, LED lighting, three speeds plus intensive, and stainless steel anti–grease filters with charcoal filters included, it is designed to effectively refresh the air above gas or electric hobs.

SKU:KV194B3

EAN:8017709327903

Category::Cooker Hoods

Quantity:

Key Features

Product type: Chimney cooker hood from the Hood product family.

Design: Angled hood in the Linea aesthetics range.

Colour and material: Black glass with black finishing and black glass type, grey serigraphy and silk screen logo.

Extraction options: Ducted out or re–circulation possible.

Control setting: Electronic touch control back–lighted white.

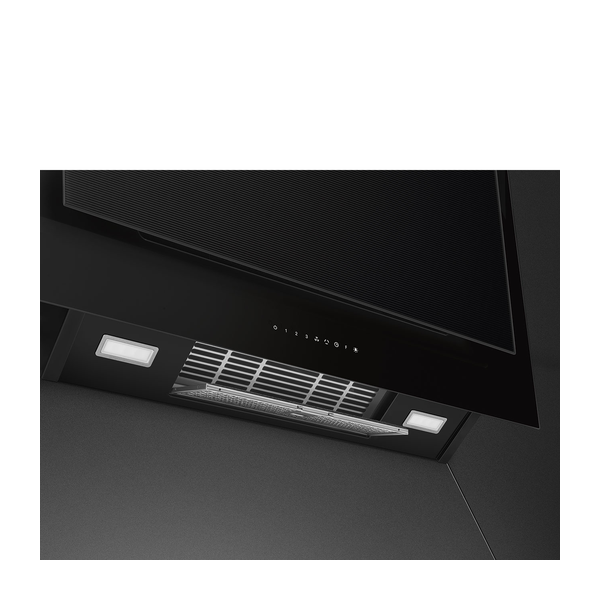

Perimeter extraction: Yes, with perimeter extraction panels.

Speeds: 3 speeds plus intensive speed.

24h air filter function: Refreshes the air for about 10 minutes every hour over a 24–hour period at minimum speed and imperceptible noise level.

Time–setting options: Includes a special setting to run after the end of cooking for a pre–set time and then switch off automatically.

Auto–Vent 2.0: Connection between hob and hood (details beyond this are not stated in source).

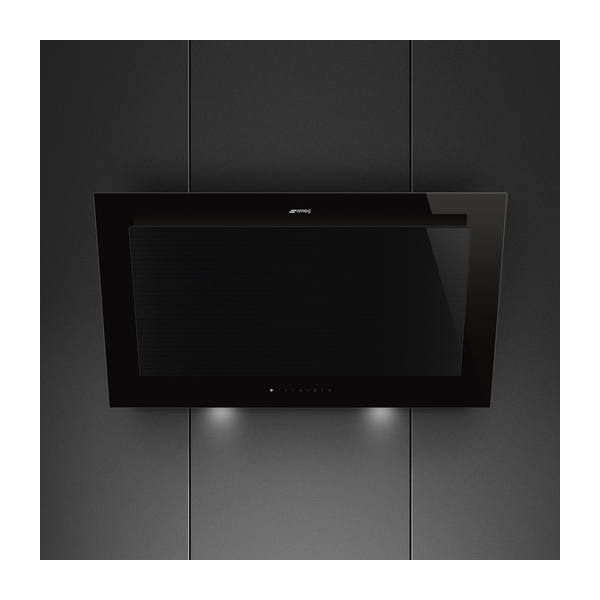

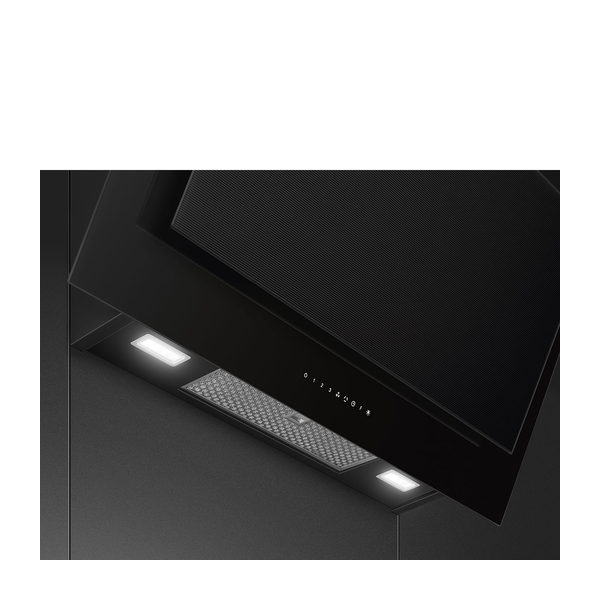

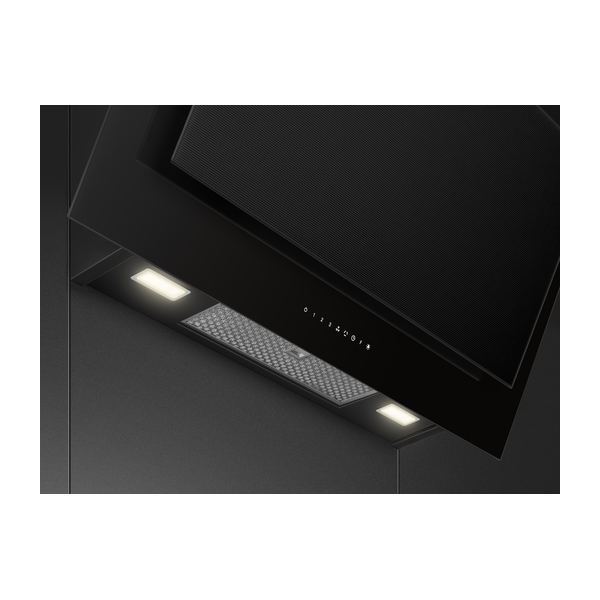

Lighting: 2 LED lights, 2.1 W each, with dimmer mode and 2700–4000 K colour temperature range.

Maximum free outlet capacity: 820 m³/h.

Maximum extraction rate: 636 m³/h, with intensive extraction rate of 782 m³/h.

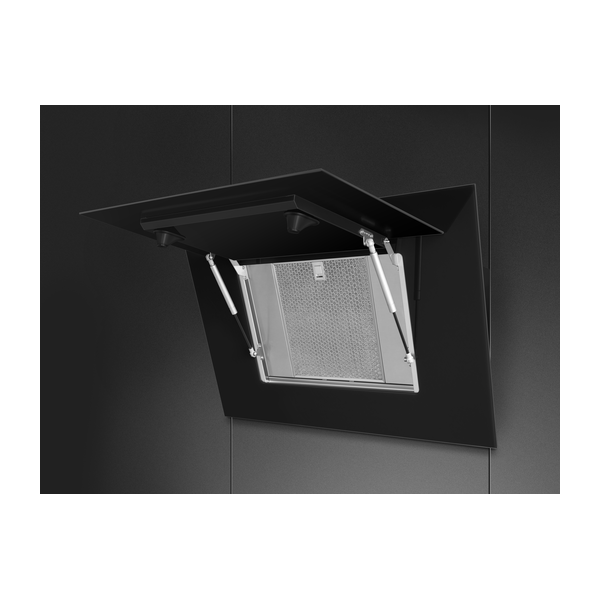

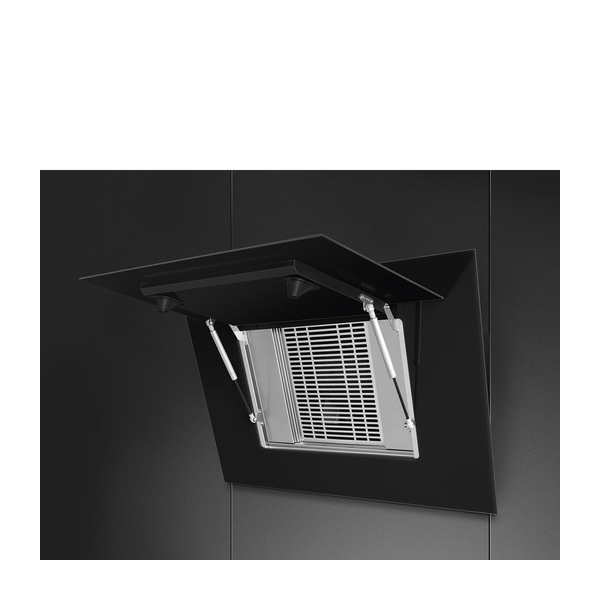

Anti–grease filters: Stainless steel filters included; model has filters to help remove grease from steam during cooking.

Charcoal filters included: Yes, for reducing strong cooking odours.

Filter replacement indicator: Warning lights advise when filters need changing.

Non return valve: Yes.

Energy efficiency class: A+ energy efficiency class helps to save up to 10 % energy compared to class A.

Lighting efficiency class: A lighting efficiency class.

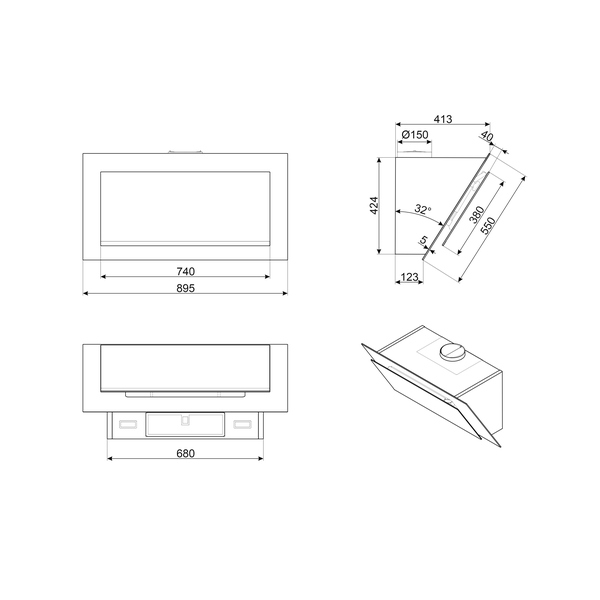

Hood width: 90 cm.

Minimum distance from gas hob: 650 mm.

Minimum distance from electric hob: 450 mm.

Vent outlet: 150 mm.

Noise performance: From 50 dBA at minimum speed to 72 dBA at intensive speed.

Alternative colour available: Neptune Grey (model KV194G).

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignAngled

ExtractionDucted out or re–circulation possible

Electronic controlYes

Perimeter extractionYes

MaterialGlass

EAN code8017709327903

Hood width90 cm

AestheticsLinea

ColourBlack

FinishingGlass

Glass typeBlack

Serigraphy colourGrey

LogoSilk screen

Control settingTouch control back–lighted White

LED colourWhite

No. of speeds3 plus intensive speed

24h air filter functionYes

Time–setting optionsYes

Auto–Vent 2.0Yes

No. of lights2

Light typeLED

Light power2,1 W

Dimmer modeYes

Light colour temperature range2700 – 4000 K

Free outlet maximum capacity820 m³/h

Motor power275 W

Anti–grease filtersStainless steel

Charcoal filters includedYes

Filter replacement indicatorYes

Vent outlet150 mm

Minimum distance from gas hob650 mm

Minimum distance from electric hob450 mm

No. of filters2

Non return valveYes

Annual efficiency consumption (AEChood)41 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36,2

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)34,8 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)64,3 %

Grease Filtering Efficiency Class (GFEC)E

Air flow at minimum speed (Qmin)277 m³/h

Maximum extraction rate636 m³/h

Intensive extraction rate782 m³/h

Sound power emission at minimum speed (SPEmin)50 dBA

Sound power emission at maximum speed (SPEmax)70 dBA

Sound power emission at boost speed (SPEboost)72 dBA

Time increase factor (F)0,7

Energy Efficiency Index per first cavity41,2

Measured air flow rate at best efficiency point (Qbep)403 m³/h

Measured air pressure at best efficiency point (Qbep)479 Pa

Measured electric power input at best efficiency point (Wbep)148 W

Normal power of the light system (Wl)5 W

Average illumination on cooking surface (Emiddle)139 lux

Sound power level at highest setting (Lwa)71 dBA

Nominal power279 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1500 mm

Extraction rate IEC 61591 – Speed 1277 m³/h, 50 dBA (IEC 60704–2–13)

Extraction rate IEC 61591 – Speed 2406 m³/h, 63 dBA (IEC 60704–2–13)

Extraction rate IEC 61591 – Speed 3636 m³/h, 70 dBA (IEC 60704–2–13)

Extraction rate IEC 61591 – Intensive speed782 m³/h, 72 dBA (IEC 60704–2–13)

Downloads

Download product documentation, manuals, and specification sheets.

KV194B3 Spec

PDF

Frequently Asked Questions

What type of hood is the KV194B3 and how wide is it?

It is a chimney cooker hood from the Hood product family, with an angled design and a hood width of 90 cm.

Can this hood be used in both ducted and recirculation modes?

Yes. Extraction can be ducted out or re–circulation is possible, and charcoal filters are included for recirculation use.

What are the main extraction and noise levels?

Air flow is 277 m³/h at minimum speed, 636 m³/h at maximum speed and 782 m³/h at intensive. Sound power emission ranges from 50 dBA at minimum speed to 72 dBA at intensive speed.

What is the energy efficiency rating of this hood?

The hood has an A+ energy efficiency class. This helps to save up to 10 % energy compared to class A. Annual efficiency consumption (AEChood) is 41 kWh/year.

What lighting features does the hood have?

It has 2 LED lights of 2,1 W each, with white LED colour, dimmer mode and a colour temperature range of 2700–4000 K. Lighting efficiency class is A, with lighting efficiency of 34,8 lux/W.

How do the filters work and how will I know when to replace them?

The hood uses stainless steel anti–grease filters to help remove grease from steam and includes charcoal filters to lessen strong cooking odours. Warning lights act as a filter replacement indicator to advise when filters need changing.
