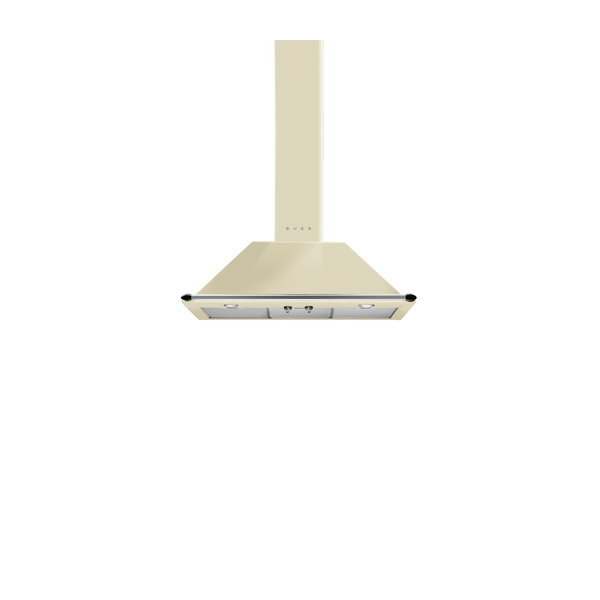

Smeg KT90PE Victoria Chimney Hood

The SMEG KT90PE is a 90 cm Victoria aesthetic chimney cooker hood in a cream gloss finish. It offers ducted out or recirculation extraction with three speeds plus intensive speed, aluminium anti-grease filters and LED lighting. With an A class energy efficiency rating and a maximum extraction rate of 567 m³/h (788 m³/h intensive), it is designed to provide effective ventilation above gas or electric hobs.

SKU:KT90PE

EAN:8017709211677

Category::Cooker Hoods

Quantity:

Key Features

Chimney cooker hood design with Victoria aesthetics and painted, brushed steel material in cream gloss.

90 cm hood width suitable for standard cooking areas, with minimum distances of 750 mm from gas hobs and 650 mm from electric hobs.

Ducted out or re–circulation extraction possible via a 150 mm vent outlet and integrated non–return valve.

Three speeds plus intensive speed providing maximum extraction of 567 m³/h and intensive extraction of 788 m³/h.

LED lighting with 2 lights at 1 W each, 3000 K colour temperature and 225 lux average illumination on the cooking surface.

Aluminium anti-grease filters – 3 filters to help remove grease from steam during cooking.

Energy efficiency class A with annual efficiency consumption of 59 kWh/year and Energy Efficiency Index of 52,4.

Efficient airflow performance including 334 m³/h at minimum speed and up to 820 m³/h free outlet maximum capacity.

Noise levels from 49 dBA to 69 dBA depending on speed setting, measured in accordance with IEC 60704–2–13.

Control knobs with Victoria styling, steel effect colour and 2 separate controls.

Electrical connection of 220–240 V, 50–60 Hz with nominal power 278 W and 1000 mm power supply cable.

Available alternative colours in white, black and stainless steel via models KT90BE, KT90BLE and KTR90XE.

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

AestheticsVictoria

Colour / finishingCream, gloss finish

MaterialPainted material, brushed steel type

Hood width90 cm

Extraction typeDucted out or re–circulation possible

Free outlet maximum capacity820 m³/h

Extraction rate (IEC 61591) – Speed 1334 m³/h – 49 dBA

Extraction rate (IEC 61591) – Speed 2439 m³/h – 57 dBA

Extraction rate (IEC 61591) – Speed 3567 m³/h – 61 dBA

Intensive speed extraction (IEC 61591)788 m³/h – 69 dBA

Maximum extraction rate567 m³/h

Air flow at minimum speed (Qmin)334 m³/h

Motor power275 W

Nominal power278 W

Number of speeds3 speeds + intensive speed

ControlsControl knobs, Victoria style, steel effect colour, 2 controls

Number of lights2 LED lights

Light power1 W each (Normal power of light system 2 W)

Light colour temperature3000 K

Average illumination on cooking surface (Emiddle)225 lux

Number of filters3 anti-grease filters, aluminium

Vent outlet150 mm, with non return valve

Minimum distance from gas hob750 mm

Minimum distance from electric hob650 mm

Annual efficiency consumption (AEChood)59 kWh/year

Energy efficiency class (EEC)A

Energy Efficiency Index52,4

Fluid Dynamic Efficiency (FDE)30 (class A)

Lighting Efficiency (LE)102,3 lux/W (class A)

Grease Filtering Efficiency (GFE)76,6 % (class C)

Time increase factor (F)1,00

Measured airflow at best efficiency point (Qbep)438 m³/h

Measured air pressure at best efficiency point (Qbep)434 Pa

Measured electric power input at best efficiency point (Wbep)176 W

Airborne sound at minimum speed (SPEmin)49 dBA

Airborne sound at maximum speed (SPEmax)61 dBA

Airborne sound at boost speed (SPEboost)69 dBA

Sound power level at highest setting (Lwa)61 dBA

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

LogoApplied

Downloads

Download product documentation, manuals, and specification sheets.

KT90PE -Bulletin.pdf

PDF

KT90PE Spec

PDF

Frequently Asked Questions

What extraction options are available on the KT90PE?

The hood can be installed for either ducted out extraction or re–circulation, using its 150 mm vent outlet and non–return valve.

How many speeds does this chimney hood have?

It has 3 standard speeds plus an intensive speed for extra fast extraction, with maximum extraction of 567 m³/h and 788 m³/h on intensive.

What is the energy efficiency rating of the KT90PE?

The hood has an energy efficiency class A with an annual efficiency consumption (AEChood) of 59 kWh/year and an Energy Efficiency Index of 52,4.

What type of lighting does the hood use?

It uses 2 LED lights with 1 W power each, a 3000 K colour temperature and an average illumination of 225 lux on the cooking surface. Lighting efficiency is 102,3 lux/W (class A).

What filters are fitted and are charcoal filters available?

The hood is supplied with 3 aluminium anti-grease filters. Round charcoal filters (FLT6) and a universal charcoal filter KITALLFC in stainless steel AISI 304 are available as compatible accessories.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm and from an electric hob is 650 mm.
