Home /Smeg / Cooker Hoods / Smeg KT90 Victoria Chimney Hood
KT90 GRE.jpg

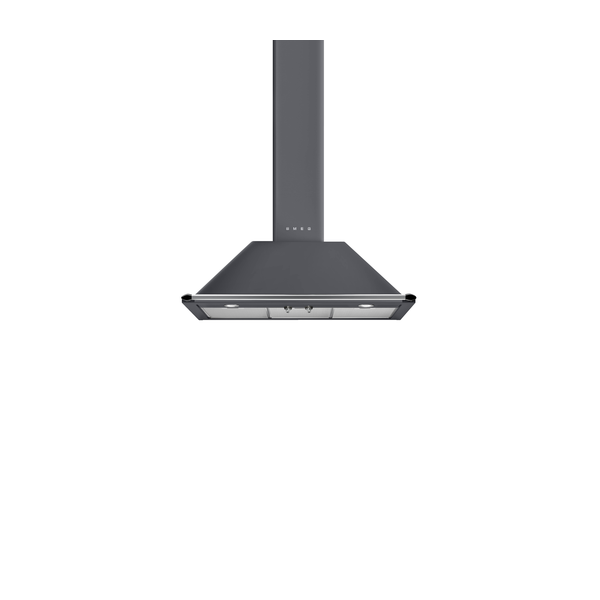

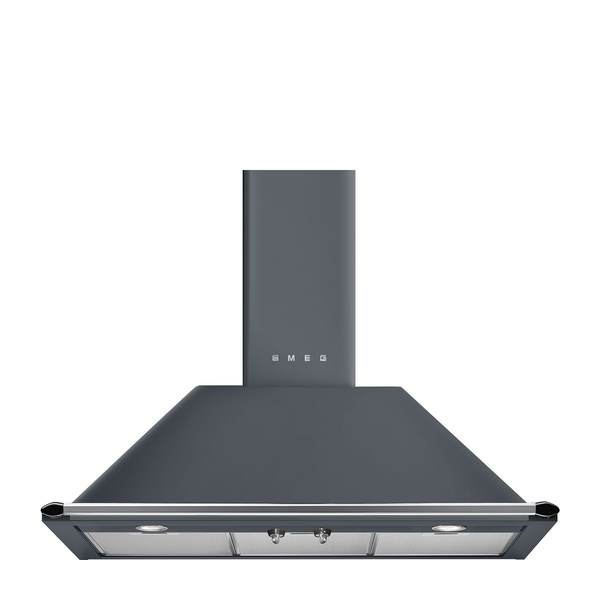

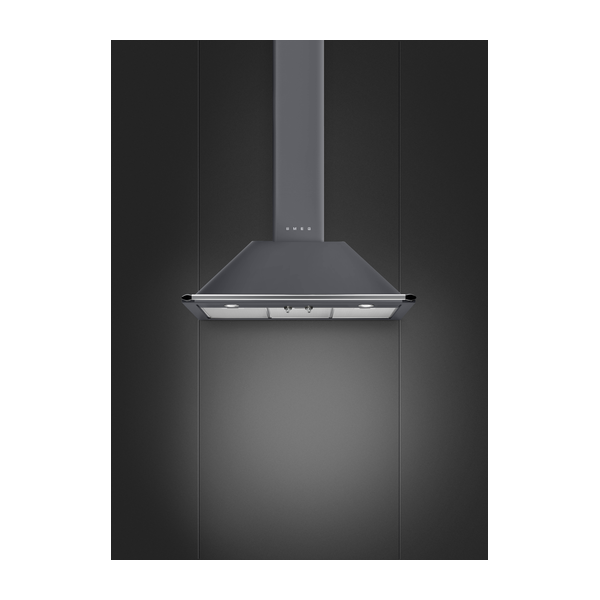

Smeg KT90 Victoria Chimney Hood

Smeg KT90 Victoria Chimney Hood

The KT90GRE is a 90 cm chimney cooker hood from the Victoria aesthetic line, finished in gloss slate grey with brushed painted material. Suitable for ducted out or re-circulation operation, it offers three speeds plus an intensive setting, aluminium anti-grease filters and warm 3000 K LED lighting. Energy efficiency class A and a maximum intensive extraction rate of 788 m³/h provide effective steam and odour removal for the cooking area.

SKU:KT90GRE
EAN:8017709303785
Category::Cooker Hoods
2 Year Warranty

Key Features

Chimney cooker hood design with Victoria aesthetics and gloss slate grey finish.
90 cm hood width suitable for wider hobs and cooking areas.
Extraction or re-circulation – ducted out or re-circulation operation possible.
Three speeds plus intensive setting for extra fast extraction when required.
Maximum intensive extraction rate of 788 m³/h (free outlet maximum capacity 820 m³/h).
LED lighting with 2 × 1 W lamps at 3000 K for cooking surface illumination.
Aluminium anti-grease filters to help remove grease from steam during cooking.
Energy efficiency class A with annual hood energy consumption of 59 kWh/year.
Non return valve and 150 mm vent outlet for effective air management.
Control knobs in Victoria style with steel effect finish and 2 controls.
Minimum installation distances of 750 mm from gas hobs and 650 mm from electric hobs.
Lighting efficiency class A with lighting efficiency of 102,3 lux/W.
Grease filtering efficiency of 76,6 % (class C).
Alternative colour options available: White, Black, Stainless steel, Cream.

Technical Spec

Product familyHood
Hood typeChimney Cooker Hoods
DesignChimney
ExtractionDucted out or re-circulation possible
MaterialPainted material
Type of steelBrushed
EAN code8017709303785
Model codeKT90GRE
Hood width90 cm
AestheticsVictoria
ColourSlate Grey
FinishingGloss
LogoApplied
Control settingControl knobs
No. of controls2
Control knobsVictoria
Controls colourSteel effect
No. of speeds3 + Intensive speed
No. of lights2
Light typeLED
Light power1 W
Light colour temperature3000 K
Average illumination (Emiddle)225 lux
Free outlet maximum capacity820 m³/h
Motor power275 W
No. of filters3
Anti-grease filtersAluminium
Vent outlet150 mm
Minimum distance from gas hob750 mm
Minimum distance from electric hob650 mm
Non return valveYes
Extraction rate IEC 61591 – Speed 1334 m³/h – 49 dBA
Extraction rate IEC 61591 – Speed 2439 m³/h – 57 dBA
Extraction rate IEC 61591 – Speed 3567 m³/h – 62 dBA
Extraction rate IEC 61591 – Intensive788 m³/h – 69 dBA
Air flow at minimum speed (Qmin)334 m³/h
Maximum extraction rate567 m³/h
Intensive extraction rate788 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)49 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)62 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)69 dBA
Sound power level at highest setting (Lwa)62 dBA
Annual efficiency consumption (AEChood)59 kWh/year
Energy efficiency class (EEC)A
Fluid Dynamic Efficiency (FDE)30
Fluid Dynamic Efficiency class (FDEC)A
Lighting Efficiency (LE)102,3 lux/W
Lighting Efficiency Class (LEC)A
Grease Filtering Efficiency (GFE)76,6 %
Grease Filtering Efficiency Class (GFEC)C
Time increase factor (F)0,9
Energy Efficiency Index per first cavity52,4
Measured air flow rate at best efficiency point (Qbep)438 m³/h
Measured air pressure at best efficiency point (Qbep)434 Pa
Measured electric power input at best efficiency point (Wbep)176 W
Normal power of the light system (Wl)2 W
Nominal power278 W
Voltage220–240 V
Frequency50–60 Hz
Power supply cable length1000 mm
Alternative colours availableWhite, Black, Stainless steel, Cream
Available colour model codesKT90BE – KTR90XE – KT90PE – KT90BLE

Downloads

Download product documentation, manuals, and specification sheets.

KT90GRE Spec

PDF

Frequently Asked Questions

Can this hood be used in either extraction or re-circulation mode?

Yes. The hood is designed for ducted out extraction or for re-circulation, depending on installation requirements.

What is the maximum extraction rate of the KT90GRE?

The maximum extraction rate is 567 m³/h, with an intensive extraction rate of 788 m³/h and a free outlet maximum capacity of 820 m³/h.

What is the energy efficiency rating?

The cooker hood has an energy efficiency class A, with an annual hood energy consumption of 59 kWh/year.

What type of filters are included and what do they do?

The hood is supplied with three aluminium anti-grease filters. These filters are designed to help remove grease from the steam emanating from pans during cooking.

What are the noise levels at different speeds?

At speed 1 the noise level is 49 dBA, at speed 2 it is 57 dBA, at speed 3 it is 62 dBA, and at intensive speed it is 69 dBA.

What is the minimum installation height above the hob?

The minimum distance from a gas hob is 750 mm and from an electric hob is 650 mm.
