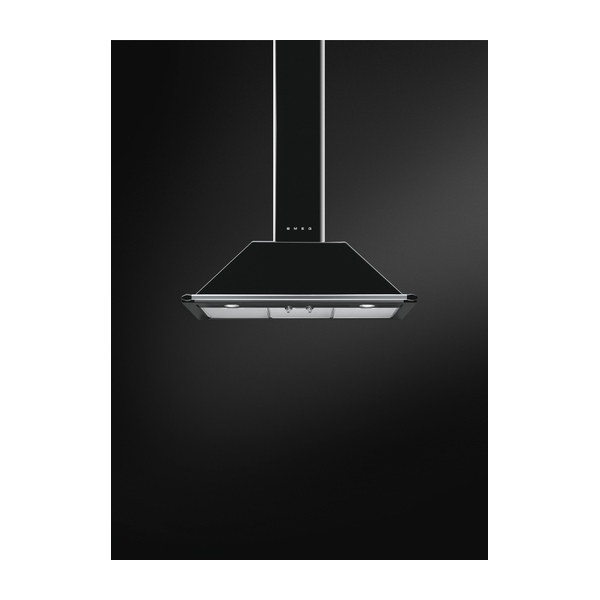

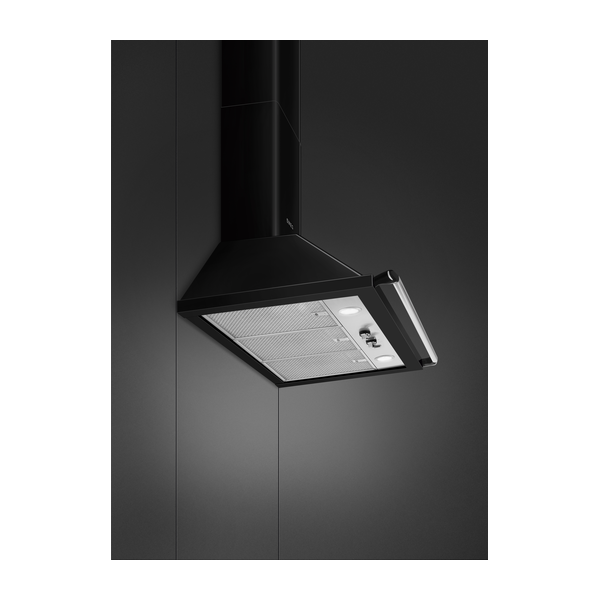

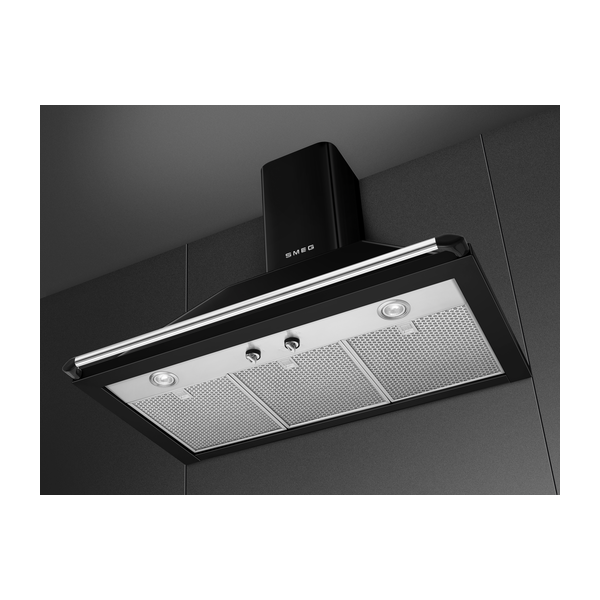

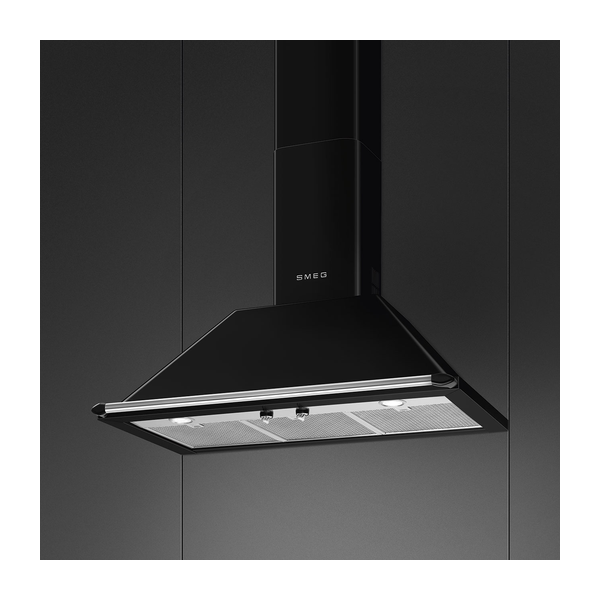

Smeg KT90BLE Victoria Chimney Hood

The SMEG KT90BLE is a 90 cm chimney cooker hood from the Victoria aesthetic range, finished in glossy black with brushed steel-effect controls. It offers ducted out or recirculation extraction with four speeds, including an intensive setting, and three aluminium anti-grease filters. LED lighting at 3000 K provides illumination over the hob, while an A class energy rating and a maximum free outlet capacity of 820 m³/h deliver efficient kitchen ventilation.

SKU:KT90BLE

EAN:8017709211653

Category::Cooker Hoods

Quantity:

Key Features

Product family: Hood, Victoria aesthetic chimney cooker hood.

Hood type: Chimney Cooker Hoods with chimney design.

Width: 90 cm hood width for larger cooking areas.

Extraction options: Ducted out or re–circulation possible.

Finish and colour: Gloss black, painted material with brushed steel.

Controls: Victoria style control knobs, 2 controls, steel effect.

Speeds: 4 speeds including intensive/turbo setting.

Lighting: 2 LED lights, 1 W each, 3000 K warm light.

Filtration: 3 aluminium anti–grease filters.

Free outlet maximum capacity: 820 m³/h.

Maximum extraction rate: 567 m³/h; intensive 788 m³/h.

Noise levels: From 49 dBA (minimum speed) to 69 dBA (intensive).

Energy efficiency class: A with 59 kWh/year annual consumption.

Lighting efficiency: 102,3 lux/W, Lighting Efficiency Class A.

Grease filtering efficiency: 76,6 % (Class C).

Vent outlet: 150 mm with non return valve.

Minimum distances: 750 mm from gas hobs, 650 mm from electric hobs.

Electrical supply: 220–240 V, 50–60 Hz, nominal power 278 W.

Available colours: Also available in white, stainless steel and cream (models KT90BE, KTR90XE, KT90PE).

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re–circulation possible

MaterialPainted material, brushed type of steel

AestheticsVictoria

Colour / finishingBlack, gloss, logo applied

Hood width90 cm

Control settingControl knobs, Victoria, steel effect, 2 controls

Number of speeds4, including intensive speed

Number of lights2 LED lights

Light power1 W each (Normal Power of the light system 2 W)

Light colour temperature3000 K

Number of filters3 aluminium anti–grease filters

Vent outlet150 mm, non return valve: Yes

Free outlet maximum capacity820 m³/h

Air flow at minimum speed (Qmin)334 m³/h

Maximum extraction rate567 m³/h

Intensive extraction rate788 m³/h

Extraction rate IEC 61591 – Speed 1334 m³/h, 49 dBA (IEC 60704–2–13)

Extraction rate IEC 61591 – Speed 2439 m³/h, 57 dBA

Extraction rate IEC 61591 – Speed 3567 m³/h, 61 dBA

Extraction rate IEC 61591 – Intensive speed788 m³/h, 69 dBA

Airborne acoustical A–weighted sound power emission (SPEmin)49 dBA at minimum speed

Airborne acoustical A–weighted sound power emission (SPEmax)61 dBA at maximum speed

Sound power emission at boost (SPEboost)69 dBA at boost speed

Sound power level at highest setting (Lwa)61 dBA

Motor power275 W (Measured electric power input at best efficiency point: 176 W)

Annual Efficiency Consumption (AEChood)59 kWh/year

Energy efficiency class (EEC)A

Fluid Dynamic Efficiency (FDE)30, Fluid Dynamic Efficiency class A

Lighting Efficiency (LE)102,3 lux/W, Lighting Efficiency Class A

Grease Filtering Efficiency (GFE)76,6 %, Grease Filtering Efficiency Class C

Average illumination on cooking surface (Emiddle)225 lux

Time increase factor (F)1,00

Energy Efficiency Index per first cavity52,4

Measured air flow rate at best efficiency point (Qbep)438 m³/h

Measured air pressure at best efficiency point (Qbep)434 Pa

Nominal power278 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Minimum distance from GAS hob750 mm

Minimum distance from ELECTRIC hob650 mm

Alternative colours availableWhite, Stainless steel, Cream (KT90BE, KTR90XE, KT90PE)

Downloads

Download product documentation, manuals, and specification sheets.

KT90BLE - Bulletin.pdf

PDF

KT90BLE Spec

PDF

Frequently Asked Questions

What extraction options does the SMEG KT90BLE offer?

The KT90BLE can be installed for ducted out extraction or configured for re–circulation, providing flexibility depending on kitchen layout and venting options.

How many speeds does this cooker hood have?

The hood has 4 speeds, including an intensive speed (intensive/turbo setting) for times when extra fast extraction is required.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

What type of filters are included and what is the grease filtering efficiency?

The hood includes 3 aluminium anti–grease filters. Its Grease Filtering Efficiency (GFE) is 76,6 %, with Grease Filtering Efficiency Class C.

What is the energy efficiency class and annual consumption?

The KT90BLE has an Energy Efficiency Class A and an Annual Efficiency Consumption (AEChood) of 59 kWh/year.

Are there other colour options in the same range?

Yes. Alternative colours available are white, stainless steel and cream, with available colour models KT90BE, KTR90XE and KT90PE.
