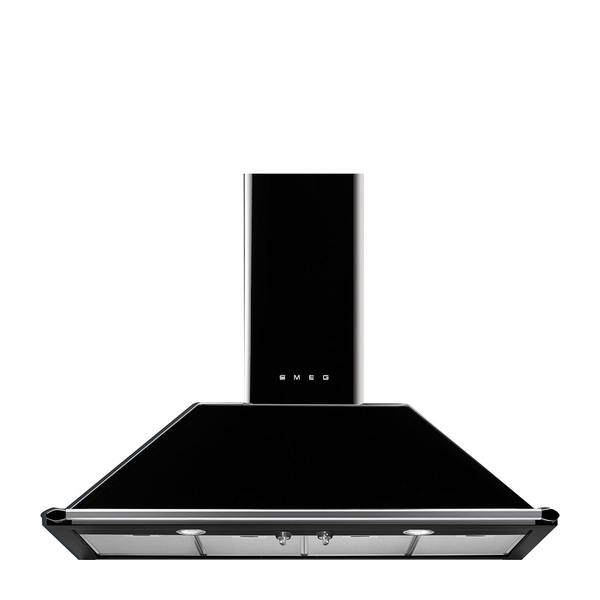

Smeg KT110BLE Victoria Chimney Hood

The SMEG KT110BLE is a 110 cm Victoria-style chimney cooker hood in gloss black, designed for ducted extraction or recirculation. It features three speeds plus an intensive setting, LED lighting with warm 3000 K colour temperature and aluminium anti-grease filters. With an A energy efficiency class and a maximum intensive extraction rate of 784 m³/h, it offers powerful ventilation for compatible gas or electric hobs.

SKU:KT110BLE

EAN:8017709211691

Category::Cooker Hoods

Quantity:

Key Features

Product family: Hood, chimney cooker hood design with Victoria aesthetics.

Width: 110 cm chimney hood suitable for larger cooking areas.

Extraction options: Ducted out or re–circulation possible.

Finish and colour: Gloss black, painted material with brushed steel type and applied logo.

Controls: Victoria control knobs in steel effect with 2 controls and 3 speeds plus intensive speed.

Lighting: 2 x 1 W LED lights with 3000 K colour temperature and average illumination of 183 lux.

Maximum free outlet capacity: 820 m³/h.

Extraction performance (IEC 61591): 326 m³/h (Speed 1), 439 m³/h (Speed 2), 554 m³/h (Speed 3), 784 m³/h (Intensive).

Noise levels (IEC 60704-2-13): 49 dBA (Speed 1), 57 dBA (Speed 2), 63 dBA (Speed 3), 71 dBA (Intensive).

Filters: 4 aluminium anti-grease filters with non return valve and grease filtering efficiency of 69,2 % (Class D).

Energy efficiency: Energy efficiency class A with annual efficiency consumption of 57 kWh/year.

Lighting efficiency: 83,2 lux/W, Lighting Efficiency Class A.

Fluid Dynamic Efficiency: 31,1 (Class A) with measured air flow rate at best efficiency point of 413 m³/h.

Motor power: 275 W with nominal power of 278 W.

Vent outlet: 150 mm with non return valve included.

Minimum installation distances: 750 mm from gas hob and 650 mm from electric hob.

Electrical connection: 220–240 V, 50–60 Hz, power supply cable length 1000 mm.

Alternative colours available: White, Stainless steel, Cream (models KT110BE, KTR110XE, KT110PE).

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

AestheticsVictoria

ModelKT110BLE

EAN code8017709211691

Hood width110 cm

Colour / finishingBlack, gloss

MaterialPainted material, type of steel brushed

LogoApplied

ExtractionDucted out or re–circulation possible

Control settingControl knobs, Victoria, controls colour steel effect, 2 controls

Number of speeds3 speeds + intensive speed

Number of lights2

Light typeLED

Light power1 W (per light); Normal Power of the light system (Wl) 2 W

Light colour temperature3000 K

Average illumination on cooking surface (Emiddle)183 lux

Free outlet maximum capacity820 m³/h

Extraction rate IEC 61591Speed 1: 326 m³/h; Speed 2: 439 m³/h; Speed 3: 554 m³/h; Intensive speed: 784 m³/h

Noise level IEC 60704-2-13Speed 1: 49 dBA; Speed 2: 57 dBA; Speed 3: 63 dBA; Intensive speed: 71 dBA

Air flow at minimum speed (Qmin)326 m³/h

Maximum extraction rate554 m³/h

Intensive extraction rate784 m³/h

Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)49 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)63 dBA

Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)71 dBA

Sound power level at highest setting (Lwa)63 dBA

Number of filters4 aluminium anti-grease filters

Grease Filtering Efficiency (GFE)69,2 % (Grease Filtering Efficiency Class D)

Vent outlet150 mm, non return valve Yes

Minimum distance from gas hob750 mm

Minimum distance from electric hob650 mm

Motor power275 W

Nominal power278 W

Annual Efficiency Consumption (AEChood)57 kWh/year

Energy efficiency class (EEC)A

Fluid Dynamic Efficiency (FDE)31,1 (Fluid Dynamic Efficiency class A)

Lighting Efficiency (LE)83,2 lux/W (Lighting Efficiency Class A)

Time increase factor (F)1,00

Energy Efficiency Index per first cavity52,2

Measured air flow rate at best efficiency point (Qbep)413 m³/h

Measured air pressure at best efficiency point (Qbep)456 Pa

Measured electric power input at best efficiency point (Wbep)168 W

Voltage220–240 V

Frequency (Hz)50–60 Hz

Power supply cable length1000 mm

Downloads

Download product documentation, manuals, and specification sheets.

KT110BLE - Bulletin.pdf

PDF

KT110BLE Spec

PDF

Frequently Asked Questions

Can this hood be used with both ducted and recirculation setups?

Yes. The extraction system allows for ducted out installation or re–circulation, depending on your kitchen requirements.

What are the minimum installation heights above the hob?

The minimum distance is 750 mm from a gas hob and 650 mm from an electric hob.

How many speeds does the SMEG KT110BLE have?

It has 3 speeds plus an intensive speed for extra fast extraction when required.

What type of filters are included?

The hood is equipped with 4 aluminium anti-grease filters and includes a non return valve on the vent outlet.

Is this model energy efficient?

Yes. It has an Energy efficiency class A with an annual efficiency consumption of 57 kWh/year and Fluid Dynamic Efficiency class A.

Are other colours available?

Yes. Alternative colours available are White, Stainless steel and Cream, with available models KT110BE, KTR110XE and KT110PE.
