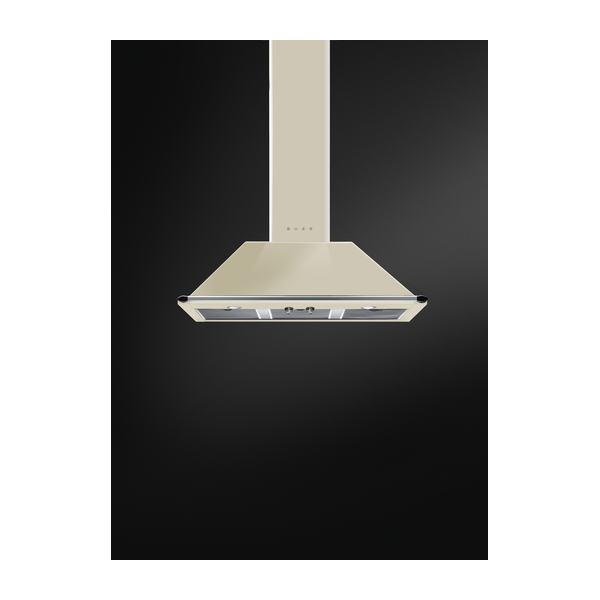

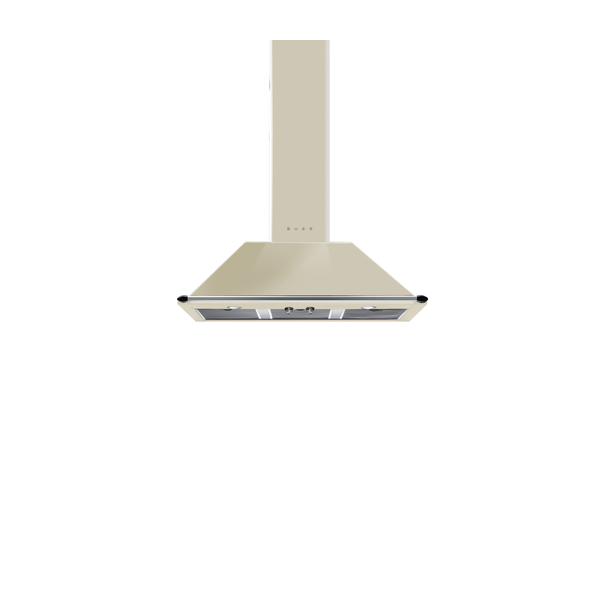

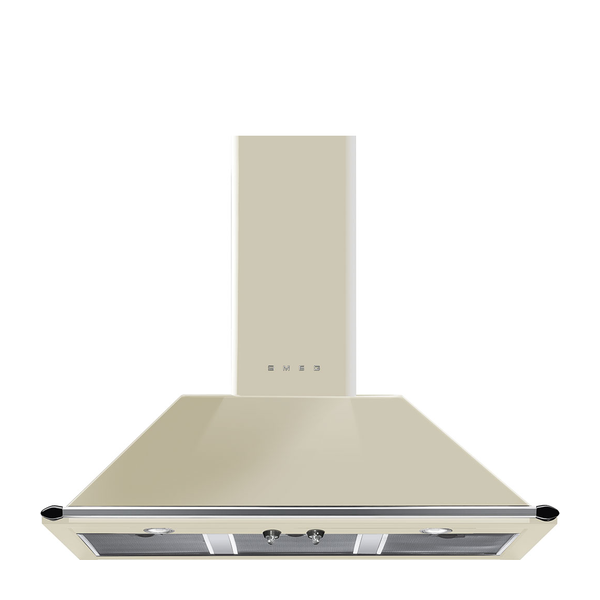

Smeg KT100PE Victoria Chimney Hood

The SMEG KT100PE is a 100 cm cream chimney cooker hood in the Victoria aesthetic, designed for either ducted out extraction or re–circulation. Made from painted, brushed steel with a gloss cream finish, it features control knobs with three speeds plus intensive mode, efficient LED lighting and aluminium anti–grease filters. With an A energy efficiency class and maximum free outlet capacity of 820 m³/h, it is suitable for users seeking strong extraction performance.

SKU:KT100PE

EAN:8017709244040

Category::Cooker Hoods

Quantity:

Key Features

Cream Victoria design – 100 cm chimney hood in gloss cream, part of the Victoria aesthetics range.

Ducted or re–circulation extraction – can be installed for ducted out or re–circulating operation via the 150 mm vent outlet.

Three speeds plus intensive – 3 standard speeds and intensive speed for extra fast extraction when required.

High extraction performance – maximum extraction rate 606 m³/h, intensive extraction rate 787 m³/h, free outlet maximum capacity 820 m³/h.

Energy efficiency class A – annual energy consumption of 48 kWh/year with an Energy Efficiency Index of 46.2.

Efficient LED lighting – 2 × LED lights (2 W) with 3000 K colour temperature, lighting efficiency 76.8 lux/W (class A).

Aluminium anti–grease filters – three aluminium anti–grease filters to help remove grease from cooking steam.

Quiet operation levels – airborne acoustic A–weighted sound power emission from 51 dBA (minimum speed) up to 73 dBA (boost).

Safe installation distances – minimum distance from gas hob 750 mm and from electric hob 650 mm.

Robust motor power – 275 W motor power and nominal power 277 W for reliable extraction performance.

Non–return valve – fitted with a non return valve.

Alternative colour available – black version available as model KT100BLE.

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re-circulation possible

MaterialPainted material

Type of steelBrushed

EAN code8017709244040

ModelKT100PE

Hood width100 cm

AestheticsVictoria

ColourCream

FinishingGloss

LogoApplied

Control settingControl knobs

Number of controls2

Control knobsVictoria

Controls colourSteel effect

Number of speeds3 + Intensive speed

Number of lights2

Light typeLED

Light power2 W

Light colour temperature3000 K

Free outlet maximum capacity820 m³/h

Motor power275 W

Number of filters3

Anti-grease filtersAluminium

Vent outlet150 mm

Minimum distance from gas hob750 mm

Minimum distance from electric hob650 mm

Non return valveYes

Extraction rate IEC 61591 – Speed 1334 m³/h – 51 dBA (Noise level IEC 60704-2-13)

Extraction rate IEC 61591 – Speed 2424 m³/h – 58 dBA (Noise level IEC 60704-2-13)

Extraction rate IEC 61591 – Speed 3606 m³/h – 64 dBA (Noise level IEC 60704-2-13)

Extraction rate IEC 61591 – Intensive speed787 m³/h – 73 dBA (Noise level IEC 60704-2-13)

Annual efficiency consumption (AEChood)48 kWh/year

Energy efficiency class (EEC)A

Fluid Dynamic Efficiency (FDE)34.2

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)76.8 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)81 %

Grease Filtering Efficiency Class (GFEC)C

Air flow at minimum speed (Qmin)334 m³/h

Maximum extraction rate606 m³/h

Intensive extraction rate787 m³/h

Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)51 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)64 dBA

Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)73 dBA

Time increase factor (F)1.00

Energy Efficiency Index per first cavity46.2

Measured air flow rate at best efficiency point (Qbep)412 m³/h

Measured air pressure at best efficiency point (Qbep)478 Pa

Measured electric power input at best efficiency point (Wbep)160 W

Normal power of the light system (Wl)2 W

Average illumination of the light on the cooking surface (Emiddle)169 lux

Sound power level at highest setting (Lwa)64 dBA

Nominal power277 W

Voltage220-240 V

Frequency50-60 Hz

Power supply cable length1000 mm

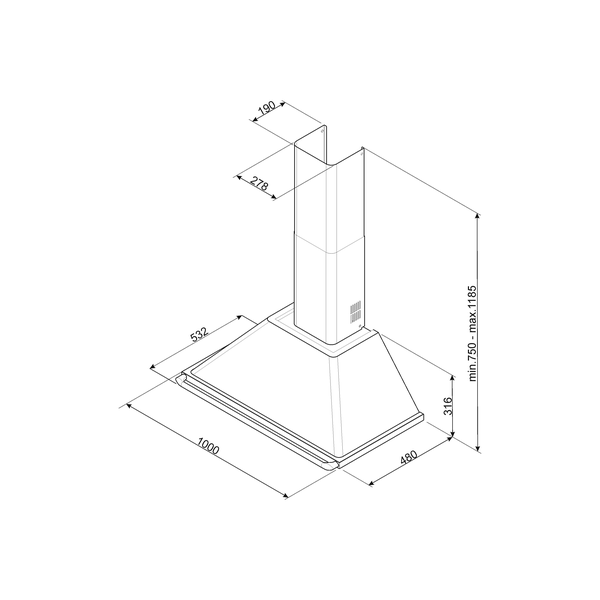

DimensionsDetailed dimensional drawing available (hood width 1000 mm). Exact additional dimensions not stated in source.

Alternative colours availableBlack (KT100BLE)

Downloads

Download product documentation, manuals, and specification sheets.

KT100PE - Bulletin.pdf

PDF

KT100PE Spec

PDF

Frequently Asked Questions

What is the width of the SMEG KT100PE Victoria hood?

The hood width is 100 cm (1000 mm), making it suitable for installations requiring a 100 cm chimney cooker hood.

Can this hood be used in both ducted and re–circulation modes?

Yes. Extraction can be ducted out or operated in re–circulation mode, using the 150 mm vent outlet and compatible filters.

How many speeds does the hood have?

It has three standard speeds plus an intensive speed, which provides extra fast extraction when required.

What are the minimum installation distances above the hob?

The minimum distance from a gas hob is 750 mm and from an electric hob is 650 mm.

What is the energy efficiency class and annual consumption?

The energy efficiency class is A, with an annual efficiency consumption (AEChood) of 48 kWh/year.

Are there compatible accessories for this hood?

Yes. Compatible accessories include FLT6 round charcoal filters (kit 2 pieces), KITALLFC universal charcoal filter (stainless steel AISI 304, dishwasher and oven regenerable), and KITCMNKPU chimney extension (dimension 227.5 * 190 * 800, cream Victoria hood 90 cm).
