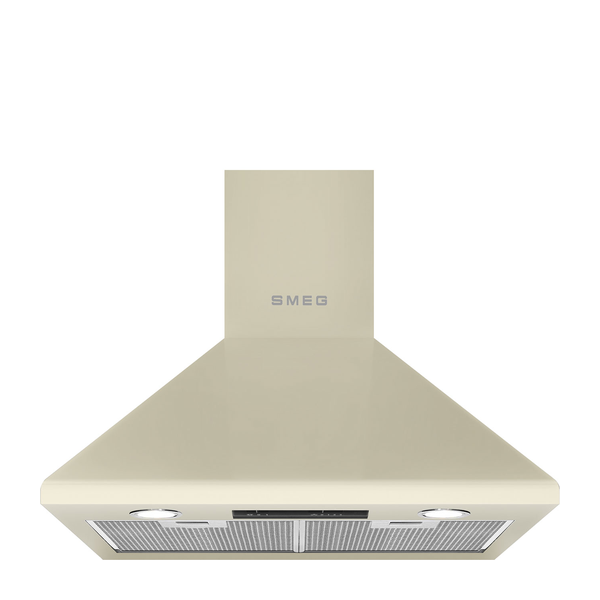

Smeg KSED65PE Chimney Hood

The SMEG KSED65PE is a 60 cm Victoria-style chimney cooker hood in cream, designed for both ducted extraction and re-circulation. It offers three speeds with a maximum extraction rate of 635 m³/h and aluminium anti-grease filters to help remove grease from cooking steam. LED lighting with a neutral 4000 K colour temperature provides clear illumination of the cooking area, while energy efficiency class B helps manage annual energy consumption.

SKU:KSED65PE

EAN:8017709206062

Category::Cooker Hoods

Quantity:

Key Features

Product family: Hood with chimney design for cooker use.

Hood type: Chimney cooker hood suitable for kitchen extraction.

Installation options: Extraction can be ducted out or used in re-circulation mode.

Width: 60 cm hood width for standard hob sizes.

Aesthetics: Victoria range design with cream colour and silk screen logo.

Material: Painted material with brushed type of steel.

Controls: Slider control setting with 3 speeds.

Lighting: 2 LED lights, 1 W each, 4000 K colour temperature, lighting efficiency 100.2 lux/W.

Filtration: 2 aluminium anti-grease filters to help remove grease from steam during cooking.

Maximum extraction: Free outlet maximum capacity 600 m³/h; maximum extraction rate 635 m³/h.

Performance at speeds: 351 m³/h at speed 1 and 420 m³/h at speed 2 (IEC 61591).

Noise levels: From 53 dBA at minimum speed to 67 dBA at maximum speed (IEC 60704-2-13).

Energy efficiency: Annual efficiency consumption 60 kWh/year with energy efficiency class B.

Grease filtering efficiency: 74.4 % with grease filtering efficiency class D.

Lighting class: Lighting efficiency class A.

Vent outlet: 150 mm vent outlet with non return valve.

Safety distances: Minimum distance 750 mm from gas hob and 650 mm from electric hob.

Electrical connection: Nominal power 202 W, voltage 220–240 V, frequency 50–60 Hz.

Cable length: Power supply cable length 1000 mm.

Alternative colours: Also available in White, Black and Stainless steel.

Compatible accessories: FLT6 round charcoal filters (kit 2 pieces) and KITALLFC universal charcoal filter Stainless Steel AISI 304.

Lighting function: Cooker hood lights illuminate the cooking area or add to kitchen ambience.

Filter function: Filters help remove grease from steam emanating from pans during cooking.

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re-circulation possible

MaterialPainted material

Type of steelBrushed

EAN code8017709206062

Hood width60 cm

AestheticsVictoria

ColourCream

LogoSilk screen

Control settingSlider

No. of speeds3

No. of lights2

Light typeLED

Light power1 W

Light colour temperature4000 K

Free outlet maximum capacity600 m³/h

Motor power200 W

No. of filters2

Anti-grease filtersAluminium

Vent outlet150 mm

Minimum distance from gas hob750 mm

Minimum distance from electric hob650 mm

Non return valveYes

Extraction rate IEC 61591 – speed 1351 m³/h

Noise level IEC 60704-2-13 – speed 153 dBA

Extraction rate IEC 61591 – speed 2420 m³/h

Noise level IEC 60704-2-13 – speed 257 dBA

Extraction rate IEC 61591 – speed 3635 m³/h

Noise level IEC 60704-2-13 – speed 367 dBA

Annual efficiency consumption (AEChood)60 kWh/year

Energy efficiency class (EEC)B

Fluid Dynamic Efficiency (FDE)26

Fluid Dynamic Efficiency class (FDEC)B

Lighting Efficiency (LE)100.2 lux/W

Lighting Efficiency class (LEC)A

Grease Filtering Efficiency (GFE)74.4 %

Grease Filtering Efficiency class (GFEC)D

Air flow at minimum speed (Qmin)351 m³/h

Maximum extraction rate635 m³/h

Airborne acoustical A-weighted sound power emission at minimum speed (SPEmin)53 dBA

Airborne acoustical A-weighted sound power emission at maximum speed (SPEmax)67 dBA

Time increase factor (F)1.1

Energy Efficiency Index per first cavity62.2

Measured air flow rate at best efficiency point (Qbep)355 m³/h

Measured air pressure at best efficiency point (Qbep)385 Pa

Measured electric power input at best efficiency point (Wbep)146 W

Normal power of the light system (Wl)2 W

Average illumination on cooking surface (Emiddle)221 lux

Sound power level at highest setting (Lwa)67 dBA

Nominal power202 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Alternative colours availableWhite, Black, Stainless steel

Compatible accessory – FLT6Round Charcoal filters (kit 2 pieces)

Compatible accessory – KITALLFCUniversal Charcoal filter Stainless Steel AISI 304

Downloads

Download product documentation, manuals, and specification sheets.

KSED65PE - Bulletin.pdf

PDF

KSED65PE Spec

PDF

Frequently Asked Questions

What is the maximum extraction rate of the SMEG KSED65PE?

The maximum extraction rate is 635 m³/h, with a free outlet maximum capacity of 600 m³/h.

Can this hood be used in both ducted and re-circulation modes?

Yes. Extraction can be ducted out or re-circulation is possible, allowing flexible installation options.

What are the recommended minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

How energy efficient is this chimney cooker hood?

The hood has an annual efficiency consumption of 60 kWh/year and an energy efficiency class B. The lighting efficiency class is A.

Does the hood provide good lighting over the cooking area?

The hood has 2 LED lights rated at 1 W each, with a lighting efficiency of 100.2 lux/W and average illumination on the cooking surface of 221 lux. The lights are intended to illuminate the cooking area or add to the ambience of the kitchen.

What compatible charcoal filters are available and how can they be cleaned?

Compatible accessories include FLT6 round charcoal filters (kit of 2 pieces) and KITALLFC universal charcoal filter Stainless Steel AISI 304. The KITALLFC filter can be washed in a dishwasher at 50 °C with water and suitable detergent, then dried in an oven at 180 °C for 25 minutes.
