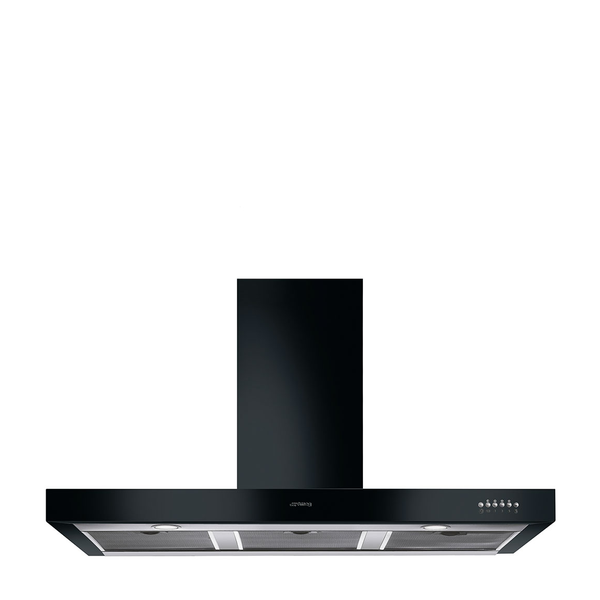

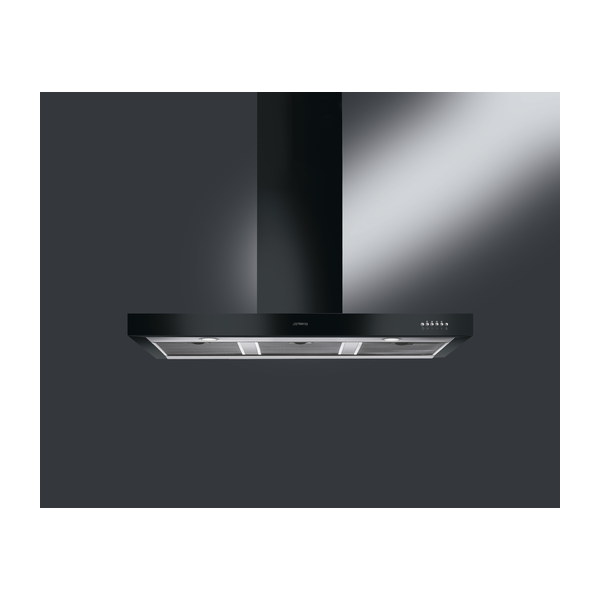

Smeg KS110BLE Symphony Chimney Hood

The SMEG KS110BLE is a 110 cm T flat chimney cooker hood in black with a brushed painted finish and embossed logo. Designed for ducted out or re-circulation extraction, it offers three speeds plus an intensive setting, electronic button controls and efficient LED lighting at 4000 K. Aluminium anti-grease filters with a replacement indicator support effective filtration, while a maximum free outlet capacity of 800 m³/h and a B energy efficiency class deliver strong performance.

SKU:KS110BLE

EAN:8017709201845

Category::Cooker Hoods

Quantity:

Key Features

110 cm T flat chimney design for wide hob coverage and a Universal aesthetic in black.

Ducted out or re-circulation extraction possible to suit different kitchen installation layouts.

Electronic button controls with 3 speeds plus an intensive speed setting.

LED lighting 4000 K with 2 x 1 W lamps providing average illumination of 370 lux on the cooking surface.

Aluminium anti-grease filters (3 filters) with a filter replacement indicator light.

High extraction performance with maximum extraction rate 513 m³/h and intensive extraction rate 702 m³/h.

Free outlet maximum capacity of 800 m³/h for powerful air movement.

Energy efficiency class B with annual energy consumption of 62 kWh/year.

Lighting Efficiency Class A with lighting efficiency of 84,1 lux/W.

Grease Filtering Efficiency 78,7 % with Grease Filtering Efficiency Class C.

Integrated non return valve and 150 mm vent outlet for effective duct connection.

Minimum installation distances of 750 mm from gas hobs and 650 mm from electric hobs.

Brushed painted material with embossed logo for a refined finish.

Alternative colour options available: Stainless steel (KS110XE) and Cream (KS110PE).

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignT flat

Extraction typeDucted out or re-circulation possible

Electronic controlYes

MaterialPainted material, brushed type of steel

ColourBlack

LogoEmbossed

AestheticsUniversal

EAN code8017709201845

Hood width110 cm

Control settingElectronic buttons

Number of speeds3 + intensive speed

Time-setting optionsNot stated in source

Number of lights2

Light typeLED

Light power1 W (each), Normal power of light system (Wl) 2 W

Light colour temperature4000 K

Average illumination on cooking surface370 lux (Emiddle)

Free outlet maximum capacity800 m³/h

Motor power275 W

Number of filters3

Filter typeAluminium anti-grease filters

Filter replacement indicatorYes

Vent outlet150 mm

Minimum distance from gas hob750 mm

Minimum distance from electric hob650 mm

Non return valveYes

Extraction rate IEC 61591 – Speed 1295 m³/h

Noise level IEC 60704-2-13 – Speed 151 dBA

Extraction rate IEC 61591 – Speed 2395 m³/h

Noise level IEC 60704-2-13 – Speed 258 dBA

Extraction rate IEC 61591 – Speed 3513 m³/h

Noise level IEC 60704-2-13 – Speed 364 dBA

Intensive extraction rate702 m³/h

Noise level – Intensive speed72 dBA

Annual Efficiency Consumption (AEChood)62 kWh/year

Energy efficiency class (EEC)B

Fluid Dynamic Efficiency (FDE)27,9

Fluid Dynamic Efficiency class (FDEC)B

Lighting Efficiency (LE)84,1 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)78,7 %

Grease Filtering Efficiency Class (GFEC)C

Air flow at minimum speed (Qmin)295 m³/h

Maximum extraction rate513 m³/h

Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)51 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)64 dBA

Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)72 dBA

Time increase factor (F)1,00

Energy Efficiency Index per first cavity58,2

Measured air flow rate at best efficiency point (Qbep)373 m³/h

Measured air pressure at best efficiency point (Qbep)430 Pa

Measured electric power input at best efficiency point (Wbep)160 W

Sound power level at highest setting (Lwa)64 dBA

Nominal power278 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Alternative colours availableStainless steel, Cream – Available colours KS110XE – KS110PE

Downloads

Download product documentation, manuals, and specification sheets.

KS110BLE - Bulletin.pdf

PDF

KS110BLE Spec

PDF

Frequently Asked Questions

Can this hood be used in both ducted and recirculating modes?

Yes. The extraction type is ducted out or re-circulation possible, allowing installation either with an external vent or with suitable filters for recirculation.

How many speeds does the SMEG KS110BLE have?

It has 3 speeds plus an intensive speed setting. The intensive or turbo setting is intended for situations where extra fast extraction is required.

What are the installation height requirements above the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

How will I know when to change the filters?

The hood features a warning light to advise when filters need changing. There is also a filter replacement indicator for the aluminium anti-grease filters.

What is the energy efficiency rating of this cooker hood?

The energy efficiency class is B, with an annual Efficiency Consumption (AEChood) of 62 kWh/year.

How bright is the lighting on the cooking surface?

The hood uses 2 LED lights with a light colour temperature of 4000 K, providing an average illumination of 370 lux on the cooking surface, and has a Lighting Efficiency Class of A.
