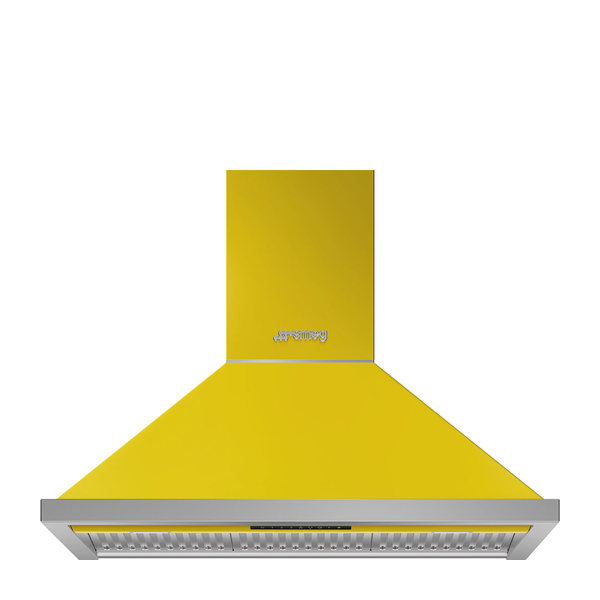

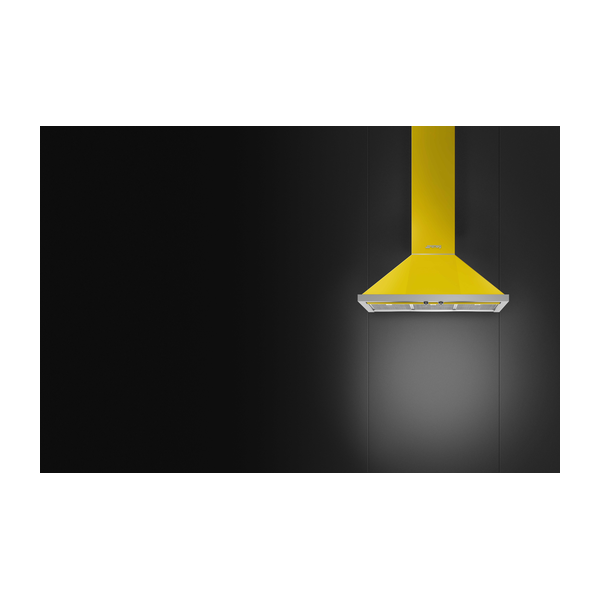

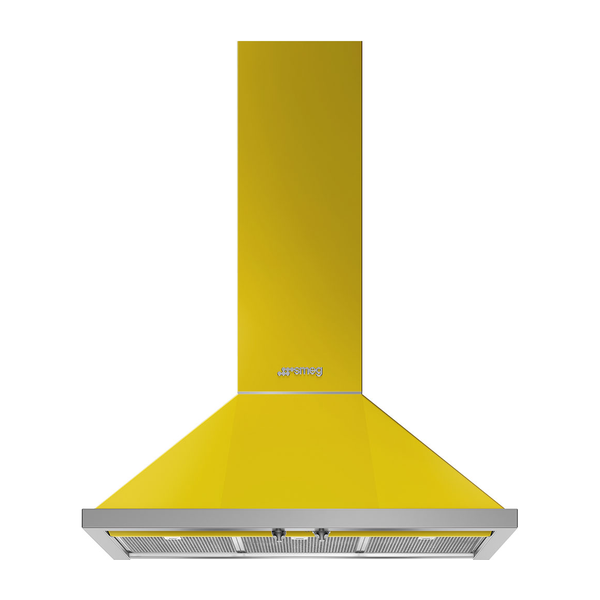

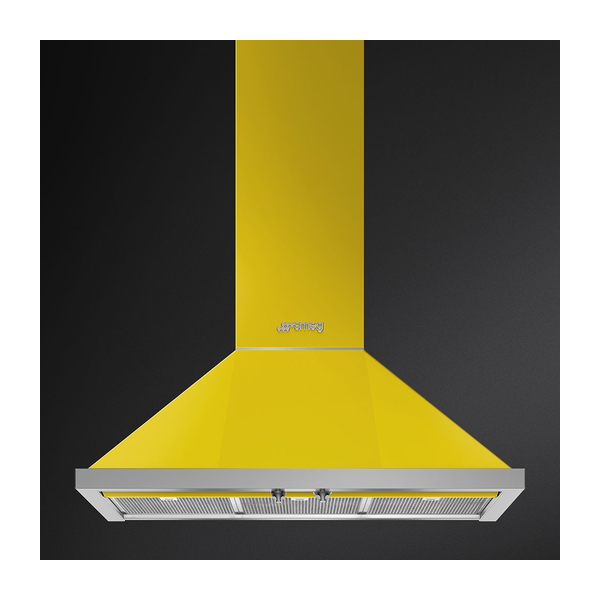

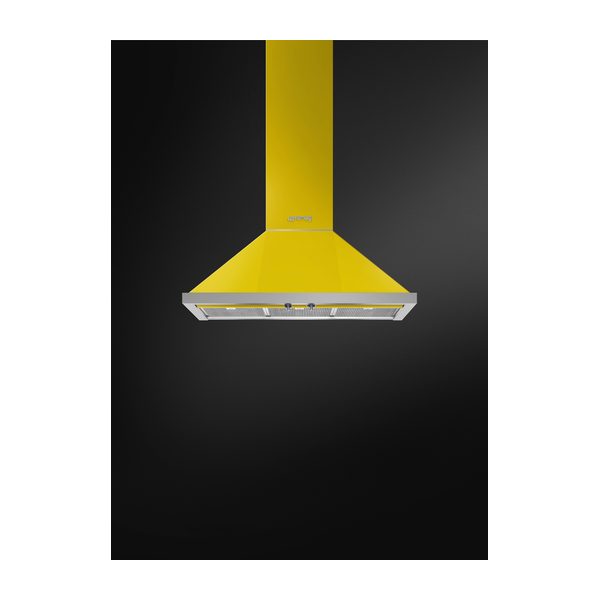

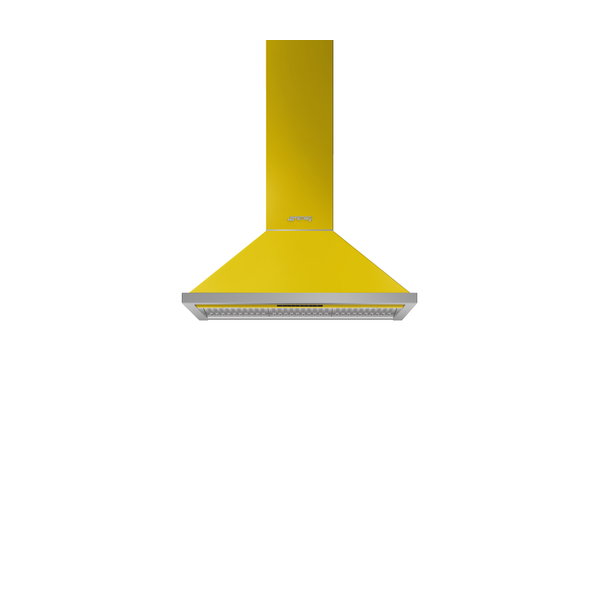

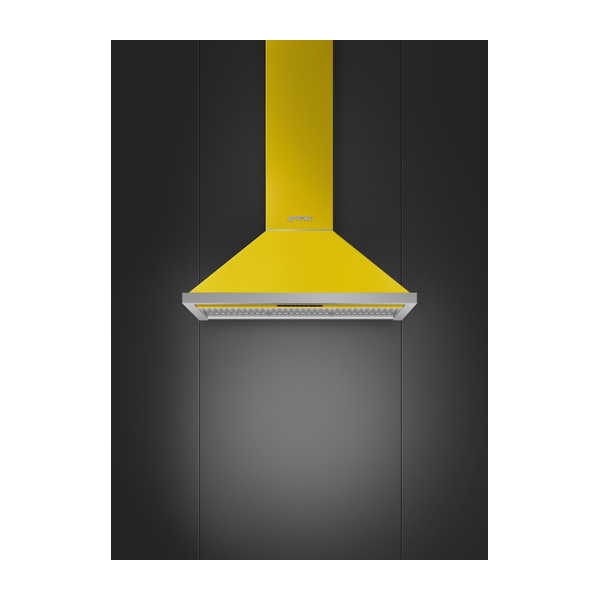

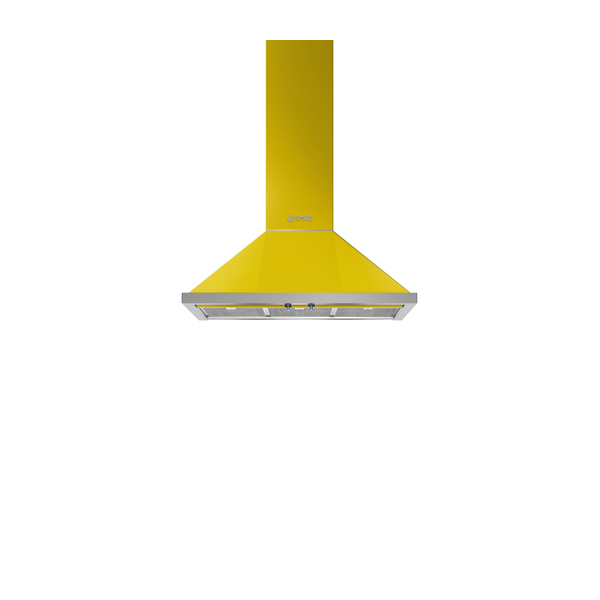

Smeg KPF9YW Portofino Chimney Hood

The KPF9YW is a 90 cm chimney cooker hood from the Portofino aesthetics family, finished in yellow with brushed stainless steel and painted material. It offers ducted out or re‑circulation extraction with three speeds plus intensive, stainless steel anti‑grease filters and LED lighting. With an A+ energy efficiency class and a maximum extraction rate of 630 m³/h, it is designed to efficiently extract cooking vapours above gas or electric hobs.

SKU:KPF9YW

EAN:8017709236335

Category::Cooker Hoods

Quantity:

Key Features

Product type: Chimney cooker hood from the Portofino aesthetics family.

Installation width: 90 cm hood width for larger cooking areas.

Extraction options: Ducted out or re‑circulation operation possible.

Energy performance: A+ energy efficiency class with 40 kWh/year annual efficiency consumption (AEChood).

Powerful extraction: Maximum extraction rate 630 m³/h and intensive extraction rate 781 m³/h.

Speeds: 3 speeds plus intensive speed for extra fast extraction when required.

Construction: Stainless steel and painted material with brushed type of steel.

Colour and design: Yellow finish with black serigraphy colour and applied logo.

Controls: Control knobs (Portofino) with steel effect colour; 2 controls.

Lighting: 2 x 2 W LED lights, 4000 K colour temperature, lighting efficiency 78,2 lux/W (class A).

Filters: 3 stainless steel anti‑grease filters with non‑return valve.

Air flow (IEC 61591): 288 m³/h at speed 1, 421 m³/h at speed 2, 630 m³/h at speed 3, 781 m³/h intensive.

Noise level (IEC 60704‑2‑13): 48 dBA at speed 1, 63 dBA at speed 2, 67 dBA at speed 3, 72 dBA at intensive speed.

Minimum distances: 750 mm from gas hobs and 650 mm from electric hobs.

Vent outlet: 150 mm vent outlet for ducting.

Motor: 275 W motor power; nominal power 277 W.

Airborne sound emissions: 48 dBA at minimum speed (SPEmin), 67 dBA at maximum speed (SPEmax), 72 dBA at boost speed (SPEboost).

Fluid dynamic efficiency: FDE 36,2 (class A).

Grease filtering: Grease filtering efficiency 78,5 % (class C).

Electrical connection: 220–240 V, 50–60 Hz, power supply cable length 1000 mm.

Alternative colours available: White, Black, Stainless steel, Anthracite, Green, Red, Orange (models KPF9WH, KPF9BL, KPF9X, KPF9AN, KP9OG, KPF9RD, KPF9OR).

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

AestheticsPortofino

ColourYellow

MaterialStainless Steel + Painted Material

Type of steelBrushed

Serigraphy colourBlack

LogoApplied

EAN code8017709236335

Product codeKPF9YW

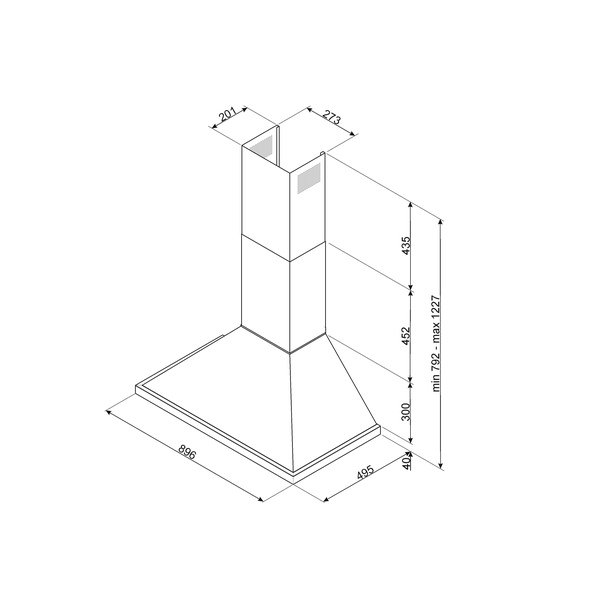

Hood width90 cm

ExtractionDucted out or re‑circulation possible

Control settingControl knobs

Number of controls2

Control knobsPortofino

Controls colourSteel effect

Number of speeds3 + intensive speed

Number of lights2

Light typeLED

Light power2 W

Light colour temperature4000 K

Number of filters3

Anti‑grease filtersStainless steel

Vent outlet150 mm

Minimum distance from gas hob750 mm

Minimum distance from electric hob650 mm

Non‑return valveYes

Free outlet maximum capacity815 m³/h

Motor power275 W

Air flow at minimum speed (Qmin)288 m³/h

Maximum extraction rate630 m³/h

Intensive extraction rate781 m³/h

Extraction rate – Speed 1 (IEC 61591)288 m³/h – 48 dBA

Extraction rate – Speed 2 (IEC 61591)421 m³/h – 63 dBA

Extraction rate – Speed 3630 m³/h – 67 dBA

Extraction rate – Intensive speed781 m³/h – 72 dBA

Airborne acoustical A‑weighted sound power emission at minimum speed (SPEmin)48 dBA

Airborne acoustical A‑weighted sound power emission at maximum speed (SPEmax)67 dBA

Airborne acoustical A‑weighted sound power emission at boost speed (SPEboost)72 dBA

Annual efficiency consumption (AEChood)40 kWh/year

Energy efficiency class (EEC)A+

Fluid dynamic efficiency (FDE)36,2

Fluid dynamic efficiency class (FDEC)A

Lighting efficiency (LE)78,2 lux/W

Lighting efficiency class (LEC)A

Grease filtering efficiency (GFE)78,5 %

Grease filtering efficiency class (GFEC)C

Time increase factor (F)1,00

Energy efficiency index per first cavity40,3

Measured air flow rate at best efficiency point (Qbep)413 m³/h

Measured air pressure at best efficiency point (Pbep)476 Pa

Measured electric power input at best efficiency point (Wbep)151 W

Normal power of the light system (Wl)2 W

Average illumination of the light on the cooking surface (Emiddle)172 lux

Sound power level at highest setting (Lwa)67 dBA

Nominal power277 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Downloads

Download product documentation, manuals, and specification sheets.

KPF9YW - Bulletin.pdf

PDF

KPF9YW Spec

PDF

Frequently Asked Questions

What are the extraction options for the KPF9YW hood?

The hood can be installed for ducted out extraction or used in re‑circulation mode. The vent outlet diameter is 150 mm, and compatible charcoal filters such as FLT6 and KITALLFC are available.

How many speeds does this hood have?

It has 3 speeds plus an intensive speed. The intensive/turbo setting is intended for situations when extra fast extraction is required.

What is the maximum extraction rate and noise level?

The maximum extraction rate is 630 m³/h at speed 3 with a sound power level of 67 dBA. The intensive extraction rate is 781 m³/h with a sound power emission of 72 dBA.

What are the energy efficiency details?

The hood has an A+ energy efficiency class (EEC) and an annual efficiency consumption (AEChood) of 40 kWh/year. The fluid dynamic efficiency class (FDEC) is A, and the lighting efficiency class (LEC) is also A.

What are the minimum installation distances from the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

Is the charcoal filter washable?

The KITALLFC universal charcoal filter in Stainless Steel AISI 304 can be washed in a dishwasher at 50 °C using water and suitable detergent, and to dry it should be put in the oven at 180 °C for 25 minutes.
