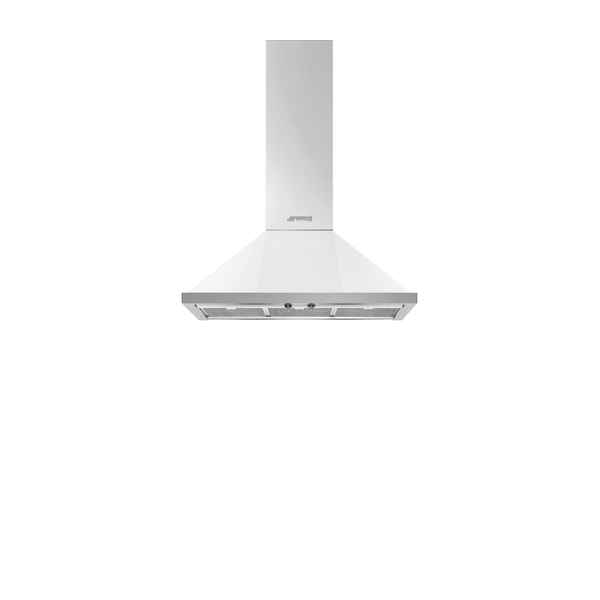

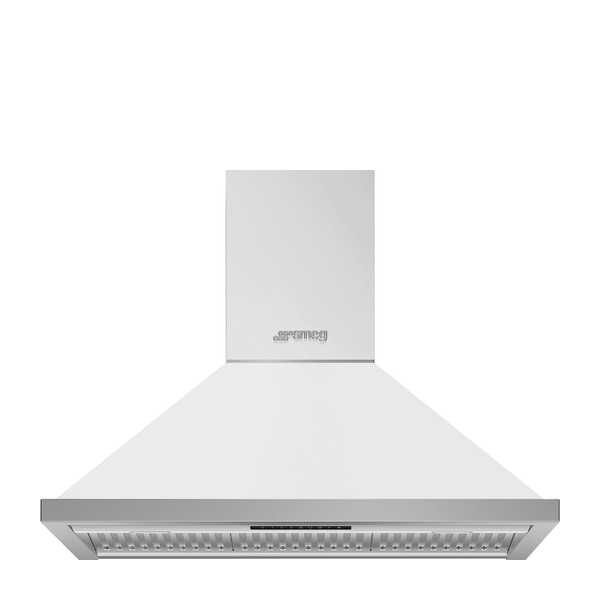

Smeg KPF9WH Portofino Chimney Hood

The SMEG KPF9WH is a 90 cm Portofino aesthetic chimney cooker hood in white, designed for ducted out or recirculation installation. Made from brushed stainless steel and painted material, it offers 3 speeds plus intensive, with a maximum extraction rate of 630 m³/h and intensive extraction up to 781 m³/h. LED lighting at 4000 K illuminates the cooking area, while stainless steel anti-grease filters and an A+ energy efficiency class support effective and efficient ventilation.

SKU:KPF9WH

EAN:8017709236359

Category::Cooker Hoods

Quantity:

Key Features

Product family & type: Chimney cooker hood in the Portofino aesthetics range.

Width: 90 cm hood width for larger cooking areas.

Extraction options: Ducted out or re–circulation possible.

Material & finish: Stainless steel + painted material with brushed type of steel.

Colour: White with black serigraphy colour and applied logo.

Controls: Control knobs (Portofino design), 2 controls, steel effect colour.

Speeds: 3 speeds plus intensive speed setting.

Lighting: 2 x LED lights, 2 W, 4000 K light colour temperature.

Maximum extraction rate: 630 m³/h, with intensive extraction rate 781 m³/h.

Free outlet maximum capacity: 815 m³/h.

Motor power: 275 W motor.

Filters: 3 stainless steel anti–grease filters.

Vent outlet: 150 mm vent outlet with non return valve.

Minimum distance from GAS hob: 750 mm.

Minimum distance from ELECTRIC hob: 650 mm.

Energy performance: A+ energy efficiency class with Annual Efficiency Consumption 40 kWh/year.

Lighting efficiency: Lighting Efficiency (LE) 78,2 lux/W, Lighting Efficiency Class A.

Grease filtering: Grease Filtering Efficiency 78,5 % with Class C.

Noise levels: From 48 dBA at minimum speed up to 72 dBA at intensive speed.

Electrical connection: Nominal power 277 W, 220–240 V, 50–60 Hz.

Available alternative colours: Black, Stainless steel, Anthracite, Yellow, Green, Red, Orange.

Compatible accessories: FLT6 round charcoal filters (kit 2 pieces) and KITALLFC universal charcoal filter.

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re–circulation possible

MaterialStainless Steel + Painted Material

Type of steelBrushed

EAN code8017709236359

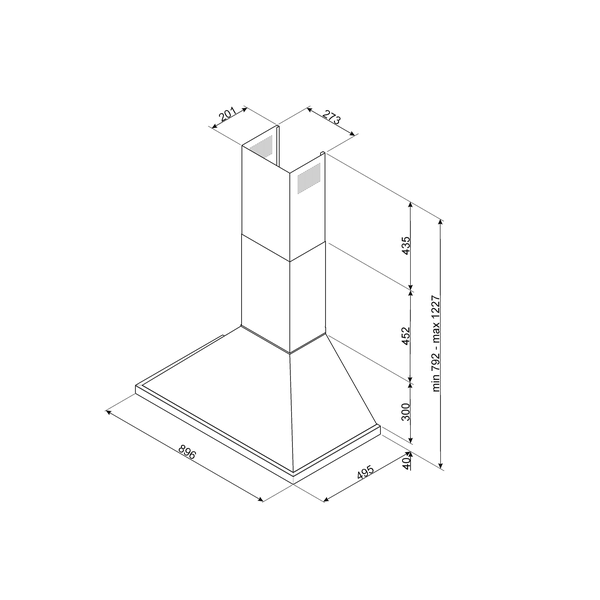

Hood width90 cm

AestheticsPortofino

ColourWhite

Serigraphy colourBlack

LogoApplied

Control settingControl knobs

Number of controls2

Control knobsPortofino

Controls colourSteel effect

Number of speeds3 + intensive speed

Number of lights2

Light typeLED

Light power2 W

Light colour temperature4000 K

Free outlet maximum capacity815 m³/h

Motor power275 W

Number of filters3

Anti–grease filtersStainless steel

Vent outlet150 mm

Minimum distance from GAS hob750 mm

Minimum distance from ELECTRIC hob650 mm

Non return valveYes

Speed 1 extraction rate (IEC 61591)288 m³/h – 48 dBA (IEC 60704–2–13)

Speed 2 extraction rate (IEC 61591)421 m³/h – 63 dBA (IEC 60704–2–13)

Speed 3 extraction rate (IEC 61591)630 m³/h – 67 dBA (IEC 60704–2–13)

Intensive speed extraction rate (IEC 61591)781 m³/h – 72 dBA (IEC 60704–2–13)

Annual Efficiency Consumption (AEChood)40 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36,2

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)78,2 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)78,5 %

Grease Filtering Efficiency Class (GFEC)C

Air flow at minimum speed (Qmin)288 m³/h

Maximum extraction rate630 m³/h

Intensive extraction rate781 m³/h

Airborne acoustical A–weighted sound Power Emission at minimum speed (SPEmin)48 dBA

Airborne acoustical A–weighted sound Power Emission at maximum speed (SPEmax)67 dBA

Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)72 dBA

Time increase factor (F)1,00

Energy Efficiency Index per first cavity40,3

Measured air flow rate at best efficiency point (Qbep)413 m³/h

Measured air pressure at best efficiency point (Qbep)476 Pa

Measured electric power input at best efficiency point (Wbep)151 W

Normal power of the light system (Wl)2 W

Average illumination of the light on the cooking surface (Emiddle)172 lux

Sound power level at highest setting (Lwa)67 dBA

Nominal power277 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Alternative colours availableBlack, Stainless steel, Anthracite, Yellow, Green, Red, Orange

Available colours codesKPF9BL – KPF9X – KPF9AN – KP9YW – KPF9OG – KPF9RD – KPF9OR

Compatible accessory – FLT6Round Charcoal filters (kit 2 pieces)

Compatible accessory – KITALLFCUniversal Charcoal filter Stainless Steel AISI 304 – The filter can be washed in dishwasher 50 °C (water and suitable detergent) and to dry it put in the oven 180 °C 25 minutes

Downloads

Download product documentation, manuals, and specification sheets.

KPF9WH - Bulletin.pdf

PDF

KPF9WH Spec

PDF

Frequently Asked Questions

What extraction options does the KPF9WH offer?

The hood can be installed for ducted out extraction or set up for re–circulation, giving flexibility depending on the kitchen layout and ducting options.

How many speeds are available and what is the maximum extraction rate?

There are 3 speeds plus an intensive speed. The maximum extraction rate is 630 m³/h, while the intensive extraction rate reaches 781 m³/h. At minimum speed the air flow is 288 m³/h.

What are the noise levels during operation?

At minimum speed the airborne acoustical A–weighted sound power emission (SPEmin) is 48 dBA. At maximum speed (SPEmax) it is 67 dBA, and at boost speed (SPEboost) it is 72 dBA.

What type of lighting does this hood use?

The hood uses 2 LED lights with a power of 2 W and a light colour temperature of 4000 K. The lighting efficiency is 78,2 lux/W with Lighting Efficiency Class A, and the average illumination on the cooking surface is 172 lux.

Which filters are included and what accessories are compatible?

The hood includes 3 stainless steel anti–grease filters. Compatible accessories are the FLT6 round charcoal filters (kit 2 pieces) and the KITALLFC universal charcoal filter in Stainless Steel AISI 304, which can be washed in a dishwasher at 50 °C and dried in an oven at 180 °C for 25 minutes.

What is the energy efficiency rating of the KPF9WH?

The hood has an Energy efficiency class A+ with an Annual Efficiency Consumption (AEChood) of 40 kWh/year. The Fluid Dynamic Efficiency class is A, and the Grease Filtering Efficiency class is C.
