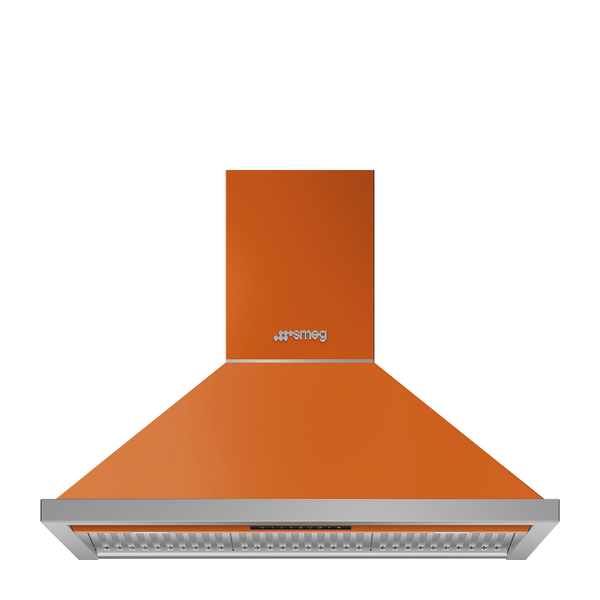

Smeg KPF9OR Portofino Chimney Hood

The SMEG KPF9OR is a 90 cm Portofino chimney cooker hood in an orange finish, designed for ducted or recirculation extraction. It features stainless steel and painted materials with brushed steel, control knobs and three speeds plus an intensive setting. With LED lighting, stainless steel anti-grease filters and an A+ energy efficiency class, it provides effective steam and grease removal while illuminating the cooking area.

SKU:KPF9OR

EAN:8017709236328

Category::Cooker Hoods

Quantity:

Key Features

Product type: Chimney cooker hood from the Portofino aesthetics family

Installation options: Extraction can be ducted out or used in re-circulation mode

Width: 90 cm hood width suitable for larger hobs

Finish and materials: Stainless steel and painted material with brushed steel

Colour: Orange hood with black serigraphy and applied logo

Controls: Portofino-style control knobs with steel effect, 2 controls and 3 speeds plus intensive

Lighting: 2 LED lights, 2 W each, 4000 K colour temperature

Filters: 3 stainless steel anti-grease filters to help remove grease from steam

Maximum free outlet capacity: 815 m³/h

Extraction performance: Air flow from 288 m³/h (minimum) up to 630 m³/h, with 781 m³/h intensive extraction rate

Noise levels: From 48 dBA at minimum speed to 67 dBA at maximum, 72 dBA at boost

Energy efficiency: A+ energy efficiency class with annual hood consumption of 40 kWh/year

Lighting efficiency: 78,2 lux/W, Lighting Efficiency Class A

Grease filtering efficiency: 78,2 %, Grease Filtering Efficiency Class C

Vent outlet: 150 mm vent outlet with non-return valve

Minimum installation distances: 750 mm from gas hobs and 650 mm from electric hobs

Motor power: 275 W motor, nominal power 277 W

Electrical supply: 220–240 V, 50–60 Hz with 1000 mm power supply cable

Intensive/turbo setting: Extra fast extraction when required

Available colour variants: White, Black, Stainless steel, Anthracite, Yellow, Green, Red (model codes KPF9WH, KPF9BL, KPF9X, KPF9AN, KPF9YW, KP9OG, KPF9RD)

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re-circulation possible

MaterialStainless Steel + Painted Material

Type of steelBrushed

EAN code8017709236328

Hood width90 cm

AestheticsPortofino

ColourOrange

Serigraphy colourBlack

LogoApplied

Control settingControl knobs

No. of controls2

Control knobsPortofino

Controls colourSteel effect

No. of speeds3

Intensive speedYes (Intensive/turbo setting)

No. of lights2

Light typeLED

Light power2 W

Light colour temperature4000 K

Free outlet maximum capacity815 m³/h

Motor power275 W

No. of filters3

Anti-grease filtersStainless steel

Vent outlet150 mm

Minimum distance from GAS hob750 mm

Minimum distance from ELECTRIC hob650 mm

Non return valveYes

Extraction rate IEC 61591 – Speed 1288 m³/h

Extraction rate IEC 61591 – Speed 2421 m³/h

Extraction rate IEC 61591 – Speed 3630 m³/h

Extraction rate IEC 61591 – Intensive speed781 m³/h

Noise level IEC 60704-2-13 – Speed 148 dBA

Noise level IEC 60704-2-13 – Speed 263 dBA

Noise level IEC 60704-2-13 – Speed 367 dBA

Noise level IEC 60704-2-13 – Intensive speed72 dBA

Annual Efficiency Consumption (AEChood)40 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36,2

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)78,2 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)78,2 %

Grease Filtering Efficiency Class (GFEC)C

Air flow at minimum speed (Qmin)288 m³/h

Maximum extraction rate630 m³/h

Intensive extraction rate781 m³/h

Airbourne acoustical A-weighted sound power emission at minimum speed (SPEmin)48 dBA

Airborne acoustical A-weighted sound power emission at maximum speed (SPEmax)67 dBA

Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost)72 dBA

Time increase factor (F)1,00

Energy Efficiency Index per first cavity40,3

Measured air flow rate at best efficiency point (Qbep)413 m³/h

Measured air pressure at best efficiency point (Qbep)476 Pa

Measured electric power input at best efficiency point (Wbep)151 W

Normal Power of the light system (Wl)2 W

Average illumination of the light on the cooking surface (Emiddle)172 lux

Sound power level at highest setting (Lwa)67 dBA

Nominal power277 W

Voltage220-240 V

Frequency50-60 Hz

Power supply cable length1000 mm

Downloads

Download product documentation, manuals, and specification sheets.

KPF9OR - Bulletin.pdf

PDF

KPF9OR Spec

PDF

Frequently Asked Questions

Can this hood be used with both ducted and recirculation setups?

Yes. Extraction can be ducted out or used in re-circulation mode.

How many speeds does the SMEG KPF9OR have?

It has 3 speeds plus an intensive (turbo) setting for extra fast extraction.

What are the minimum installation heights above the hob?

The minimum distance is 750 mm from a gas hob and 650 mm from an electric hob.

What type of filters are supplied with the hood?

It comes with 3 stainless steel anti-grease filters to help remove grease from steam during cooking.

What is the energy efficiency rating of this hood?

The hood has an A+ energy efficiency class with an annual efficiency consumption of 40 kWh/year.

Are there other colour options available?

Yes. Alternative colours available are White, Black, Stainless steel, Anthracite, Yellow, Green and Red (models KPF9WH, KPF9BL, KPF9X, KPF9AN, KPF9YW, KP9OG, KPF9RD).
