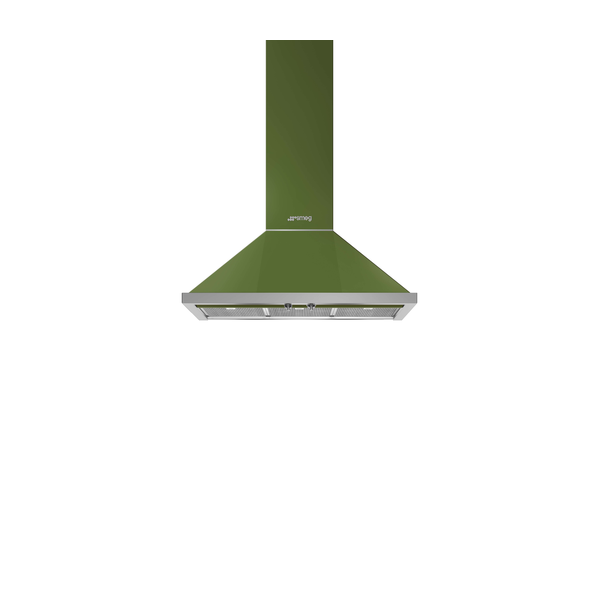

Smeg KPF9OG Portofino Chimney Hood

This 90 cm Portofino chimney cooker hood in olive green offers ducted out or re-circulation extraction, with three speeds plus intensive setting controlled by steel-effect knobs. Finished in brushed stainless steel and painted material, it features LED lighting and stainless steel anti-grease filters. With an A+ energy efficiency class and a maximum intensive extraction rate of 781 m³/h, it is designed to effectively clear cooking vapours above gas or electric hobs.

SKU:KPF9OG

EAN:8017709236342

Category::Cooker Hoods

Quantity:

Key Features

Chimney cooker hood design with Portofino aesthetics in olive green for a coordinated kitchen look.

90 cm hood width suitable for wider hobs and cooking areas.

Ducted out or re-circulation extraction possible for flexible installation.

Electronic control with steel-effect knobs featuring 2 Portofino control knobs and 3 speeds plus intensive.

High free outlet maximum capacity of 815 m³/h with intensive extraction rate of 781 m³/h.

LED lighting with 2 × 2 W lights at 4000 K to illuminate the cooking surface.

Stainless steel anti-grease filters with 3 filters fitted to help remove grease from steam.

Energy efficiency class A+ with annual efficiency consumption of 40 kWh/year.

Fluid Dynamic Efficiency class A with FDE value of 36.2.

Lighting Efficiency class A with 78.2 lux/W and average illumination of 172 lux on the cooking surface.

Grease Filtering Efficiency of 78.5 % with class C rating.

Noise levels from 47 dBA to 72 dBA depending on selected speed, measured to IEC standards.

Minimum distance requirements of 750 mm from gas hobs and 650 mm from electric hobs.

Non return valve included to help prevent backflow of air.

Alternative colours available including white, black, stainless steel, anthracite, yellow, red and orange.

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re-circulation possible

Electronic controlYes

MaterialStainless Steel + Painted Material

Type of steelBrushed

EAN code8017709236342

Hood width90 cm

AestheticsPortofino

ColourOlive green

Serigraphy colourBlack

LogoApplied

Control settingControl knobs

No. of controls2

Control knobsPortofino

Controls colourSteel effect

No. of speeds3 + Intensive speed

No. of lights2

Light typeLED

Light power2 W

Light colour temperature4000 K

Free outlet maximum capacity815 m³/h

Motor power275 W

No. of filters3

Anti-grease filtersStainless steel

Vent outlet150 mm

Minimum distance from gas hob750 mm

Minimum distance from electric hob650 mm

Non return valveYes

Annual efficiency consumption (AEChood)40 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36.2

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)78.2 lux/W

Lighting Efficiency class (LEC)A

Grease Filtering Efficiency (GFE)78.5 %

Grease Filtering Efficiency class (GFEC)C

Air flow at minimum speed (Qmin)288 m³/h

Maximum extraction rate630 m³/h

Intensive extraction rate781 m³/h

Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)47 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)67 dBA

Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)72 dBA

Time increase factor (F)1.00

Energy Efficiency Index per first cavity40.3

Measured air flow rate at best efficiency point (Qbep)413 m³/h

Measured air pressure at best efficiency point (Qbep)476 Pa

Measured electric power input at best efficiency point (Wbep)151 W

Normal power of the light system (Wl)2 W

Average illumination of the light on the cooking surface (Emiddle)172 lux

Sound power level at highest setting (Lwa)67 dBA

Extraction rate IEC 61591 – Speed 1288 m³/h – 47 dBA

Extraction rate IEC 61591 – Speed 2421 m³/h – 63 dBA

Extraction rate IEC 61591 – Speed 3630 m³/h – 67 dBA

Extraction rate IEC 61591 – Intensive speed781 m³/h – 72 dBA

Nominal power277 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Alternative colours availableWhite, Black, Stainless steel, Anthracite, Yellow, Red, Orange

Available colour codesKPF9WH, KPF9BL, KPF9X, KPF9AN, KP9YW, KPF9RD, KPF9OR

Downloads

Download product documentation, manuals, and specification sheets.

KPF9OG - Bulletin.pdf

PDF

KPF9OG Spec

PDF

Frequently Asked Questions

Can this hood be used in re-circulation mode?

Yes. The extraction system allows for ducted out or re-circulation operation. For re-circulation, compatible charcoal filters such as FLT6 or KITALLFC are available.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm and from an electric hob is 650 mm.

How many speeds does the hood have?

The hood has 3 standard speeds plus an intensive (turbo) setting for extra fast extraction.

What are the noise levels during operation?

At minimum speed, the airborne acoustical A–weighted sound power emission is 47 dBA. At maximum speed it is 67 dBA, and at boost speed 72 dBA.

What type of filters are supplied?

The hood includes 3 stainless steel anti-grease filters. Additional charcoal filters for re-circulation use are available separately.

What is the energy efficiency rating?

The hood has an energy efficiency class of A+ with an annual efficiency consumption of 40 kWh/year.
