Product familyHood
Hood typeChimney Cooker Hoods
DesignChimney
ExtractionDucted out or re–circulation possible
MaterialStainless Steel + Painted Material
Type of steelBrushed
EAN code8017709236304
Model codeKPF9BL

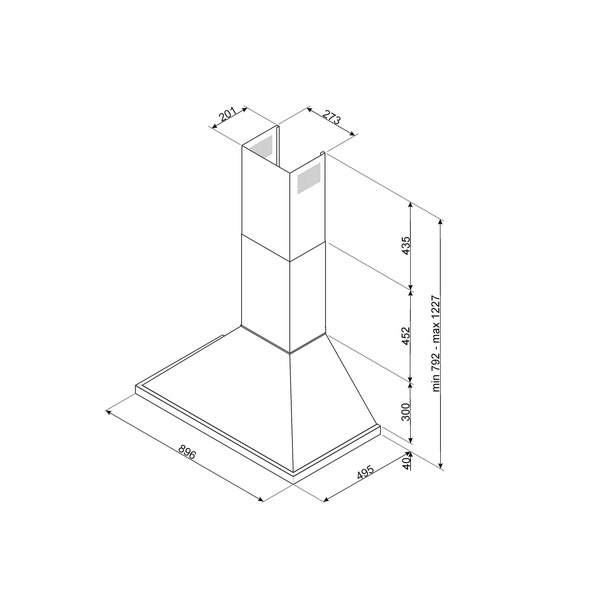

Hood width90 cm
AestheticsPortofino
ColourBlack
Serigraphy colourBlack
LogoEmbossed
Control settingControl knobs
No. of controls2
Control knobsPortofino
Controls colourSteel effect
No. of speeds3 + Intensive speed
No. of lights2
Light typeLED
Light power2 W
Light colour temperature4000 K
Free outlet maximum capacity815 m³/h
Motor power275 W
No. of filters3
Anti–grease filtersStainless steel
Vent outlet150 mm
Minimum distance from gas hob750 mm
Minimum distance from electric hob650 mm
Non return valveYes
Extraction rate IEC 61591 – Speed 1288 m³/h
Noise level IEC 60704–2–13 – Speed 148 dBA
Extraction rate IEC 61591 – Speed 2421 m³/h
Noise level IEC 60704–2–13 – Speed 263 dBA
Extraction rate IEC 61591 – Speed 3630 m³/h
Noise level IEC 60704–2–13 – Speed 367 dBA
Extraction rate IEC 61591 – Intensive speed781 m³/h
Noise level IEC 60704–2–13 – Intensive speed72 dBA
Annual efficiency consumption (AEChood)40 kWh/year
Energy efficiency class (EEC)A+
Fluid Dynamic Efficiency (FDE)36,2
Fluid Dynamic Efficiency class (FDEC)A
Lighting Efficiency (LE)78,2 lux/W
Lighting Efficiency Class (LEC)A
Grease Filtering Efficiency (GFE)78,5 %
Grease Filtering Efficiency Class (GFEC)C
Air flow at minimum speed (Qmin)288 m³/h
Maximum extraction rate630 m³/h
Intensive extraction rate781 m³/h
Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)48 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)67 dBA
Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)72 dBA
Time increase factor (F)1,00
Energy Efficiency Index per first cavity40,3
Measured air flow rate at best efficiency point (Qbep)413 m³/h
Measured air pressure at best efficiency point (Qbep)476 Pa
Measured electric power input at best efficiency point (Wbep)151 W
Normal power of the light system (Wl)2 W
Average illumination on the cooking surface (Emiddle)172 lux
Sound power level at highest setting (Lwa)67 dBA
Nominal power277 W
Voltage220–240 V
Frequency50–60 Hz
Power supply cable length1000 mm
Alternative colours availableWhite, Stainless steel, Anthracite, Yellow, Green, Red, Orange
Available colour codesKPF9WH – KPF9X – KPF9AN – KPF9YW – KP9OG – KPF9RD – KPF9OR
Compatible accessory – FLT6Round Charcoal filters (kit 2 pieces)
Compatible accessory – KITALLFCUniversal Charcoal filter Stainless Steel AISI 304. The filter can be washed in dishwasher 50 °C (water and suitable detergent) and to dry it put in the oven 180 °C 25 minutes.
