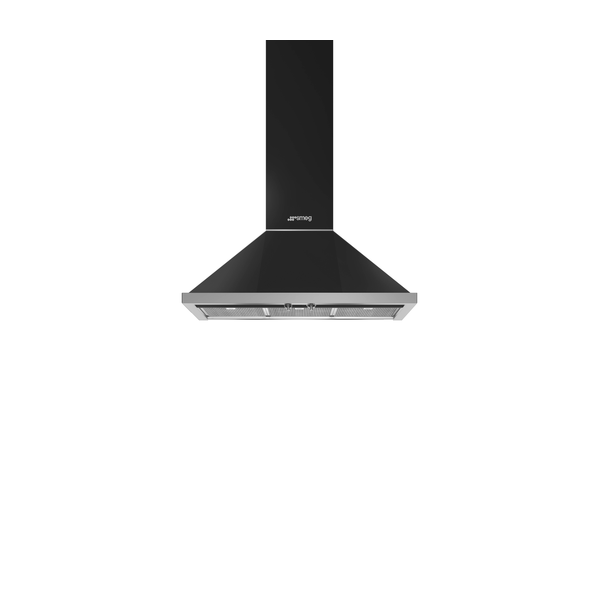

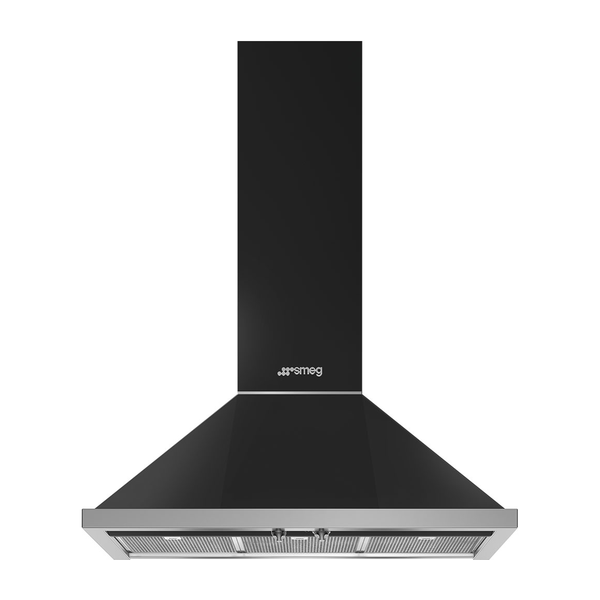

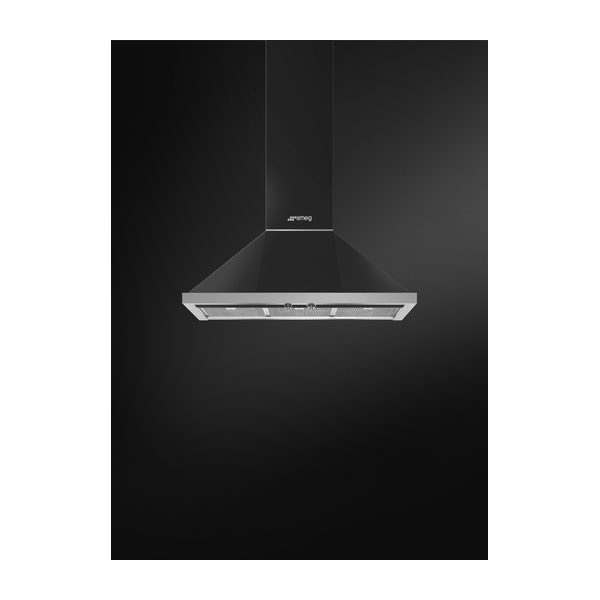

Smeg KPF9AN Portofino Chimney Hood

Smeg KPF9AN Portofino Chimney Hood

The SMEG KPF9AN is a 90 cm Portofino chimney cooker hood in anthracite, designed for ducted or recirculation extraction. It features brushed stainless steel and painted materials, steel-effect Portofino control knobs and efficient stainless steel anti-grease filters. With three speeds plus intensive, LED lighting and an A+ energy efficiency class, it offers strong extraction performance and illumination for the cooking area, with both gas and electric hob installation distances specified.

SKU:KPF9AN
EAN:8017709236366
Category::Cooker Hoods
2 Year Warranty

Key Features

Product family & type: Hood – Chimney Cooker Hood with Portofino aesthetics.
Design & finish: Chimney design in brushed stainless steel and painted material, anthracite colour with silver serigraphy and applied logo.
Width: 90 cm hood width for larger hobs.
Extraction options: Ducted out or re–circulation operation possible.
Controls: Steel-effect Portofino control knobs, 2 controls with 3 speeds plus intensive setting.
Lighting: 2 x 2 W LED lights with 4000 K colour temperature and lighting efficiency class A.
Maximum extraction rate: 630 m³/h at maximum speed and 781 m³/h intensive extraction rate (free outlet maximum capacity 815 m³/h).
Energy performance: A+ energy efficiency class with 40 kWh/year annual efficiency consumption.
Noise levels: From 48 dBA at minimum speed to 67 dBA at maximum and 72 dBA at intensive speed.
Filters: 3 stainless steel anti-grease filters with grease filtering efficiency of 78.5 % (class C).
Vent outlet & valve: 150 mm vent outlet with non return valve included.
Installation distances: Minimum 750 mm from gas hobs and 650 mm from electric hobs.
Motor & power: 275 W motor power, nominal power 277 W, 220–240 V, 50–60 Hz.
Available colours: Anthracite plus alternatives in White, Black, Stainless steel, Yellow, Green, Red and Orange (models KPF9WH, KPF9BL, KPF9X, KP9YW, KPF9OG, KPF9RD, KPF9OR).

Technical Spec

Product familyHood
Hood typeChimney Cooker Hoods
DesignChimney
ExtractionDucted out or re–circulation possible
MaterialStainless Steel + Painted Material
Type of steelBrushed
EAN code8017709236366
Hood width90 cm
AestheticsPortofino
ColourAnthracite
Serigraphy colourSilver
LogoApplied
Control settingControl knobs
No. of controls2
Control knobsPortofino
Controls colourSteel effect
No. of speeds3 + intensive speed
No. of lights2
Light typeLED
Light power2 W
Light colour temperature4000 K
Free outlet maximum capacity815 m³/h
Motor power275 W
No. of filters3
Anti-grease filtersStainless steel
Vent outlet150 mm
Minimum distance from gas hob750 mm
Minimum distance from electric hob650 mm
Non return valveYes
Extraction rate (IEC 61591) – Speed 1288 m³/h – 48 dBA (IEC 60704-2-13)
Extraction rate (IEC 61591) – Speed 2421 m³/h – 63 dBA (IEC 60704-2-13)
Extraction rate (IEC 61591) – Speed 3630 m³/h – 67 dBA (IEC 60704-2-13)
Extraction rate (IEC 61591) – Intensive781 m³/h – 72 dBA (IEC 60704-2-13)
Annual efficiency consumption (AEChood)40 kWh/year
Energy efficiency class (EEC)A+
Fluid dynamic efficiency (FDE)36.2
Fluid dynamic efficiency class (FDEC)A
Lighting efficiency (LE)78.2 lux/W
Lighting efficiency class (LEC)A
Grease filtering efficiency (GFE)78.5 %
Grease filtering efficiency class (GFEC)C
Air flow at minimum speed (Qmin)288 m³/h
Maximum extraction rate630 m³/h
Intensive extraction rate781 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)48 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)67 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)72 dBA
Time increase factor (F)1.00
Energy efficiency index per first cavity40.3
Measured air flow rate at best efficiency point (Qbep)413 m³/h
Measured air pressure at best efficiency point (Qbep)476 Pa
Measured electric power input at best efficiency point (Wbep)151 W
Normal power of the light system (Wl)2 W
Average illumination on cooking surface (Emiddle)172 lux
Sound power level at highest setting (Lwa)67 dBA
Nominal power277 W
Voltage220–240 V
Frequency50–60 Hz
Power supply cable length1000 mm
Alternative colours availableWhite, Black, Stainless steel, Yellow, Green, Red, Orange
Available colour model codesKPF9WH, KPF9BL, KPF9X, KP9YW, KPF9OG, KPF9RD, KPF9OR

Downloads

Download product documentation, manuals, and specification sheets.

KPF9AN - Bulletin.pdf

PDF

KPF9AN Spec

PDF

Frequently Asked Questions

What is the width of the SMEG KPF9AN Portofino chimney hood?

The hood width is 90 cm.

Can this hood be used in recirculation mode?

Yes. The extraction system allows for ducted out or re–circulation operation.

What is the maximum extraction rate of this model?

The maximum extraction rate is 630 m³/h, with an intensive extraction rate of 781 m³/h and a free outlet maximum capacity of 815 m³/h.

What is the energy efficiency class?

The energy efficiency class is A+, with an annual efficiency consumption of 40 kWh/year.

How far above the hob should the hood be installed?

The minimum distance from a gas hob is 750 mm and from an electric hob 650 mm.

Does the hood include lighting for the cooking area?

Yes. It has 2 LED lights rated at 2 W each, with a colour temperature of 4000 K and lighting efficiency class A.
