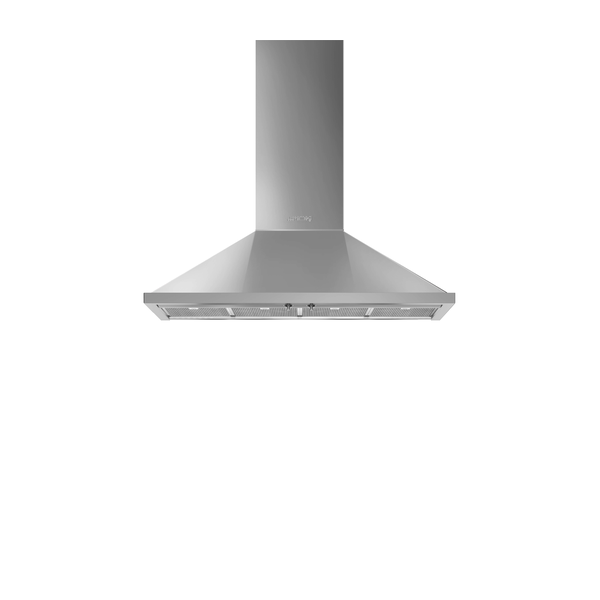

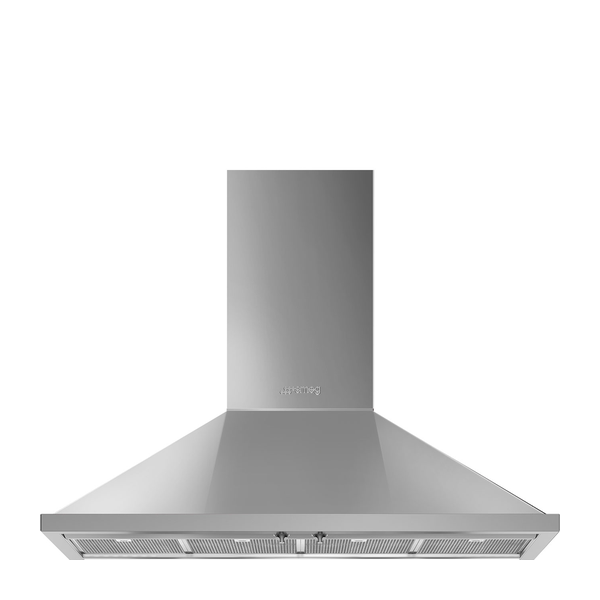

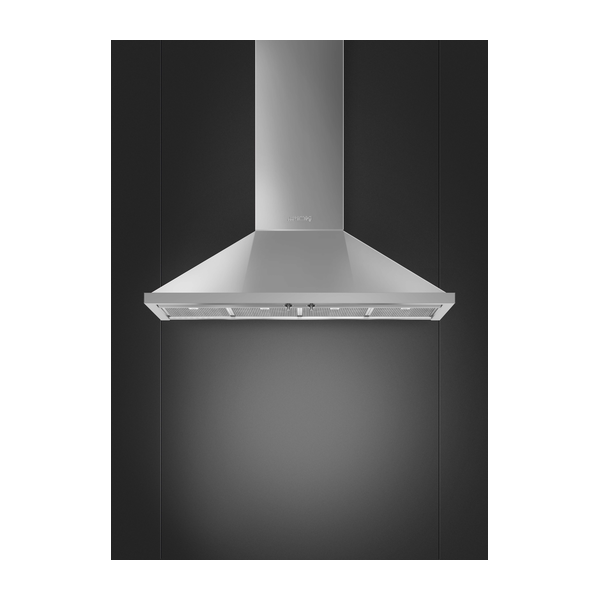

Smeg KPF12X Portofino Chimney Hood

The SMEG KPF12X is a 120 cm Portofino chimney cooker hood in brushed stainless steel and painted material, suitable for ducted out or recirculation installation. Designed with control knobs and three speeds plus intensive, it offers a maximum extraction rate of 606 m³/h and an intensive rate of 777 m³/h. LED lighting with four 4 W lamps at 4000 K provides bright illumination, while stainless steel anti-grease filters help remove grease from cooking steam.

SKU:KPF12X

EAN:8017709261689

Category::Cooker Hoods

Quantity:

Key Features

Chimney cooker hood design with Portofino aesthetics and 120 cm hood width.

Brushed stainless steel and painted material construction with applied logo and steel effect controls.

Ducted out or re–circulation extraction possible via 150 mm vent outlet and non return valve.

Three speeds plus intensive setting for extra fast extraction when required.

High extraction performance with maximum extraction rate of 606 m³/h and intensive extraction rate of 777 m³/h.

Four stainless steel anti–grease filters to help remove grease from steam during cooking.

LED lighting system with 4 × 4 W lamps, 4000 K colour temperature and average illumination of 329 lux on the cooking surface.

Energy efficiency class A+ with annual efficiency consumption of 42 kWh/year.

Fluid Dynamic Efficiency class A with FDE of 36.3 and energy efficiency index of 41.4.

Lighting efficiency class A with lighting efficiency of 74.8 lux/W.

Noise levels from 49 dBA at minimum speed up to 73 dBA at intensive speed.

Mechanical control knobs (2 Portofino control knobs) for straightforward operation.

Suitable clearances for hobs with minimum distance of 650 mm from both gas and electric hobs.

Alternative colour options including White, Black, Red and Turquoise (models KPF12WH/BL/X/RD/T).

Compatible charcoal filters available including FLT6 round charcoal filters and KITALLFC universal charcoal filter.

Technical Spec

Product familyHood

ModelKPF12X

Hood typeChimney cooker hoods

DesignChimney

AestheticsPortofino

ColourStainless steel

MaterialStainless steel + painted material

Type of steelBrushed

Hood width120 cm

LogoApplied

Extraction typeDucted out or re–circulation possible

Vent outlet diameter150 mm

Non return valveYes

Control settingControl knobs

No. of controls2

Control knobs typePortofino

Controls colourSteel effect

No. of speeds3 + intensive speed

No. of lights4

Light typeLED

Light power4 W

Light colour temperature4000 K

Average illumination on cooking surface (Emiddle)329 lux

No. of filters4

Anti–grease filtersStainless steel

Free outlet maximum capacity815 m³/h

Air flow at minimum speed (Qmin)287 m³/h

Maximum extraction rate606 m³/h

Intensive extraction rate777 m³/h

Extraction rate IEC 61591 – speed 1287 m³/h

Extraction rate IEC 61591 – speed 2389 m³/h

Extraction rate IEC 61591 – speed 3606 m³/h

Extraction rate IEC 61591 – intensive speed777 m³/h

Noise level IEC 60704–2–13 – speed 149 dBA

Noise level IEC 60704–2–13 – speed 258 dBA

Noise level IEC 60704–2–13 – speed 367 dBA

Noise level IEC 60704–2–13 – intensive speed73 dBA

Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)49 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)67 dBA

Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)73 dBA

Sound power level at highest setting (Lwa)67 dBA

Motor power275 W

Measured electric power input at best efficiency point (Wbep)150 W

Normal power of the light system (Wl)4 W

Nominal power280 W

Annual efficiency consumption (AEChood)42 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36.3

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)74.8 lux/W

Lighting Efficiency class (LEC)A

Grease Filtering Efficiency (GFE)74.9 %

Grease Filtering Efficiency Class (GFEC)D

Time increase factor (F)0.7

Energy Efficiency Index per first cavity41.4

Measured air flow rate at best efficiency point (Qbep)400 m³/h

Measured air pressure at best efficiency point (Qbep)490 Pa

Minimum distance from gas hob650 mm

Minimum distance from electric hob650 mm

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

EAN code8017709261689

Available colours (codes)KPF12WH/BL/X/RD/T

Downloads

Download product documentation, manuals, and specification sheets.

KPF12X - Bulletin.pdf

PDF

KPF12X Spec

PDF

Frequently Asked Questions

Can this hood be used in both ducted and recirculation modes?

Yes. Extraction can be ducted out or re–circulation is possible, using the 150 mm vent outlet and non return valve.

How many speeds does the SMEG KPF12X have?

The hood has three speeds plus an intensive speed, which acts as a turbo setting when extra fast extraction is required.

What is the maximum and intensive extraction rate?

The maximum extraction rate is 606 m³/h, while the intensive extraction rate is 777 m³/h.

What lighting does the hood use?

It uses four LED lights with a power of 4 W each and a colour temperature of 4000 K, providing an average illumination of 329 lux on the cooking surface.

What is the energy efficiency class and annual energy consumption?

The hood has an energy efficiency class A+ and an annual efficiency consumption of 42 kWh/year. A+ is stated as helping to save up to 10% energy compared to class A, with maximum performance and minimum consumption guaranteed.

Which accessories are compatible with this hood?

Compatible accessories include FLT6 round charcoal filters (kit 2 pieces) and KITALLFC universal charcoal filter in stainless steel AISI 304, which can be washed in a dishwasher at 50 °C and dried in an oven at 180 °C for 25 minutes.
