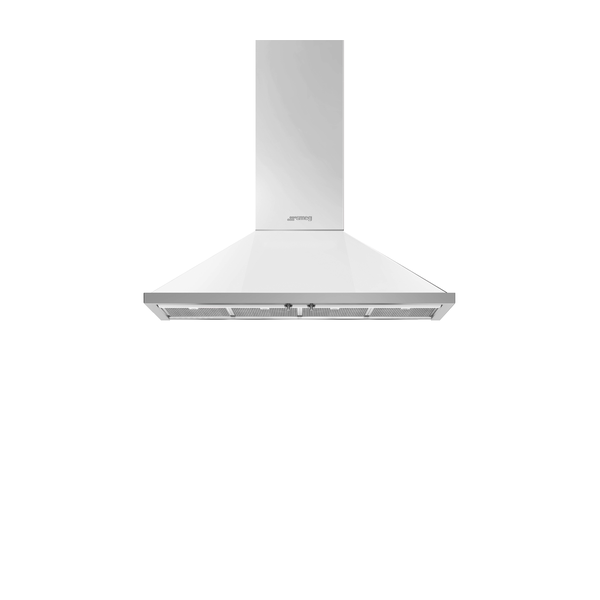

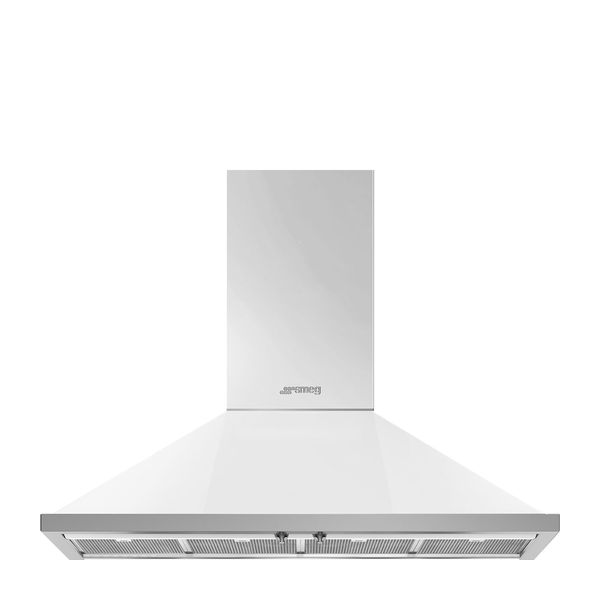

Smeg KPF12WH Portofino Chimney Hood

The SMEG KPF12WH is a 120 cm Portofino chimney cooker hood in white, designed for ducted or recirculation extraction. It features brushed stainless steel and painted materials, with control knobs in a steel effect finish. Offering three speeds plus intensive, LED lighting and stainless steel anti–grease filters, it provides efficient extraction with an A+ energy efficiency class. It is suitable for installation above both gas and electric hobs with specified minimum clearances.

SKU:KPF12WH

EAN:8017709261672

Category::Cooker Hoods

Quantity:

Key Features

Chimney cooker hood design with Portofino aesthetics and 120 cm hood width.

Flexible extraction with ducted out or re–circulation installation possible.

Material construction in stainless steel and painted material with brushed type of steel.

White colour finish with black serigraphy colour and applied logo.

Control knobs interface featuring 2 Portofino style controls in a steel effect colour.

3 speeds plus intensive setting for extra fast extraction when required.

LED lighting with 4 lights, each 4 W, at 4000 K colour temperature scale.

Stainless steel anti–grease filters with 4 filters to help remove grease from cooking steam.

High free outlet maximum capacity of 815 m³/h with 275 W motor power.

Extraction rate (IEC 61591) of 287, 389 and 606 m³/h across speeds 1–3, with 777 m³/h intensive.

Noise levels (IEC 60704–2–13) of 49, 58 and 67 dBA for speeds 1–3, and 73 dBA for intensive speed.

Energy efficiency class A+ with annual efficiency consumption of 42 kWh/year.

Fluid Dynamic Efficiency class A with FDE of 36,3 and Energy Efficiency Index of 41,4.

Lighting efficiency class A with 74,8 lux/W and average illumination of 329 lux on the cooking surface.

Grease Filtering Efficiency of 74,9 % with class D rating.

Vent outlet of 150 mm with non return valve included.

Minimum distance from GAS hob of 650 mm and from ELECTRIC hob of 650 mm.

Electrical connection with nominal power 280 W, 220–240 V and 50–60 Hz frequency.

Alternative colours available in Black, Stainless steel, Red and Turquoise (KPF12BL/X/RD/T).

Compatible charcoal filters include FLT6 round charcoal filters (kit 2 pieces) and KITALLFC universal charcoal filter.

KITALLFC filter care allows washing in dishwasher at 50 °C with suitable detergent and drying in an oven at 180 °C for 25 minutes.

Technical Spec

ModelKPF12WH

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re–circulation possible

MaterialStainless Steel + Painted Material

Type of steelBrushed

EAN code8017709261672

Hood width120 cm

AestheticsPortofino

ColourWhite

Serigraphy colourBlack

LogoApplied

Control settingControl knobs

No. of controls2

Control knobsPortofino

Controls colourSteel effect

No. of speeds3 + Intensive speed

No. of lights4

Light typeLED

Light power4 W

Light colour temperature scale4000 K

Free outlet maximum capacity815 m³/h

Motor power275 W

No. of filters4

Anti–grease filtersStainless steel

Vent outlet150 mm

Minimum distance from GAS hob650 mm

Minimum distance from ELECTRIC hob650 mm

Non return valveYes

Extraction rate IEC 61591 – Speed 1287 m³/h

Noise level IEC 60704–2–13 – Speed 149 dBA

Extraction rate IEC 61591 – Speed 2389 m³/h

Noise level IEC 60704–2–13 – Speed 258 dBA

Extraction rate IEC 61591 – Speed 3606 m³/h

Noise level IEC 60704–2–13 – Speed 367 dBA

Intensive extraction rate777 m³/h

Noise level – Intensive speed73 dBA

Air flow at minimum speed (Qmin)287 m³/h

Maximum extraction rate606 m³/h

Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)49 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)67 dBA

Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)73 dBA

Sound power level at highest setting (Lwa)67 dBA

Annual Efficiency Consumption (AEChood)42 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36,3

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)74,8 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)74,9 %

Grease Filtering Efficiency Class (GFEC)D

Time increase factor (F)0,7

Energy Efficiency Index per first cavity41,4

Measured air flow rate at best efficiency point (Qbep)400 m³/h

Measured air pressure at best efficiency point (Qbep)490 Pa

Measured electric power input at best efficiency point (Wbep)150 W

Normal power of the light system (Wl)4 W

Average illumination of the light on the cooking surface (Emiddle)329 lux

Nominal power280 W

Voltage220–240 V

Frequency (Hz)50–60 Hz

Power supply cable length1000 mm

Alternative colours availableBlack, Stainless steel, Red, Turquoise

Available colours codesKPF12BL/X/RD/T

Compatible accessoriesFLT6; KITALLFC

FLT6 descriptionRound Charcoal filters (kit 2 pieces)

KITALLFC descriptionUniversal Charcoal filter Stainless Steel AISI 304

KITALLFC washing instructionsThe filter can be washed in dishwasher 50 °C (water and suitable detergent) and to dry it put in the oven 180 °C 25 minutes

Downloads

Download product documentation, manuals, and specification sheets.

KPF12WH - Bulletin.pdf

PDF

KPF12WH Spec

PDF

Frequently Asked Questions

What type of cooker hood is the KPF12WH?

It is a chimney cooker hood with a chimney design, part of the hood product family with Portofino aesthetics.

Can this hood be used for recirculation as well as ducted extraction?

Yes, extraction can be ducted out or re–circulation is possible, according to the stated extraction options.

What is the minimum installation height above the hob?

The minimum distance from a gas hob is 650 mm and the minimum distance from an electric hob is also 650 mm.

What are the main performance figures for this hood?

The hood offers a free outlet maximum capacity of 815 m³/h, maximum extraction rate of 606 m³/h, intensive extraction rate of 777 m³/h, and has an A+ energy efficiency class with annual efficiency consumption of 42 kWh/year.

Which filters and accessories are compatible?

Compatible accessories are the FLT6 round charcoal filters (kit 2 pieces) and the KITALLFC universal charcoal filter in Stainless Steel AISI 304. The hood itself uses 4 stainless steel anti–grease filters.

Is the lighting on this hood energy efficient?

The hood uses LED lights with a lighting efficiency of 74,8 lux/W and a lighting efficiency class of A. Average illumination on the cooking surface (Emiddle) is 329 lux.
