Smeg KPF12T Portofino Chimney Hood

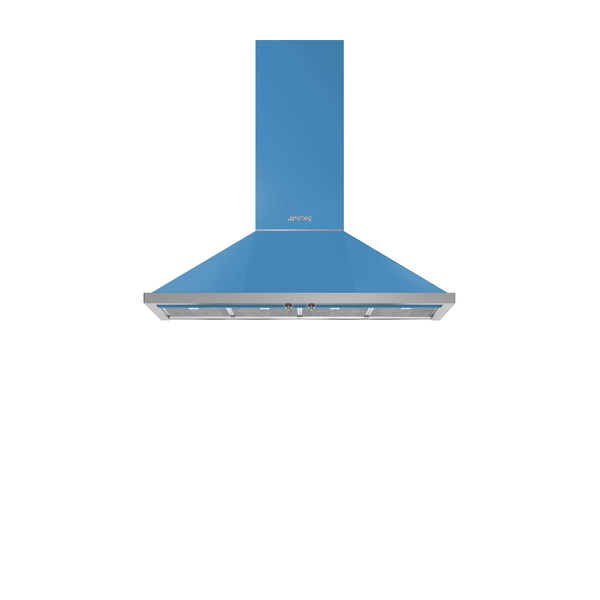

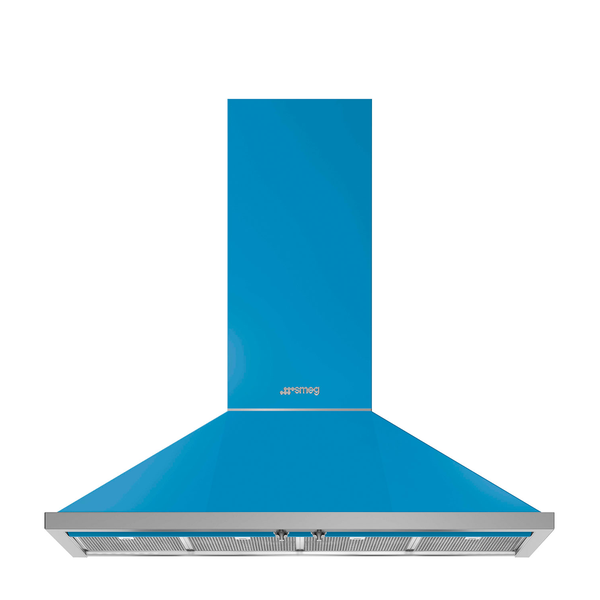

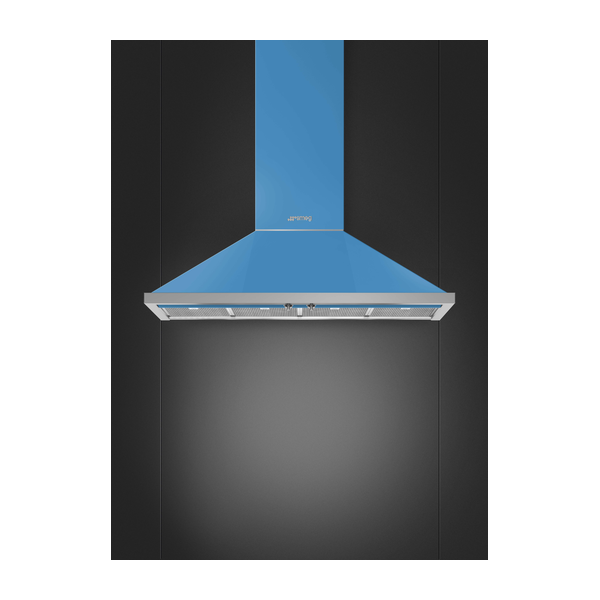

The SMEG KPF12T Portofino chimney cooker hood is a 120 cm stainless steel and painted model in a turquoise finish, designed for ducted extraction or recirculation. It offers three speeds plus an intensive setting, with a maximum intensive extraction rate of 777 m³/h and A+ energy efficiency. Featuring Portofino control knobs, four LED lights at 4000 K and stainless steel anti-grease filters, it provides effective extraction and illumination above gas or electric hobs.

SKU:KPF12T

EAN:8017709283438

Category::Cooker Hoods

Quantity:

Key Features

Chimney cooker hood design with Portofino aesthetics and turquoise colour for a distinctive look.

120 cm hood width providing wide coverage above the cooking area.

Ducted out or re-circulation operation for flexible installation options.

Stainless steel anti-grease filters to help remove grease from steam during cooking.

4 LED lights (4 W, 4000 K) to illuminate the cooking surface and enhance kitchen ambience.

3 speeds plus intensive setting for extra fast extraction when required.

Intensive extraction rate 777 m³/h and free outlet maximum capacity of 815 m³/h.

Energy efficiency class A+ with annual efficiency consumption of 42 kWh/year.

Control knobs (Portofino style) with 2 steel-effect controls for easy operation.

Non-return valve included to prevent backflow through the vent outlet.

Minimum distance 650 mm from both gas and electric hobs.

Vent outlet 150 mm for connection to an appropriate ducting system.

Noise levels from 49 to 73 dBA depending on selected speed.

Alternative colours available : White, Black, Stainless steel, Red (models KPF12WH/BL/X/RD).

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re-circulation possible

MaterialStainless Steel + Painted Material

Type of steelBrushed

EAN code8017709283438

ModelKPF12T

Hood width120 cm

AestheticsPortofino

ColourTurquoise

Serigraphy colourBlack

LogoApplied

Control settingControl knobs

No. of controls2

Control knobsPortofino

Controls colourSteel effect

No. of speeds3 + Intensive speed

No. of lights4

Light typeLED

Light power4 W

Light colour temperature4000 K

Free outlet maximum capacity815 m³/h

Motor power275 W

No. of filters4

Anti-grease filtersStainless steel

Vent outlet150 mm

Minimum distance from gas hob650 mm

Minimum distance from electric hob650 mm

Non return valveYes

Extraction rate IEC 61591 – Speed 1287 m³/h

Extraction rate IEC 61591 – Speed 2389 m³/h

Extraction rate IEC 61591 – Speed 3606 m³/h

Extraction rate IEC 61591 – Intensive speed777 m³/h

Noise level IEC 60704-2-13 – Speed 149 dBA

Noise level IEC 60704-2-13 – Speed 258 dBA

Noise level IEC 60704-2-13 – Speed 367 dBA

Noise level IEC 60704-2-13 – Intensive speed73 dBA

Annual Efficiency Consumption (AEChood)42 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36,3

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)74,8 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)74,9 %

Grease Filtering Efficiency Class (GFEC)D

Air flow at minimum speed (Qmin)287 m³/h

Maximum extraction rate606 m³/h

Intensive extraction rate777 m³/h

Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)49 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)67 dBA

Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)73 dBA

Time increase factor (F)0,7

Energy Efficiency Index per first cavity41,4

Measured air flow rate at best efficiency point (Qbep)400 m³/h

Measured air pressure at best efficiency point (Qbep)490 Pa

Measured electric power input at best efficiency point (Wbep)150 W

Normal power of the light system (Wl)4 W

Average illumination on cooking surface (Emiddle)329 lux

Sound power level at highest setting (Lwa)67 dBA

Nominal power279 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Alternative colours availableWhite, Black, Stainless steel, Red

Available colours modelsKPF12WH/BL/X/RD

Functions, Installation and Usage

The hood provides three standard speeds plus an intensive/turbo setting for times when extra fast extraction is required. Operation is managed via two Portofino-style steel-effect control knobs.

Installation can be configured for ducted extraction to the outside or for recirculation. A non-return valve is included, and the vent outlet diameter is 150 mm. The minimum recommended distance from both gas and electric hobs is 650 mm.

Stainless steel filters are fitted to help remove grease from steam during cooking. The integrated LED lighting system with four 4 W lamps at 4000 K illuminates the cooking area and can contribute to the ambience of the kitchen.

Downloads

Download product documentation, manuals, and specification sheets.

KPF12T - Bulletin.pdf

PDF

KPF12T Spec

PDF

Frequently Asked Questions

What is the maximum extraction rate of the SMEG KPF12T?

The maximum extraction rate at standard highest speed is 606 m³/h, while the intensive extraction rate is 777 m³/h. The free outlet maximum capacity is 815 m³/h.

How many speeds does this chimney hood have?

The hood has three speeds plus an intensive speed setting. Extraction and noise levels are specified for each speed according to IEC 61591 and IEC 60704-2-13.

What is the energy efficiency rating?

The energy efficiency class is A+, with an annual efficiency consumption (AEChood) of 42 kWh/year. The fluid dynamic efficiency class is A and the lighting efficiency class is also A.

Can this hood be installed for recirculation instead of ducting out?

Yes. The hood can be used either ducted out or in re-circulation mode. For recirculation, compatible charcoal filters such as FLT6 or KITALLFC are available.

What is the recommended installation distance from the hob?

The specified minimum distance from both gas hobs and electric hobs is 650 mm.

What lighting does the hood provide over the cooking area?

The hood is equipped with four LED lights of 4 W each, with a colour temperature of 4000 K. The lighting efficiency is 74,8 lux/W and the average illumination on the cooking surface (Emiddle) is 329 lux.
