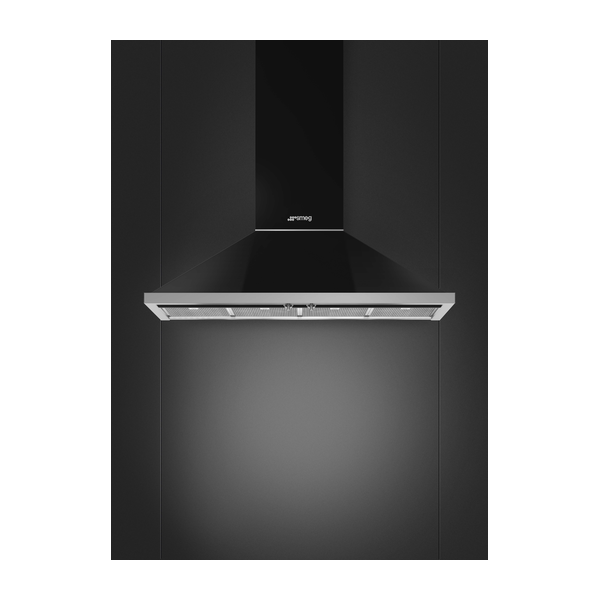

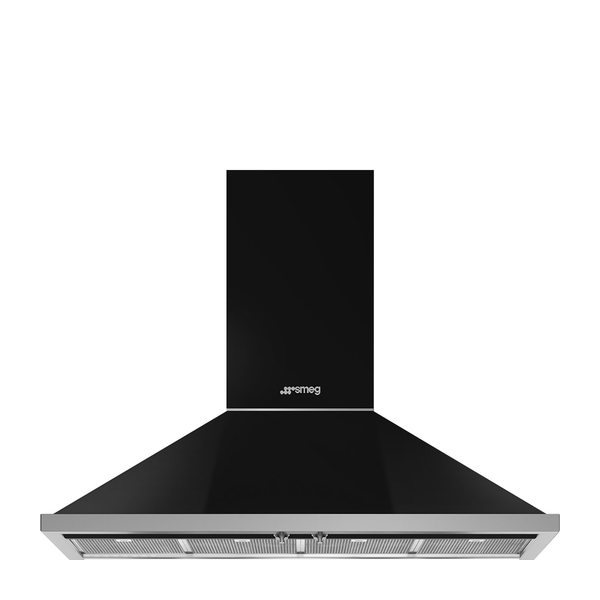

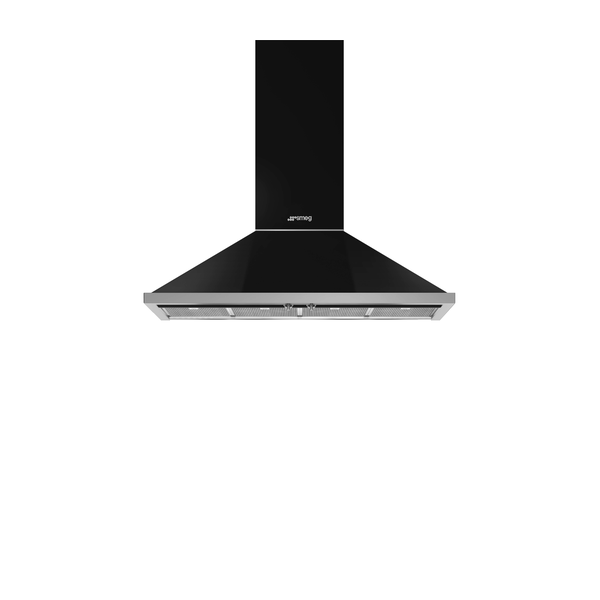

Smeg KPF12BL Portofino Chimney Hood

The Smeg KPF12BL is a 120 cm Portofino chimney cooker hood in black, designed for ducted or recirculation extraction. It features stainless steel and painted materials with brushed steel, LED lighting and control knobs. With three speeds plus intensive, a maximum extraction rate of 606 m³/h and an intensive rate of 777 m³/h, it offers A+ energy efficiency and stainless steel anti-grease filters.

SKU:KPF12BL

EAN:8017709261634

Category::Cooker Hoods

Quantity:

Key Features

Product family & type: Chimney cooker hood from the Portofino aesthetics range.

Installation options: Extraction can be ducted out or re-circulation is possible.

Width: 120 cm hood width to cover larger cooking areas.

Finish and colour: Stainless steel and painted material with brushed steel and black colour.

Controls: Portofino control knobs with 2 controls and steel effect colour.

Speeds: 3 speeds plus intensive speed for extra fast extraction.

Lighting: 4 LED lights, 4 W each, 4000 K colour temperature, Lighting Efficiency Class A.

Filters: 4 stainless steel anti-grease filters fitted as standard.

Maximum extraction rate: 606 m³/h, with intensive extraction rate of 777 m³/h.

Free outlet maximum capacity: 815 m³/h with 275 W motor power.

Noise performance: 49 dBA at minimum speed, 67 dBA at maximum speed, 73 dBA at boost speed.

Energy efficiency: Energy Efficiency Class A+, Annual Efficiency Consumption 42 kWh/year.

Grease filtering: Grease Filtering Efficiency 74,9 % with Grease Filtering Efficiency Class D.

Vent outlet: 150 mm vent outlet with non return valve.

Minimum installation heights: 650 mm minimum distance from GAS hob and 650 mm from ELECTRIC hob.

Electrical connection: Nominal power 280 W, 220–240 V, 50–60 Hz, 1000 mm power supply cable length.

Available colours: White, Black, Stainless steel, Red, Turquoise (models KPF12WH/BL/X/RD/T).

Lighting benefits: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.

Intensive/turbo function: Intensive/turbo setting for extra fast extraction when required.

Filter function: Filters help remove grease from the steam emanating from the pans during cooking.

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

AestheticsPortofino

ColourBlack

Serigraphy colourBlack

MaterialStainless Steel + Painted Material

Type of steelBrushed

LogoApplied

EAN code8017709261634

Hood width120 cm

ExtractionDucted out or re-circulation possible

Control settingControl knobs

No. of controls2

Control knobsPortofino

Controls colourSteel effect

No. of speeds3 + intensive speed

No. of lights4

Light typeLED

Light power4 W

Light colour temperature4000 K

Free outlet maximum capacity815 m³/h

Motor power275 W

No. of filters4

Anti-grease filtersStainless steel

Vent outlet150 mm

Minimum distance from GAS hob650 mm

Minimum distance from ELECTRIC hob650 mm

Non return valveYes

Annual Efficiency Consumption (AEChood)42 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)36,3

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)74,8 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)74,9 %

Grease Filtering Efficiency Class (GFEC)D

Air flow at minimum speed (Qmin)287 m³/h

Maximum extraction rate606 m³/h

Intensive extraction rate777 m³/h

Speed 1 extraction rate (IEC 61591)287 m³/h – 49 dBA

Speed 2 extraction rate (IEC 61591)389 m³/h – 58 dBA

Speed 3 extraction rate (IEC 61591)606 m³/h – 67 dBA

Intensive speed extraction rate (IEC 61591)777 m³/h – 73 dBA

Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)49 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)67 dBA

Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)73 dBA

Sound power level at highest setting (Lwa)67 dBA

Time increase factor (F)0,7

Energy Efficiency Index per first cavity41,4

Measured air flow rate at best efficiency point (Qbep)400 m³/h

Measured air pressure at best efficiency point (Qbep)490 Pa

Measured electric power input at best efficiency point (Wbep)150 W

Normal power of the light system (Wl)4 W

Average illumination of the light on the cooking surface (Emiddle)329 lux

Nominal power280 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1000 mm

Alternative colours availableWhite, Black, Stainless steel, Red, Turquoise

Available colours codesKPF12WH/BL/X/RD/T

Downloads

Download product documentation, manuals, and specification sheets.

KPF12BL - Bulletin.pdf

PDF

KPF12BL Spec

PDF

Frequently Asked Questions

Can this hood be used in recirculation as well as ducted mode?

Yes. Extraction can be ducted out or re-circulation is possible.

What is the maximum extraction rate of the Smeg KPF12BL?

The maximum extraction rate is 606 m³/h, with an intensive extraction rate of 777 m³/h and a free outlet maximum capacity of 815 m³/h.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is A+, and the Annual Efficiency Consumption (AEChood) is 42 kWh/year. Energy efficiency class A+ helps to save up to 10% energy compared to class A.

How many speeds does the hood have?

It has 3 speeds plus an intensive speed for extra fast extraction when required.

What filters are included and what do they do?

The hood includes 4 stainless steel anti-grease filters. Filters help remove grease from the steam emanating from the pans during cooking.

What are the minimum installation heights above the hob?

The minimum distance is 650 mm from a GAS hob and 650 mm from an ELECTRIC hob.
