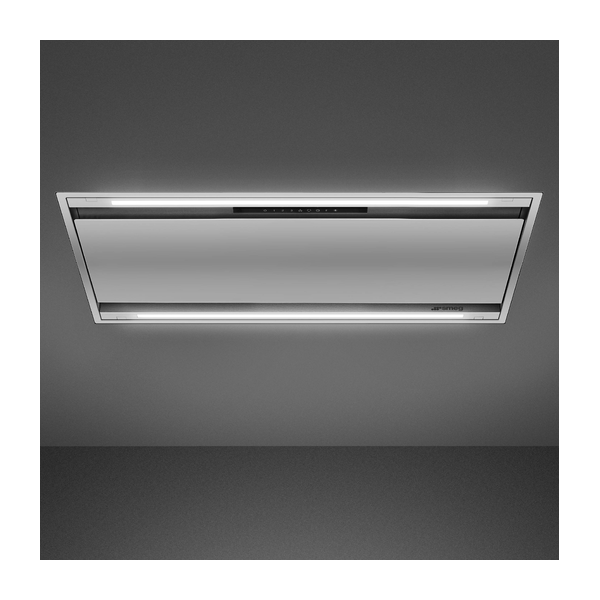

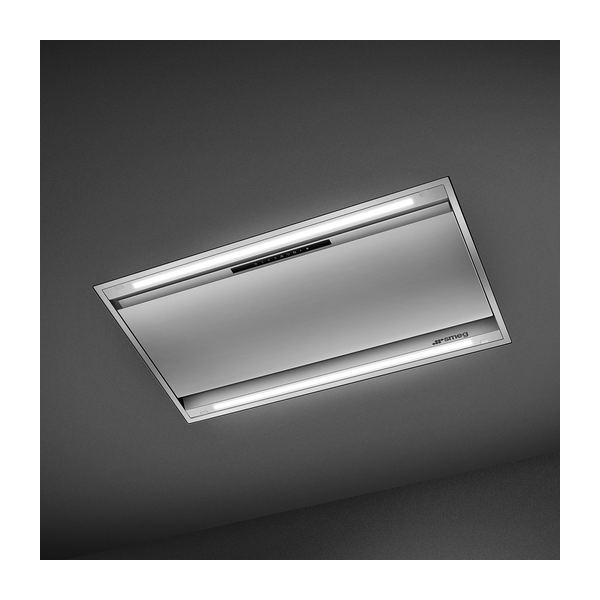

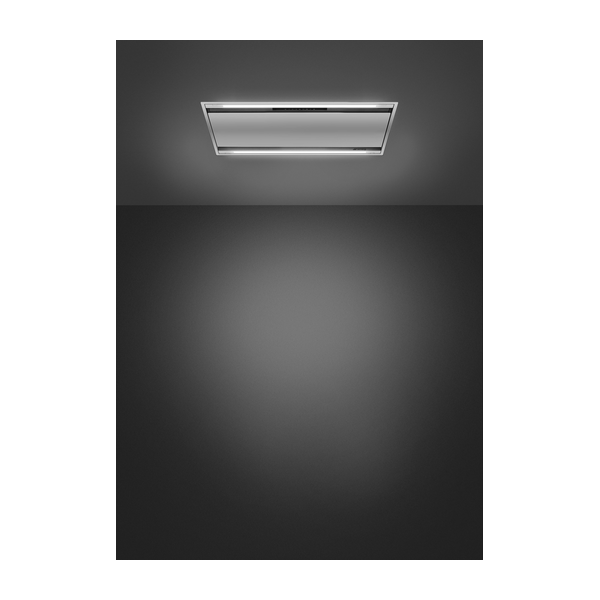

Smeg KLT9L4X Ceiling Hood

The SMEG KLT9L4X is a 90 cm stainless steel ceiling cooker hood designed for universal aesthetics and flexible installation with ducted out or re-circulation operation. It features brushed stainless steel perimeter extraction with touch control, three speeds plus intensive, and efficient LED lighting. With electronic control, 24 hour air filter function and Auto-Vent 2.0, it offers effective extraction performance and convenient operation in a discreet ceiling-mounted design.

SKU:KLT9L4X

EAN:8017709326227

Category::Cooker Hoods

Quantity:

Key Features

Ceiling cooker hood design for installation above the cooking area with universal aesthetics.

90 cm hood width in brushed stainless steel with silk screen logo.

Ducted out or re-circulation operation for flexible extraction solutions.

Electronic touch control, back-lit white with 3 speeds plus intensive speed.

Perimeter extraction panels designed for efficient extraction and aiding noise reduction.

Two LED lights with 15 W total power, 3000 K colour and adjustable 3000–5700 K range.

Free outlet maximum capacity 610 m³/h with intensive extraction rate of 594 m³/h.

Aluminium anti-grease filters with filter replacement indicator warning light.

24 h air filter function to refresh the air for about 10 minutes every hour at minimum speed.

Time-setting options including a setting to run after cooking and then switch off automatically.

Auto-Vent 2.0 for connection between hob and hood (description of operation not stated in source).

Remote control included for convenient operation.

Energy efficiency class B with annual energy consumption of 94 kWh/year.

Vent outlet 150 mm with non-return valve.

Minimum distance from GAS or ELECTRIC hob 650 mm for correct installation.

Sound levels from 48 to 69 dBA depending on selected speed.

Nominal power 305 W , motor power 270 W, voltage 220–240 V, 50–60 Hz.

Three aluminium filters to help remove grease from steam during cooking.

Lights to illuminate the cooking area and contribute to kitchen ambience.

Technical Spec

Product familyHood

Hood typeCeiling Cooker Hoods

DesignCeiling

AestheticsUniversal

Colour / materialStainless steel, brushed, stainless steel AISI 304 (for KITALLFC accessory)

FinishingBrushed, silk screen logo

Hood width90 cm

Extraction typeDucted out or re-circulation possible

Electronic controlYes

Perimeter extractionYes, perimeter extraction panels

Control settingTouch control back-lighted, white

Number of speeds3 speeds + intensive speed

24h air filter functionYes (refreshes air for c. 10 minutes every hour over 24 hours at minimum speed)

Time-setting optionsIncludes setting to run after end of cooking for a pre-set time and then switch off automatically

Auto-Vent 2.0Yes (connection between hob and hood; further details not stated in source)

Number of lights2

Light typeLED

Light power7,4 W (Normal power of the light system 15 W)

Light colour temperature scale3000 K

Light colour temperature range3000 – 5700 K

Average illumination on cooking surface (Emiddle)303 lux

Free outlet maximum capacity610 m³/h

Air flow at minimum speed (Qmin)208 m³/h

Maximum extraction rate452 m³/h

Intensive extraction rate594 m³/h

Motor power270 W

Number of filters3 aluminium anti-grease filters

Filter replacement indicatorYes (warning light to advise when filters need changing)

Vent outlet150 mm with non return valve

Minimum distance from gas hob650 mm

Minimum distance from electric hob650 mm

Annual efficiency consumption (AEChood)94 kWh/year

Energy efficiency class (EEC)B

Fluid Dynamic Efficiency (FDE)25,9

Fluid Dynamic Efficiency class (FDEC)B

Lighting Efficiency (LE)25,9 lux/W

Lighting Efficiency class (LEC)B

Grease Filtering Efficiency (GFE)72,0 %

Grease Filtering Efficiency class (GFEC)D

Airborne acoustical A-weighted sound power (SPEmin)48 dBA at minimum speed

Airborne acoustical A-weighted sound power (SPEmax)63 dBA at maximum speed

Airborne acoustical A-weighted sound power (SPEboost)69 dBA at boost speed

Sound power level at highest setting (Lwa)63 dBA

Time increase factor (F)1,1

Energy Efficiency Index per first cavity68,7

Measured air flow rate at best efficiency point (Qbep)335 m³/h

Measured air pressure at best efficiency point (Qbep)630 Pa

Measured electric power input at best efficiency point (Wbep)226 W

Extraction rate IEC 61591 – Speed 1208 m³/h – 48 dBA (IEC 60704-2-13)

Extraction rate IEC 61591 – Speed 2323 m³/h – 55 dBA (IEC 60704-2-13)

Extraction rate IEC 61591 – Speed 3452 m³/h – 62 dBA (IEC 60704-2-13)

Extraction rate IEC 61591 – Intensive speed594 m³/h – 69 dBA (IEC 60704-2-13)

Nominal power305 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1500 mm

Model codeKLT9L4X

Downloads

Download product documentation, manuals, and specification sheets.

KLT9L4X Spec

PDF

Frequently Asked Questions

Can this ceiling hood be used in recirculation mode?

Yes. The extraction type is specified as ducted out or re-circulation possible. Compatible charcoal filters such as KITALLFC and KITFCKLTR are available for use in re-circulation configurations.

What is the minimum installation distance from the hob?

The minimum distance from a gas hob is 650 mm, and the minimum distance from an electric hob is also 650 mm.

How loud is the SMEG KLT9L4X at different speeds?

At minimum speed the airborne acoustical A-weighted sound power is 48 dBA. At maximum standard speed it is 63 dBA, and at boost or intensive speed it is 69 dBA. Extraction rate data also specifies 48 dBA at speed 1, 55 dBA at speed 2, 62 dBA at speed 3 and 69 dBA at intensive speed.

What energy efficiency rating does this hood have?

The hood has an energy efficiency class B, with annual efficiency consumption (AEChood) of 94 kWh/year. Fluid Dynamic Efficiency class is B and Lighting Efficiency class is also B.

How are the filters maintained and when should they be changed?

The hood uses three aluminium anti-grease filters to help remove grease from steam during cooking. A filter replacement indicator with warning light advises when filters need changing. Compatible charcoal filters such as KITALLFC and KITFCKLTR can be washed in a dishwasher and dried in an oven following the specified temperature and time instructions.

What special functions does the 24 h setting provide?

When the 24 h function is selected, the hood refreshes the air for about 10 minutes every hour over a 24 hour period at minimum speed and an imperceptible noise level. This is in addition to the standard speeds and intensive or turbo setting.
