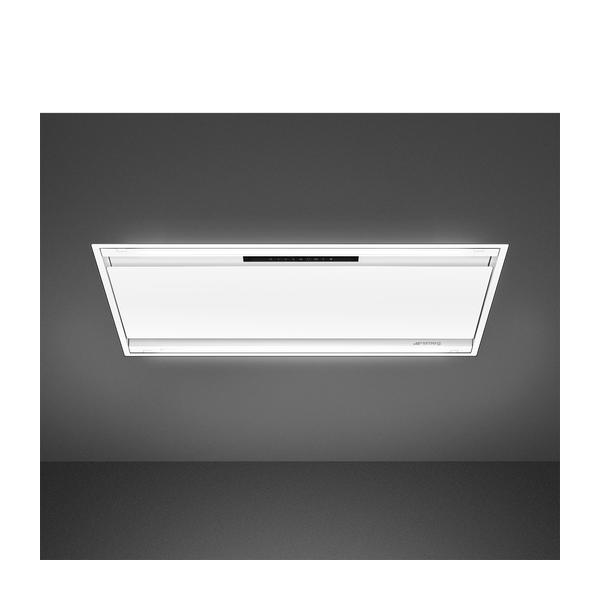

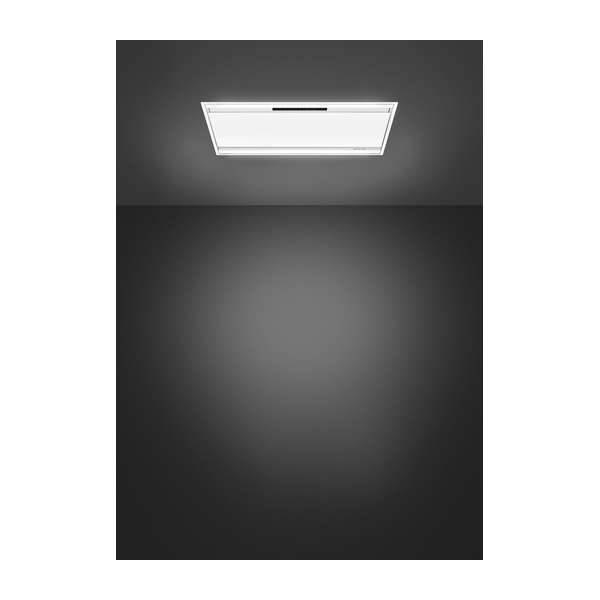

Smeg KLT9L4WH Ceiling Hood

The KLT9L4WH is a 90 cm Universal ceiling cooker hood in matte white brushed stainless steel, designed for ducted out or recirculation extraction. It offers perimeter extraction, touch control with back-lighting and three speeds plus intensive for efficient odour removal. With LED lighting, aluminium anti-grease filters and a 24 hour air filter function, it is suitable for installation over gas or electric hobs at a minimum distance of 650 mm.

SKU:KLT9L4WH

EAN:8017709326210

Category::Cooker Hoods

Quantity:

Key Features

Ceiling cooker hood design – Ceiling mounted hood from the Hood product family and Ceiling Cooker Hoods type.

90 cm hood width – Suitable for installations requiring a 90 cm extraction area.

Ducted out or recirculation – Extraction can be configured for ducted out or re-circulation use.

Universal matte white aesthetics – Universal style with matte white colour, brushed finishing and silk screen logo.

Stainless steel construction – Brushed stainless steel material for the hood body.

Touch control, back-lit interface – Electronic touch control with back-lighted white display.

Three speeds plus intensive – 3 speeds with additional intensive speed for extra fast extraction.

Perimeter extraction – Perimeter extraction panels designed for efficiency and noise reduction.

24 hour air filter function – Function to refresh the air for about 10 minutes every hour over 24 hours at minimum speed and low noise.

Auto-Vent 2.0 – Connection between hob and hood functionality (description not further detailed in source).

Time-setting options – Special setting to run after cooking for a pre-set time and then switch off automatically.

LED lighting – 2 LED lights with 7.4 W power each and 3000 K colour temperature scale.

Adjustable light colour temperature – Light colour temperature range from 3000 – 5700 K.

Aluminium anti-grease filters – 3 aluminium anti-grease filters with a filter replacement indicator.

Maximum free outlet capacity 610 m³/h – Free outlet maximum capacity rated at 610 m³/h.

Intensive extraction rate 594 m³/h – Maximum intensive extraction rate under IEC 61591.

Energy efficiency class B – Annual energy consumption of 94 kWh/year with energy efficiency class B.

Remote control included – Hood can be operated using a remote control.

Non-return valve – Fitted with a non-return valve for the vent outlet.

Minimum distance from hob 650 mm – Minimum distance from both gas and electric hobs is 650 mm.

Technical Spec

Product familyHood

Hood typeCeiling Cooker Hoods

DesignCeiling

AestheticsUniversal

ModelKLT9L4WH

EAN code8017709326210

Hood width90 cm

ColourMatte White

MaterialStainless steel, brushed

LogoSilk screen

ExtractionDucted out or re-circulation possible

Electronic controlYes

Control settingTouch control back-lighted White

Perimeter extractionYes

Number of speeds3 + intensive speed

24 h air filter functionYes

Time-setting optionsYes

Auto-Vent 2.0Yes

Number of lights2

Light typeLED

Light power7,4 W

Light colour temperature scale3000 K

Light colour temperature range3000 – 5700 K

Free outlet maximum capacity610 m³/h

Motor power270 W

Number of filters3

Anti-grease filtersAluminium

Filter replacement indicatorYes

Vent outlet150 mm

Minimum distance from gas hob650 mm

Minimum distance from electric hob650 mm

Non return valveYes

Annual efficiency consumption (AEChood)94 kWh/year

Energy efficiency class (EEC)B

Fluid Dynamic Efficiency (FDE)25,9

Fluid Dynamic Efficiency class (FDEC)B

Lighting Efficiency (LE)25,9 lux/W

Lighting Efficiency Class (LEC)B

Grease Filtering Efficiency (GFE)72,0 %

Grease Filtering Efficiency Class (GFEC)D

Air flow at minimum speed (Qmin)208 m³/h

Maximum extraction rate452 m³/h

Intensive extraction rate594 m³/h

Sound power emission at minimum speed (SPEmin)48 dBA

Sound power emission at maximum speed (SPEmax)63 dBA

Sound power emission at boost speed (SPEboost)69 dBA

Time increase factor (F)1,1

Energy Efficiency Index68,7

Measured air flow rate at best efficiency point (Qbep)335 m³/h

Measured air pressure at best efficiency point (Qbep)630 Pa

Measured electric power input at best efficiency point (Wbep)226 W

Normal power of the light system (Wl)15 W

Average illumination on cooking surface (Emiddle)303 lux

Sound power level at highest setting (Lwa)63 dBA

Extraction rate IEC 61591 – Speed 1208 m³/h – 48 dBA (IEC 60704-2-13)

Extraction rate IEC 61591 – Speed 2323 m³/h – 55 dBA (IEC 60704-2-13)

Extraction rate IEC 61591 – Speed 3452 m³/h – 62 dBA (IEC 60704-2-13)

Extraction rate IEC 61591 – Intensive speed594 m³/h – 69 dBA (IEC 60704-2-13)

Nominal power305 W

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length1500 mm

Downloads

Download product documentation, manuals, and specification sheets.

KLT9L4WH Spec

PDF

Frequently Asked Questions

Can this hood be used with both ducted and recirculation extraction?

Yes. The extraction system allows for ducted out or re-circulation installation, depending on your kitchen set-up.

What is the minimum installation height above the hob?

The minimum distance from a gas hob is 650 mm and the minimum distance from an electric hob is also 650 mm.

How many fan speeds does the KLT9L4WH have?

The hood offers 3 speeds plus an intensive speed for periods when extra fast extraction is required.

Does the hood indicate when filters need changing?

Yes. A filter replacement indicator and warning lights advise when filters need changing.

What is the energy efficiency class and annual consumption?

The hood has an energy efficiency class B and an annual energy consumption (AEChood) of 94 kWh/year.

Is a remote control supplied with the hood?

Yes. A remote control is listed under accessories included.
