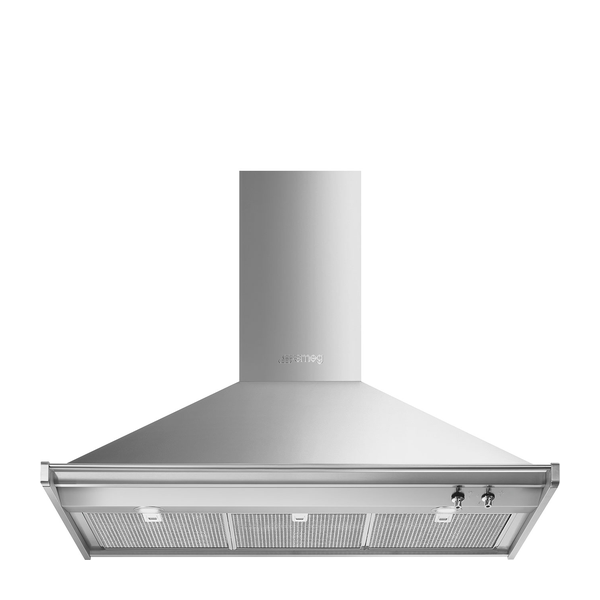

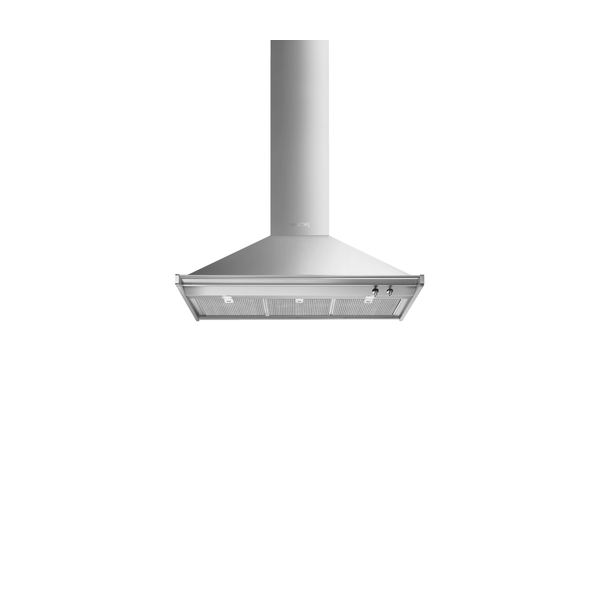

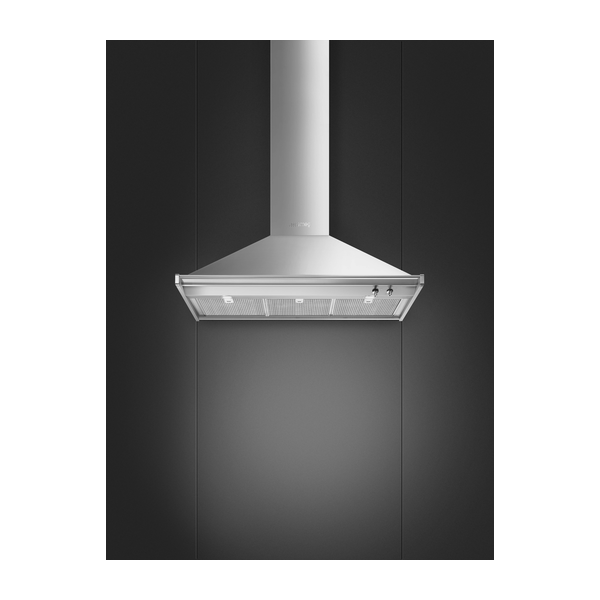

Smeg KD100HXE Opera Chimney Hood

The SMEG KD100HXE is a 100 cm classic chimney cooker hood in brushed stainless steel, designed for ducted out or recirculating extraction. It features control knobs with 3 speeds plus intensive setting, stainless steel anti-grease filters and LED lighting at 4000 K. With a maximum free outlet capacity of 830 m³/h, an A+ energy efficiency class and flexible installation above gas or electric hobs, it offers powerful extraction with efficient performance.

SKU:KD100HXE

EAN:8017709276874

Category::Cooker Hoods

Quantity:

Key Features

100 cm classic chimney design in brushed stainless steel with applied logo and painted material construction.

Ducted out or recirculation operation for flexible installation, with non return valve and 150 mm vent outlet.

3 speeds plus intensive setting controlled by classic steel-effect control knobs for simple operation.

High extraction performance with maximum extraction rate 639 m³/h and intensive extraction rate 792 m³/h.

LED lighting with 2 × 1 W lights at 4000 K and lighting efficiency of 75,5 lux/W (class A).

Stainless steel anti-grease filters with grease filtering efficiency of 71,5 % (class D).

A+ energy efficiency class with annual efficiency consumption of 39 kWh/year and energy efficiency index 40.

Quiet operation levels from 49 dBA at minimum speed to 72 dBA at intensive speed (IEC 60704-2-13).

Minimum installation distances of 750 mm from gas hobs and 650 mm from electric hobs.

Alternative colour available in black (model KD100HNE).

Technical Spec

Product familyHood

Hood typeChimney Cooker Hoods

DesignChimney

ExtractionDucted out or re-circulation possible

MaterialPainted material

Type of steelBrushed

EAN code8017709276874

Hood width100 cm

AestheticsClassic

ColourStainless steel

FinishingBrushed

LogoApplied

Control settingControl knobs

No. of controls2

Control knobsClassic

Controls colourSteel effect

No. of speeds3

Intensive speedYes (Intensive/turbo setting: when extra fast extraction is required.)

No. of lights2

Light typeLED

Light power1 W

Light colour temperature4000 K

Free outlet maximum capacity830 m³/h

Motor power275 W

No. of filters3

Anti-grease filtersStainless steel

Vent outlet150 mm

Minimum distance from GAS hob750 mm

Minimum distance from ELECTRIC hob650 mm

Non return valveYes

Extraction rate IEC 61591 – Speed 1297 m³/h

Noise level IEC 60704-2-13 – Speed 149 dBA

Extraction rate IEC 61591 – Speed 2431 m³/h

Noise level IEC 60704-2-13 – Speed 258 dBA

Extraction rate IEC 61591 – Speed 3639 m³/h

Noise level IEC 60704-2-13 – Speed 367 dBA

Extraction rate IEC 61591 – Intensive speed792 m³/h

Noise level IEC 60704-2-13 – Intensive speed72 dBA

Annual efficiency consumption (AEChood)39 kWh/year

Energy efficiency class (EEC)A+

Fluid Dynamic Efficiency (FDE)35,9

Fluid Dynamic Efficiency class (FDEC)A

Lighting Efficiency (LE)75,5 lux/W

Lighting Efficiency Class (LEC)A

Grease Filtering Efficiency (GFE)71,5 %

Grease Filtering Efficiency Class (GFEC)D

Air flow at minimum speed (Qmin)297 m³/h

Maximum extraction rate639 m³/h

Intensive extraction rate792 m³/h

Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)49 dBA

Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)68 dBA

Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)72 dBA

Time increase factor (F)0,7

Energy Efficiency Index per first cavity40

Measured air flow rate at best efficiency point (Qbep)394 m³/h

Measured air pressure at best efficiency point (Qbep)483 Pa

Measured electric power input at best efficiency point (Wbep)147 W

Normal power of the light system (Wl)2 W

Average illumination on the cooking surface (Emiddle)166 lux

Sound power level at highest setting (Lwa)68 dBA

Nominal power277 W

Voltage220-240 V

Frequency50-60 Hz

Power supply cable length1500 mm

Alternative colours availableBlack

Available colours modelKD100HNE

Downloads

Download product documentation, manuals, and specification sheets.

KD100HXE - Bulletin.pdf

PDF

KD100HXE Spec

PDF

Frequently Asked Questions

What type of cooker hood is the KD100HXE?

It is a chimney cooker hood with a classic aesthetic, designed as a 100 cm wide chimney unit in brushed stainless steel.

Can this hood be used in recirculation mode?

Yes. Extraction can be ducted out or configured for re-circulation, and compatible charcoal filter accessories such as FLT6 and KITALLFC are available.

How many speeds does the hood have?

The hood has 3 speeds plus an intensive/turbo setting for extra fast extraction when required.

What are the minimum installation distances from the hob?

The minimum distance is 750 mm from gas hobs and 650 mm from electric hobs.

What is the energy efficiency class of the KD100HXE?

The hood has an A+ energy efficiency class, with an annual efficiency consumption of 39 kWh/year.

Does the hood include lighting?

Yes. All cooker hoods feature lights, and this model has 2 LED lights of 1 W each with a colour temperature of 4000 K and lighting efficiency class A.
