Smeg CMS4104G Linea Coffee Machine

The SMEG CMS4104G is a 45 cm compact automatic coffee machine in Neptune Grey with a matte Linea design and brushed steel finish. It offers touch controls and a 4.3' TFT colour soft touch display with 17 languages for ease of use. Designed for a wide variety of coffees and milk drinks, it includes an automatic cappuccino maker with a stainless steel thermal carafe, adjustable grinder and coffee intensity, and a warmed cup holder.

SKU:CMS4104G

EAN:8017709322557

Category::Coffee Machines

Quantity:

Key Features

Automatic coffee machine with single and double coffee functions and pre–heat infuser function.

45 cm compact category – compact appliance height suitable for kitchen sets of small height.

Linea aesthetics in Neptune Grey with matte finish, brushed steel and silk screen logo.

4.3' TFT colour soft touch display with touch control and 17 display languages including GB, IT, FR and more.

Automatic cappuccino maker with separate milk tank and adjustable cappuccino foam.

Stainless steel thermal carafe (0.5 L) with autoclean system and adjustable milk froth, dishwasher washable.

Wide drink selection including espresso, coffee, long, 2 x espresso, espresso macchiato, Americano, cappuccino, caffelatte, latte macchiato, flat white, hot milk and hot water.

Hot water function for tea or other hot drinks.

Adjustable coffee intensity with 5 levels to vary the quantity of beans ground per infusion.

Variable coffee length with five levels: espresso, normal, long, extra long and Americano.

Variable coffee temperature with three adjustable levels and brewing temperature between 88–96°C.

Semiprofessional stainless steel conical grinder with 13 adjustable grinder levels for coffee beans.

Thermoblock + steamer heating system with semiprofessional steamer and dedicated heating element.

Automatic rinsing and descaling functions to help maintain correct operation and cleanliness.

Height–adjustable coffee spout from 85–142 mm for different cup sizes.

Warmed cup holder with integrated cup warmer.

Removable 2.50 l water container and 350 g coffee granule container.

Used coffee waste container capacity of 14 single or 7 double portions.

Child lock and demo mode for additional control and safety features.

Front access design (frontal approach) to reach and extract components with one hand.

On telescopic guides for installation and ease of access.

LED lighting with 4 lights for clear visibility.

Compatible UK accessory KITCABLE90UK cable with IEC connector and UK plug.

Technical Spec

Product familyCoffee machine

TypeAutomatic

Category45 cm compact

Aesthetics lineLinea

ColourNeptune Grey

FinishingMatte

Series2

Type of steelBrushed

LogoSilk screen

Display4.3' TFT colour soft touch

Number of display languages17

Display languagesIT, GB, FR, NL, SP, PT, SWE, RU, DE, DK, PL, NO, FI, TR, ET, KK, UK

Type of control settingTouch control

Coffee functionsCoffee function (single), Coffee function (double)

Pre–heat infuser functionYes

Automatic cappuccino maker with separate milk tankYes

Hot water functionFor tea or other drinks

Ground coffee optionYes

Adjustable coffee intensityYes, 5 levels

Variable coffee lengthFive levels: espresso, normal, long, extra long, Americano

Adjustable cappuccino foamYes, via thermal carafe knob

Programmed automatic switch–onYes

Automatic rinsingYes, with hot water when switched on

Automatic descalingYes

Brewing temperatureBetween 88 and 96°C; three levels adjustable

Variable coffee temperatureYes, three levels

Adjustable coffee grinderYes, 13 levels adjustable grinder

Water hardness settingYes

Lack of water signalYes

Child lockYes

Demo modeYes

Coffee granules compartmentYes

Ground coffee compartmentYes

Removable water containerYes, 2.50 l capacity

Used coffee waste containerYes (14 single, 7 double)

Height–adjustable coffee spoutYes, 85–142 mm

Steam dispenserYes, semiprofessional steamer

Drip trayYes

Removable milk jugYes

Thermal carafeYes, stainless steel 0.5 L with autoclean system

Cup holderYes, warmed

Heating systemThermoblock + Steamer

GrinderSemiprofessional stainless steel conical grinder

Pump pressure15 bar

Coffee granule container capacity350 g

Light typeLED

Number of lights4

InstallationOn telescopic guides; frontal approach

Milk froth temperature60°C

Nominal power1350 W

Current5.6 A

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length180 cm

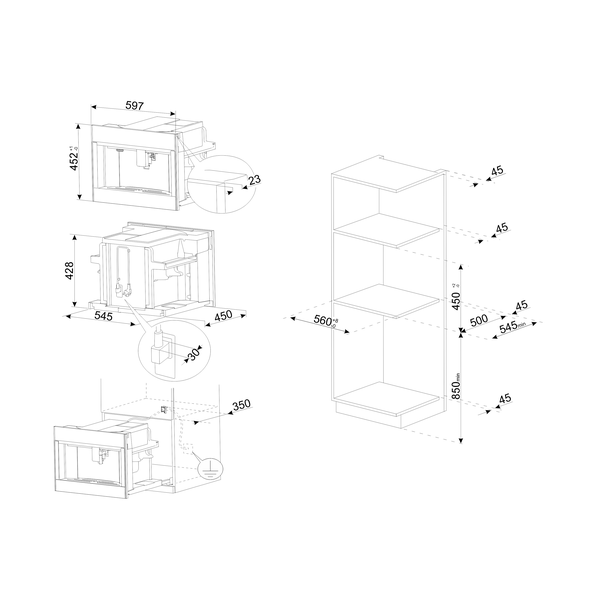

Width595 mm

Depth470 mm

Height455 mm

Downloads

Download product documentation, manuals, and specification sheets.

CMS4104G Spec

PDF

Frequently Asked Questions

Which drinks can this coffee machine prepare?

The machine can create espresso, coffee, long, 2 x espresso, espresso macchiato, Americano, cappuccino, cappuccino mix, caffelatte, latte macchiato, hot milk, flat white and hot water. It can also prepare Ristretto–Corto (small portion), Normale (medium portion) and Lungo (large portion) coffees.

Can I use both coffee beans and ground coffee?

Yes. The machine has compartments for coffee granules and ground coffee. It can use coffee beans with adjustable grind coarseness, or ground coffee, with a 350 g coffee granule container capacity.

Is the milk system easy to clean?

The stainless steel thermal carafe has an autoclean system and can be washed in the dishwasher. The milk froth is adjustable via the carafe knob, and the carafe helps keep milk fresh for longer.

How does the automatic rinsing and descaling work?

When the coffee machine is switched on, it performs automatic rinsing with hot water. The descaling function removes excess limestone in the tank and is essential for correct operation. The need to descale is signalled by the product itself.

What safety or convenience features are included?

The machine includes a child lock, lack of water signal, demo mode and programmed automatic switch–on. Frontal approach access and telescopic guides aid convenience, while the height–adjustable coffee spout allows use with different cup sizes.

Is there a compatible UK power cable?

Yes. The compatible accessory KITCABLE90UK is a cable with IEC connector and UK plug.
