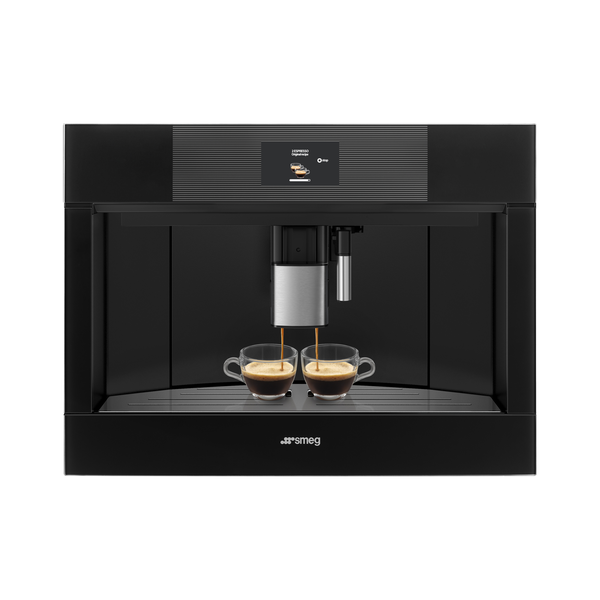

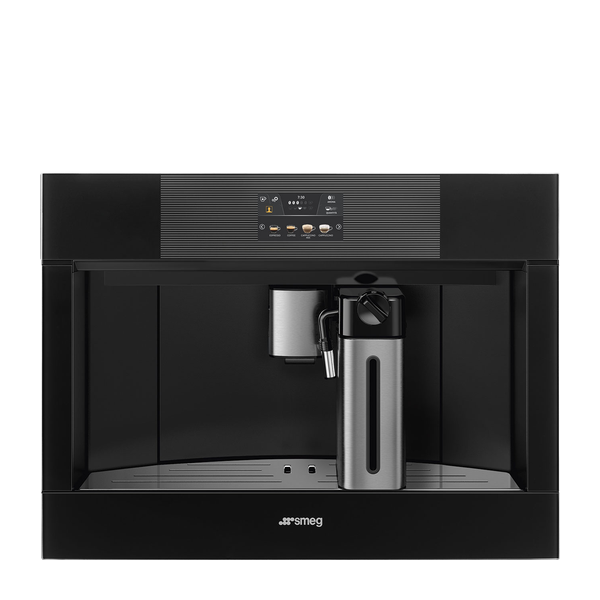

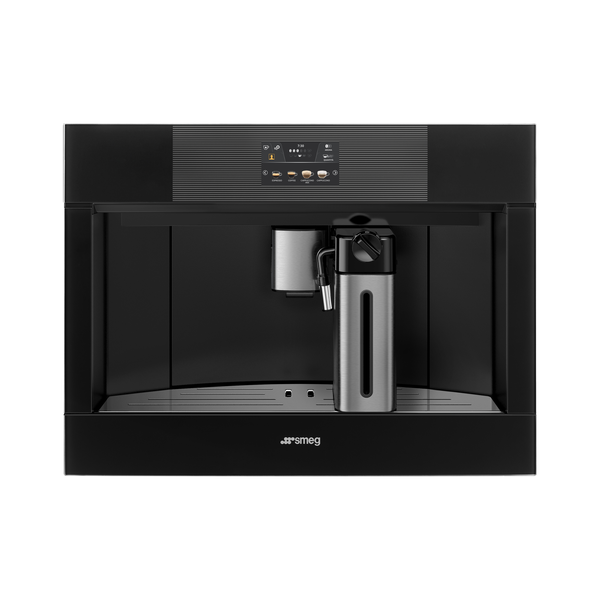

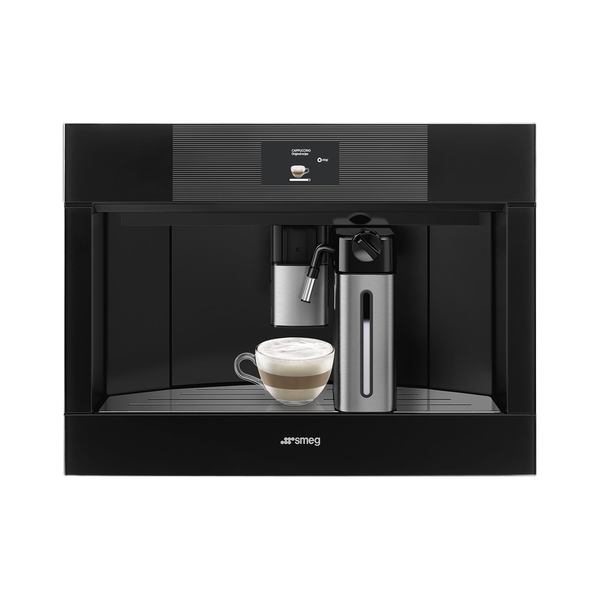

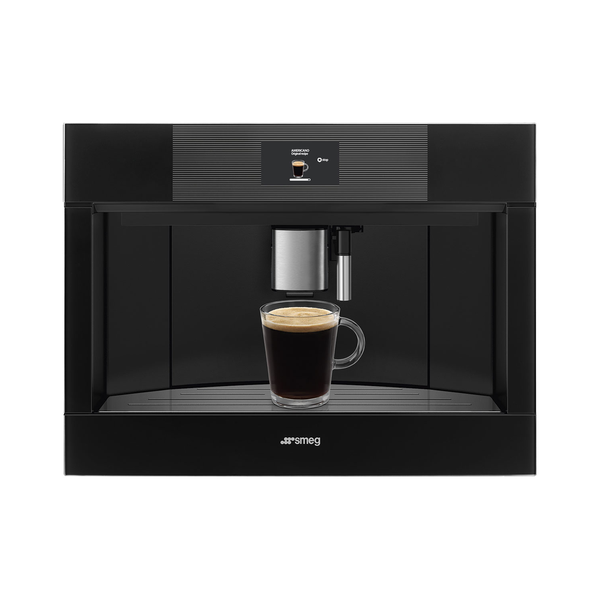

Smeg CMS4104 Linea Coffee Machine

The CMS4104B3 is a 45 cm compact automatic coffee machine in black from the Linea Series 2 range. It offers touch controls with a 4,3″ TFT colour display and 17 display languages. Designed for built–in installation on telescopic guides, it prepares a wide variety of coffee and milk drinks, with adjustable coffee intensity, length, temperature and grinder settings, plus an automatic cappuccino maker and stainless steel thermal carafe.

SKU:CMS4104B3

EAN:8017709338503

Category::Coffee Machines

Quantity:

Key Features

Automatic 45 cm compact coffee machine from the Linea aesthetics range in black, Series 2.

4,3″ TFT colour soft touch display with touch control and 17 display languages including GB.

Automatic Cappuccino maker with separate milk tank and removable stainless steel thermal carafe 0,5 L with autoclean system.

Multiple drinks options including espresso, coffee, long, 2 x espresso, espresso macchiato, Americano, cappuccino, cappuccino mix, caffelatte, latte macchiato, hot milk, flat white and hot water.

Adjustable coffee intensity with 5 levels and variable coffee length with five levels: espresso, normal, long, extra long and Americano.

Variable coffee temperature with brewing temperature between 88–96°C and three adjustable levels.

Semiprofessional stainless steel conical grinder with 13 levels adjustable grinder and coffee granules compartment.

Ground coffee option with a dedicated ground coffee compartment.

Pre-heat infuser function plus single and double coffee functions.

Hot water function for tea or other hot drinks.

Adjustable cappuccino foam and milk froth temperature of 60°C, controlled via the thermal carafe knob.

Thermoblock + Steamer heating system with semiprofessional steamer suitable for recipes such as hot chocolate, punch, bombardino and vin brulé.

Height-adjustable coffee spout (85–142 mm) for different cup sizes.

Integrated cup holder, warmed for heated cups.

Automatic rinsing and automatic descaling to support correct operation.

Programmed automatic switch-on so the machine can be ready at the required time.

Removable water container (2,50 l) and used coffee waste container (14 single, 7 double).

Child lock and demo mode for added control and display demonstration.

Lack of water signal and water hardness setting for easier maintenance.

LED lighting with 4 lights for clear visibility of the drinks area.

Installation on telescopic guides with frontal approach to reach and extract components using one hand.

Compatible accessory : KITCABLE90UK cable with IEC connector and UK plug.

Technical Spec

Product familyCoffee machine

TypeAutomatic

Category45 cm compact

AestheticsLinea, Series 2, black, silk screen logo

Display4,3″ TFT colour soft touch

Number of display languages17

Display languagesIT, GB, FR, NL, SP, PT, SWE, RU, DE, DK, PL, NO, FI, TR, ET, KK, UK

Control settingTouch control / Touch controls

Coffee functionsCoffee function (single), coffee function (double), pre-heat infuser function

Milk systemAutomatic Cappuccino maker with separate tank for milk; removable stainless steel thermal carafe 0,5 L with autoclean system; adjustable cappuccino foam

Heating systemThermoblock + Steamer; semiprofessional steamer with dedicated heating element

Pump pressure15 bar

Grinder typeSemiprofessional stainless steel conical grinder; 13 levels adjustable grinder

Coffee beans / ground coffeeCoffee granules compartment; ground coffee compartment; can use coffee beans or ground coffee with adjustable coarseness of grind

Water container capacity2,50 l

Coffee granule container capacity350 g

Used coffee waste containerYes (14 single, 7 double)

Height-adjustable coffee spoutYes, 85–142 mm

Cup holderYes, warmed (integrated cup warmer)

Steam dispenserYes (semiprofessional steamer)

Drip trayYes

Light type / numberLED, 4 lights

Automatic functionsProgrammed automatic switch-on, automatic rinsing, automatic descaling, lack of water signal, demo mode

SettingsVariable coffee length; adjustable coffee intensity (5 levels); variable coffee temperature (3 levels, 88–96°C); adjustable coffee grinder (13 levels); water hardness; adjustable cappuccino foam; milk froth temperature 60°C

SafetyChild lock; lack of water signal; frontal approach for easy component extraction with one hand

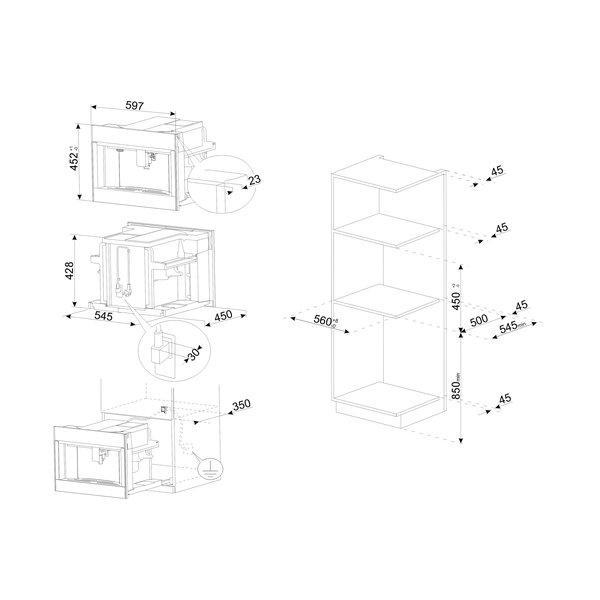

InstallationOn telescopic guides; compact appliance with height of 45 cm, suitable for kitchen sets of small height

Nominal power1350 W

Current5,6 A

Voltage220–240 V

Frequency50–60 Hz

Power supply cable length180 cm

Width595 mm

Depth470 mm

Height455 mm

Downloads

Download product documentation, manuals, and specification sheets.

CMS4104B3 Spec

PDF

Frequently Asked Questions

What types of drinks can this coffee machine prepare?

The machine can prepare ristretto-corto (small portion), normale (medium portion) and lungo (large portion) coffees, as well as espresso, coffee, long, 2 x espresso, espresso macchiato, Americano, cappuccino, cappuccino mix, caffelatte, latte macchiato, hot milk, flat white and hot water.

Can I use both coffee beans and ground coffee?

Yes. The machine has a coffee granules compartment for beans and a separate ground coffee compartment. You can use coffee beans or ground coffee, and the coarseness of grind can be adjusted, with 13 levels available on the conical stainless steel grinder.

How can I adjust the strength and size of my coffee?

There are 5 levels of adjustable coffee intensity, which control the quantity of beans ground in each infusion cycle. Coffee length is also variable, with five levels available: espresso, normal, long, extra long and Americano, allowing you to choose your preferred cup size.

Does the machine have automatic cleaning and descaling?

The appliance performs automatic rinsing with hot water when switched on and includes an automatic descaling function to remove limestone deposits from the tank. The need to descale is signalled by the machine. The stainless steel thermal carafe also has an auto-clean system.

What safety and convenience features are included?

Features include child lock, lack of water signal, programmed automatic switch-on, demo mode, frontal approach access for one-hand component extraction, a height-adjustable coffee spout (85–142 mm), removable water container and used coffee waste container (14 single, 7 double), plus LED lighting and a warmed cup holder.

Is there a UK-compatible accessory available?

Yes. A compatible accessory is the KITCABLE90UK, a cable with IEC connector and UK plug.
