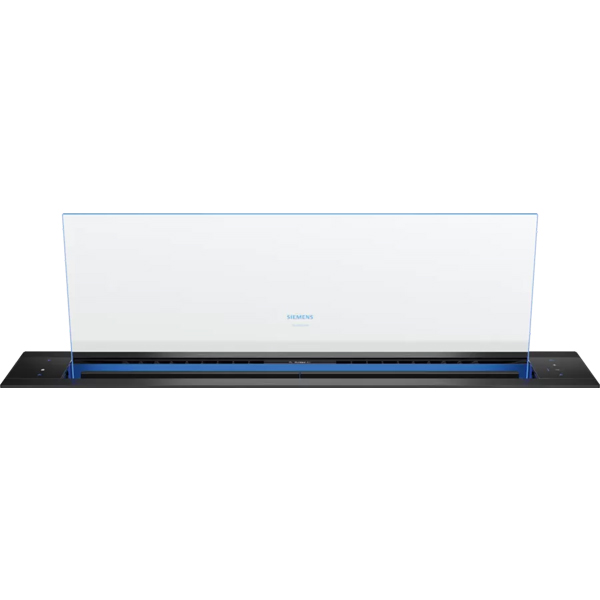

Siemens StudioLine LD98WMM66 Downdraft

The Siemens iQ700 LD98WMM66 is a 90 cm downdraft hood in clear glass and black, designed to rise from the worktop when needed and disappear when not in use. It offers excellent extraction performance from all cooking zones using iQdrive and Guided Air technology, and is suitable for ducted or recirculating operation with optional accessories. With emotionLight Pro, fully automatic functions and Home Connect, it combines powerful ventilation with sleek, integrated design.

SKU:LD98WMM66

EAN:4242003877319

Category::Cooker Hoods

Quantity:

Key Features

Downdraft design – seamlessly integrated glassdraftAir that is only visible when in use.

Excellent extraction performance from all cooking zones powered by iQdrive and Guided Air technology.

Space saving installation for optimal use of space in the kitchen.

iQdrive motor – quiet, high–performance motor for efficient removal of odours and steam.

emotionLight Pro – fully dimmable LED ambient lighting in a range of colours.

Fully automatic hood with climateControl Sensor and cookConnect hob based hood control.

Home Connect enabled for remote monitoring and control via smartphone or tablet (where available).

Voice control capability via popular voice assistants (where this service is available).

3 power levels and 2 intensive settings with touchControl user interface.

High extraction rate – up to 519 m³/h in normal exhaust mode and 833 m³/h intensive (EN 61591).

Recirculation option with Clean Air Plus recirculation kit (optional accessory).

Low noise levels – max. normal exhaust use 62 dB(A) re 1 pW; intensive 71 dB(A) re 1 pW.

Washable stainless steel grease filters with 2 metal grease filter cassettes.

Filter service function automatically lifts filters into service position for easy removal.

Energy Efficiency Class A with average energy consumption of 37.8 kWh/year*.

Extendable clear glass panel with edge lighting that can be easily removed and cleaned.

Suitable for islands and semi–islands in ducted or recirculating operation.

Not suitable for gas hobs according to planning and installation information.

Efficient BLDC motor with blower efficiency class A*.

Automatic intensive revert after 6 minutes and automatic after running for 10 minutes.

Grease and charcoal filter saturation indicators for timely maintenance.

Optional accessories available , including ducts, adapters, installation and recirculation kits.

90 cm width and built–in installation with extension height of 250 mm.

Technical Spec

Product nameiQ700 Downdraft hood, 90 cm, clear glass, Black

Model referenceLD98WMM66

TypologyDowndraft

Installation typeBuilt–in; installation: integrated; suitable for island or semi–island kitchen solution

Width90 cm wide; appliance dimensions (HxWxD): 709 x 912 x 140 mm

Built–in dimensions (HxWxD)703 x 854 x 123 mm

Required niche size (HxWxD)703 mm x 854.0 mm x 123 mm

Extension height250 mm

Height of the appliance709 mm

Weight39.7 kg

Control panelElectronic; touchControl; standard functions located on the right–hand user interface

Number of speed settings3–stage + 2 intensive (3 power levels and 2 intensive settings)

Energy Efficiency ClassA (range A+++ to D)

Average energy consumption*37.8 kWh/year*

Blower Efficiency Class*A*

Lighting Efficiency Class*Not stated in source (shown as '-*')

Grease Filtering Efficiency Class*C*

Maximum output air extraction519 m³/h (max. normal use exhaust air according to EN 61591)

Boost position air extraction833 m³/h (intensive exhaust air according to EN 61591)

Maximum output recirculating air456 m³/h (max. normal use with Clean Air Plus recirculation kit)

Boost position output recirculating596 m³/h (intensive recirculation with Clean Air Plus recirculation kit)

Maximum air flow519 m³/h

Noise level (exhaust air, max. normal use)62 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level (exhaust air, intensive)71 dB(A) re 1 pW

Noise level (recirculation, max. normal use)66 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Noise level (recirculation, intensive)71 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

MotoriQdrive motor; Efficient BLDC motor

Operation modesSuitable for ducted and re–circulating operation

Grease filter materialWashable stainless steel; 2 metal grease filter cassettes

Grease / charcoal filter indicatorsGrease and charcoal filter saturation indicators; filter service button

Diameter of air outlet150 mm; extractor hose 150 mm

Length electrical supply cord130 cm; electrical cable length 1.3 m

Connection rating300 W (power rating 300 W)

Nominal power220–240 V

Frequency50; 60 Hz

Fuse protection10 A

Plug typeGardy plug w/ earthing

EAN code4242003877319

SuitabilityNot suitable for combination with gas hobs

Standards / notes* In accordance with EU–Regulation No 65/2014

Downloads

Download product documentation, manuals, and specification sheets.

LD98WMM66 Spec

PDF

Frequently Asked Questions

Can this downdraft hood be used with gas hobs?

No. The planning and installation information specifies that this model is not suitable for combination with gas hobs.

Is the Siemens iQ700 LD98WMM66 suitable for recirculation?

Yes. The hood is suitable for ducted and re–circulating operation. For recirculated extraction, a Clean Air Plus recirculation kit is needed as an optional accessory.

What are the maximum extraction rates in exhaust and recirculation modes?

In exhaust mode, the maximum extraction rate in normal use is 519 m³/h and 833 m³/h in intensive mode according to EN 61591. With the Clean Air Plus recirculation kit, recirculation mode achieves up to 456 m³/h in normal use and 596 m³/h in intensive mode.

How loud is the hood during operation?

In exhaust air mode, the noise level is 62 dB(A) re 1 pW at maximum normal use and 71 dB(A) re 1 pW in intensive mode. In recirculation mode with the Clean Air Plus kit, the noise level is 66 dB(A) re 1 pW at maximum normal use and 71 dB(A) re 1 pW in intensive mode.

How many fan speeds does the hood offer?

The hood provides 3 power levels and 2 intensive settings, described as 3–stage + 2 intensive.

Is remote control via smartphone possible?

Yes. With Home Connect, remote monitoring and control via smartphone or tablet is possible in countries where the Home Connect service is available. Voice control via popular voice assistants is also supported where this service is available.
