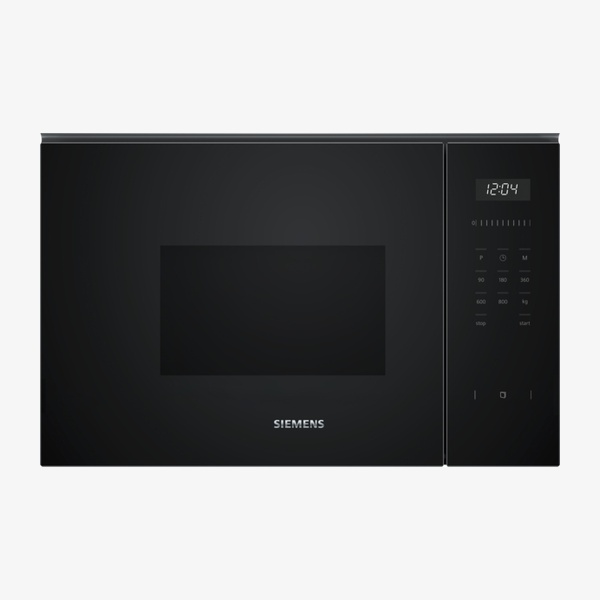

Siemens iQ500 BF525LMB1B Microwave

The iQ500 BF525LMB1B is a 38 cm high black built–in microwave oven designed for defrosting, reheating or preparing dishes in the shortest possible time. It offers a 20 l stainless steel cavity, powerful microwave performance up to 800 W and convenient cookControl7 automatic programmes. With touchSlider controls, LED display and a side–opening left hinged door, it is suitable for installation in a 60 cm wide wall unit or tall housing.

SKU:BF525LMB1B

EAN:4242003959435

Category::Microwave Ovens

Quantity:

Key Features

Built–in 38 cm high design for defrosting, reheating or preparation of dishes in the shortest possible time.

cookControl7 automatic programmes with 4 defrost and 3 cooking programmes in microwave function for excellent results.

touchControl with touchSlider allows the temperature to be controlled by entering it directly or by moving the slider with a single finger.

Maximum microwave power 800 W with selectable power levels 90 W, 180 W, 360 W, 600 W and 800 W, ideal for heating liquids.

20 l cavity volume with stainless steel inner surface and 25.5 cm glass turntable.

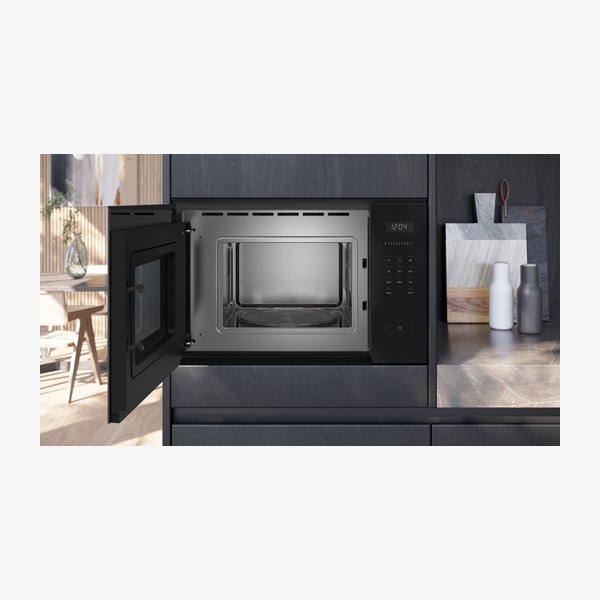

Side–opening left hinged door with open door button, ideal for elevated installation.

User–friendly electronics with LED display, electronic oven clock timer and touch key operation.

Safety features including automatic safety switch off, door contact switch and integral cooling fan.

Flexible installation in 60 cm wide wall unit or tall housing with specified niche dimensions.

Included accessory 1 x turntable, with optional steamer cooker accessory and adapter available.

Technical Spec

Product seriesiQ500

Product typeBuilt–in microwave oven

ColourBlack

Model referenceBF525LMB1B

Height (appliance)382 mm

Width (appliance)594 mm

Depth (appliance)317 mm

Cavity dimensions (H x W x D)201 x 308 x 282 mm

Cavity volume20 l

Niche height362 mm – 365 mm

Niche width560 mm – 568 mm

Niche depth300 mm

Maximum microwave power800 W

Available power levels90 W, 180 W, 360 W, 600 W, 800 W

Intelligent inverter technology noteMaximum output power will be regulated to 600 W when used in longer operation.

Total connected load (electric)1.27 KW

Connection rating1270 W

Nominal voltage220–230 V / 220 – 230 V

Frequency50 Hz

Fuse protection10 A

Plug typeGB plug

Length of electrical supply cord130 cm

Weight (net)15.5 kg

Gross weight19.0 kg

Control panel typeElectronic

FunctionsMicrowave only

Cavity inner surfaceStainless steel

DisplayLED display, white display with blue indicator lights

LightingLED light

Door hingeLeft hinged door

Door operationOpen door button

Included accessories1 x turntable

Optional accessoriesHZ86D000 Steamer Cooker Accessory for Microwave; HZG9AS00S Adapter

Memory settings1 memory setting

Turntable diameter25.5 cm glass turntable

Safety featuresAutomatic safety switch off; door contact switch; integral cooling fan

Installation optionsInstallation in 60 cm wide wall unit; installation in tall housing

EAN code4242003959435

Programmes, Operation and Installation

This microwave provides cookControl7 with 4 defrost and 3 cooking programmes in microwave function, plus 1 memory setting for frequently used configurations. The appliance operates as microwave only.

Operation is via touch control and touchSlider with a start button with steel trim, electronic oven clock timer and user–friendly electronics for extremely easy and comfortable operation. An LED display with white display and blue indicator lights and LED light inside the cavity support clear visibility.

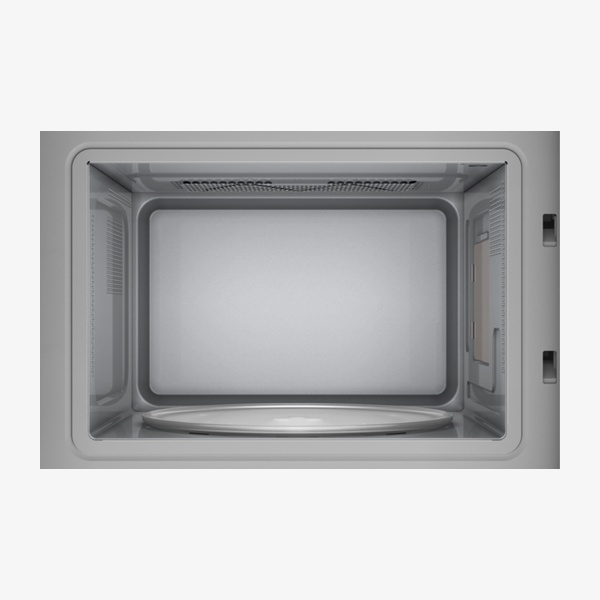

The cavity inner surface is stainless steel and includes a 25.5 cm glass turntable. The appliance features a left hinged door with open door button, automatic safety switch off, door contact switch and an integral cooling fan.

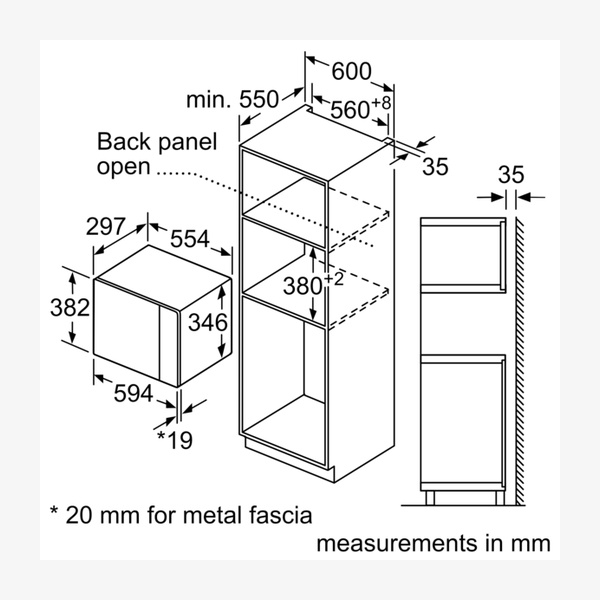

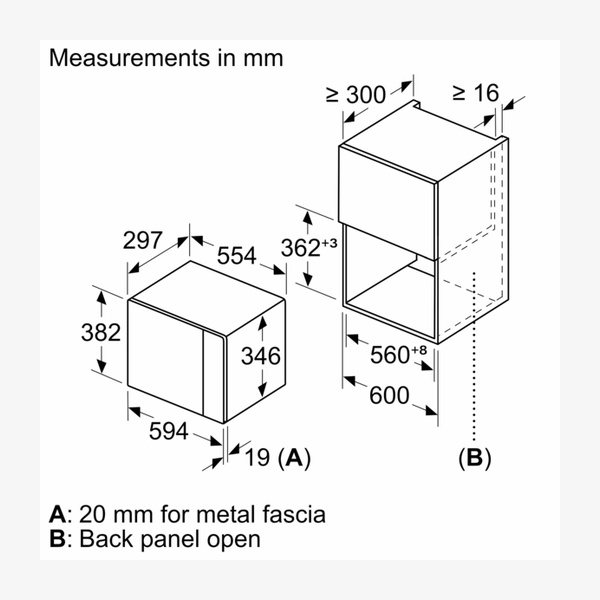

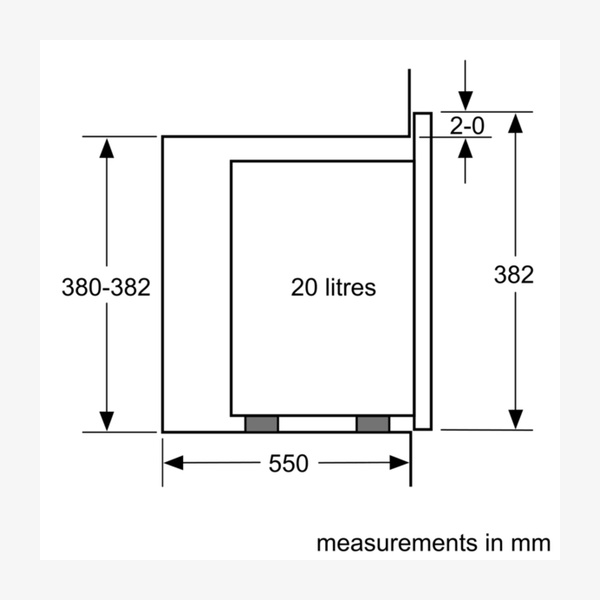

Installation is specified for a 60 cm wide wall unit or installation in tall housing, with an appliance dimension of 382 mm x 594 mm x 317 mm and niche dimensions of 362 mm – 365 mm x 560 mm – 568 mm x 300 mm.

Downloads

Download product documentation, manuals, and specification sheets.

BF525LMB1B Spec

PDF

Frequently Asked Questions

What is the capacity of the iQ500 BF525LMB1B microwave?

The cavity volume is 20 l, with cavity dimensions of 201 x 308 x 282 mm and a 25.5 cm glass turntable.

What are the available microwave power levels?

The maximum microwave power is 800 W, with selectable power levels of 90 W, 180 W, 360 W, 600 W and 800 W. Intelligent inverter technology regulates maximum output power to 600 W when used in longer operation.

Which automatic programmes are included?

The appliance offers cookControl7 with 7 automatic programmes in total: 4 defrost programmes and 3 cooking programmes in microwave function. It also includes 1 memory setting.

How is this microwave operated?

Operation is via touch control and touchSlider, allowing the temperature to be controlled by entering it directly or by moving the slider with a single finger. It has an LED display, electronic oven clock timer, start button with steel trim and touch key operation.

What installation space does this model require?

The appliance dimensions are 382 mm (H) x 594 mm (W) x 317 mm (D). The niche dimensions required are 362 mm – 365 mm (H) x 560 mm – 568 mm (W) x 300 mm (D). It is suitable for installation in a 60 cm wide wall unit or in tall housing.

Which accessories are included or available?

The microwave comes with 1 x turntable. Optional accessories listed are the HZ86D000 Steamer Cooker Accessory for Microwave and the HZG9AS00S Adapter.
