Siemens iQ500 EP6A6HI10 Gas Hob

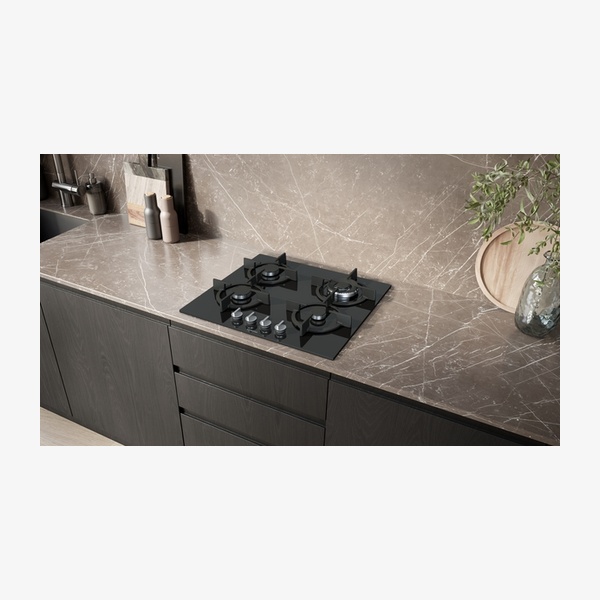

The Siemens iQ500 EP6A6HI10 is a 60 cm built‑in gas hob with a black tempered glass surface and four burners, including a powerful wok burner. It is designed for precise flame control using stepFlame Technology with nine defined levels and front‑mounted metallic sword dials. Cast iron pan supports with rubber feet are suitable for dishwashers, while removable control dials and flame failure safety enhance everyday convenience and security.

SKU:EP6A6HI10

EAN:4242003966686

Category::Hobs

Quantity:

Key Features

stepFlame Technology – 9 steps : precisely control and adjust the flame in nine defined levels.

Black tempered glass surface : extremely heat‑resistant basic surface material in a sleek black finish.

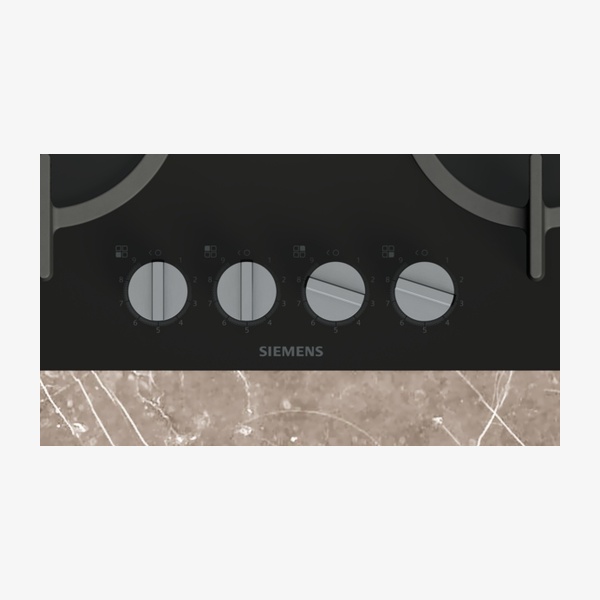

Detachable metallic sword dials : full‑metal, design co‑ordinated control dials at the front with strong grip, easily removable for cleaning.

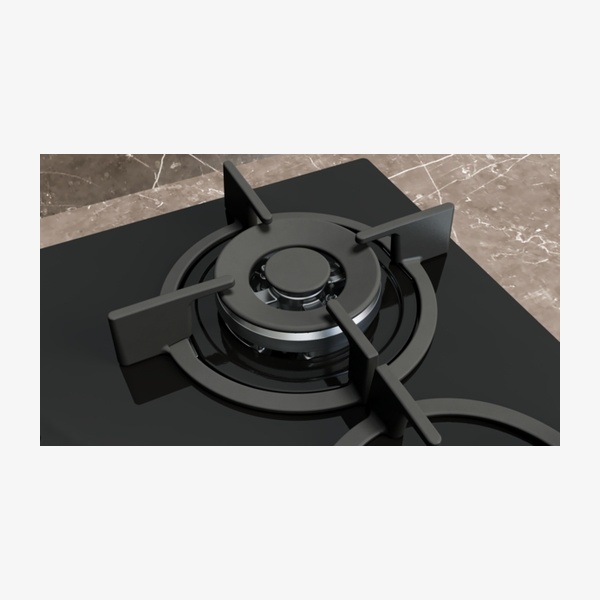

Individual cast iron pan support : easy to handle single cast iron supports with rubber feet, suitable for dishwashers.

4 burner layout : two standard burners up to 1.75 kW, one economy burner up to 1 kW and one wok burner up to 3.5 kW (depending on gas type).

Wok burner 3.5 kW : go from simmer to stir‑fry on one burner with up to 3.5 kW power (depending on gas type).

Ignition via control dials : just push and turn the dials to ignite the flame.

Flame failure safety device : prevents unwanted gas flow when the flame goes out.

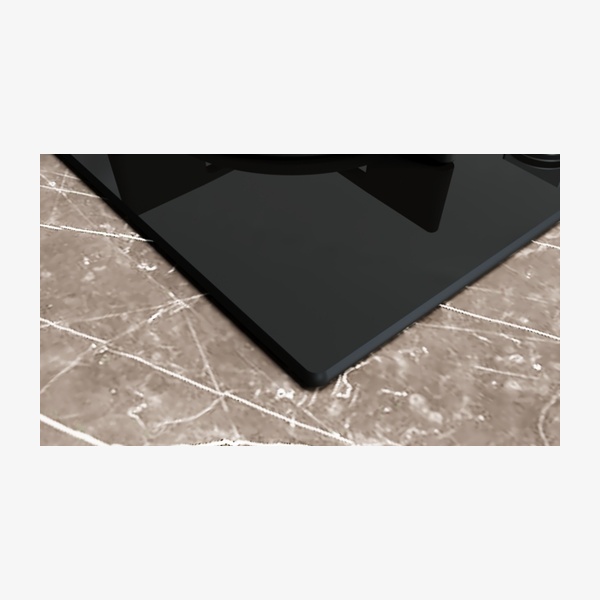

Frameless design : install the hob either flush or slightly raised on the worktop.

Built‑in gas hob with integrated controls : 60 cm wide appliance with front control panel for convenient access.

Optional accessories available : simmer plate, wok ring, small pot support, wireless roastingSensor and cookware sets (4‑piece and 6‑piece).

Technical Spec

Product name/familygas hob w integrated controls

ModelEP6A6HI10

SeriesiQ500

Installation typeBuilt-in

Source of energyGas

Number of cooking zones4

Width of the appliance590 mm

Dimensions (H x W x D)45 x 590 x 520 mm

Alternative product dimensionsDimensions of the product (HxWxD mm): 54 x 590 x 520

Required niche size (H x W x D)45 x 560 x (480 - 490) mm / 45 x 560-560 x 480-490 mm

Min. worktop thickness20 mm (30 mm if installed flush)

Dimensions of packed product (H x W x D)150 x 650 x 580 mm

Weight (net)14.4 kg

Gross weight15.6 kg

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

DesignTempered Glass surface, black; frameless design; full metal dials; cast iron w rubber feet single

Location of control panelFront

Residual heat indicatorWithout

Gas connection rating / Connected load8000 W / 8 KW

Nominal power220-240 V

Frequency50; 60 Hz

Fuse protection3 A

Length of electrical supply cord100 cm / Power cord: 1 m

EAN code4242003966686

Burner configuration & power4 burner gas hob including: Left front standard burner up to 1.75 KW; Left rear standard burner up to 1.75 KW; Right rear WOK burner up to 3.5 KW; Right front economy burner up to 1 KW (all depending on gas type).

Optional accessoriesHZ298105 Simmer plate; HZ298107 Wok ring; HZ298114 Small pot support; HZ32WA00 wireless roastingSensor; HZ9SE040 4 pieces Set; HZ9SE060 6 pieces Set

Downloads

Download product documentation, manuals, and specification sheets.

EP6A6HI10 Spec

PDF

Frequently Asked Questions

How many burners does the Siemens iQ500 EP6A6HI10 gas hob have?

The hob has 4 burners in total: two standard burners up to 1.75 kW, one economy burner up to 1 kW and one wok burner up to 3.5 kW, depending on gas type.

What is stepFlame Technology?

stepFlame Technology lets you precisely control and adjust the flame in nine defined levels, providing accurate heat control on the gas hob.

Are the pan supports and control dials easy to clean?

Yes. The cast iron pan supports are suitable for dishwashers, and the metallic sword control dials are removable to make cleaning between knobs easier.

Does the hob have safety features for gas flow?

The hob includes a flame failure safety device that prevents unwanted gas flow when the flame goes out.

Which gas types can this hob be used with?

It is usable with various natural gas and liquid gas types, including Nat gas L/LL G25/20mbar, NG H/E 20mbar, E+ 20/25mbar, Natural gas H 25 mbar, Natural gas L 25 mbar, Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar and Liquid gas 50 mbar.

What are the installation dimensions for this 60 cm gas hob?

The hob itself measures 54 x 590 x 520 mm (HxWxD). The required niche size is 45 x 560 x (480 - 490) mm, with a minimum worktop thickness of 20 mm, or 30 mm if installed flush.
