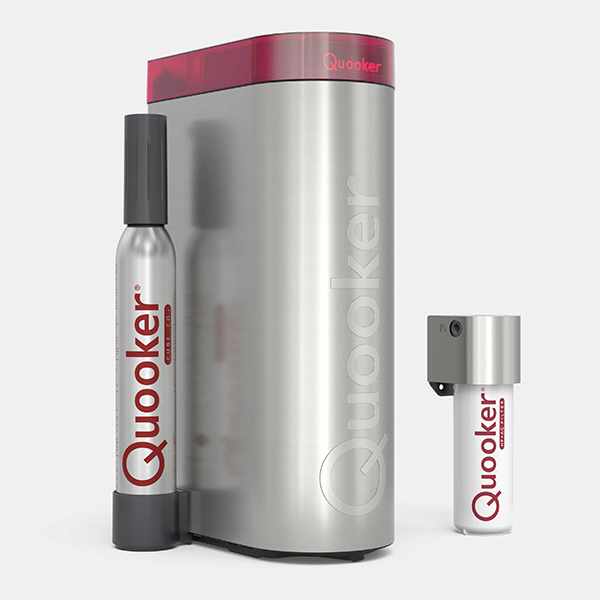

Quooker CUBE Sparkling & Chilled Unit for all Quooker Taps

The Quooker CUBE is an accessory designed to be added to any compatible Quooker system, installed in the kitchen cabinet next to the Quooker tank. It enables you to dispense filtered chilled and sparkling water directly from your Quooker tap, making life in the kitchen easier. It saves time and space, means you no longer need to use plastic bottles and is designed to be completely safe to operate.

SKU:CUBE

EAN:8720823111173

Category::Accessories

Quantity:

Key Features

Filtered chilled and sparkling water – supplies filtered chilled and sparkling water directly from your Quooker tap.

Designed as an accessory – CUBE accessory is designed to be added to any compatible Quooker system and installed in the kitchen cabinet next to the Quooker tank.

Integrated filtration – equipped with an Activated Carbon and Hollow Fibre filter to improve water quality by filtering bacteria, chloride, chemicals and pesticides.

Safe operation – push-wait-turn for filtered chilled water and push-turn for filtered sparkling water, with clear blue light indications to prevent dispensing boiling water when sparkling water is selected.

Front tap operation option – front tap bezel turns counter-clockwise with one click for filtered chilled water or two clicks for filtered sparkling water.

Child-safe boiling water control – boiling water uses the same child-safe double push and turn operation as other Quooker taps.

CO² cylinder supply – attached to a CO² cylinder that provides approximately 60 litres of sparkling water.

Adjustable effervescence level – display allows adjustment of effervescence level from the default 100% down to 50% for a softer bubble.

Compatibility – works with all Quooker taps produced after October 2017 (taps with serial numbers beginning with QW1 or QW0 and tanks with serial numbers beginning with VCW, VBW or CCW).

Supplied CO² cylinder – supplied with one CO² cylinder as standard.

Filter lifespan – CUBE filter has a lifespan of one year; audible beeps and display indication show when it needs replacing.

Space-saving in the kitchen – reduces the need for plastic bottles by providing sparkling and chilled water from the tap.

Technical Spec

Product typeAccessory for compatible Quooker systems

Installation locationKitchen cabinet next to the Quooker tank

ConnectionsConnected to cold water pipe, Quooker tank and socket

Height500mm

Width153mm

Depth270mm

Extra space for CO² cylinder attachmentAn extra 70mm is required on the front or side of the CUBE

Chilling time30min

Standby consumption5W

Flow rate – filtered chilled water2,4 l/min. filtered chilled water

Flow rate – filtered sparkling water2 l/min. filtered sparkling water

Filter typeActivated Carbon and Hollow Fibre filter

Pore size HF0.1 µm

Pore size AC5 µm

Operating pressure1 – 8 bar (0.1 – 0.8 MPa)

Inlet water temperature2°C – 38°C

Nominal flow126 l/h

Filter capacity12 months or 3500 liters

CO² sparkling water capacity60 litres of sparkling water (per CO² cylinder)

Downloads

Download product documentation, manuals, and specification sheets.

CUBE Spec

PDF

Frequently Asked Questions

Which Quooker taps are compatible with the CUBE?

The CUBE will work in combination with all Quooker taps produced after October 2017. These taps have serial numbers beginning with QW1 or QW0, and the compatible tanks have serial numbers beginning with VCW, VBW or CCW.

Where is the CUBE installed in the kitchen?

The CUBE is installed in the kitchen cabinet next to the Quooker tank. It is connected to the cold water pipe, the Quooker tank and an electrical socket. An extra 70mm is required on the front or side of the CUBE to attach the CO² cylinder.

How much sparkling water does one CO² cylinder provide?

The CO² cylinder attached to the CUBE provides approximately 60 litres of sparkling water from the Quooker tap.

How do I know when to replace the CO² cylinder?

When the water jet slows down and there is less carbon dioxide in the water, it indicates that the CO² cylinder needs to be replaced.

How long does the CUBE filter last?

The filter fitted to the CUBE tank has a lifespan of one year. When the tank starts to beep and the CUBE display shows the filter notification, it is time for a new filter.

Can I adjust how fizzy the sparkling water is?

Yes. The display on the front of the CUBE allows you to set the effervescence level. It is set to 100% by default, and can be reduced to 50% for a softer bubble.
