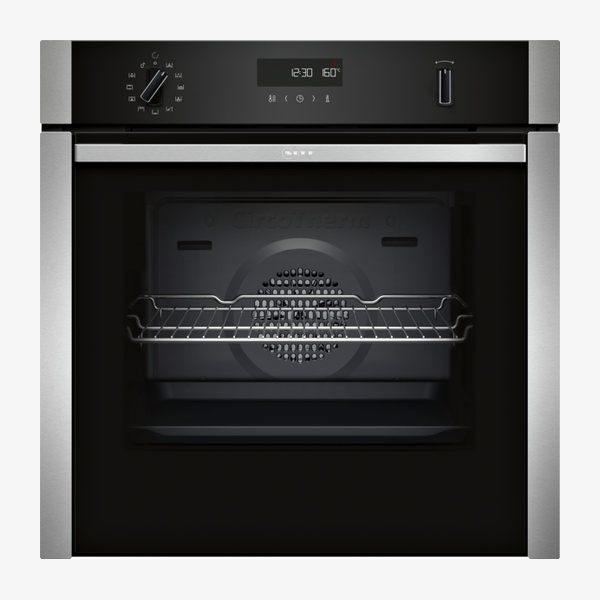

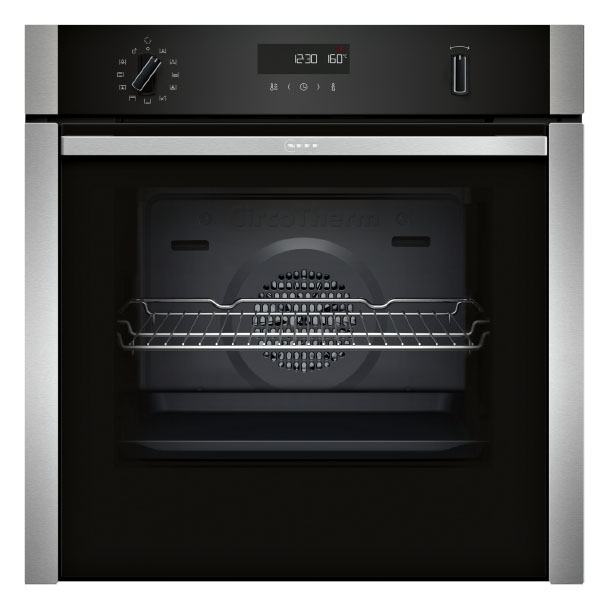

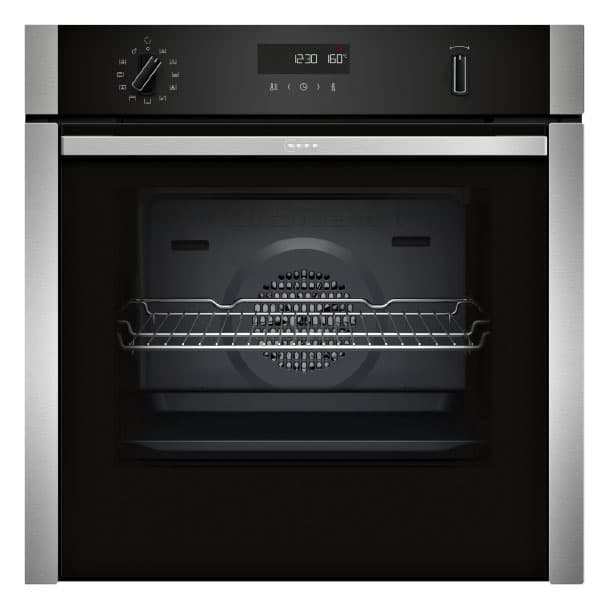

Neff N50 B6ACH7AN7B Single Oven

The N 50 B6ACH7AN7B is a 60 x 60 cm built–in stainless steel oven designed for flexible cooking with a 71 litre cavity and 8 cooking functions. It features Slide&Hide® for a fully retracting door, Home Connect control via App, and CircoTherm® for baking on multiple levels. With pyrolytic cleaning, EasyClean and advanced safety features including a CoolTouch quadruple glazed door, it suits modern kitchens seeking convenience and efficient performance.

SKU:B6ACH7AN7B

EAN:4242004281412

Category::Ovens

Quantity:

Key Features

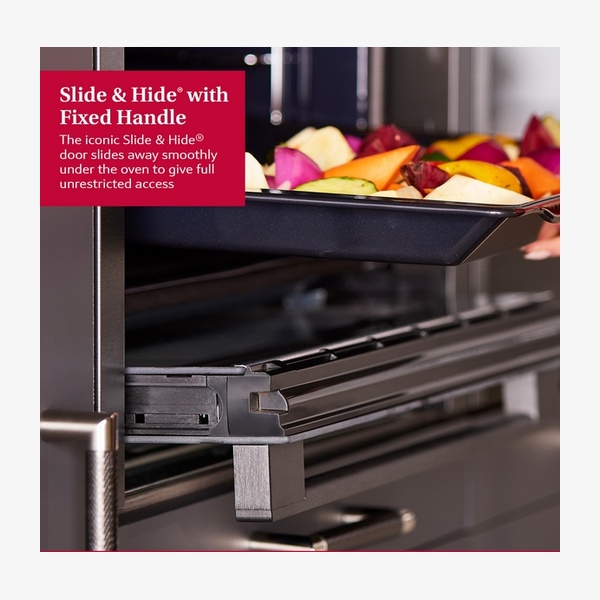

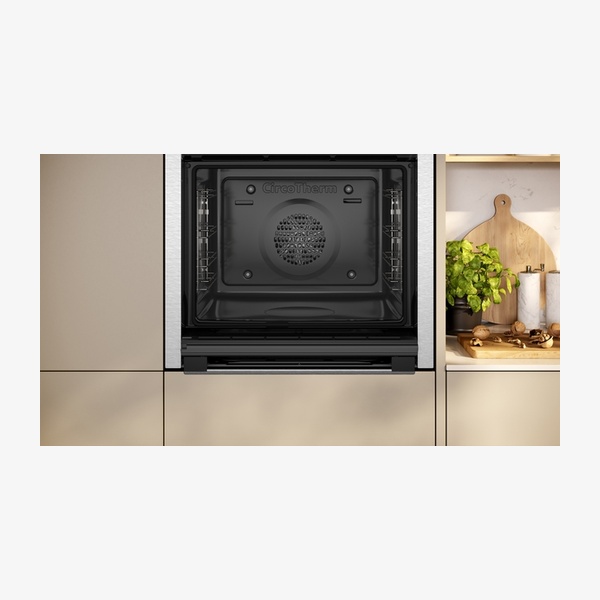

Slide&Hide® fully retracting oven door for easy access to the oven cavity.

Home Connect – control heating methods such as air fry, let rest and preheating via the App.

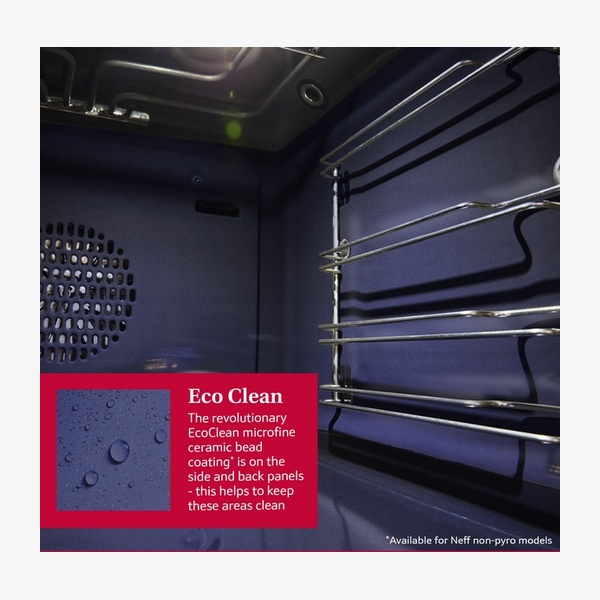

Dual cleaning options with pyrolytic cleaning programmes and EasyClean for day–to–day maintenance.

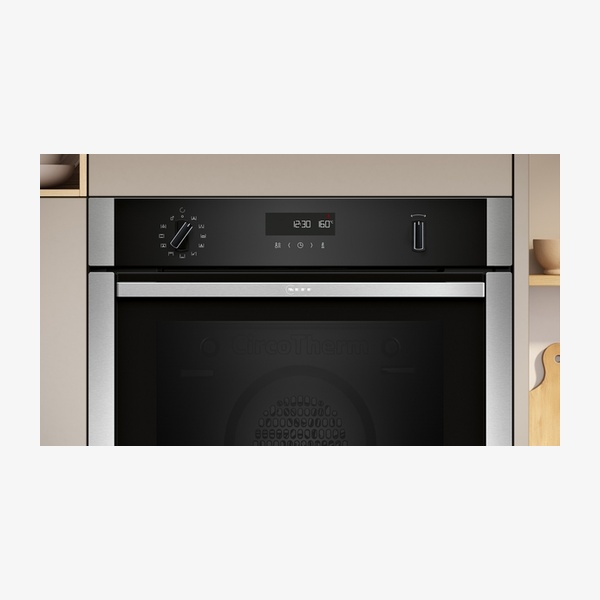

LCD–Display (white) with large characters, electronic clock timer, temperature proposal and actual temperature display.

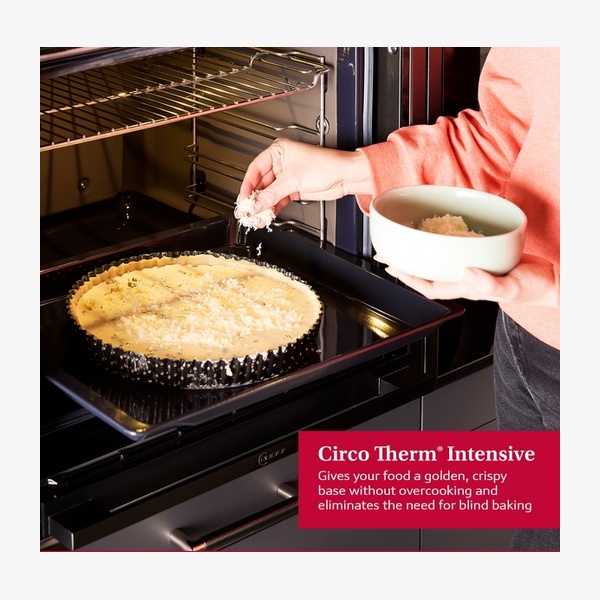

CircoTherm® hot–air technology enabling baking on up to three levels at once.

8 cooking functions including CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® intensive, Bread baking, Bottom heat and CircoTherm® gentle.

Additional App–only heating methods – air fry, let rest and preheating via Home Connect.

71 litre cavity volume with 4 shelf positions for flexible use of oven space.

Temperature range 30 °C – 275 °C for gentle warming through to high–temperature cooking.

Energy efficiency rating A+ with forced air convection consumption of 0.69 kWh/cycle.

Level independent telescopic rails available as an accessory for flexible shelf positioning.

Elongated retractable dials and bevelled oval controls with steel trim for a clean control panel design.

Enamel anthracite cavity with full glass inner door for a smooth oven interior.

Rapid heat function to speed up the heating process.

Interior halogen light with on/off button for clear visibility inside the oven.

Cooling fan and stainless–steel fan to support safe and consistent operation.

Advanced safety with very low door temperature at 30 °C, quadruple glazed CoolTouch door, door lock during pyrolytic cleaning, control panel lock and automatic safety switch off.

Residual heat indicator and door contact switch for additional operating safety.

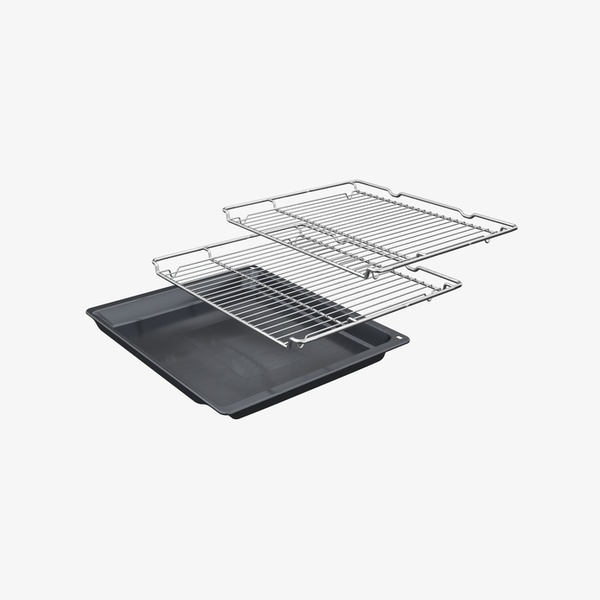

Included accessories – 2 x combination grid and 1 x universal pan.

Wide optional accessory range including baking trays, pans, cliprails, Air Fry & Grill tray, wireless food thermometer and baking stone.

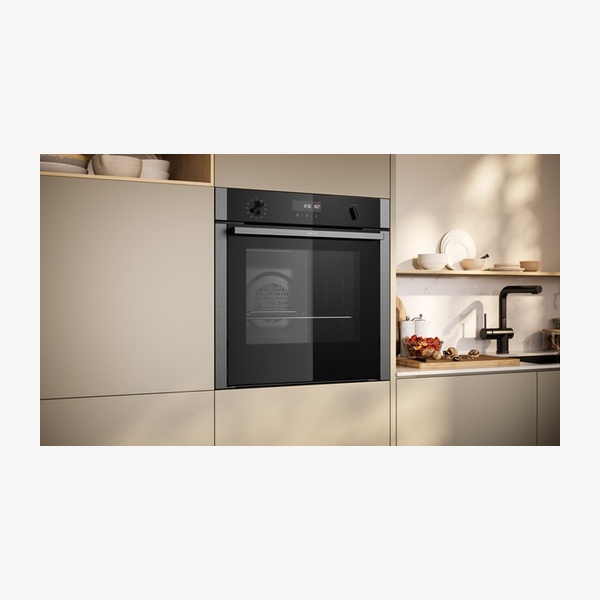

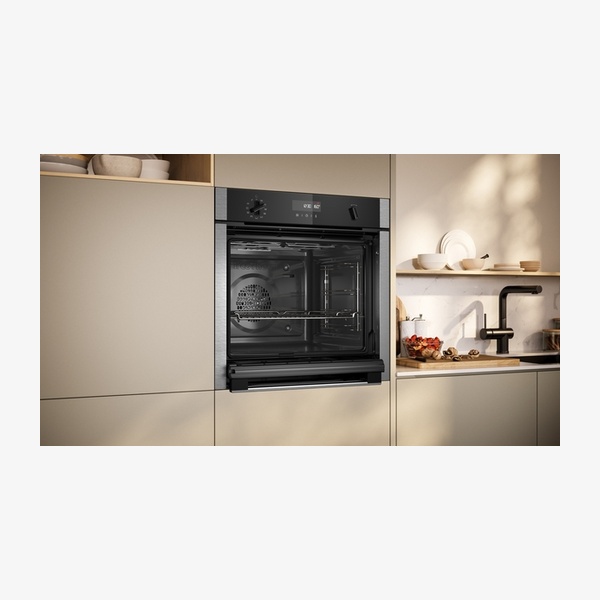

Built–in design intended for installation within a 60 cm niche.

Technical Spec

Product typeBuilt–in oven

ModelB6ACH7AN7B

SeriesN 50

Front material / colourStainless steel

Control panel materialGlass

Door materialGlass, quadruple glazed CoolTouch door

Integrated cleaning systemPyrolytic + Hydrolytic (pyrolytic cleaning and EasyClean)

Cavity volume71 litre / 71 l usable volume of cavity

Number of cavities1 (2010/30/EC)

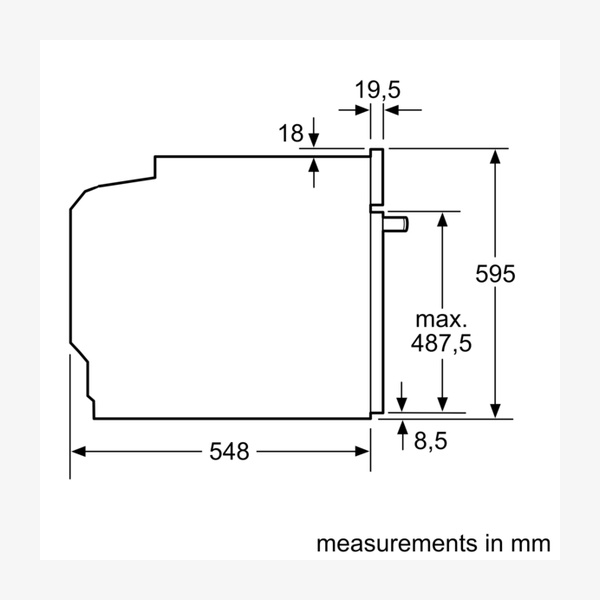

Dimensions (H x W x D)595 x 594 x 548 mm

Packed dimensions (H x W x D)675 x 660 x 690 mm

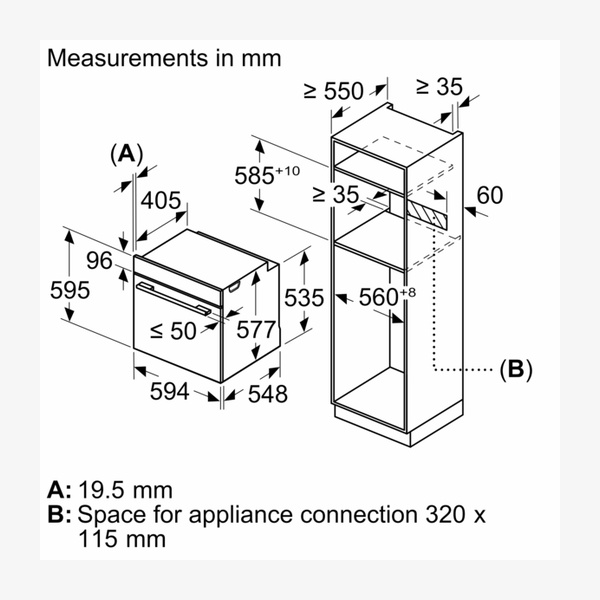

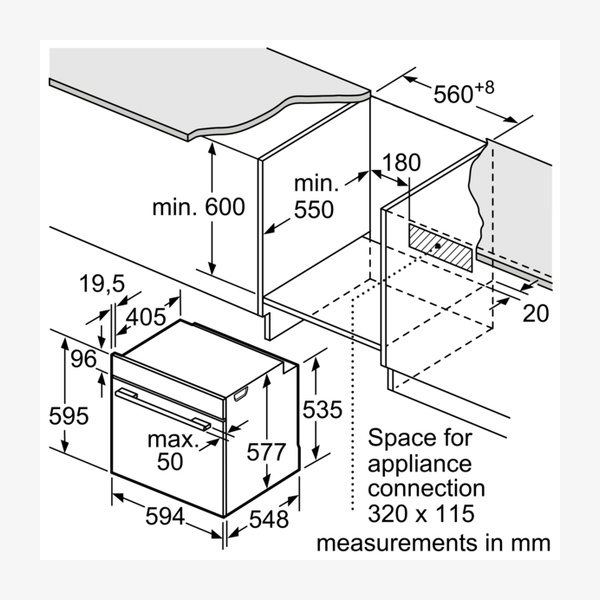

Required niche size (H x W x D)585–595 x 560–568 x 550 mm

Appliance dimension (H x W x D)595 mm x 594 mm x 548 mm

Niche dimension (H x W x D)585 mm – 595 mm x 560 mm – 568 mm x 550 mm

Net weight39.0 kg

Energy efficiency ratingA+

Energy consumption (conventional)0.94 kWh/cycle (2010/30/EC)

Energy consumption (forced air)0.69 kWh/cycle (2010/30/EC)

Energy efficiency index81.2 % (2010/30/EC)

Connection rating2.99 kW / 2990 W (Total connected load electric: 2.99 KW)

Fuse protection13 A

Voltage220–240 V (Nominal voltage: 220 – 240 V)

Frequency50; 60 Hz

Plug typeNo plug (electrical connection by electrician)

Length of electrical supply cord120 cm / 120 cm cable length

Temperature range30 °C – 275 °C

Heating methods (main)CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® intensive, Bread baking, Bottom heat, CircoTherm® gentle

Heating methods via AppAir fry, let rest, preheating (only via Home Connect App)

Additional cooking methods listedBread Baking Setting, Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat, Hot air grilling

Display and controlsLCD–Display Control (white), elongated designed dials, retractable control dials, bevelled oval controls with steel trim, electronic clock timer, info button

Timers and indicatorsTemperature proposal, actual temperature display, heating up indicator, automatic start, residual heat indicator

Door systemSlide&Hide® with fixed handle, bar handle, full glass inner door, door lock during pyrolytic cleaning, door contact switch

Safety features30 °C – very low door temperature, quadruple glazed CoolTouch door, control panel lock, automatic safety switch off, residual heat indicator, door lock during pyrolytic cleaning

LightingInterior halogen light with on/off button

Fan and coolingCooling fan, stainless–steel fan

Shelf positions4 shelf positions

Telescopic railsLevel independent telescopic rails (available as an accessory)

Cavity inner surfaceEnamel anthracite

Home ConnectHomeConnect ready on WLAN

Included accessories2 x combination grid, 1 x universal pan

Optional accessoriesZ11AB15A0 Baking tray, non–stick ceramic coated; Z11AU15A0 Universal pan, non–stick ceramic coated; Z11CR10X0 Baking and roasting grid (standard); Z11GU20X0 Glasspan; Z11TI15X0 Cliprails; Z12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled; Z12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z13CV06S0 Decor strip; Z1608BX0 Full ext rails, level independent; Z1650BE0 Half tray; Z1655CA0 Air Fry & Grill tray; Z166CAX0 SC FlexDesign mounting kit; Z1913X0 Baking Stone

EAN code4242004281412

Downloads

Download product documentation, manuals, and specification sheets.

B6ACH7AN7B Spec

PDF

Frequently Asked Questions

What is the capacity of the oven cavity?

The usable volume of the cavity is 71 litres, with a cavity volume stated as 71 litre and 4 shelf positions available.

Which cleaning systems does this oven use?

The oven has an integrated cleaning system with pyrolytic cleaning programmes and EasyClean. Pyrolytic cleaning lets the oven interior clean itself, while EasyClean offers a quick option for day–to–day maintenance.

Can I control the oven using an App?

Yes. The oven is HomeConnect ready on WLAN and can be controlled via the Home Connect App. Heating methods available only via the App include air fry, let rest and preheating.

What accessories are included and what can be added?

Included accessories are 2 x combination grid and 1 x universal pan. Optional accessories include various non–stick ceramic coated trays and pans, enamelled trays and pans, cliprails, Glasspan, Air Fry & Grill tray, full extension rails, wireless food thermometer, baking stone, decor strip and other speciality pans.

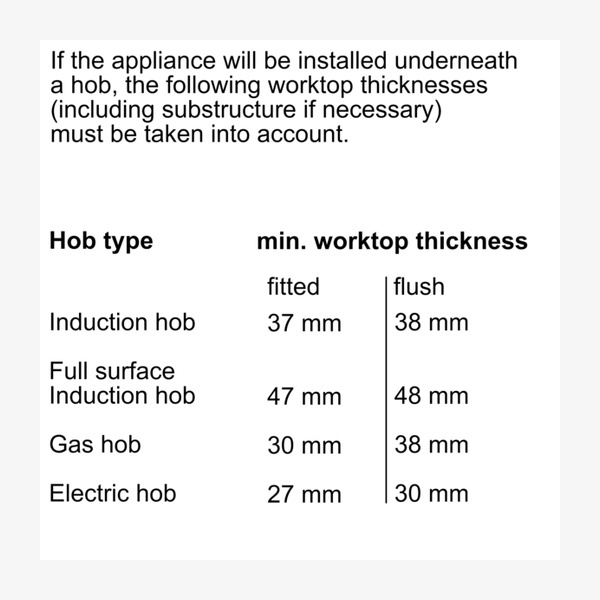

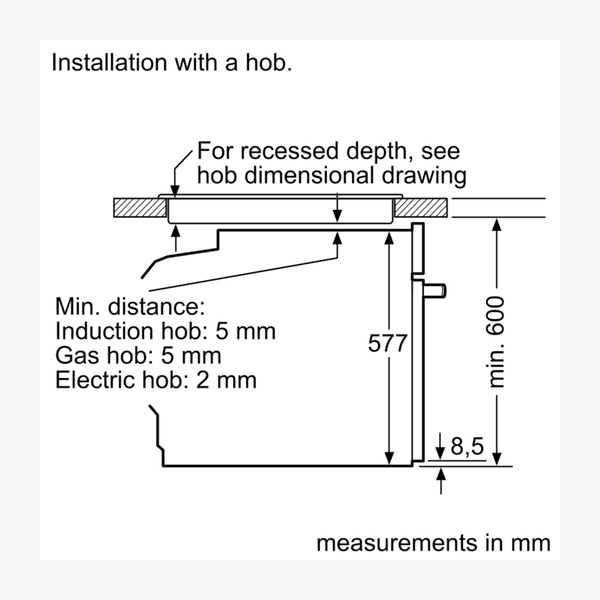

What are the installation requirements?

The required niche size is 585–595 x 560–568 x 550 mm (H x W x D). The nominal voltage is 220 – 240 V with total connected load of 2.99 kW and 13 A fuse protection. The oven is supplied without a plug and requires electrical connection by an electrician.

What safety features does the door have?

The door is quadruple glazed with CoolTouch technology, designed for very low door temperature at 30 °C. It includes a door lock during pyrolytic cleaning, a control panel lock, automatic safety switch off, residual heat indicator and a door contact switch.
