Neff N30 B2DCG7AK3B Single Oven

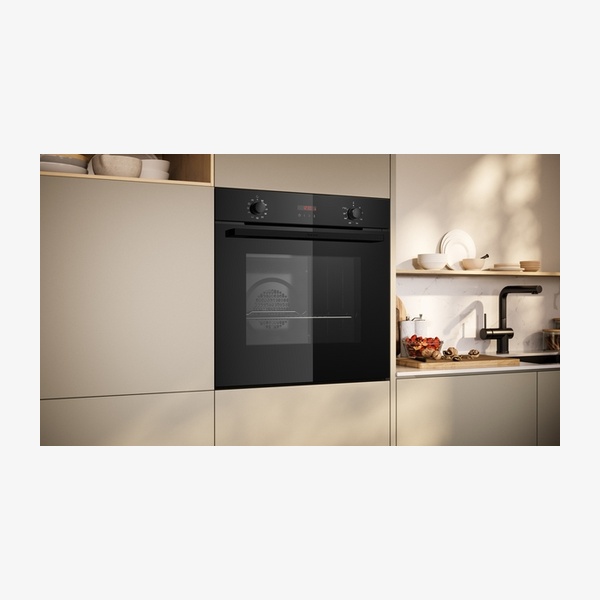

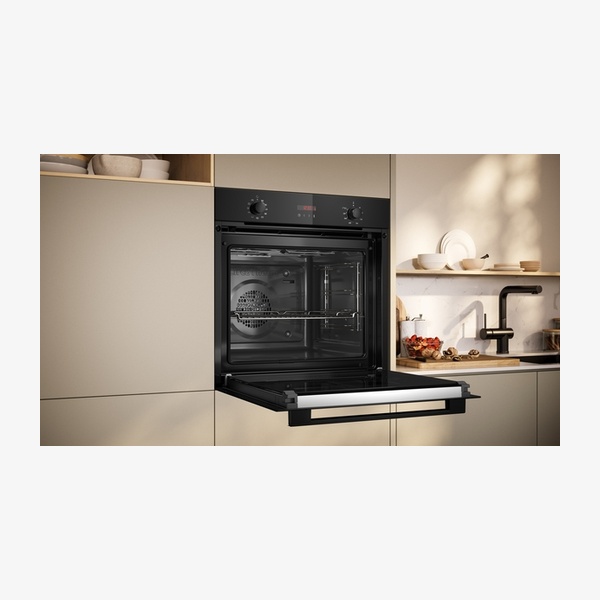

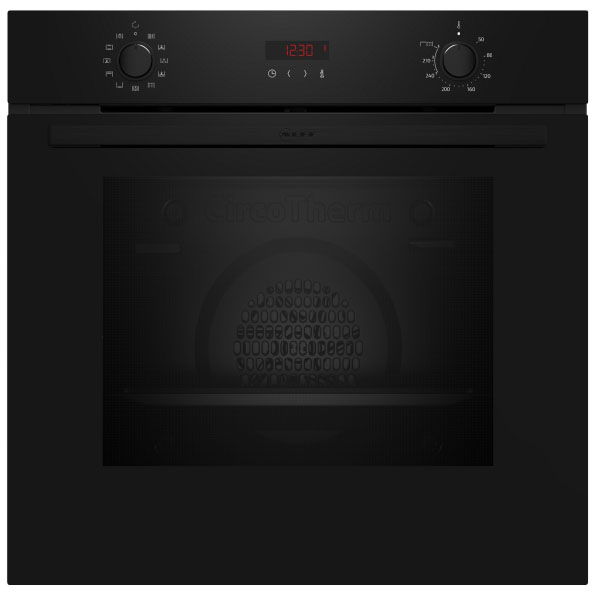

The N 30 B2DCG7AK3B is a 60 × 60 cm black built-in oven designed for fitted kitchens. It offers a 71 l cavity with 7 heating methods including CircoTherm® hot air for baking on up to three levels at once. With pyrolytic cleaning, EasyClean, A+ energy efficiency and an LED display with practical functions, it is suited to users who want efficient cooking, flexible programmes and low-maintenance cleaning.

SKU:B2DCG7AK3B

EAN:4242004281214

Category::Ovens

Quantity:

Key Features

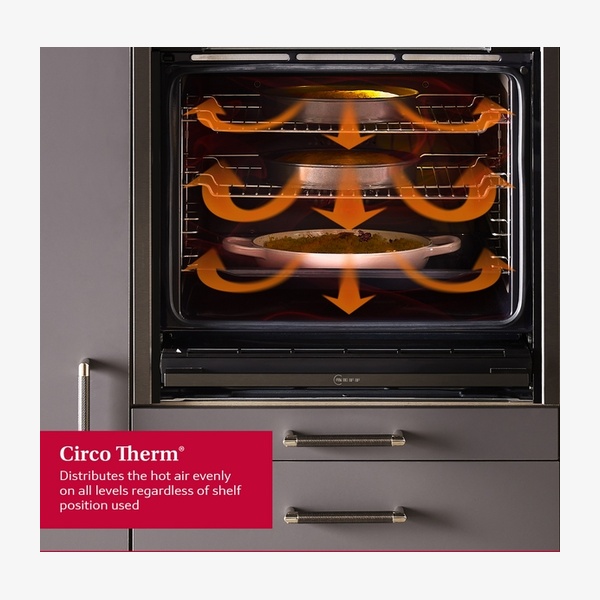

CircoTherm® hot air system – smart hot-air solution that lets you bake on up to three levels at once for optimal cooking results.

Dual cleaning options – pyrolytic cleaning programmes so the interior cleans itself, plus EasyClean for quick day-to-day maintenance.

Energy Efficiency Class A+ – energy efficient cooking with lower consumption per cycle for conventional and forced air convection.

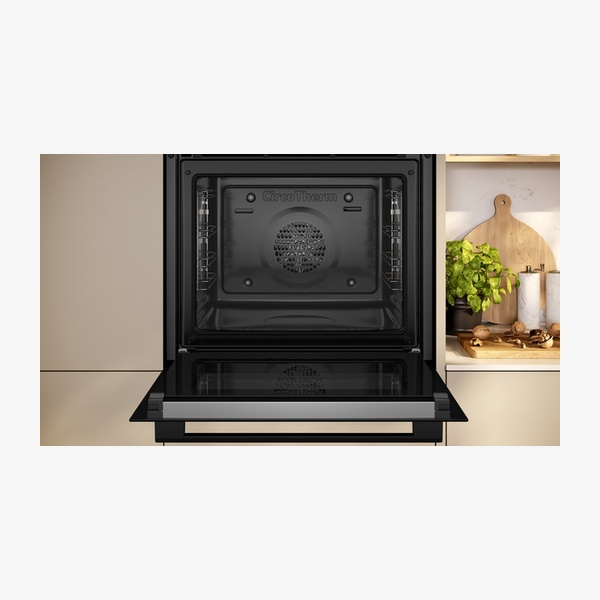

71 l cavity volume – generous usable capacity with 4 shelf positions for flexible cooking on multiple levels.

Seven heating methods – CircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® intensive, Bottom heat, CircoTherm® gentle.

Wide temperature range – adjustable from 50 °C to 275 °C for a variety of dishes.

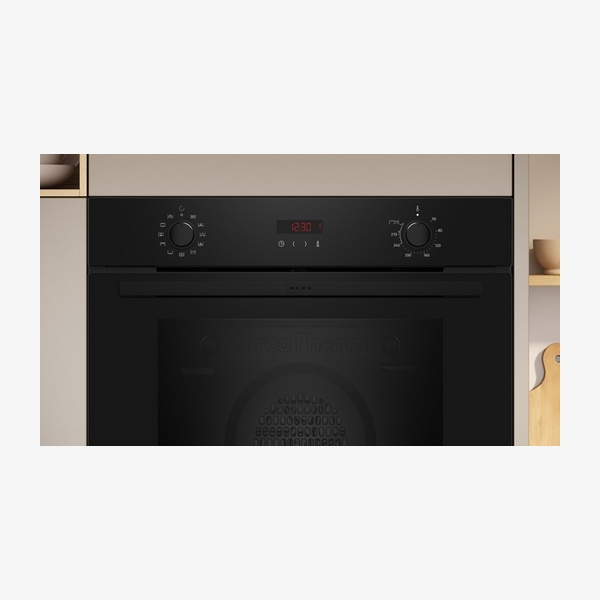

LED-display control (red) – simple, straightforward display with electronic clock timer, actual temperature display and heating up indicator.

Manual rapid heating up – helps reach the desired temperature faster when starting to cook.

Safety-focused door design – very low door temperature (30 °C), low door temperature during pyrolytic cleaning and quadruple glazed CoolTouch door.

Safety functions – door lock during pyrolytic cleaning, control panel lock and automatic safety switch off.

Design and materials – black built-in glass control panel and door, cavity inner surface in enamel anthracite, with bar handle and elongated dials with steel trim.

Integrated cleaning system – combination of pyrolytic and hydrolytic options for the oven cavity.

Interior lighting and cooling – interior halogen light with on/off button, stainless-steel fan and cooling fan.

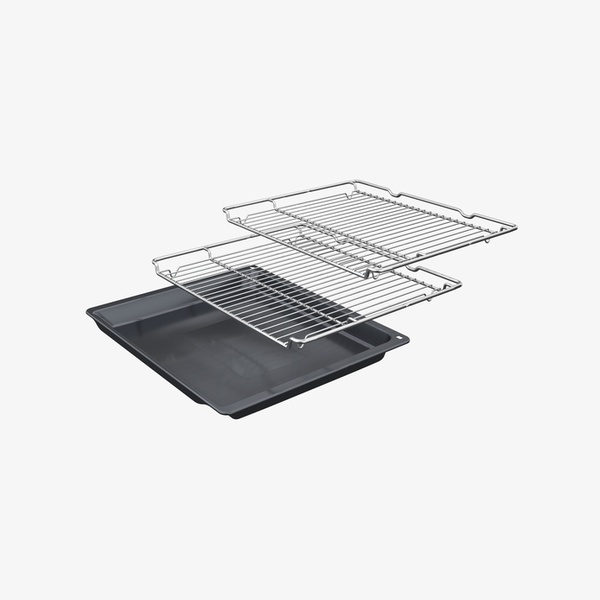

Included accessories – 2 × combination grid and 1 × universal pan supplied.

Optional accessories available – range of enamelled pans, baking trays, rails, wireless food thermometer, baking stone, glass pan and more (model codes stated in specifications).

Technical Spec

Product nameN 30 Built-In Oven, 60 × 60 cm, Black – B2DCG7AK3B

Built-in / Free-standingBuilt-in

Integrated cleaning systemPyrolytic+Hydrolytic; Pyrolytic cleaning; EasyClean

Energy efficiency ratingA+

Usable cavity volume71 l

Number of cavities1 (2010/30/EC)

Heating methods7 PC heating methods: CircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® intensive, Bottom heat, CircoTherm® gentle

Additional cooking methodsFull width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat, Hot air grilling

Temperature range50 °C – 275 °C

Door temperature30 °C – very low door temperature; low door temperature during pyrolytic cleaning

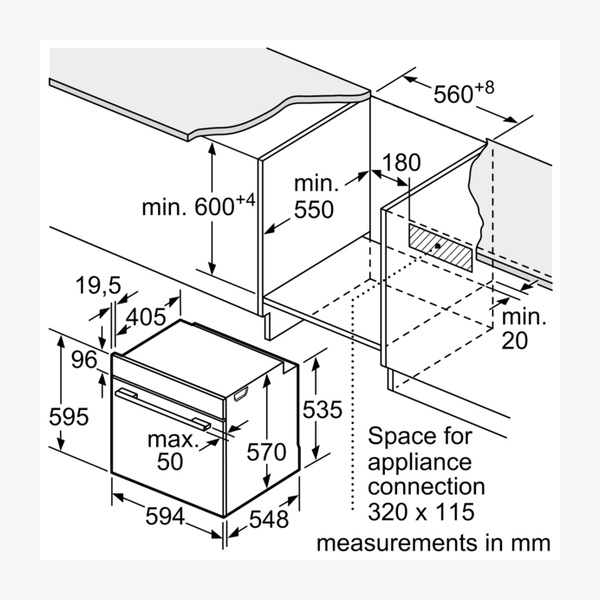

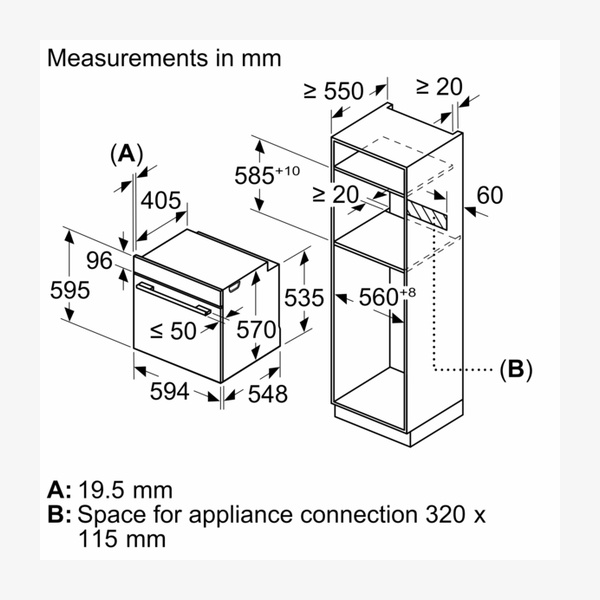

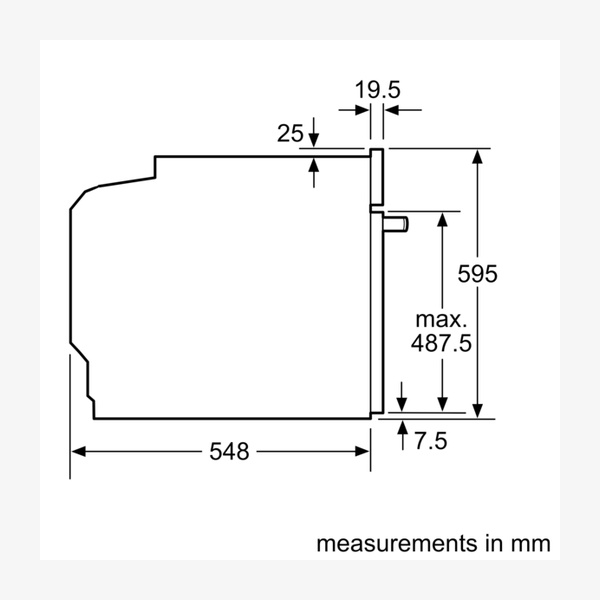

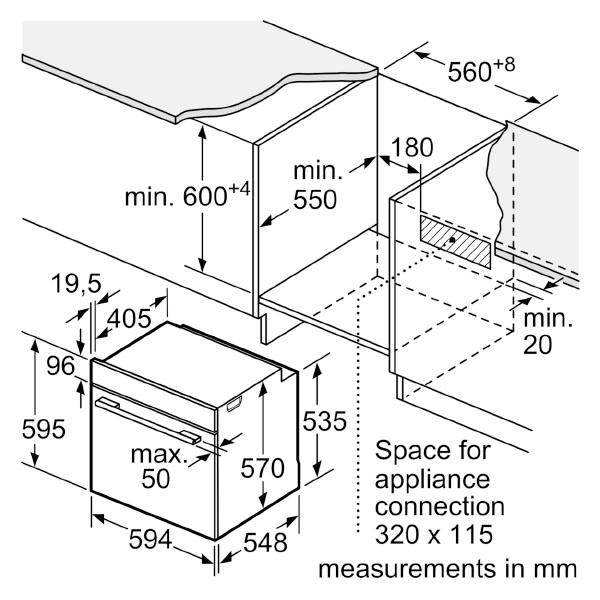

Dimensions (H × W × D)595 mm × 594 mm × 548 mm

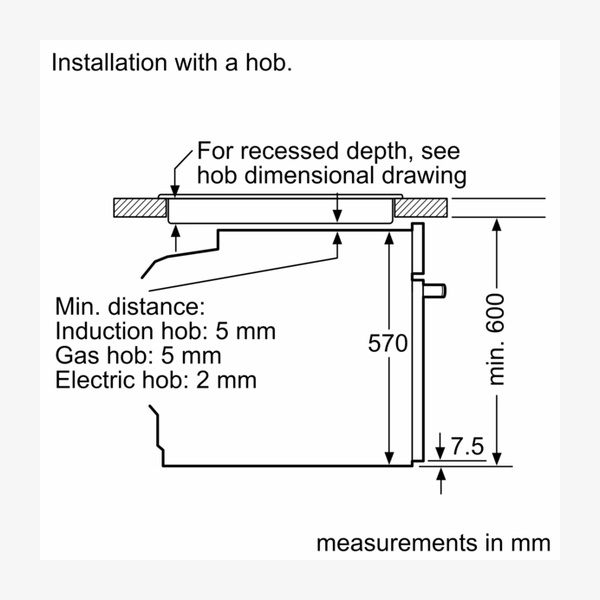

Required niche size (H × W × D)585–595 mm × 560–568 mm × 550 mm

Packed product dimensions (H × W × D)675 mm × 660 mm × 690 mm

Net weight36.7 kg

Control panel materialGlass

Door materialGlass; quadruple glazed door; CoolTouch door

Cavity inner surfaceEnamel anthracite

Shelf positions4 shelf positions; level independent telescopic rails available as an accessory

Energy consumption (conventional)0.94 kWh/cycle (2010/30/EC)

Energy consumption (forced air convection)0.69 kWh/cycle (2010/30/EC)

Energy efficiency index81.2 % (2010/30/EC)

Connection rating2.99 kW / 2990 W

Fuse protection13 A

Voltage220–240 V

Frequency50; 60 Hz

Electrical connectionNo plug (electrical connection by electrician)

Cable length120 cm

Control featuresLED-display control (red), electronic clock timer, actual temperature display, heating up indicator, automatic start, manual rapid heating up, Info button, control panel lock

Handle and controlsBar handle; elongated designed dials, round with steel trim

Cooling and fanCooling fan; stainless-steel fan

Interior lightInterior halogen light, on/off button

SafetyDoor lock during pyrolytic cleaning; control panel lock; automatic safety switch off

EAN code4242004281214

Included accessories2 × combination grid, 1 × universal pan

Optional accessoriesZ12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled; Z12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z13CV06S0 Decor strip; Z1608BX0 Full ext rails, level independent; Z1650BE0 Half tray; Z1655CA0 Air Fry & Grill tray; Z166CAX0 SC FlexDesign mounting kit; Z1913X0 Baking Stone; Z11AB15A0 Baking tray, non-stick ceramic coated; Z11AU15A0 Universal pan, non-stick ceramic coated; Z11CR10X0 Baking and roasting grid (standard); Z11GU20X0 Glasspan; Z11TI15X0 Cliprails

Downloads

Download product documentation, manuals, and specification sheets.

B2DCG7AK3B Spec

PDF

Frequently Asked Questions

What is the capacity of the oven?

The oven has a cavity volume of 71 l and the usable volume of the cavity is listed as 71 l.

Which cleaning options does this oven offer?

It provides pyrolytic cleaning programmes that allow the oven interior to clean itself, EasyClean for quick day-to-day maintenance, and an integrated cleaning system described as Pyrolytic+Hydrolytic, with a full glass inner door.

How energy efficient is the oven?

The oven has an Energy Efficiency Class of A+. The energy consumption per cycle is 0.94 kWh for conventional operation and 0.69 kWh for forced air convection, with an energy efficiency index of 81.2 % (2010/30/EC).

What accessories are included and what can be added?

Included accessories are 2 × combination grid and 1 × universal pan. Optional accessories listed include various enamelled baking trays and pans, a wireless food thermometer, decor strip, full extension rails, half tray, Air Fry & Grill tray, mounting kit, baking stone, non-stick ceramic coated trays and pans, baking and roasting grid, glass pan and cliprails, each identified by specific model codes.

What special features does CircoTherm® provide?

CircoTherm® is described as a smart hot-air solution that lets you bake on up to three levels at once. It is highlighted as part of the optimal cooking results offered by the oven’s hot air system.

What safety features are included?

Safety features include very low door temperature (30 °C), low door temperature during pyrolytic cleaning, a quadruple glazed CoolTouch door, door lock during pyrolytic cleaning, a control panel lock and automatic safety switch off.
