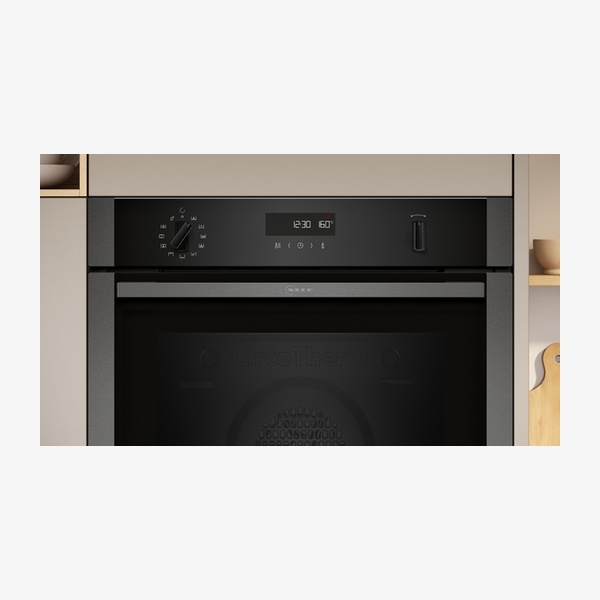

Neff N50 B2ACH7AG7B Single Oven

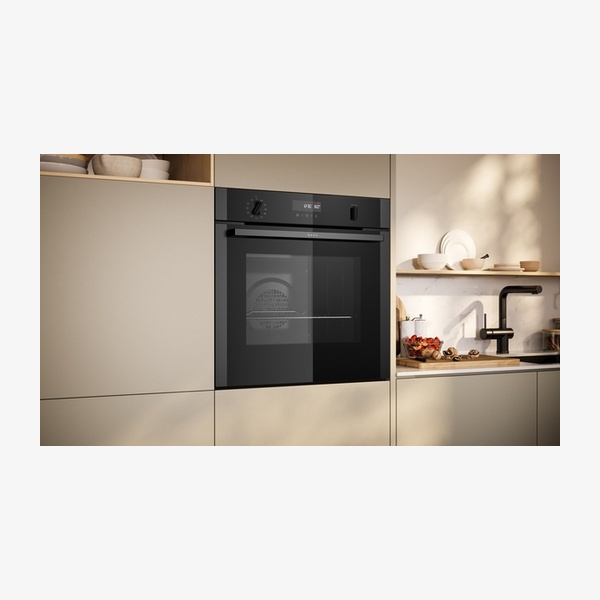

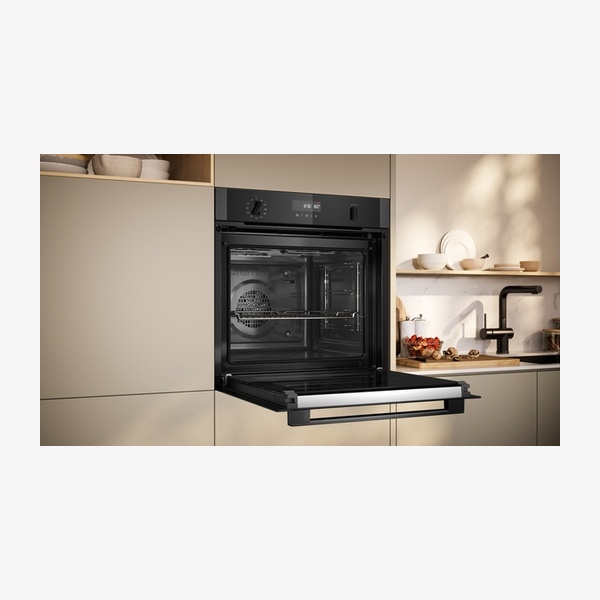

The N 50 B2ACH7AG7B is a 60 x 60 cm graphite–grey built–in oven with a 71 litre cavity and A+ energy efficiency. It offers CircoTherm® hot air cooking, eight oven functions and additional heating methods via the Home Connect App. Dual cleaning options include pyrolytic programmes and EasyClean, supported by a full glass inner door. Safety features such as quadruple glazed CoolTouch door and control panel lock enhance everyday use.

SKU:B2ACH7AG7B

EAN:4242004245483

Category::Ovens

Quantity:

Key Features

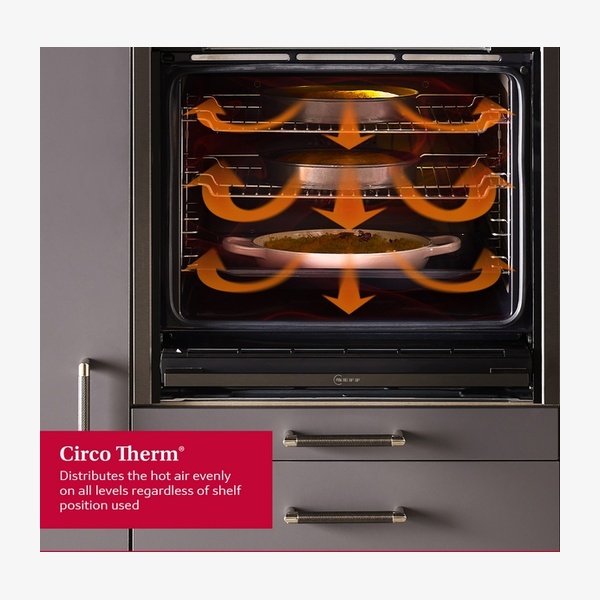

CircoTherm® hot air system – smart hot–air solution that lets you bake on up to three levels at once.

Dual cleaning options – pyrolytic cleaning programmes for intensive cleaning and EasyClean for quick day–to–day maintenance.

Home Connect control via App – control your oven and access additional heating methods including air fry, let rest and preheating.

Eight built–in cooking functions – CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® intensive, Bread baking, Bottom heat, CircoTherm® gentle.

71 litre cavity volume – generous usable space for a wide range of dishes.

Graphite–Grey Edition design – glass control panel, graphite–grey styling and enamel anthracite cavity inner surface.

LCD–Display control – white LCD display with large characters, electronic clock timer and temperature proposal.

Soft Close with soft opening – damping system cushions the drop down door for gentle opening and closing.

Quadruple glazed CoolTouch door – very low door temperature, including during pyrolytic cleaning.

Safety features – door lock during pyrolytic cleaning, control panel lock, automatic safety switch off and residual heat indicator.

Rapid heat function – for quick heating up, supported by heating up indicator and actual temperature display.

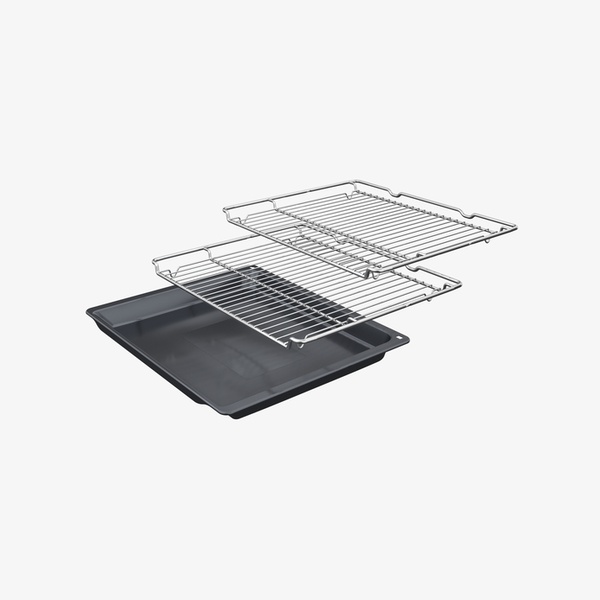

Included accessories – supplied with 2 x combination grid and 1 x universal pan.

Optional accessories available – including baking trays, pans, cliprails, food thermometer, decor strip, rails, Air Fry & Grill tray and baking stone.

A+ energy efficiency rating – energy consumption per cycle of 0.94 kWh (conventional) and 0.69 kWh (forced air convection).

Cooling fan and stainless–steel fan – for cavity cooling and hot air distribution.

Technical Spec

Product name / modelN 50 Built–In Oven, 60 x 60 cm, Graphite–Grey, B2ACH7AG7B

Installation typeBuilt–in

Integrated cleaning systemPyrolytic+Hydrolytic (Pyrolytic cleaning and EasyClean)

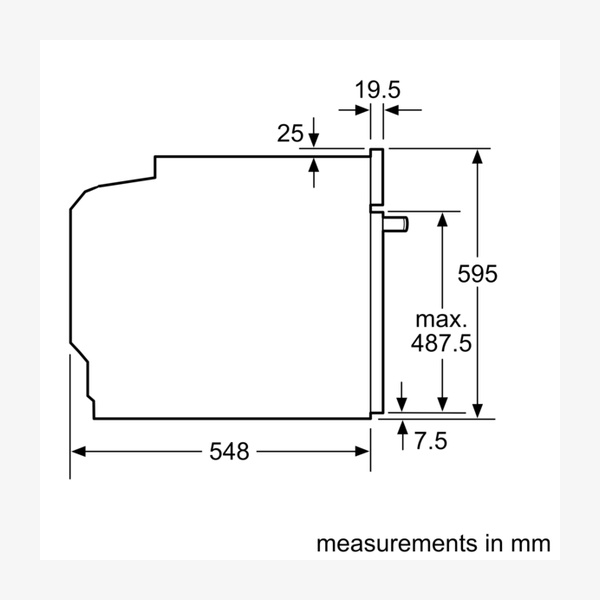

Dimensions (H x W x D)595 x 594 x 548 mm

Packed product dimensions (H x W x D)675 x 670 x 680 mm

Required niche size (H x W x D)585–595 x 560–568 x 550 mm

Cavity volume / usable volume71 litre / 71 l

Number of cavities1 (2010/30/EC)

Energy efficiency ratingA+

Energy efficiency index81.2 % (2010/30/EC)

Energy consumption (conventional)0.94 kWh/cycle (2010/30/EC)

Energy consumption (forced air convection)0.69 kWh/cycle (2010/30/EC)

Temperature range30 °C – 275 °C

Cooking methods / functionsCircoTherm®; Top/bottom heat; Circo–roasting; Full surface grill; CircoTherm® intensive; Bread baking; Bottom heat; CircoTherm® gentle; Hot air; Hotair gentle; Pizza setting; Hot air grilling; Bread Baking Setting; Full width grill; Conventional heat.

Heating methods via Home Connect AppAir fry; let rest; preheating

Control panel materialGlass

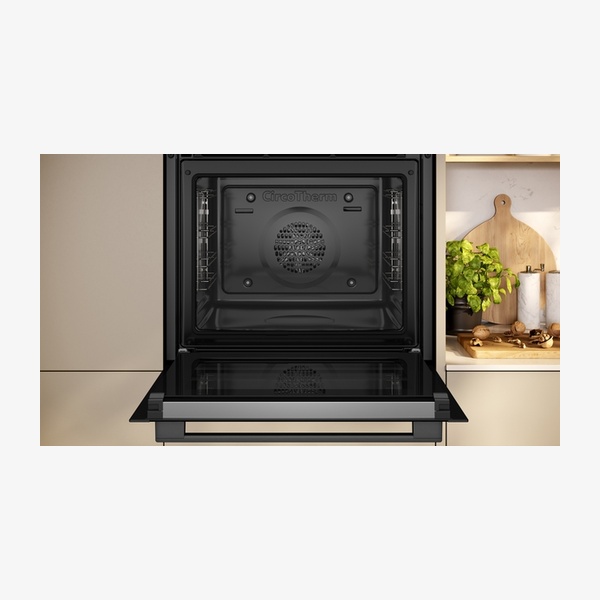

Door materialGlass, full glass inner door, quadruple glazed CoolTouch door

Cavity inner surfaceEnamel anthracite

Net weight36.7 kg

Cable length120 cm

Connection rating2.99 kW / 2990 W (Total connected load electric)

Fuse protection13 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeNo plug (electrical connection by electrician)

Shelf positions4 shelf positions, level independent telescopic rails available as an accessory

Control dialsElongated designed dials; retractable control dials; bevelled oval controls with steel trim

DisplayLCD–Display (white) with large characters

LightingInterior halogen light, on/off button

EAN code4242004281122

Downloads

Download product documentation, manuals, and specification sheets.

B2ACH7AG7B Spec

PDF

Frequently Asked Questions

What is the capacity of the N 50 B2ACH7AG7B built–in oven?

The oven has a cavity volume of 71 litre, with a usable volume of 71 l.

Which cleaning systems does this oven use?

It offers pyrolytic cleaning programmes, allowing the oven interior to clean itself, and EasyClean, a quick and easy option for day to day maintenance. The integrated cleaning system is described as Pyrolytic+Hydrolytic.

Can I control the oven from an app?

Yes. The oven is HomeConnect ready on WLAN and can be controlled via the Home Connect App. Heating methods available only via the App include air fry, let rest and preheating.

What safety features does the door have?

The oven has a quadruple glazed CoolTouch door with very low door temperature (30 °C), low door temperature during pyrolytic cleaning and a door lock during pyrolytic cleaning. A door contact switch and residual heat indicator are also included.

What accessories are supplied with the oven?

The oven is supplied with 2 x combination grid and 1 x universal pan.

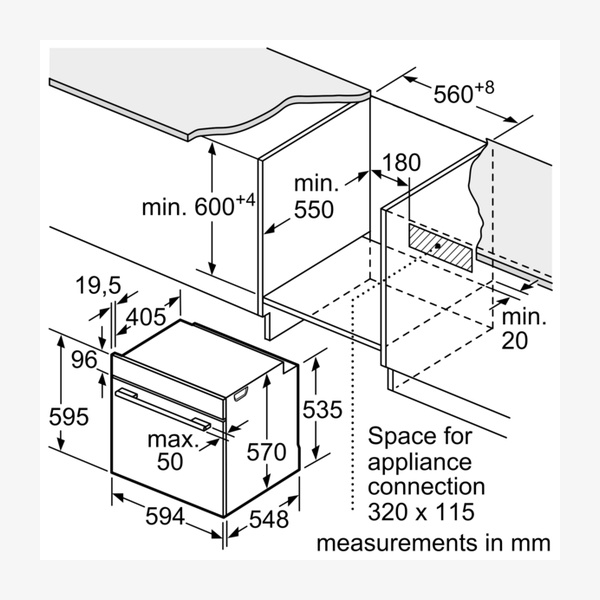

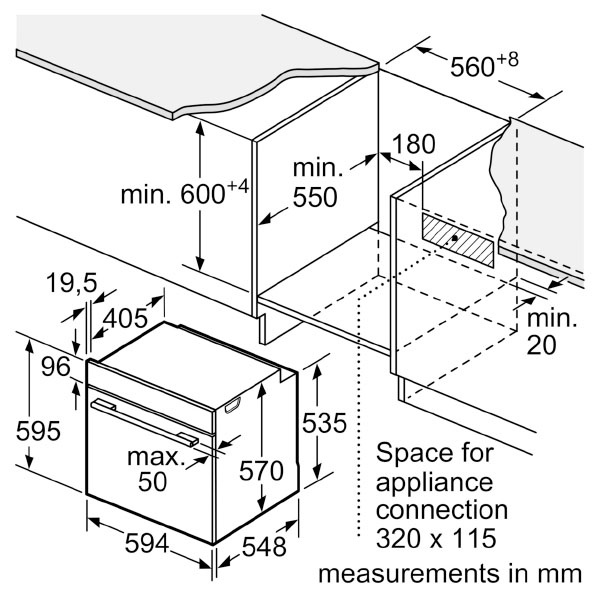

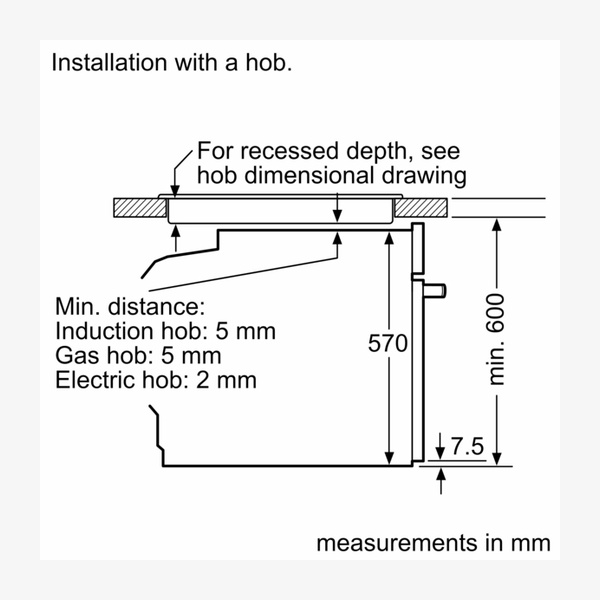

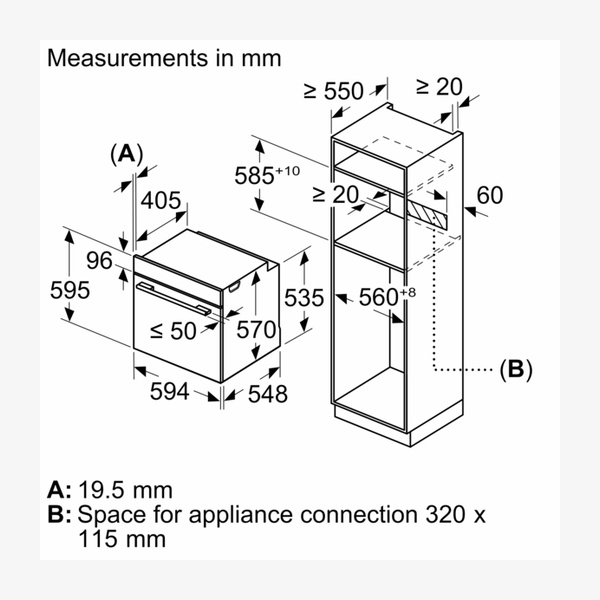

What are the installation requirements?

The appliance requires a niche of 585 mm – 595 mm (H) x 560 mm – 568 mm (W) x 550 mm (D). Electrical connection is by an electrician as the oven has no plug, and the installation manual should be consulted for ventilation and fitting details.
