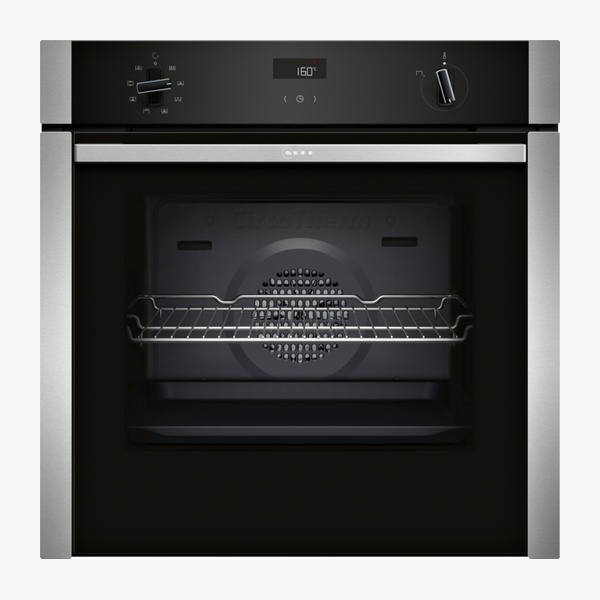

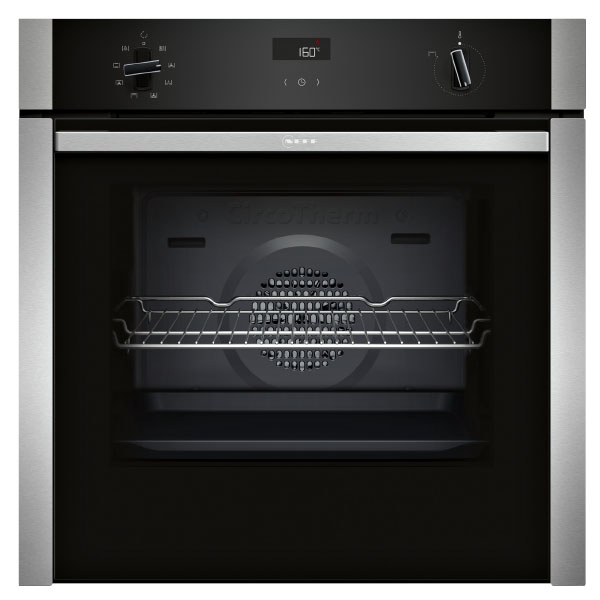

Neff N50 B4ACF1AN3B Single Oven

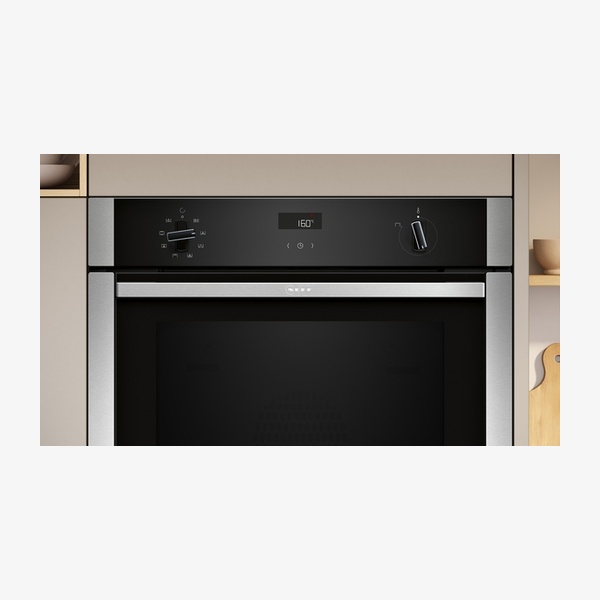

The N 50 B4ACF1AN3B is a built-in 60 x 60 cm stainless steel multifunction oven designed for integrated kitchen installations. It offers a 71 litre cavity with CircoTherm® hot-air technology and a fully disappearing Slide&Hide® door with rotating handle. With an A+ energy efficiency rating, multiple heating methods and EcoClean Direct on the back panel, it is suitable for users seeking flexible cooking functions, clear LCD display control and easy cleaning features.

SKU:B4ACF1AN3B

EAN:4242004281283

Category::Ovens

Quantity:

Key Features

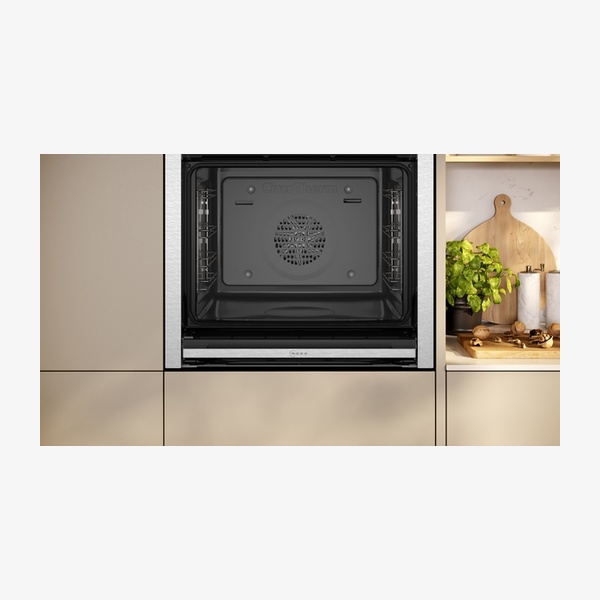

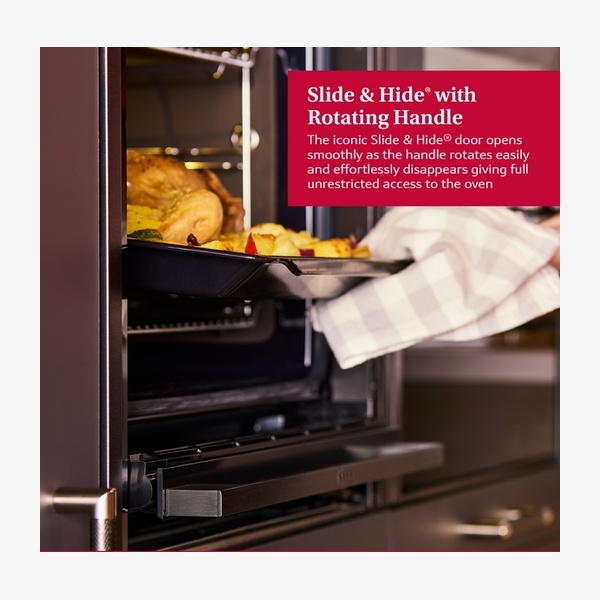

Slide&Hide® fully disappearing oven door with rotating handle for an unobstructed oven opening.

CircoTherm® smart hot-air solution that lets you bake on up to three levels at once.

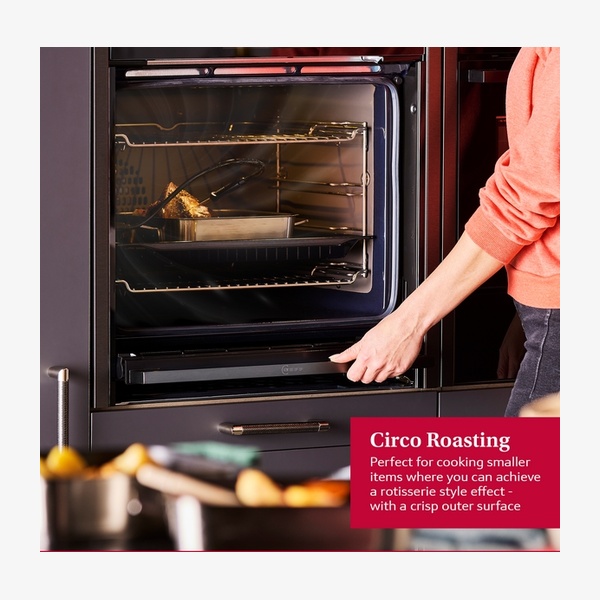

Multifunction oven with 6 cooking functions : CircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® intensive, CircoTherm® gentle.

71 litre cavity volume providing a generous usable volume of 71 l.

A+ energy efficiency rating with 0.69 kWh/cycle forced air convection and 0.94 kWh/cycle conventional energy consumption (2010/30/EC).

LCD display with large characters offering simple, straightforward control and an electronic clock timer.

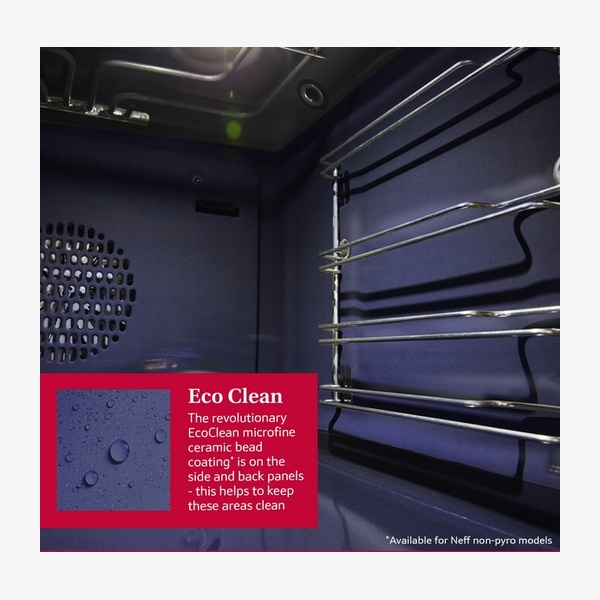

EcoClean programme and EcoClean Direct back panel to assist with cleaning the oven cavity.

Temperature range 50 °C – 275 °C for a wide variety of cooking tasks.

Triple glazed CoolTouch door with heat reflective glass for added user protection.

Control panel lock to help prevent unwanted operation of the oven controls.

Interior halogen light and cooling fan with a stainless-steel fan for internal visibility and cooling.

4 shelf positions within the enamel anthracite cavity interior for flexible shelf placement.

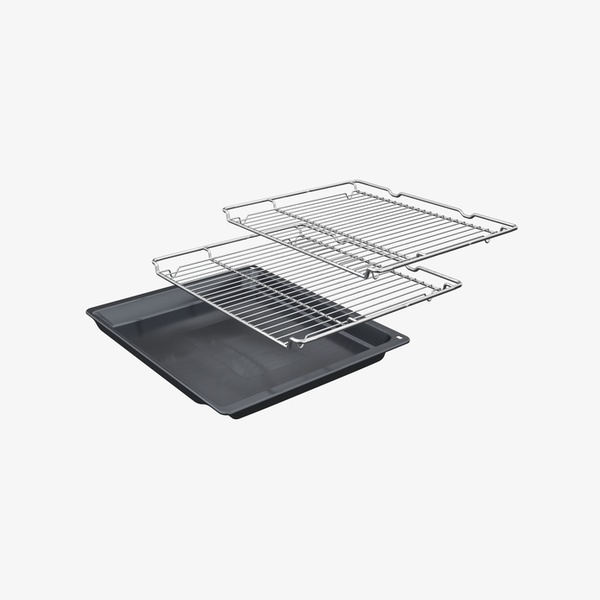

Included accessories : 2 x combination grid and 1 x universal pan supplied as standard.

Optional accessories available including baking trays, pans, glasspan, cliprails, wireless food thermometer, full ext rails and baking stone (model codes stated in specifications).

Built-in design with elongated, retractable control dials and bevelled oval controls with steel trim.

Technical Spec

Product typeBuilt-in oven

ModelB4ACF1AN3B

SeriesN 50

Front materialStainless steel

Integrated cleaning systemEcoClean programme; EcoClean Direct back panel

Usable cavity volume71 l

Cavity volume71 litre

Number of cavities (2010/30/EC)1

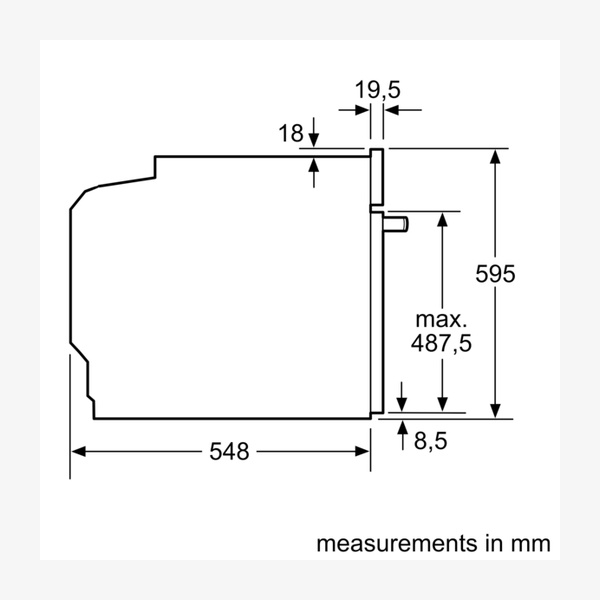

Dimensions (H x W x D)595 x 594 x 548 mm

Appliance dimensions (h x w x d)595 mm x 594 mm x 548 mm

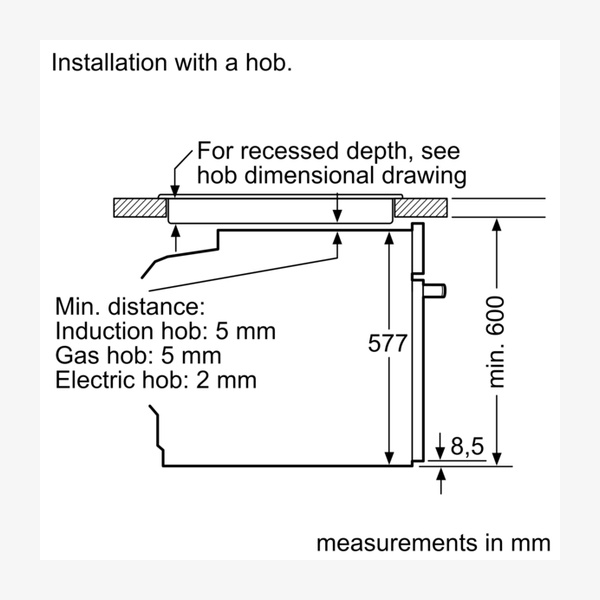

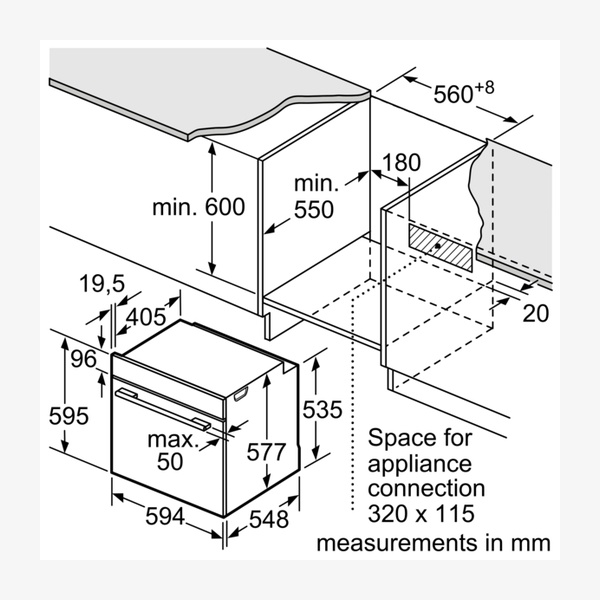

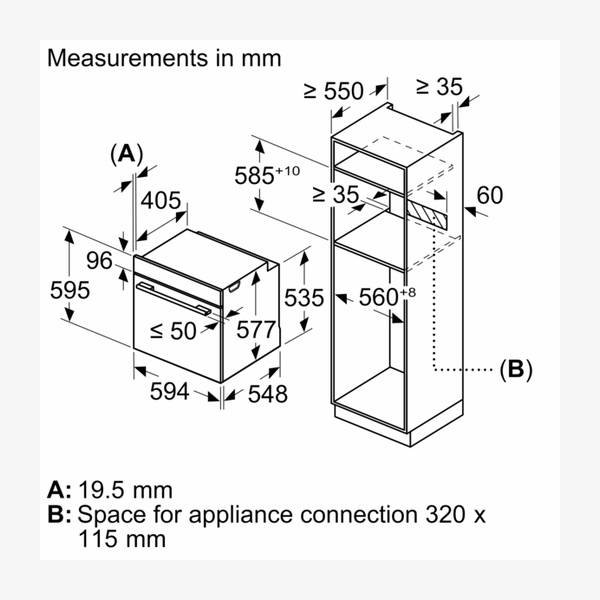

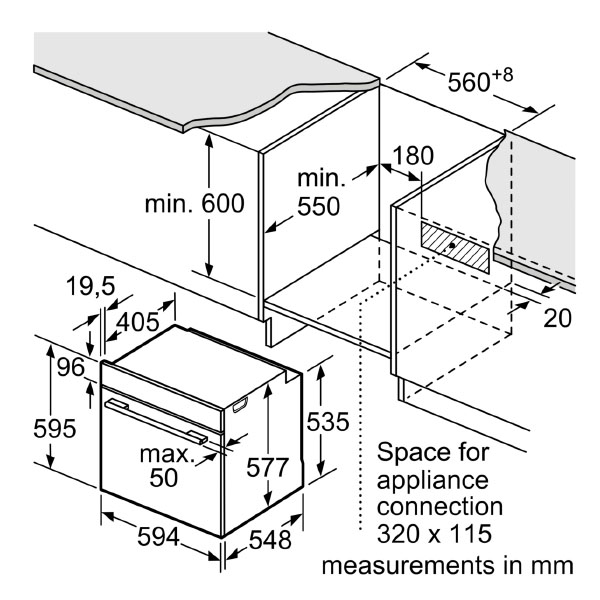

Required niche size (H x W x D)585–595 x 560–568 x 550 mm

Niche dimension (h x w x d)585 mm – 595 mm x 560 mm – 568 mm x 550 mm

Packed product dimensions (H x W x D)675 x 660 x 690 mm

Net weight34.0 kg

Control panel materialGlass

Door materialGlass

Door glazingTriple glazed CoolTouch door with heat reflective glass

Cavity inner surfaceEnamel anthracite

Shelf positions4 shelf positions

Level independent telescopic railsAvailable as an accessory

Cooking methodsFull width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Hot air grilling

Oven functionsCircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® intensive, CircoTherm® gentle

Temperature range50 °C – 275 °C

DisplayLCD Display (white)

Energy efficiency ratingA+

Energy efficiency index (2010/30/EC)81.2 %

Energy consumption (conventional)0.94 kWh/cycle (2010/30/EC)

Energy consumption (forced air)0.69 kWh/cycle (2010/30/EC)

Connection rating2.99 kW / 2990 W

Fuse protection13 A

Voltage220–240 V

Frequency50; 60 Hz

Electrical connectionNo plug (electrical connection by electrician)

Cable length120 cm

Door featuresSlide&Hide® with fixed handle; Slide&Hide® with rotating handle

ControlsElongated designed dials; Retractable control dials; Bevelled oval controls with steel trim

Control panel lockYes

LightingInterior halogen light

FanCooling fan; Stainless-steel fan

Heating up indicatorYes

Manual rapid heat upYes

Automatic startYes

Included accessories2 x combination grid, 1 x universal pan

Optional accessoriesZ11AB15A0 Baking tray, non-stick ceramic coated; Z11AU15A0 Universal pan, non-stick ceramic coated; Z11CR10X0 Baking and roasting grid (standard); Z11GU20X0 Glasspan; Z11TI15X0 Cliprails; Z12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled; Z12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z13CV06S0 Decor strip; Z1608BX0 Full ext rails, level independent; Z1650BE0 Half tray; Z1655CA0 Air Fry & Grill tray; Z166CAX0 SC FlexDesign mounting kit; Z1913X0 Baking Stone

EAN code4242004281283

Downloads

Download product documentation, manuals, and specification sheets.

B4ACF1AN3B Spec

PDF

Frequently Asked Questions

What is the capacity of the N 50 B4ACF1AN3B oven?

The cavity volume is 71 litre, with a usable volume of 71 l.

Which heating functions does this oven provide?

The oven offers six main functions: CircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® intensive and CircoTherm® gentle. Additional cooking methods listed are Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting and Hot air grilling.

What are the installation niche dimensions required?

The niche dimension is 585 mm – 595 mm in height, 560 mm – 568 mm in width and 550 mm in depth.

Does the oven include telescopic rails?

Level independent telescopic rails are available as an accessory and are not stated as included with the appliance.

What cleaning features are provided?

Cleaning features include an EcoClean programme, EcoClean Direct on the back panel, an enamel anthracite cavity and a full glass inner door.

What accessories come with the oven as standard?

Included accessories are 2 x combination grid and 1 x universal pan.
