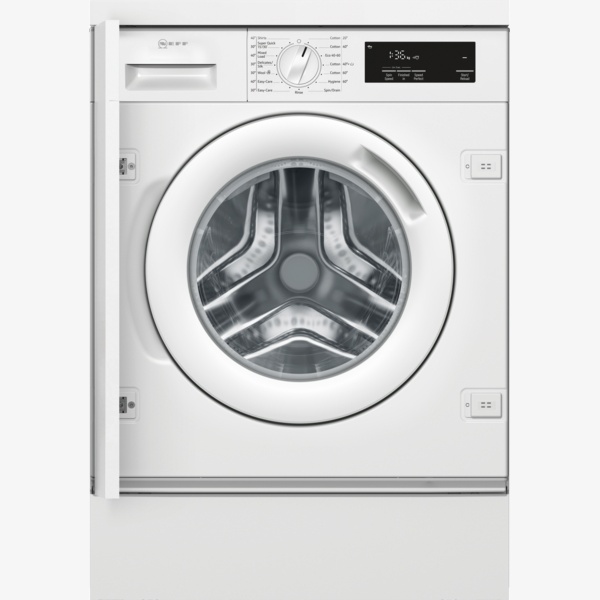

Neff W543BX2GB Washing Machine

This fully integrated built-in washing machine offers an 8 kg load capacity and a maximum spin speed of 1400 rpm. It is designed for quiet, efficient laundry care, with practical short cycles such as SpeedPerfect and Quick 15' for fast results. Intelligent sensors help optimise water use, while the EcoSilence Drive and AntiVibration Design contribute to low noise. Convenient controls, reload functionality and flexible installation options support modern kitchen layouts.

SKU:W543BX2GB

EAN:4242004268352

Category::Washing Machines

Quantity:

Key Features

8 kg load capacity – Suitable for loads from 1 to 8 kg for flexible everyday washing.

Max. 1400 rpm spin speed – Adjustable between 400 – 1400 rpm for effective spin drying.

SpeedPerfect – Optimal washing results in up to 65% less time.

Quick 15' – Washes, rinses and spins in just 15 minutes.

Intelligent Water System – Smart sensors reduce water usage.

Efficient Silent Drive with 10-year warranty – Quiet motor design with long-term warranty.

EcoSilence Drive – Energy-efficient motor operation.

AntiVibration Design – Enhanced stability and quietness during operation.

AquaStop – Neff home appliance with lifetime warranty against water damage.

Reload Function – Lets you add items even after the programme has started.

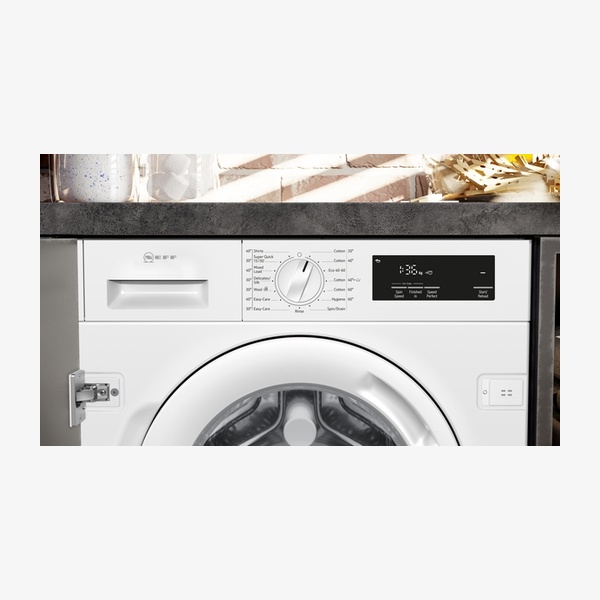

Large display – Shows programme progress, spin speed, remaining time, 24-hour end time delay and load recommendation.

Touch control buttons – Ready in, SpeedPerfect, start/pause with reload function, and spin speed reduction.

Continuous automatic load adjustment – Adjusts settings according to the load.

Foam detection system – Helps manage excess foam during washing.

Safeguard monitoring system – Adjusts load distribution for balanced spinning.

Noise insulation with bottom cover – Contributes to quieter operation.

Easy-clean detergent dispensing – Detergent dispensing system designed for easy cleaning.

Divider for liquid detergent – Supports liquid detergent use.

Buzzer end-of-cycle indication – Audible signal when the cycle finishes.

Large white door – 130° opening with a 30 cm porthole for easy loading and unloading.

Furniture door is reversible – Flexible installation in different kitchen layouts.

Cardan Drive height adjustment – Effortlessly adjust the height of the back feet from the front.

Built-in, fully integratable design – Full-integrated installation typology for seamless kitchen integration.

Optional accessories available – Including extension for cold water inlet/Aquastop, microplastic filter, floor securing component and height-adjustable feet.

Technical Spec

ModelW543BX2GB

Product typeBuilt-in washing machine

Installation typologyFull-integrated / Fully integratable

Energy Efficiency Class¹C (scale A to G)

Weighted energy consumption²62 kWh per 100 washing cycles (eco 40–60)

Water consumption³45 litres per cycle (eco 40–60)

Rated capacity8.0 kg (eco 40–60 programme); load capacity 1 – 8 kg

Programme duration⁴3:26 h:min (eco 40–60 at rated capacity)

Spin-drying efficiency classB (eco 40–60)

Spin speed range**400 – 1400 rpm (maximum spin speed automatically reduced in case of laundry imbalances)

Airborne acoustical noise emissions66 dB(A) re 1 pW

Noise efficiency classA

Built-in / Free-standingBuilt-in

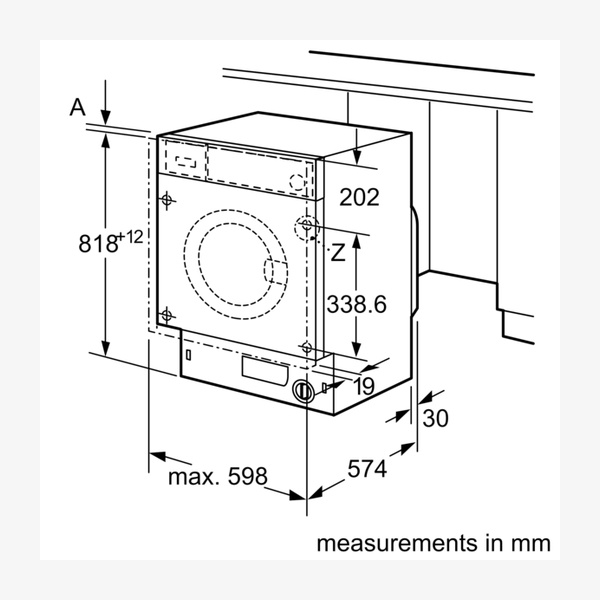

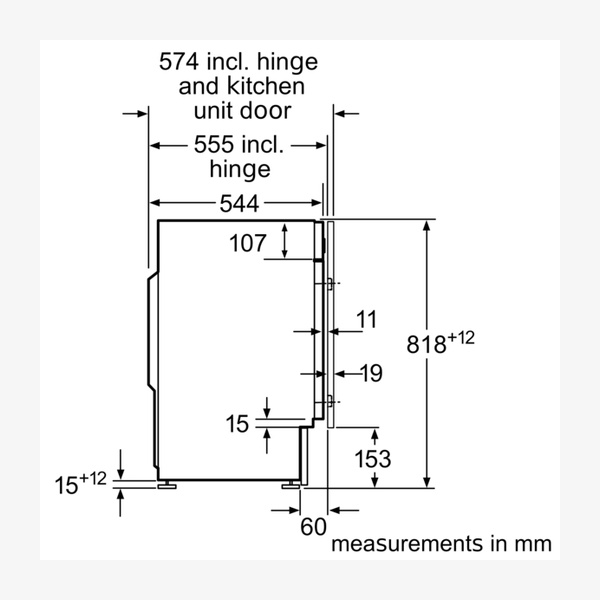

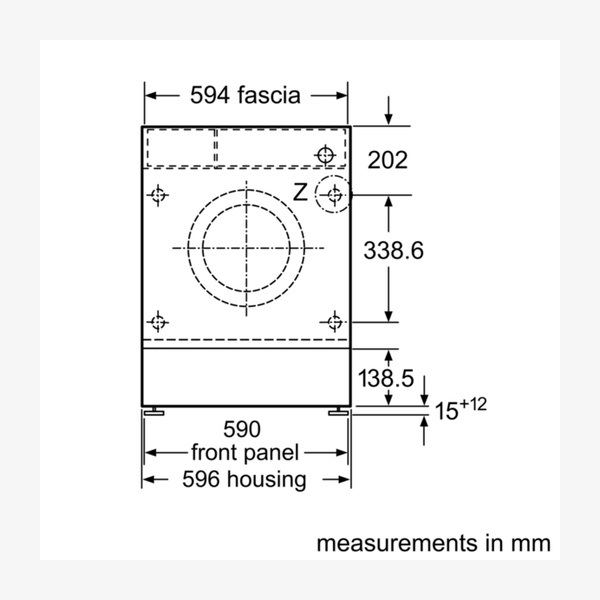

Dimensions (H x W x D)818 x 596 x 544 mm

Net weight72.1 kg

Connection rating2300 W

Fuse protection10 A

Voltage220–240 V

Frequency50 Hz

Length of electrical supply cord210 cm

Door hingeLeft

Furniture doorReversible

Door opening130° opening; 30 cm porthole

WheelsNo

EAN code4242004268352

Adjustable base height15 cm

Adjustable base depth6.5 cm

Height adjustmentHeight adjustment with Cardan drive

Optional accessoriesWMZ2381 Extension for cold water inlet / Aquastop; WZMPF10 Microplastic Filter; Z7080X0 Floor securing component; Z8060X1 Height-adjustable feet

Downloads

Download product documentation, manuals, and specification sheets.

W543BX2GB Spec

PDF

Frequently Asked Questions

What is the maximum load capacity of this washing machine?

The rated capacity is 8.0 kg for the eco 40–60 programme, and the load capacity range is specified as 1 – 8 kg.

How long does the eco 40–60 programme take?

The eco 40–60 programme has a duration of 3 hours and 26 minutes at rated capacity.

Does this machine have a quick wash option?

Yes. The Quick 15' programme washes, rinses and spins in just 15 minutes. In addition, the SpeedPerfect function provides optimal washing results in up to 65% less time.

How noisy is the washing machine during operation?

Airborne acoustical noise emissions are rated at 66 dB(A) re 1 pW, with a noise efficiency class of A. Features such as EcoSilence Drive, Efficient Silent Drive, AntiVibration Design and noise insulation with a bottom cover support quiet operation.

Can I add laundry after the wash cycle has started?

Yes. The Reload Function allows you to add items even after the programme has started, using the start/pause control.

What safety features are included to protect against water damage?

The machine includes AquaStop, described as a Neff home appliance with lifetime warranty against water damage. Foam detection and Safeguard monitoring of load distribution also contribute to controlled operation.
