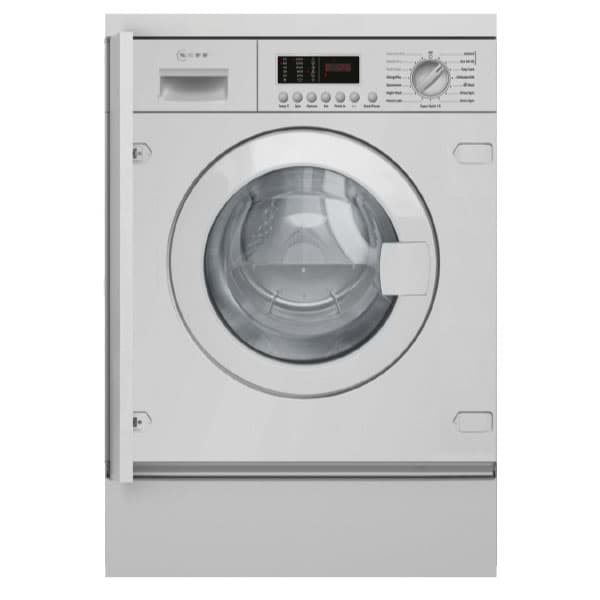

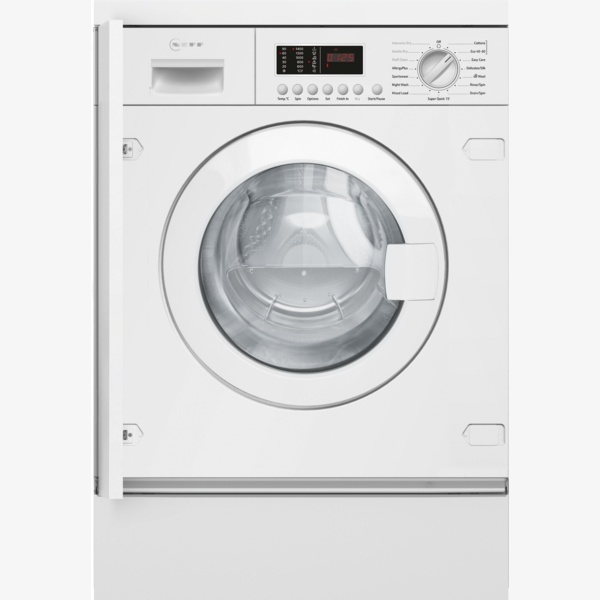

Neff V6540X3GB Washer Dryer

The Neff V6540X3GB is a fully integratable built-in washer dryer with a 7 kg washing and 4 kg drying capacity, designed for flexible laundry care. It features a large LED display for clear programme progress, temperature, spin speed and time remaining. With AquaStop for protection against water damage, autoDry function, multiple special wash programmes and timed drying options, it offers convenient washing and drying in one appliance for fitted kitchens.

SKU:V6540X3GB

EAN:4242004274209

Category::Washer Dryers

Quantity:

Key Features

7/4 kg load capacity – wash up to 7 kg and dry up to 4 kg of laundry.

Fully integratable built-in design – suitable for installation behind a kitchen fascia.

Large LED display – shows programme progress, temperature, spin speed, time remaining and drying level with up to 24 hours time delay.

AquaStop – Neff home appliance with lifetime warranty against water damage.

autoDry function and timed drying programmes – for controlled drying performance.

Energy efficiency classes E / E – for wash and dry cycle and Eco 40–60 washing programme.

Spin speed 600–1355 rpm – with spin speed reduction option.

Noise efficiency class A – airborne acoustical noise emissions of 72 dB(A) re 1pW.

Multiple special wash programmes – including Easy-Care, Night wash, Mixed Load, Sports wash, Rapid 15, Allergy + and programmes for wool/handwash and Delicates/Silk.

Special drying programme – fluff removal cycle.

Automatic load adjustment – adjusts wash action to the laundry load.

Aquatronic wash system – supports efficient distribution of water during washing.

Child safety lock – helps prevent unintended operation.

Foam detection and safeguard monitoring systems – help control foam and adjust load distribution.

Reload facility – allows interruption of the cycle to add laundry (where programme conditions permit; not further detailed in source).

Buzzer at end of cycle – provides an audible signal when the programme finishes.

White door with 180° opening – left-hinged door with metal door catch.

Optional accessories – Z7070X0 accessory and Z7080X0 floor securing component.

Technical Spec

Product typeWasherdryer, 7/4 kg

ModelV6540X3GB

Installation typeBuilt-in / Fully integratable

Energy efficiency class (Wash/Dry cycle)E

Energy efficiency class (Eco 40–60 programme)E

Weighted energy consumption (Wash/Dry)266 kWh per 100 full Wash/Dry cycles

Weighted energy consumption (washing only)77 kWh per 100 washing cycles of eco 40–60 programme

Maximum capacity (Wash/Dry cycle)4.0 kg (1–4 kg)

Maximum capacity (wash cycle)7.0 kg (1–7 kg)

Water consumption (full Wash/Dry cycle)68 litres per cycle

Water consumption (eco 40–60 programme)44 litres per cycle

Programme duration (Wash/Dry)5:30 h:min at rated capacity

Programme duration (eco 40–60 wash only)2:50 h:min at rated capacity

Spin-drying efficiency class (eco 40–60)B (EU19_spin efficiency class: B)

Spin speed range600–1355 rpm**

Airborne acoustical noise emissions72 dB(A) re 1pW

Noise emission classA

Built-in / Free-standingBuilt-in

Removable topNo

Door hingeLeft

Door opening angle180° opening door

Door colour / materialWhite door with metal door catch

Electrical supply cord length220 cm

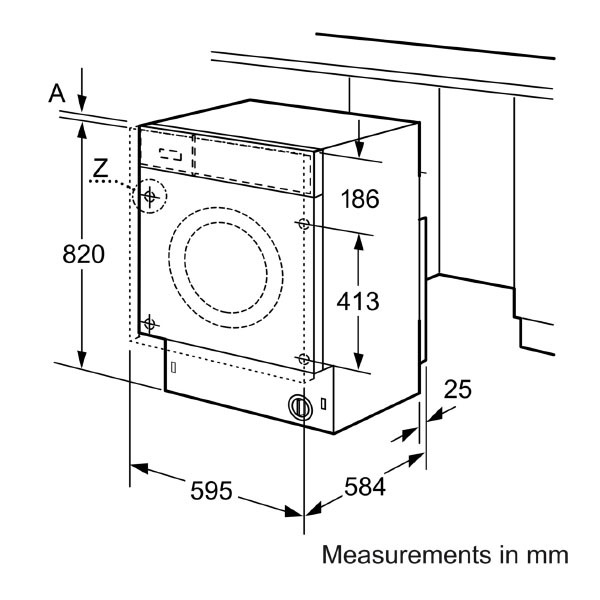

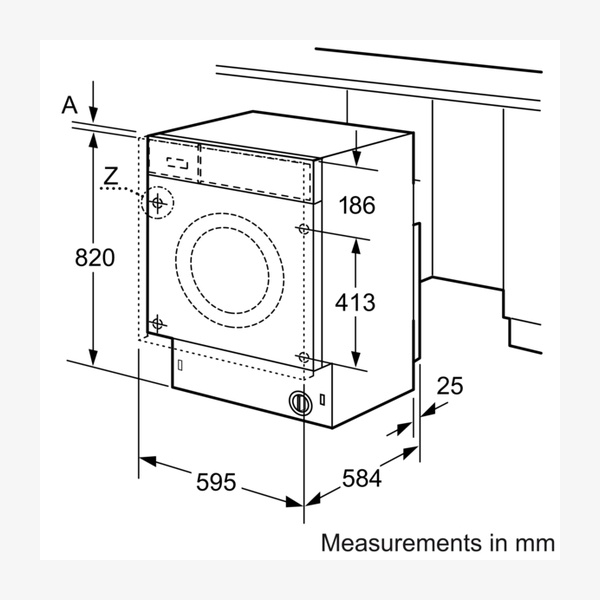

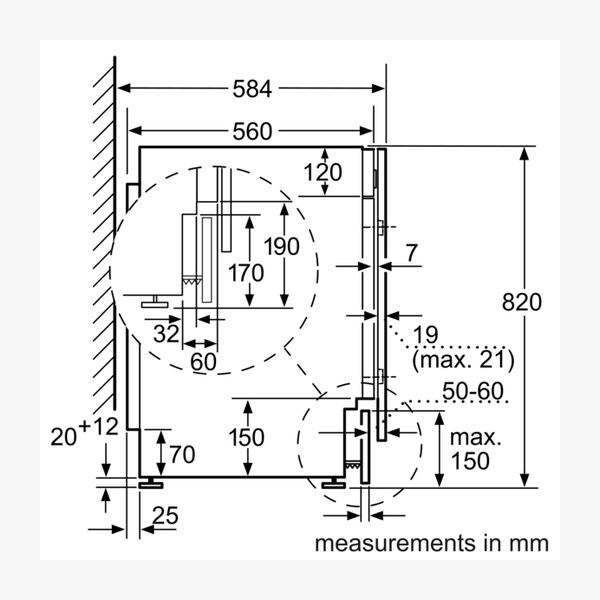

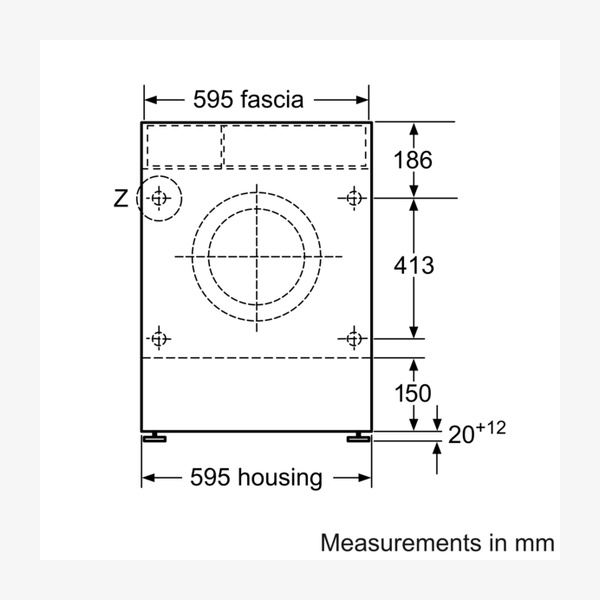

Product dimensions (H × W × D)82 × 59.5 × 56 cm (820 × 595 × 584 mm stated)

Adjustable base height16.5 cm

Adjustable base depth6.5 cm

Height adjustmentHeight adjustment with Cardan drive

Drum volume52 litres

Net weight85.1 kg

EAN code4242004274209

Optional accessoriesZ7070X0 Accessory; Z7080X0 Floor securing component

Warranty notePlease find warranty terms under the additional warranties section of the website.*

Spin speed note** The maximum spin speed is automatically reduced in the case of laundry imbalances.

Downloads

Download product documentation, manuals, and specification sheets.

V6540X3GB Spec

PDF

Frequently Asked Questions

What are the wash and dry capacities of the Neff V6540X3GB?

The appliance offers a 7 kg capacity for washing and a 4 kg capacity for combined Wash/Dry cycles. Load capacity is specified as 1–7 kg for washing and 1–4 kg for Wash and Dry.

Which special wash programmes are available?

Special programmes include Easy-Care, Night wash, Mixed Load, Sports wash, Rapid 15, Rinsing / Spinning, fluff clean, Drain / Spin, Allergy +, wool/handwash and Delicates/Silk. A fluff removal cycle is available as a special drying programme.

What is AquaStop on this washer dryer?

AquaStop is a safety feature on this Neff home appliance that provides lifetime warranty against water damage. It is designed to protect in case of water-related incidents during operation.

How loud is the machine during operation?

The airborne acoustical noise emissions are 72 dB(A) re 1pW, and the appliance is rated in noise efficiency class A.

What information does the large display show?

The large display indicates programme progress, temperature, spin speed, time remaining, 24 hours time delay and the selected drying level.

Is this washer dryer suitable for integration into a kitchen?

Yes, it is described as built-in and fully integratable, with dimensions of 82 × 59.5 × 56 cm and adjustable base height and depth to assist integration behind a kitchen fascia.
