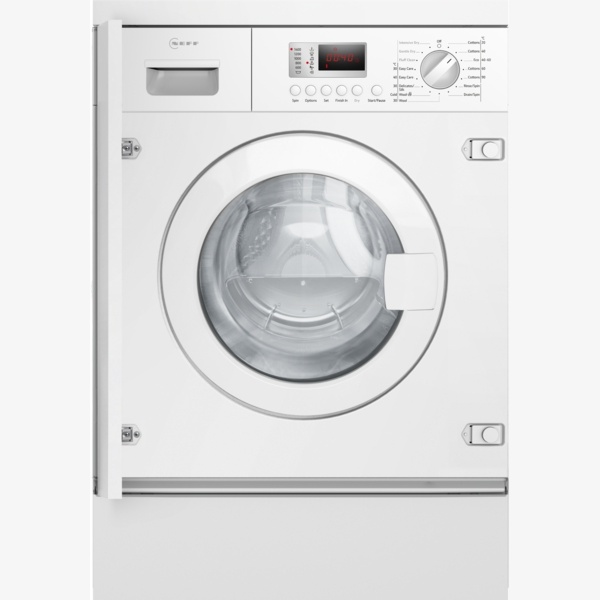

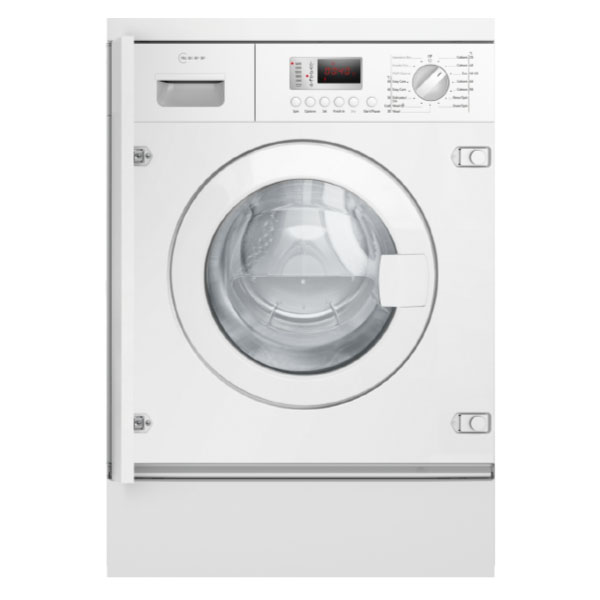

The NEFF V6320X2GB is a fully integratable built-in washer dryer with a 7 kg washing and 4 kg drying load capacity. It offers fully electronic control of all wash and special programmes, plus timed drying options. A large LED display provides programme progress, remaining time and a 24 hours time delay. With an Aquatronic wash system, automatic load adjustment, foam detection and child safety lock, it is designed for convenient, monitored laundry care in a compact space.

Key Features

7/4 kg load capacity – wash up to 7 kg and dry up to 4 kg of laundry.

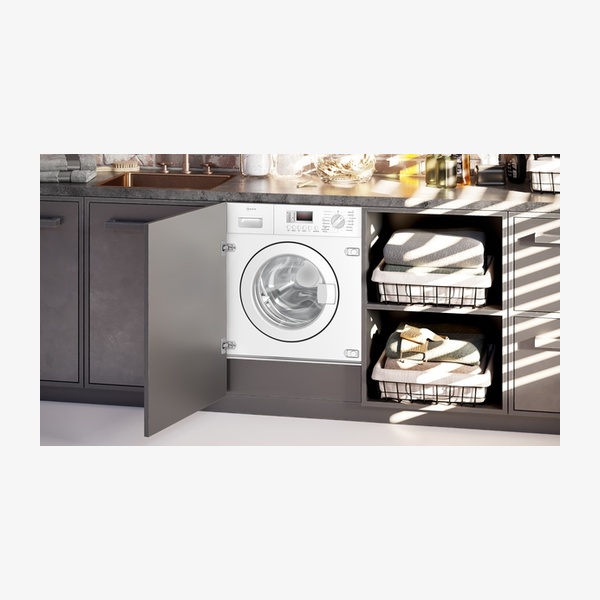

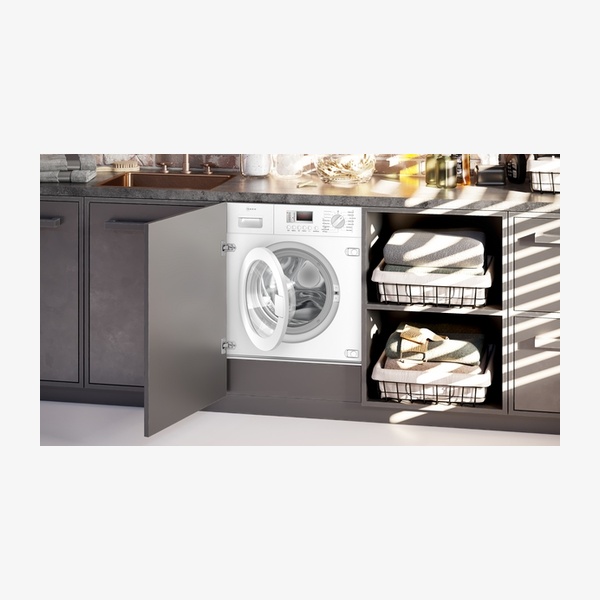

Fully integratable built-in design – suitable for built-in installation with a left hinged door.
Large LED display – easier navigation with display of programme progress, remaining time and 24 hours time delay.
Energy efficiency class E – E for both Wash/Dry cycle and Eco 40–60 washing programme.
Aquatronic wash system – key wash system feature.
Fully electronic control dial – manage all wash and special programmes electronically.
Special wash programmes – 30°C, 40°C, Rinsing / Spinning, fluff clean, Drain / Spin, 30°C Handwash wool and Delicates/silk.
Drying functions – special fluff removal drying cycle and timed drying programmes.
Spin speed range – 600 – 1355 rpm, with automatic reduction in case of laundry imbalances.
Safeguard monitoring system – adjusts load distribution during the cycle.
Automatic load adjustment – adapts to the amount of laundry.
Foam detection system – monitors and responds to excess foam.
Child safety lock – helps prevent unintended use.
Reload facility – allows adding items during the cycle (where programme conditions permit; further detail: Not stated in source).
Buzzer at end of cycle – audible signal when the programme is finished.
Noise efficiency class A – airborne acoustical noise emissions of 72 dB(A) re 1pW.
Optional accessories available – Z7060X0 height-adjustable feet, Z7070X0 accessory and Z7080X0 floor securing component.

Technical Specifications

Product type	Washerdryer, 7/4 kg
Model	V6320X2GB (also shown as V6320X2gB in text)
Built-in / Free-standing	Built-in / Fully integratable
Load capacity (Wash/Dry cycle)	1 – 4 kg (maximum capacity 4.0 kg)
Load capacity (Wash only)	1 – 7 kg (maximum capacity 7.0 kg)
Energy efficiency class (Wash/Dry cycle)	E (Regulation)
Energy efficiency class (Eco 40–60 programme)	E (Regulation)
Weighted energy consumption – Wash/Dry	266 kWh per 100 full Wash/Dry cycles
Weighted energy consumption – Washing (Eco 40–60)	77 kWh per 100 washing cycles (eco 40–60 programme)
Water consumption – full Wash/Dry cycle	68 l per cycle
Water consumption – eco programme	44 l per cycle (eco 40–60 programme)
Programme duration – Wash/Dry	5:30 h:min at rated capacity
Programme duration – Washing (eco 40–60)	2:50 h:min at rated capacity
Spin-drying efficiency class	B (EU19_spin efficiency class: B)
Spin speed range	600 – 1355 rpm**
Airborne acoustical noise emissions	72 dB(A) re 1 pW
Noise efficiency class	A
Removable top	No
Door hinge	Left hinged door
Door catch	Metal door catch
Electrical supply cord length	220 cm

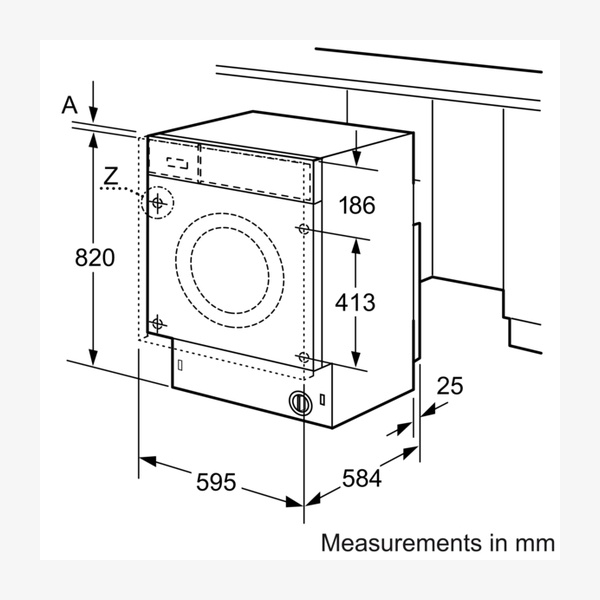

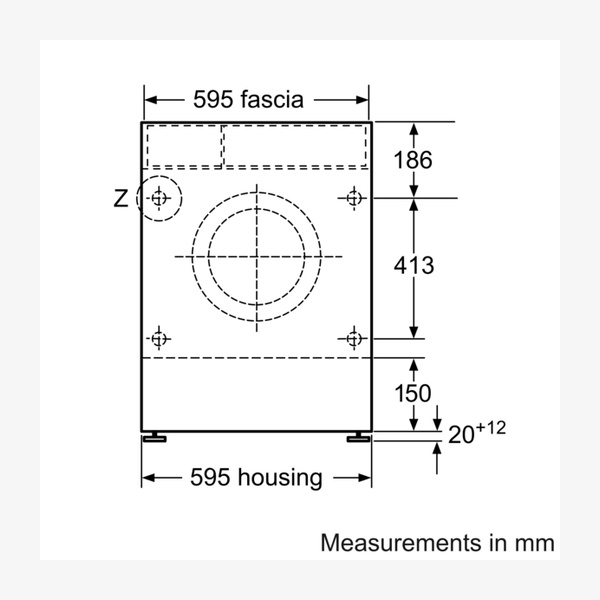

Product dimensions (H x W x D)	82 x 59.5 x 56 cm (also stated as 820x595x584 mm)
Adjustable base height	16.5 cm
Adjustable base depth	6 cm
Net weight	82.1 kg
Drum volume	52 l
EAN code	4242004253129
Optional accessories	Z7060X0 Height-adjustable feet; Z7070X0 Accessory; Z7080X0 Floor securing component
Energy efficiency class scale note	Scale of Energy Efficiency Classes from A to G (for ¹ ²)
Additional note on spin speed	** The maximum spin speed is automatically reduced in the case of laundry imbalances.

Programmes, Functions and Usage Details

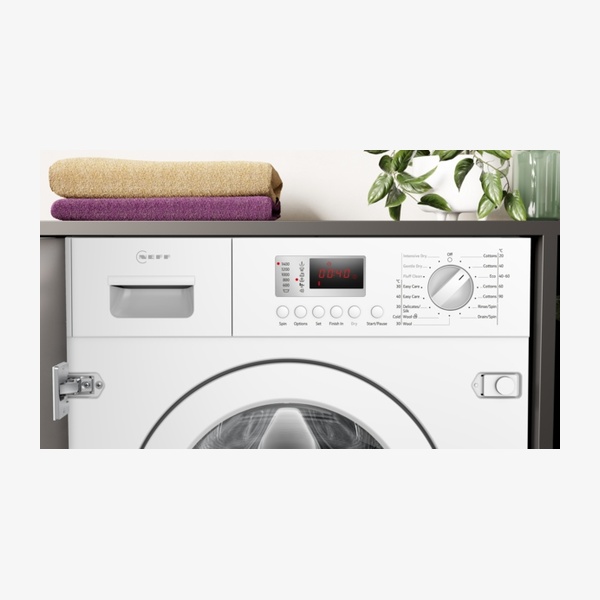

Control and display

Fully electronic control dial for all wash and special programmes.
Display for programme progress indication.
Display of time remaining.
24 hours time delay function.

Wash programmes

30°C programme.
40°C programme.
Rinsing / Spinning.
Fluff clean.
Drain / Spin.
30°C Handwash wool.
Delicates/silk.

Drying programmes

Special drying programme: fluff removal cycle.
Timed drying programmes.

Buttons and operation

Start button.
Spin speed reduction.
Change button.
Menu button.
Drying time selection.
24 hr Time Delay button.

Monitoring and safety systems

Safeguard monitoring system adjusts load distribution.
Automatic load adjustment system.
Foam detection system.
Child safety lock.
Buzzer to indicate the end of cycle.
Reload facility.

Installation and integration

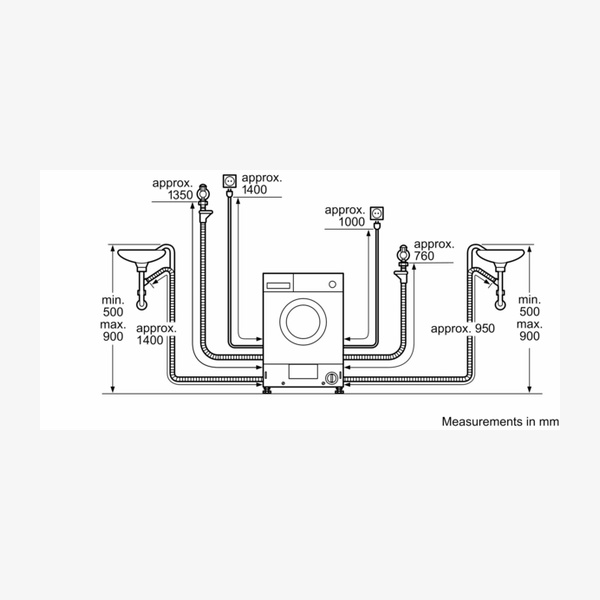

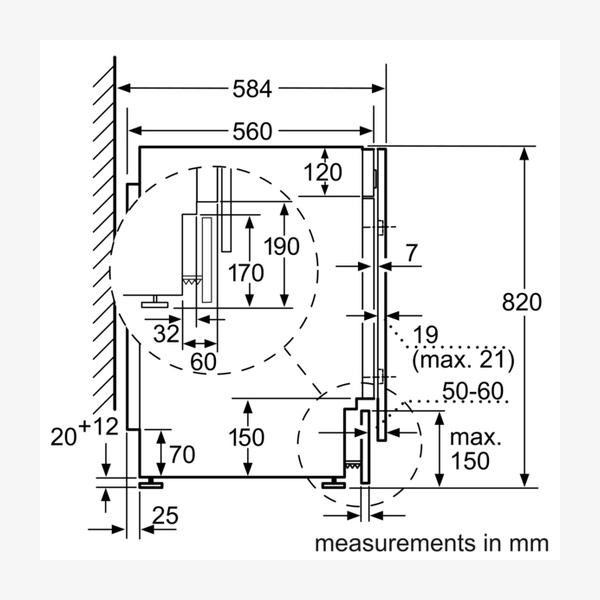

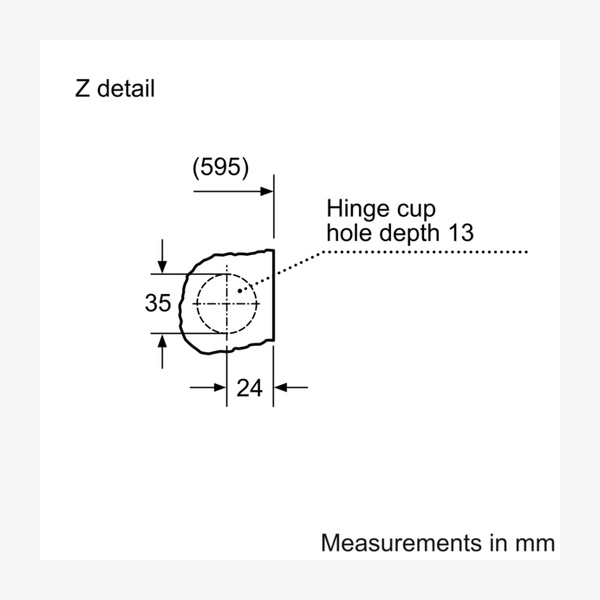

The appliance is specified as built-in and fully integratable with a left hinged door. It includes adjustable base height of 16.5 cm and adjustable base depth of 6 cm. Measurements are given as 82 x 59.5 x 56 cm and 820x595x584 mm for product dimensions. Optional accessories include height-adjustable feet and a floor securing component. Further installation steps and clearances: Not stated in source.

Frequently Asked Questions

What are the wash and dry load capacities of the NEFF V6320X2GB?

The washer dryer has a 7/4 kg load capacity. For washing only, it can handle 1 – 7 kg, with a maximum capacity of 7.0 kg. For combined Wash/Dry cycles, it supports 1 – 4 kg, with a maximum capacity of 4.0 kg.

What are the energy efficiency classes for this washer dryer?

The energy efficiency class for the Wash and Dry cycle is E. The energy efficiency class for the Eco 40–60 washing programme is also E. The scale of energy efficiency classes runs from A to G as noted.

How long do the main programmes take?

The duration of the full Wash and Dry cycle at rated capacity is 5:30 h:min. The duration of the eco 40–60 washing programme at rated capacity is 2:50 h:min.

Which special programmes are available?

Special programmes include 30°C, 40°C, Rinsing / Spinning, fluff clean, Drain / Spin, 30°C Handwash wool and Delicates/silk. There is also a special drying programme: fluff removal cycle, plus timed drying programmes.

How loud is the NEFF V6320X2GB in operation?

The airborne acoustical noise emissions are 72 dB(A) re 1 pW, and the noise efficiency class is A.

Which accessories are available for installation?

Optional accessories listed are the Z7060X0 height-adjustable feet, Z7070X0 accessory and Z7080X0 floor securing component.
