Neff N30 D5855X2GB Canopy Hood

The N 30 D5855X2GB is a 75 cm silver metallic canopy cooker hood designed for installation under an overhead canopy kitchen unit. Suitable for both ducted extraction and recirculation, it offers mechanical slide controls, three speeds plus an intensive setting and a high extraction rate for continuously clean kitchen air. LED lighting with 3500 K colour temperature and dishwasher-safe metal grease filters provide clear illumination and convenient cleaning.

SKU:D5855X2GB

EAN:4242004289845

Category::Cooker Hoods

Quantity:

Key Features

75 cm canopy design for installation under an overhead canopy kitchen unit.

Suitable for ducted extraction and recirculation to match different kitchen setups.

LED lighting with 2 x 2.15 W low-voltage LED spots, 3500 K colour temperature and 410 lux light intensity.

High extraction performance with maximum air extraction 468 m³/h and intensive extraction rate 614 m³/h in exhaust mode.

Intensive speed setting increases the extraction rate when steam gets intense.

3 speeds plus intensive controlled by slide operation and mechanical controls.

Reduced noise motor for a quiet cooking experience, with 63 dB(A) re 1pW at maximum exhaust speed.

Dishwasher-safe metal grease filters with washable aluminium material for easy cleaning.

Energy Efficiency Class D with average energy consumption of 88.1 kWh/year.

Performance in recirculation mode up to 281 m³/h, or 324 m³/h on intensive with standard recirculation kit (optional accessory).

Made in Germany at a CO2 neutral production site for sustainability.

Optional standard odour filter Z5155X0 available for recirculated extraction.

Technical Spec

Product typeCanopy cooker hood

ModelD5855X2GB

ColourSilver metallic

Typology / installationBuilt-in / Built-under; installation typology: Built-in; for installation under an overhead canopy kitchen unit

Suitable forDucted extraction and recirculation

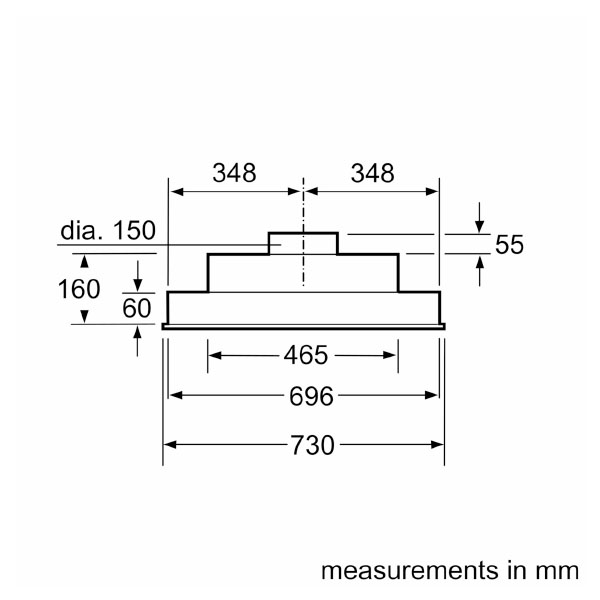

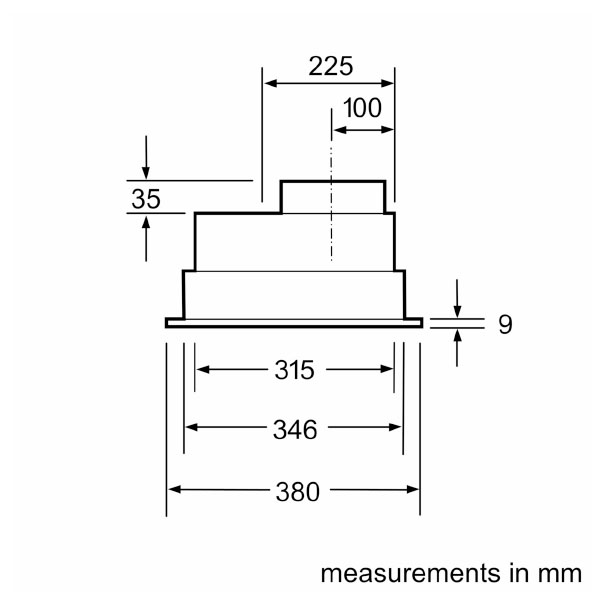

Width75 cm (overall dimensions 215 x 730 x 380 mm HxWxD)

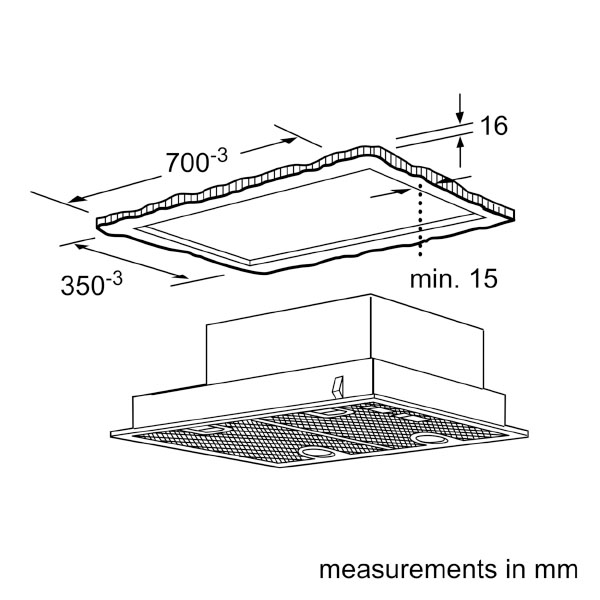

Built-in dimensions (HxWxD)215 x 700 x 350 mm

Required niche size (HxWxD)215 mm x 700.0 mm x 350 mm

Height of appliance215 mm

Minimum distance above electric hob650 mm

Minimum distance above gas hob650 mm

Net weight9.3 kg

Control typeMechanical slide control operation

Speed settings3 stages plus intensive setting

Motor typeCapacitor motor

Maximum output air extraction468 m³/h

Boost position air extraction614 m³/h

Maximum output recirculating air281 m³/h

Boost position output recirculating324.0 m³/h

Maximum air flow468 m³/h

Noise level63 dB(A) re 1pW (max exhaust mode)

Performance exhaust – Speed 1229 m³/h; noise level 46 dB(A) re1pW

Performance exhaust – Speed 2371 m³/h; noise level 57 dB(A) re1pW

Performance exhaust – Speed 3468 m³/h; noise level 63 dB(A) re1pW

Performance exhaust – Intensive 1614 m³/h; noise level 68 dB(A) re1pW

Performance recirculation – Speed 1140 m³/h; noise level 56 dB(A) re1pW (with standard recirculation kit)

Performance recirculation – Speed 2231 m³/h; noise level 67 dB(A) re1pW (with standard recirculation kit)

Performance recirculation – Speed 3281 m³/h; noise level 70 dB(A) re1pW (with standard recirculation kit)

Performance recirculation – Intensive Speed 1324 m³/h; noise level 73 dB(A) re1pW (with standard recirculation kit)

Number of lights2

Grease filters2 metal grease filter(s); grease filter material washable aluminium; metal grease filter dishwasher-safe

Grease Filtering Efficiency ClassB*

Lighting Efficiency ClassA*

Blower Efficiency ClassD*

Energy Efficiency ClassD (range A+++ to D)

Average energy consumption88.1 kWh/year*

Connection rating206 W

Power rating206 W

Voltage220–230 V; nominal voltage 220–230 V

Frequency50 Hz

Plug typeGB plug

Length of electrical supply cord130 cm; electrical cable length 1.3 m

Diameter of air outlet / pipe150 mm; diameter pipe Ø 150 mm

EAN code4242004289845

Downloads

Download product documentation, manuals, and specification sheets.

D5855X2GB Spec

PDF

Frequently Asked Questions

Is this cooker hood suitable for both extraction and recirculation?

Yes, it is suitable for ducted extraction and recirculation. For recirculated extraction, a charcoal filter and standard recirculation kit (optional accessories) are needed.

How many fan speeds does the D5855X2GB offer?

The hood provides 3 speed settings plus an intensive setting, controlled via mechanical slide operation.

What type of lighting does this canopy hood use?

It features 2 x 2.15 W low-voltage LED spot lights with a colour temperature of 3500 K and light intensity of 410 lux for clear illumination while you cook.

Are the grease filters easy to clean?

Yes. The cooker hood has 2 metal grease filters made from washable aluminium, and the metal grease filters are dishwasher-safe.

What is the maximum extraction rate?

In exhaust mode the maximum output air extraction is 468 m³/h, and the intensive setting can achieve 614 m³/h.

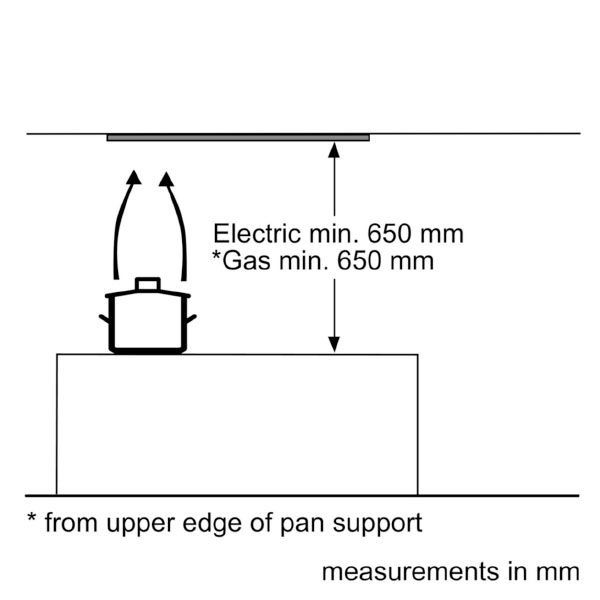

What are the minimum installation heights above the hob?

The minimum distance above both electric and gas hobs is 650 mm from the upper edge of the pan support.
