Neff N30 D51NAA1C0B Canopy Hood

The N 30 D51NAA1C0B is a grey 53 cm canopy cooker hood designed to fit neatly under an overhead unit or cabinet, making discreet use of valuable space. It offers a maximum extraction rate of 302 m³/h, three power levels and mechanical slide control operation. With LED lighting for clear illumination and a washable aluminium grease filter, it supports both ducted extraction and recirculation when used with the appropriate accessory kit.

SKU:D51NAA1C0B

EAN:4242004234432

Category::Cooker Hoods

Quantity:

Key Features

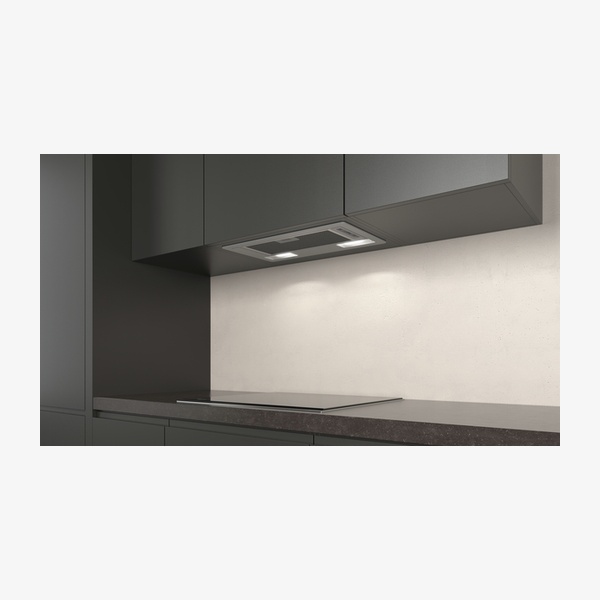

Canopy hood design – fits neatly under an overhead unit or cabinet for a discreet, space-efficient installation.

LED lighting – 2 × 3 W LED lights with 2700 K colour temperature provide clear illumination while you cook.

High extraction rate – maximum output air extraction of 302 m³/h for continuously clean air in the kitchen.

Reduced noise operation – optimised motor with a noise level of 62 dB(A) re 1 pW at maximum normal setting.

Three power levels – slide control operation with 3 speed settings to match cooking intensity.

Washable aluminium grease filter – 1 metal grease filter cassette made from washable aluminium.

Flexible extraction – suitable for ducted extraction and recirculation (recirculating kit required for recirculation).

Energy Efficiency Class D – with average energy consumption of 67.7 kWh/year in accordance with EU Regulation No 65/2014.

Compact built-in installation – installation typology built-in / built-under with mounting width 49 cm and depth 26 cm.

Optional accessories – compatible with standard odour filter Z51INA0X0 and recirculation kits Z51INT0X0 and Z51INA0X0.

Technical Spec

Product nameN 30 Canopy Cooker Hood, 53 cm, Grey – D51NAA1C0B

TypologyBuilt-in/Built-under; installation typology: Built-in; canopy hood; installation: integrated

Energy Efficiency ClassD (at a range of energy efficiency classes from A+++ to D)

Average energy consumption67.7 kWh/year*

Maximum extraction rate302 m³/h (extraction rate according to EN 61591)

Maximum recirculating air output300 m³/h

Maximum air flow302 m³/h

Noise level62 dB(A) re 1 pW (noise, max. speed in normal use; according to EN 60704-3 and EN 60704-2-13; 48 dB(A) re 20 µPa sound pressure)

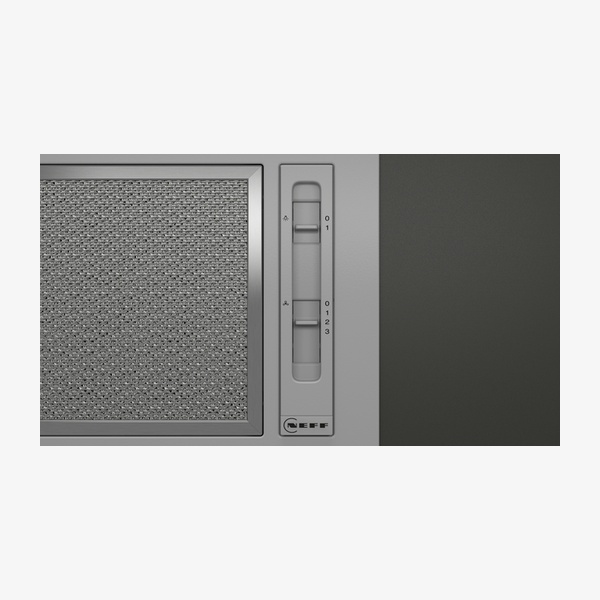

ControlsMechanical controls; slide control operation; 3 power levels; number of speed settings: 3

Lighting2 × 3 W LED; colour temperature: 2700 K; light intensity: 78 lux; Lighting Efficiency Class: D*

Grease filter1 metal grease filter cassette; grease filter material: washable aluminium; Grease Filtering Efficiency Class: D*

Blower Efficiency ClassE*

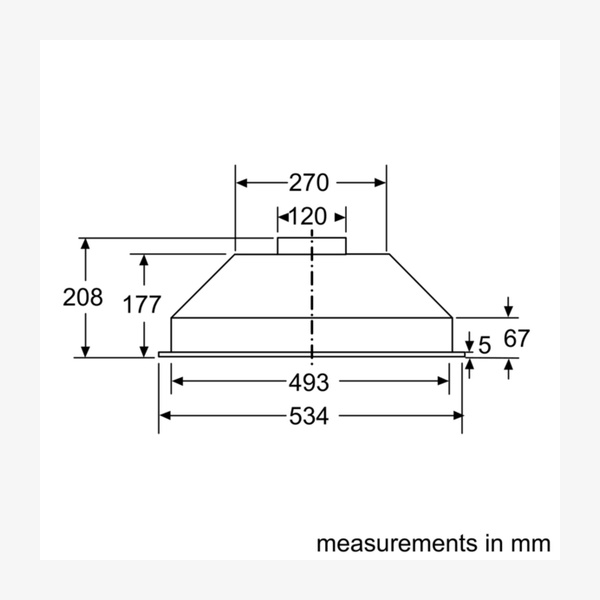

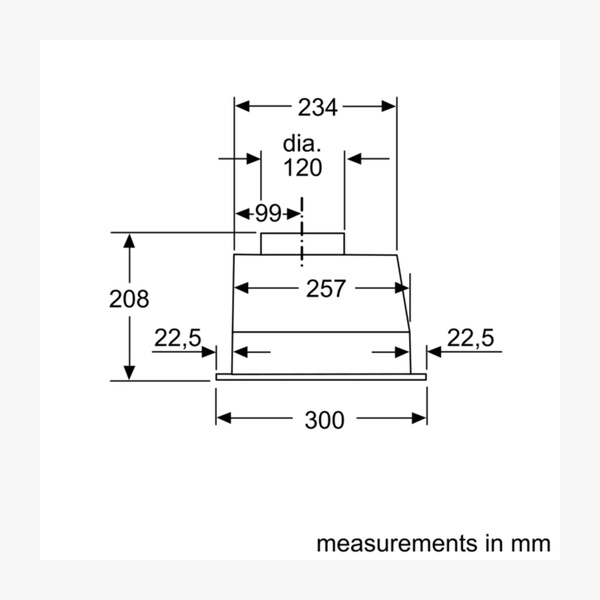

Dimensions (exhaust air)208–208 mm (H) × 534 mm (W) × 300 mm (D)

Dimensions (recirculating)208–208 mm (H) × 534 mm (W) × 300 mm (D)

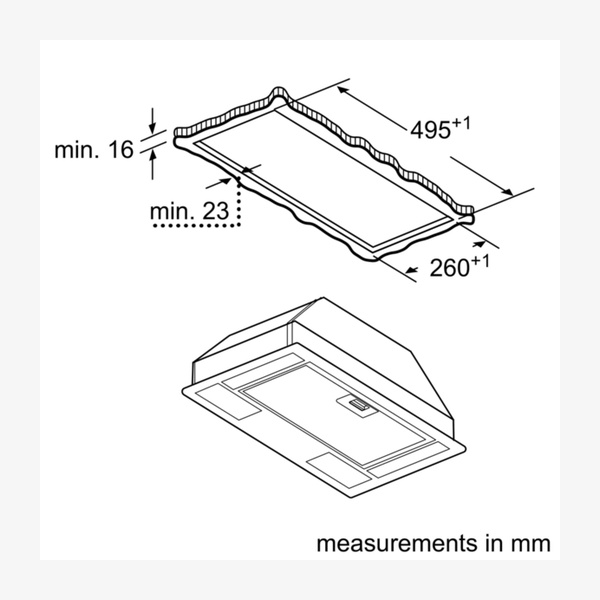

Required niche size (HxWxD)208 mm × 493.0 mm × 257 mm

Mounting dimensionsWidth: 49 cm; depth: 26 cm

Height of appliance208 mm

Net weight4.9 kg

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Diameter of air outlet / pipe120 mm (diameter pipe Ø 120 mm enclosed)

Electrical cable length1.5 m (150 cm)

Connection rating121 W; power rating: 121 W

Voltage220–240 V

Frequency50 Hz

Fuse protection5 A

Plug typeGB plug

EAN code4242004234432

SuitabilitySuitable for ducted extraction and recirculation

Optional accessoriesStandard odour filter (replacement) Z51INA0X0; standard recirculation kit Z51INT0X0; recirculating kit Z51INA0X0 (for recirculated extraction)

Regulatory noteData marked * in accordance with EU-Regulation No 65/2014

Downloads

Download product documentation, manuals, and specification sheets.

D51NAA1C0B Spec

PDF

Frequently Asked Questions

Is this cooker hood suitable for both ducted and recirculating installation?

Yes. The appliance is suitable for ducted extraction and recirculation. For recirculated extraction, a recirculating kit is needed. Optional recirculating accessories include the Z51INA0X0 and Z51INT0X0 kits.

What is the maximum extraction rate and noise level?

The maximum extraction rate is 302 m³/h according to EN 61591. The noise level at maximum normal setting is 62 dB(A) re 1 pW, with a sound pressure level of 48 dB(A) re 20 µPa.

How many speed settings and what type of controls does it have?

The hood has three power levels, with mechanical controls operated by a slide control.

What lighting is provided on this hood?

It is equipped with two 3 W LED lights (2 × 3 W) with a colour temperature of 2700 K and a light intensity of 78 lux.

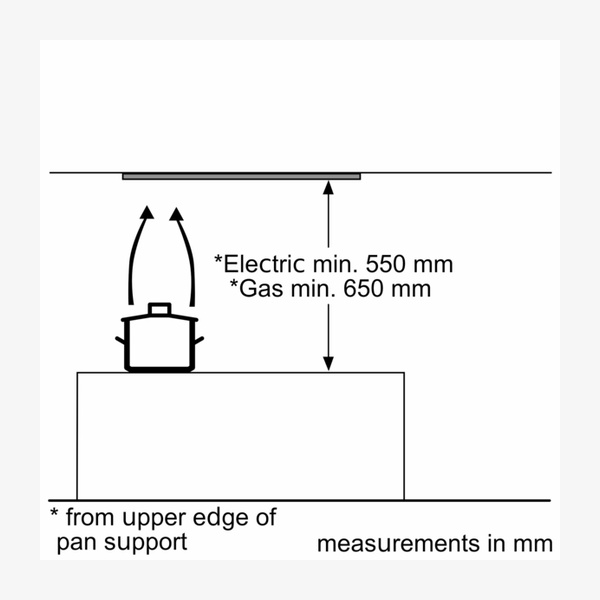

What are the required installation clearances above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.

Does the hood have a washable grease filter?

Yes. It includes one metal grease filter cassette made from washable aluminium.
