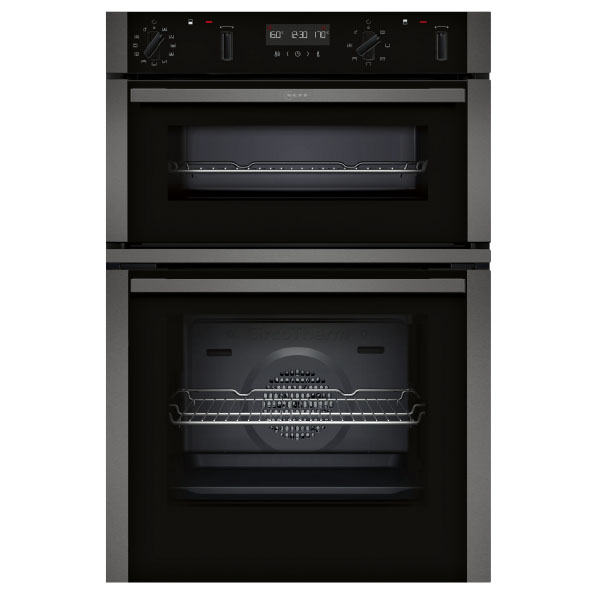

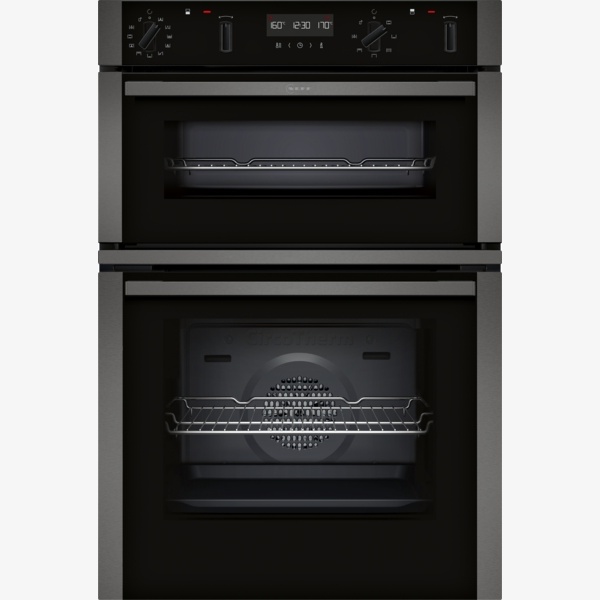

Neff N50 U2ACH7AG7B Double Oven

The N 50 U2ACH7AG7B is a built‑in double oven designed for integrated kitchen installation. It offers a 71 litre cavity with CircoTherm® hot‑air, multiple heating methods and rapid heat. Pyrolytic cleaning and EasyClean support straightforward maintenance, while a quadruple glazed CoolTouch door and safety features enhance everyday use. An LCD display with retractable dials and Home Connect compatibility provide simple, connected control for users seeking flexible electric cooking performance.

SKU:U2ACH7AG7B

EAN:4242004281801

Category::Ovens

Quantity:

Key Features

CircoTherm® hot‑air system – smart solution that lets you bake on up to three levels at once.

Dual cleaning options – pyrolytic cleaning programmes plus EasyClean for quick day‑to‑day maintenance.

Home Connect control – control the oven via the app with remote monitoring and control from any room in the house.

Multiple heating methods – Bread Baking Setting, full width grill, Hotair gentle, Hot Air, conventional heat, pizza setting, bottom heat and hot air grilling.

71 litre cavity volume – spacious main cavity with 4 shelf positions and optional level‑independent telescopic rails.

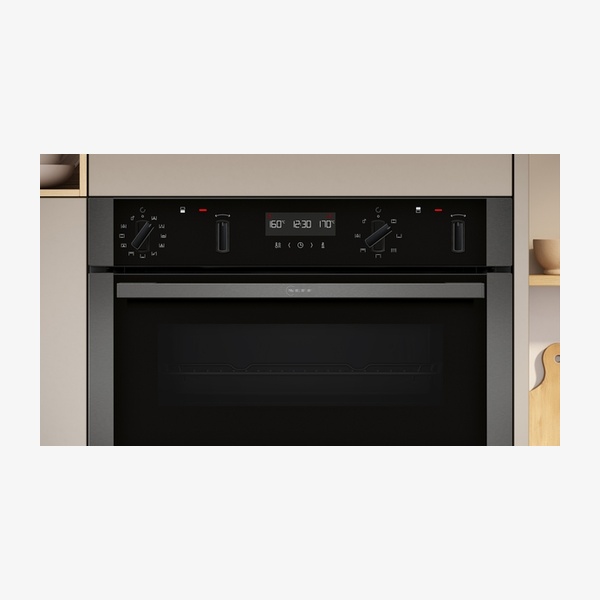

LCD display control – simple, straightforward LCD display (white) with large characters for clear reading.

Graphite‑Grey Edition design – elongated retractable dials, bevelled oval controls with steel trim and bar handle.

CoolTouch door – quadruple glazed door with very low door temperature of 30 °C and door lock during pyrolytic cleaning.

Safety features – control panel lock, automatic safety switch off, residual heat indicator and door contact switch.

Rapid heat function – heating up indicator and rapid heat for faster preheating.

Integrated cleaning system – pyrolytic with full glass inner door and enamel anthracite cavity surface.

Energy efficiency rating A – electric oven with energy consumption of 1.02 kWh (conventional) and 0.81 kWh (fan‑forced convection) per cycle.

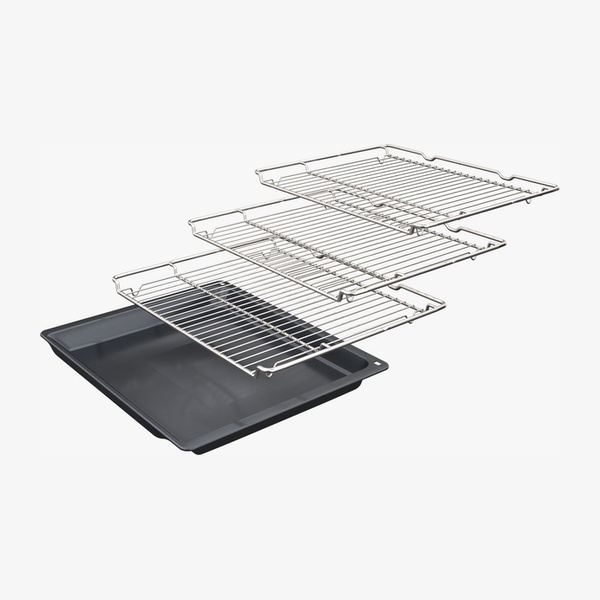

Included accessories – supplied with 3 x combination grid and 1 x universal pan.

Optional accessories range – compatible with baking trays, pans, cliprails, glasspan, wireless food thermometer, rails, Air Fry & Grill tray and baking stone.

Technical Spec

Product typeBuilt‑in double oven

ModelU2ACH7AG7B (N 50)

InstallationBuilt‑in

Integrated cleaning systemPyrolytic; EasyClean

Cavity volume71 litre / 71 l usable volume of cavity

Number of cavitiesMain cavity

Heat sourceElectrical

Temperature range30 °C – 275 °C

Door temperature30 °C very low door temperature

Door glazingQuadruple glazed CoolTouch door; full glass inner door

Cavity surfaceEnamel anthracite

Control panel materialGlass

Door materialGlass

DesignGraphite‑Grey Edition; elongated designed dials; retractable control dials; bevelled oval controls with steel trim; bar handle

Shelf positions4 shelf positions; level‑independent telescopic rails available as an accessory

Included accessories3 x combination grid, 1 x universal pan

Optional accessoriesZ11AB15A0 baking tray, non‑stick ceramic coated; Z11AU15A0 universal pan, non‑stick ceramic coated; Z11CR10X0 baking and roasting grid (standard); Z11GU20X0 glasspan; Z11TI15X0 cliprails; Z12CB10A0 baking tray, enamelled; Z12CL10A0 lid for professional pan, enamelled; Z12CM10A0 moussaka pan, enamelled; Z12CN10A0 professional pan, enamelled; Z12CP10A0 pizza pan, enamelled; Z12CU10A0 multipurpose pan, enamelled; Z1365WX0 wireless food thermometer; Z1608BX0 full ext rails, level independent; Z1650BE0 half tray; Z1655CA0 Air Fry & Grill tray; Z1913X0 baking stone

Cooking methodsBread Baking Setting; full width grill; Hotair gentle; Hot Air; conventional heat; pizza setting; bottom heat; hot air grilling

Heating methods via appLet rest; preheating (via Home Connect app)

Display and controlsLCD‑display control (white); electronic clock timer; temperature proposal; actual temperature display; heating up indicator; automatic start; on/off button

Lighting and coolingInterior halogen light; cooling fan

Smart connectivityHome Connect ready on WLAN; control via app; remote monitoring and control

Energy efficiency ratingA (acc. EU Nr. 65/2014); energy efficiency rating (2010/30/EC): A

Energy efficiency index95.3 % (cavity 1); 120.3 % (cavity 2)

Energy consumption (conventional)1.02 kWh/cycle (2010/30/EC); 1.02 kWh per cycle in conventional mode

Energy consumption (fan‑forced)0.81 kWh/cycle (2010/30/EC); 0.81 kWh per cycle in fan‑forced convection mode

Energy efficiency class cavity 2B; energy consumption per cycle conventional cavity 2: 0.83 kWh/cycle (2010/30/EC)

Connection rating6300 W / 6.3 kW total connected load electric

Fuse protection32 A

Voltage220–240 V nominal voltage 220–240 V

Frequency50 Hz

Plug typeNo plug; fixed connection; electrical connection by electrician

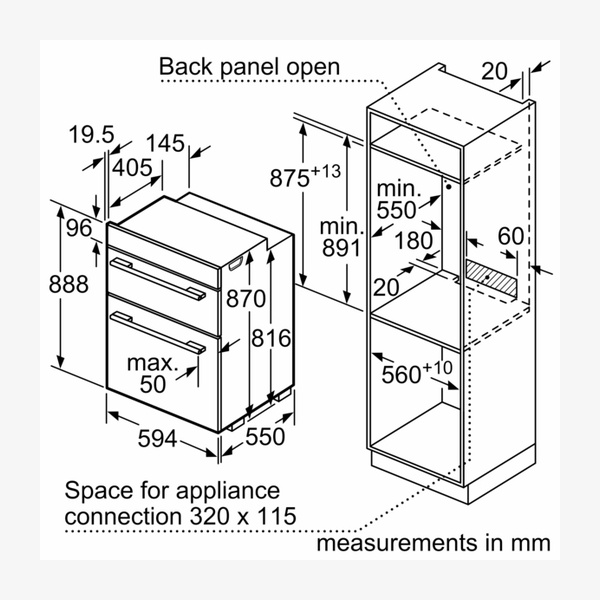

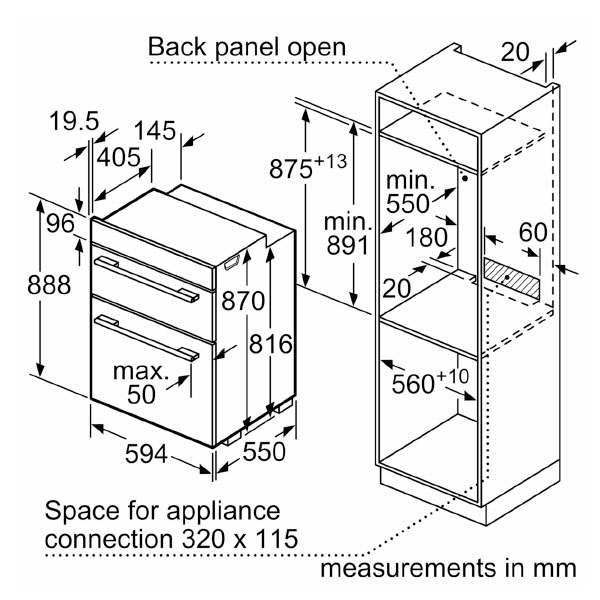

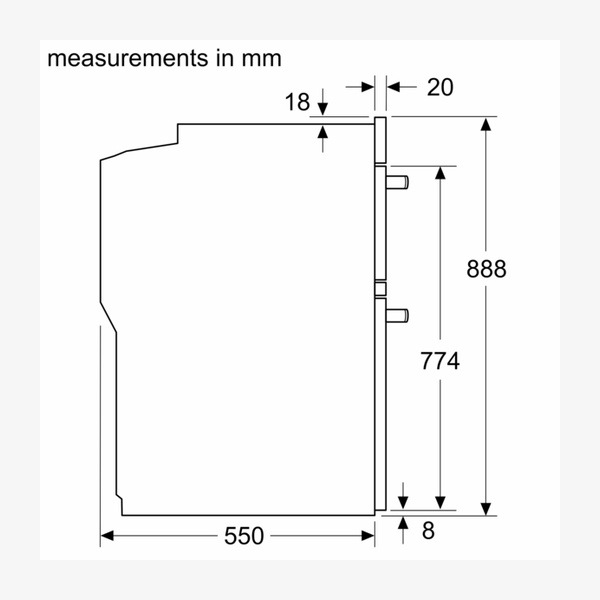

Appliance dimensions (H x W x D)888 mm x 594 mm x 550 mm

Niche dimensions (H x W x D)875 mm – 888 mm x 560 mm – 568 mm x 550 mm

Dimensions of packed product (H x W x D)960 x 660 x 690 mm

Net weight58.7 kg

EAN code4242004281801

Brand recommendationRecommended to choose complementary products within N 50 to assure an optimal design combination of built‑in appliances.

Downloads

Download product documentation, manuals, and specification sheets.

U2ACH7AG7B Spec

PDF

Frequently Asked Questions

What is the capacity of the main oven cavity?

The cavity volume is 71 litre, with a usable volume of 71 l for the main cavity.

Which cooking methods does this oven offer?

Available cooking methods are Bread Baking Setting, full width grill, Hotair gentle, Hot Air, conventional heat, pizza setting, bottom heat and hot air grilling.

Does the oven have a self‑cleaning function?

Yes. It has pyrolytic cleaning programmes that allow the oven interior to clean itself, as well as an EasyClean option for quick everyday maintenance.

Can I control the oven remotely?

Yes. The oven is Home Connect ready on WLAN, so you can control it via the app with remote monitoring and control from any room in the house.

What safety features are included?

Safety features include a control panel lock, automatic safety switch off, residual heat indicator, door contact switch, a quadruple glazed CoolTouch door with very low door temperature and a door lock during pyrolytic cleaning.

What accessories are supplied with the oven?

The oven comes with 3 x combination grid and 1 x universal pan. A wide range of optional accessories, such as baking trays, pans, cliprails and a wireless food thermometer, is also available.
