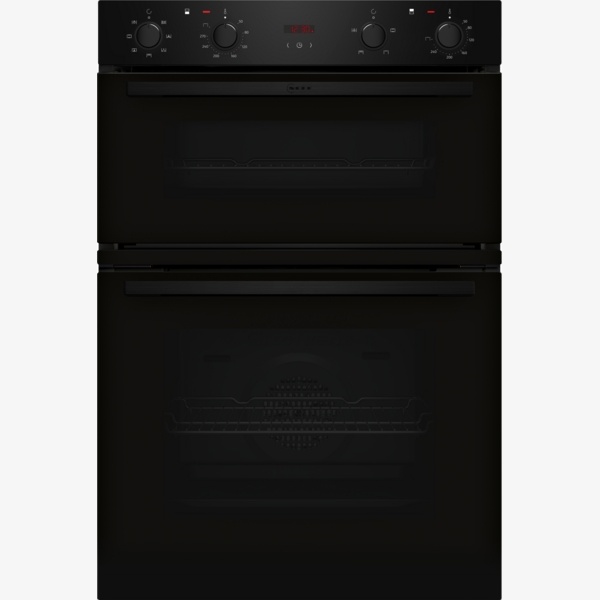

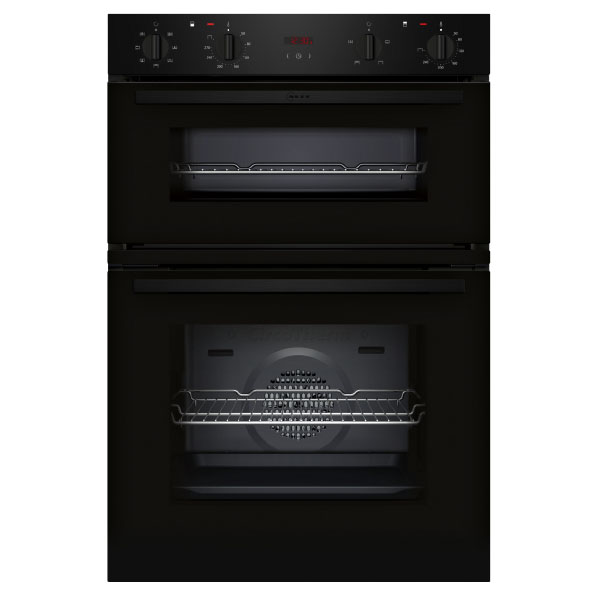

The N 30 U1DCC0AK3B is a built–in double oven designed for flexible grilling, baking and roasting. With a 71 litre main oven and 34 litre top oven, it offers multiple heating methods including CircoTherm® smart hot–air for baking on up to three levels at once. A clear red LED display, elongated dials with steel trim and full glass inner doors support straightforward operation, while included combination grids and a universal pan provide practical cooking options.

Key Features

Built–in double oven – perfect for grilling, baking and roasting of multiple dishes at the same time.
CircoTherm® hot–air – smart solution that lets you bake on up to three levels at once.
Main oven capacity 71 l – spacious cavity with 4 shelf positions for flexible cooking.
Top oven capacity 34 l – additional cavity with three heating methods for smaller dishes.
LED display (red) – simple, straightforward display with electronic clock timer and automatic start.
Multiple heating methods – options include Full surface grill, Top/bottom heat, Hot Air, CircoTherm® gentle, Hot air grilling and more (as stated for each oven).
Energy efficiency rating A (overall) – with detailed energy data for both cavities.
Heat reflective glass – featured on the main oven door.
Full glass inner doors – full–glass medium door for the top oven and full glass inner door for the main oven.
Level independent telescopic rails – available as an accessory for flexible shelf positioning.
Cooling fan and manual rapid heating up – in the main oven for convenient everyday use.
Control panel lock – provides additional control security on the main oven.

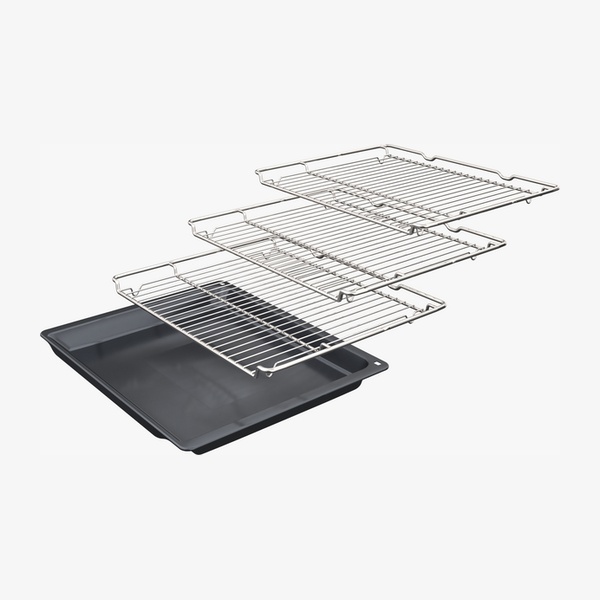

Included accessories – 3 x combination grid and 1 x universal pan.
Wide range of optional accessories – including baking trays, pans, cliprails, wireless food thermometer, Air Fry & Grill tray and baking stone.

Technical Specifications

Product type	Built–in double oven
Model	U1DCC0AK3B (N 30)
Integrated cleaning system	No

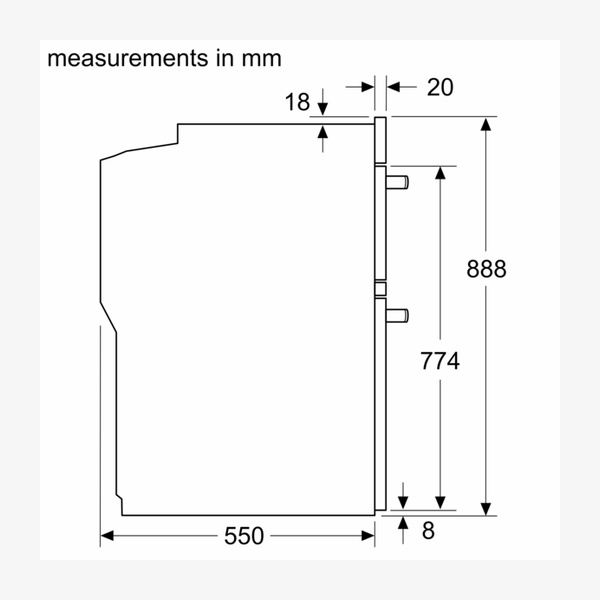

Dimensions (H x W x D)	888x594x550 mm
Packed product dimensions (H x W x D)	960x660x690 mm

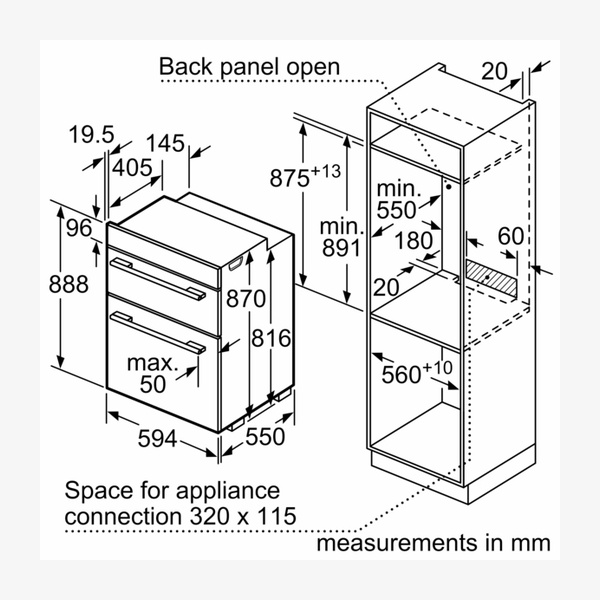

Niche dimensions (H x W x D)	875 mm – 888 mm x 560 mm – 568 mm x 550 mm
Control panel material	Glass
Door material	Glass
Cavity inner surface (top)	Enamel grey
Cavity inner surface (bottom)	Enamel anthracite
Net weight	49.8 kg
Main oven usable volume	71 litre
Top oven cavity volume	34 Litre
Main oven shelf positions	4 shelf positions
Cooking methods (overview)	Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling
Top oven heating methods	Top/bottom heat, Full surface grill, Small area grill
Main oven heating methods	CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® gentle
Temperature range (both ovens)	50 °C – 275 °C
Energy efficiency rating (overall)	A
Energy consumption conventional (overall)	1.02 kWh/cycle
Energy consumption forced air (overall)	0.81 kWh/cycle
Energy efficiency class – cavity 2	B
Energy consumption conventional – cavity 2	0.83 kWh/cycle
Energy efficiency index (overall)	95.3 %
Energy efficiency index cavity 2	120.3 %
Main oven energy efficiency rating (EU Nr. 65/2014)	B (at a range of energy efficiency classes from A+++ to D)
Main oven energy consumption – conventional	0.83 kWh
Main oven energy consumption – fan forced	0.81 kWh
Main oven number of cavities	Main Cavity
Main oven heat source	Electrical
Top oven energy efficiency rating (EU Nr. 65/2014)	B (at a range of energy efficiency classes from A+++ to D)
Top oven energy consumption – conventional	0.83 kWh
Top oven number of cavities	Top Cavity
Top oven heat source	Electrical
Connection rating	5900 W / 5.9 KW
Fuse protection	32 A
Nominal voltage	220 – 240 V
Frequency	50 Hz
Plug type	No plug (electrical connection by electrician), fixed connection (electrical connection by electrician)
EAN code	4242004281788
Included accessories	3 x combination grid, 1 x universal pan

Design, Functions and Usage Details

Design

Elongated designed dials, round with steel trim.
Cavity inner surfaces: enamel grey (top) and enamel anthracite (bottom).
Bar handle for easy opening.
Heat reflective glass on the main oven.

Top Oven Features

Oven with 3 heating methods: Top/bottom heat, Full surface grill, Small area grill.
Temperature range 50 °C – 275 °C.
Cavity volume 34 Litre.
Full–glass medium door.
Door hinge small cavity: bottom.
Energy efficiency rating (acc. EU Nr. 65/2014): B (at a range of energy efficiency classes from A+++ to D).
Energy consumption per cycle in conventional mode: 0.83 kWh.
Number of cavities: Top Cavity; heat source: electrical.

Main Oven Features

Oven with 5 heating methods: CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® gentle.
Temperature range 50 °C – 275 °C.
Cavity volume 71 litre.
4 shelf positions.
Full glass inner door.
Door hinge big cavity: drop down door.
Manual rapid heating up.
Cooling fan.
Heat reflective glass.
Control panel lock.
Energy efficiency rating (acc. EU Nr. 65/2014): B (at a range of energy efficiency classes from A+++ to D).
Energy consumption per cycle in conventional mode: 0.83 kWh.
Energy consumption per cycle in fan–forced convection mode: 0.81 kWh.
Number of cavities: Main Cavity; heat source: electrical.

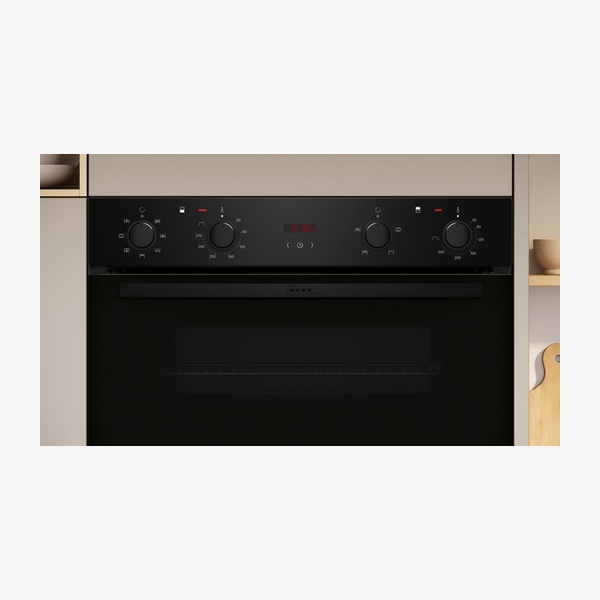

Controls and Display

LED Display (red).
Electronic clock timer.
Automatic start function.
Heating up indicator.
Interior halogen light.

Accessories

Included: 3 x combination grid, 1 x universal pan.

Optional accessories:

Z11AB15A0 Baking tray, non–stick ceramic coated
Z11AU15A0 Universal pan, non–stick ceramic coated
Z11CR10X0 Baking and roasting grid (standard)
Z11GU20X0 Glasspan
Z11TI15X0 Cliprails
Z12CB10A0 Baking tray, enamelled
Z12CL10A0 Lid for professional pan, enamelled
Z12CM10A0 Moussaka pan, enamelled
Z12CN10A0 Professional pan, enamelled
Z12CP10A0 Pizza pan, enamelled
Z12CU10A0 Multipurpose pan, enamelled
Z1365WX0 Wireless food thermometer
Z1608BX0 Full ext rails, level independent
Z1650BE0 Half tray
Z1655CA0 Air Fry & Grill tray
Z1913X0 Baking Stone

Installation Note

“For–details–on–installation–and–ventilation requirements – please refer to the installation manual prior to fitting.”

Frequently Asked Questions

What is the total capacity of the N 30 U1DCC0AK3B double oven?

The top oven has a cavity volume of 34 Litre and the main oven has a cavity volume of 71 litre. Both are electrical heat source ovens.

Which heating methods are available in the main oven?

The main oven offers 5 heating methods: CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill and CircoTherm® gentle. Other cooking methods listed include Full width grill, Hotair gentle, Hot Air, Conventional heat and Hot air grilling.

Does this double oven have a cleaning system?

The integrated cleaning system is stated as “No”. The top oven has a full–glass medium door and the main oven has a full glass inner door, but no specific cleaning program is indicated.

What accessories are included and which are optional?

Included accessories are 3 x combination grid and 1 x universal pan. Optional accessories listed include various baking trays and pans (enamelled and non–stick ceramic coated), cliprails, glasspan, wireless food thermometer, full extension rails, half tray, Air Fry & Grill tray and a baking stone, each with specific product codes.

What electrical connection is required?

The oven has a total connected load of 5.9 KW (5900 W), with nominal voltage 220 – 240 V, frequency 50 Hz and fuse protection of 32 A. It has no plug and requires a fixed electrical connection by an electrician.

What is CircoTherm® and how does it help?

CircoTherm® is described as a smart hot–air solution that lets you bake on up to three levels at once, supporting efficient grilling, baking and roasting of multiple dishes at the same time.
