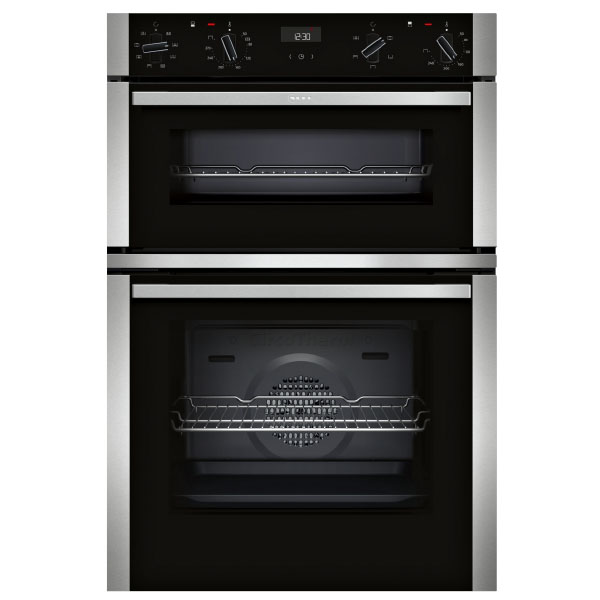

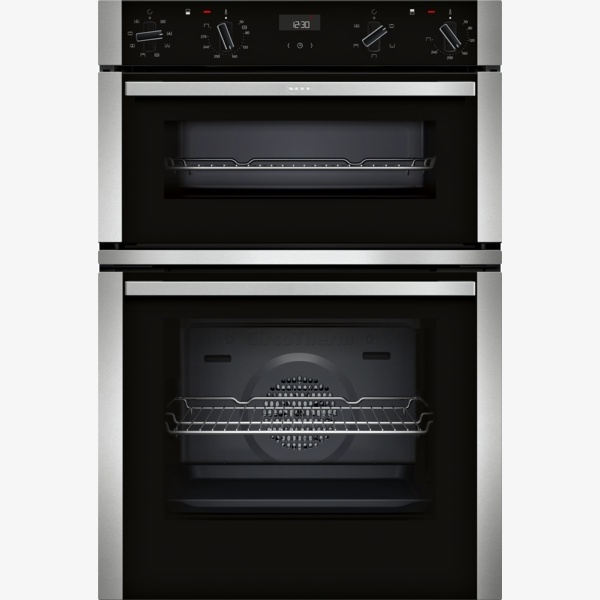

Neff N50 U1ACE2AN3B Double Oven

The N 50 U1ACE2AN3B is a built–in double oven designed for grilling, baking and roasting multiple dishes at once. It combines a spacious 71 litre main cavity and a 34 litre top oven with a choice of heating methods including CircoTherm® hot air. With EasyClean for uncomplicated, energy–saving cleaning, a clear LCD display, electronic clock timer and energy efficiency ratings up to class A, it offers versatile cooking in a built–in design.

SKU:U1ACE2AN3B

EAN:4242004281771

Category::Ovens

Quantity:

Key Features

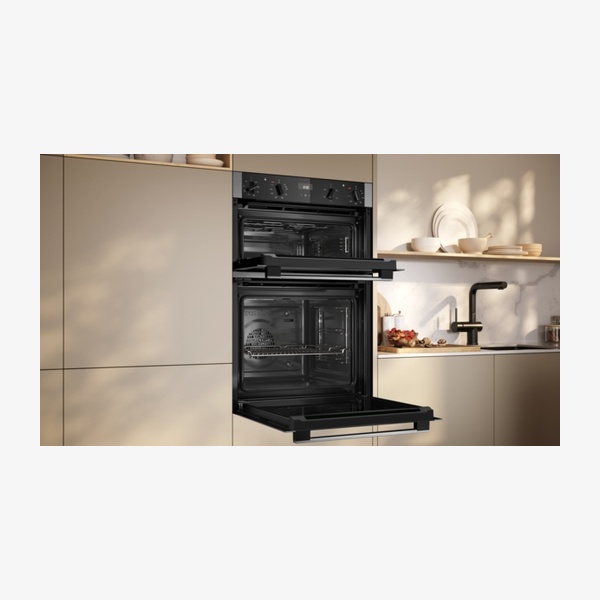

Double built–in oven – perfect for grilling, baking and roasting of multiple dishes at the same time.

CircoTherm® hot–air solution – lets you bake on up to three levels at once in the main oven.

EasyClean – special cleaning aid for uncomplicated, energy–saving cleaning of the oven interior.

LCD display (white) – simple and straightforward with large characters for clear reading.

Versatile main oven heating methods – CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® gentle.

Top oven heating methods – Top/bottom heat, Full surface grill, Small area grill, Bottom heat.

Generous capacity – 71 litre main oven cavity and 34 litre top oven cavity.

Wide temperature range – 50 °C – 275 °C for both main and top ovens.

Energy efficiency – main oven energy efficiency rating A and cavity 2 energy efficiency class B (according to 2010/30/EC and EU Nr. 65/2014).

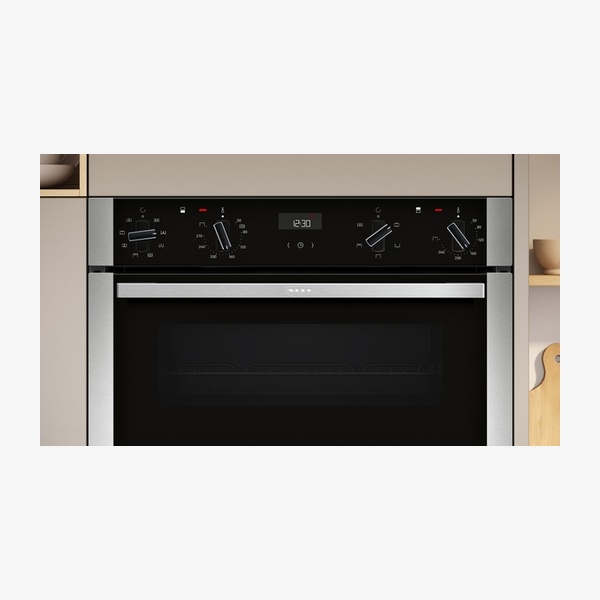

Glass design – glass control panel, glass door, full glass inner door and heat reflective glass on the main oven.

Retractable control dials – elongated, bevelled oval controls with steel trim.

Interior lighting – interior halogen light for clear visibility.

Convenient controls – electronic clock timer, automatic start, heating up indicator and manual rapid heating up.

Safety features – control panel lock and cooling fan.

Flexible installation – built–in design with specified niche dimensions and fixed electrical connection.

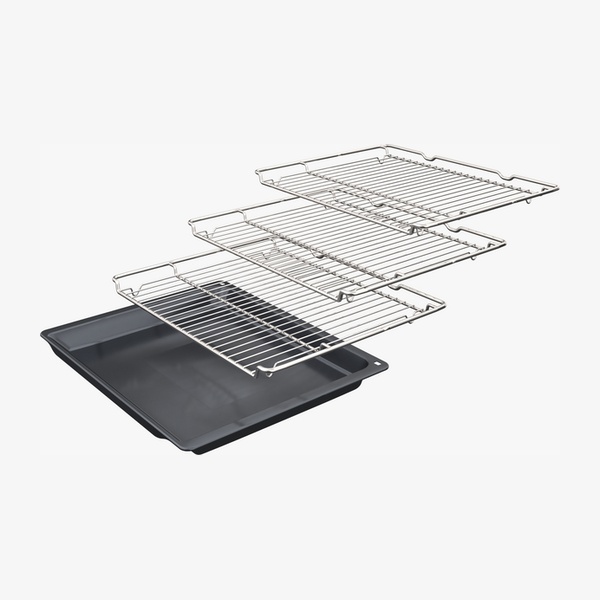

Included accessories – 3 x combination grid and 1 x universal pan.

Optional accessories available – including multipurpose pans, wireless food thermometer, full ext rails, trays, glass pan, baking stone and cliprails.

Technical Spec

Product name / seriesN 50, Built–in Double Oven U1ACE2AN3B

Built–in / Free–standingBuilt–in

Integrated cleaning systemNo (EasyClean cleaning aid in main oven)

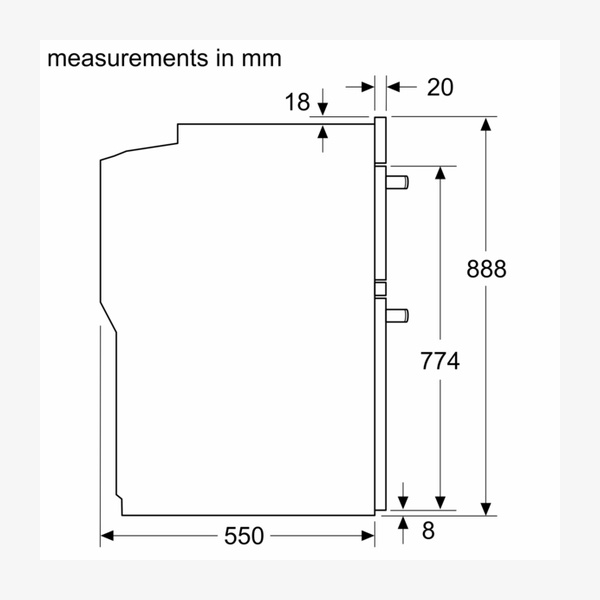

Appliance dimensions (H x W x D)888 x 594 x 550 mm

Packed product dimensions (H x W x D)960 x 660 x 690 mm

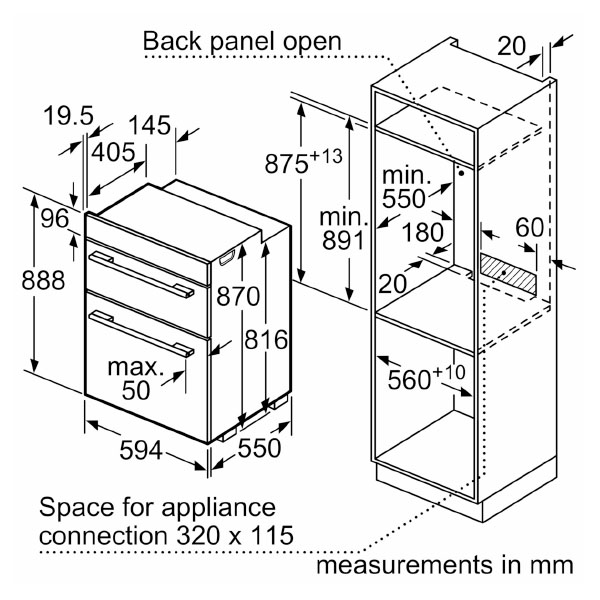

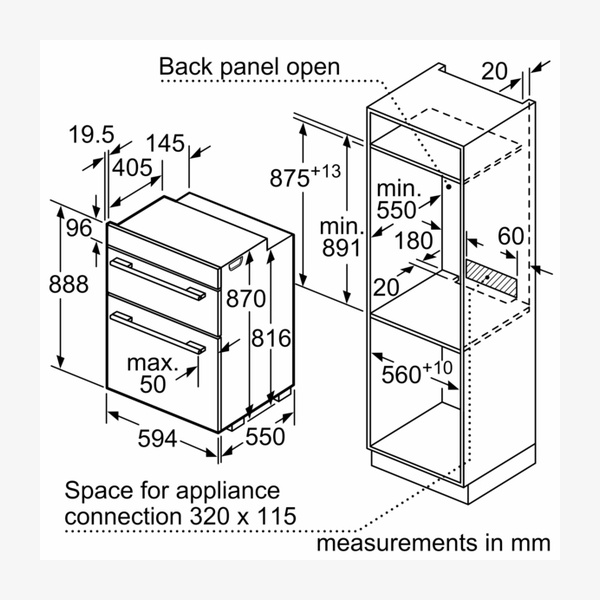

Niche dimensions (H x W x D)875 mm – 888 mm x 560 mm – 568 mm x 550 mm

Control panel materialGlass

Door materialGlass

Cavity inner surface (top)Enamel grey

Cavity inner surface (bottom)Enamel anthracite

Net weight49.4 kg

Main oven usable volume71 litre

Top oven cavity volume34 litre

Cooking methods (overall)Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling

Main oven heating methodsCircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® gentle

Top oven heating methodsTop/bottom heat, Full surface grill, Small area grill, Bottom heat

Temperature range (both ovens)50 °C – 275 °C

Shelf positions (main oven)4 shelf positions

Level independent telescopic railsAvailable as an accessory

Energy efficiency rating (main oven)A (2010/30/EC); B according to EU Nr. 65/2014 (at a range of energy efficiency classes from A+++ to D)

Energy efficiency class cavity 2B (2010/30/EC; at a range of energy efficiency classes from A+++ to D)

Energy efficiency index (main oven)95.3 %

Energy efficiency index cavity 2120.3 %

Energy consumption conventional (main)1.02 kWh/cycle (2010/30/EC); 0.83 kWh per cycle in conventional mode (acc. EU Nr. 65/2014)

Energy consumption forced air (main)0.81 kWh/cycle (2010/30/EC); 0.81 kWh per cycle in fan–forced convection mode

Energy efficiency rating (top oven)B (acc. EU Nr. 65/2014; at a range of energy efficiency classes from A+++ to D)

Energy consumption conventional (top)0.83 kWh per cycle in conventional mode

Number of cavitiesMain cavity; Top cavity

Heat sourceElectrical (both cavities)

Connection rating5900 W / 5.9 kW

Nominal voltage220 – 240 V

Frequency50 Hz

Fuse protection32 A

Plug typeNo plug (electrical connection by electrician), fixed connection (electrical connection by electrician)

Door hinge (top oven)Bottom (small cavity)

Door hinge (main oven)Drop down door (big cavity)

Door glazingFull glass inner door; heat reflective glass (main oven)

DisplayLCD Display (White)

Control featuresElectronic clock timer, automatic start, heating up indicator, manual rapid heating up, control panel lock

HandlesBar handle

CoolingCooling fan

Interior lightInterior halogen light

EAN code4242004281771

Included accessories3 x combination grid, 1 x universal pan

Optional accessoriesZ12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z1608BX0 Full ext rails, level independent; Z1650BE0 Half tray; Z1655CA0 Air Fry & Grill tray; Z1913X0 Baking Stone; Z11AB15A0 Baking tray, non–stick ceramic coated; Z11AU15A0 Universal pan, non–stick ceramic coated; Z11CR10X0 Baking and roasting grid (standard); Z11GU20X0 Glasspan; Z11TI15X0 Cliprails; Z12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled

Downloads

Download product documentation, manuals, and specification sheets.

U1ACE2AN3B Spec

PDF

Frequently Asked Questions

What is the total capacity of the N 50 U1ACE2AN3B double oven?

The main oven has a cavity volume of 71 litre and the top oven has a cavity volume of 34 litre, providing two cooking spaces for multiple dishes.

Which heating methods are available in the main oven?

The main oven offers CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill and CircoTherm® gentle, along with the CircoTherm® hot–air solution that allows baking on up to three levels at once.

Does this double oven have a self–cleaning function?

There is no integrated cleaning system, but the main oven is equipped with EasyClean, a special cleaning aid that supports uncomplicated, energy–saving cleaning of the oven interior.

What accessories are included with the oven?

The oven is supplied with 3 x combination grid and 1 x universal pan. A range of optional accessories such as pans, trays, rails, baking stone, glasspan and cliprails is also available.

What are the installation requirements for this appliance?

The appliance is built–in and fits a niche of 875 mm – 888 mm in height, 560 mm – 568 mm in width and 550 mm in depth. It has a total connected load of 5.9 kW at 220 – 240 V, 50 Hz and must be hard–wired by an electrician using a fixed connection with 32 A fuse protection.

What safety and convenience features does it offer?

The oven includes a control panel lock, cooling fan, heat reflective glass on the main oven door, interior halogen lighting, electronic clock timer, automatic start and heating up indicator for convenient and controlled operation.
