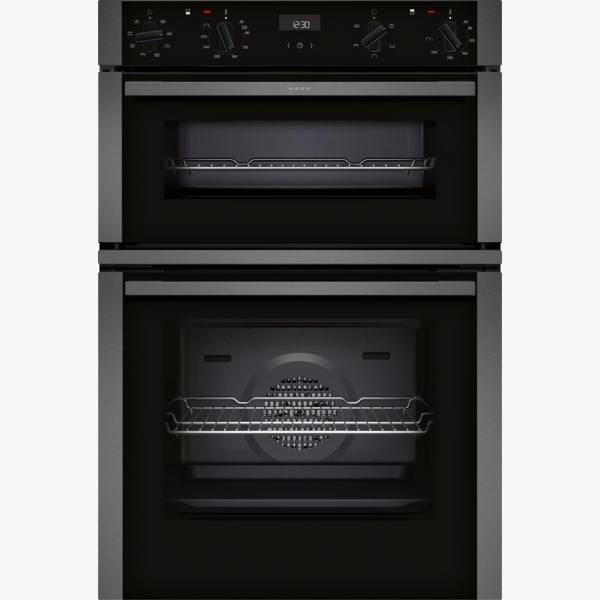

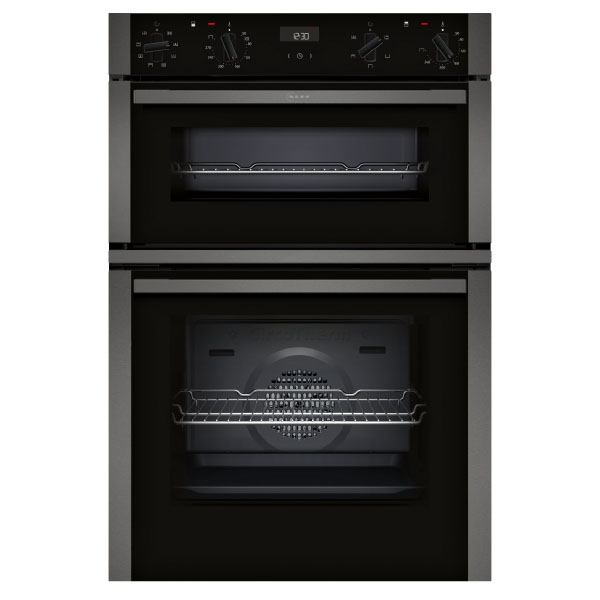

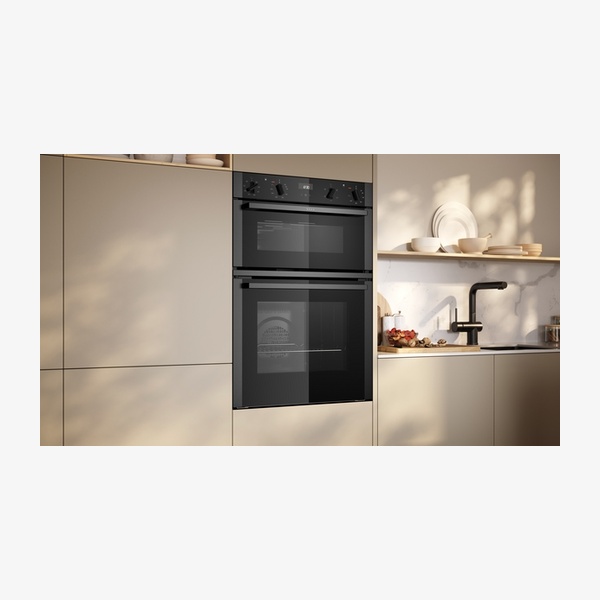

Neff N50 U1ACE2AG3B Double Oven

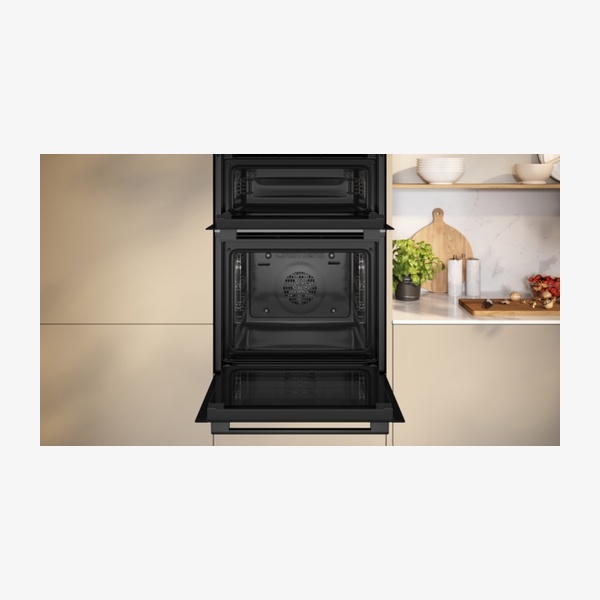

The N 50 U1ACE2AG3B is a built–in double oven designed for flexible grilling, baking and roasting of multiple dishes at once. It offers CircoTherm® hot–air technology, a range of heating methods across main and top ovens, and an EasyClean function for uncomplicated, energy–saving cleaning of the main cavity. An LCD display with large characters, retractable dials and enamelled interiors provide straightforward control and a clean, modern appearance.

SKU:U1ACE2AG3B

EAN:4242004281764

Category::Ovens

Quantity:

Key Features

Double built–in oven – suitable for grilling, baking and roasting of multiple dishes at the same time.

CircoTherm® smart hot–air solution – lets you bake on up to three levels at once in the main oven.

EasyClean main oven function – special cleaning aid for uncomplicated, energy–saving cleaning of the oven interior.

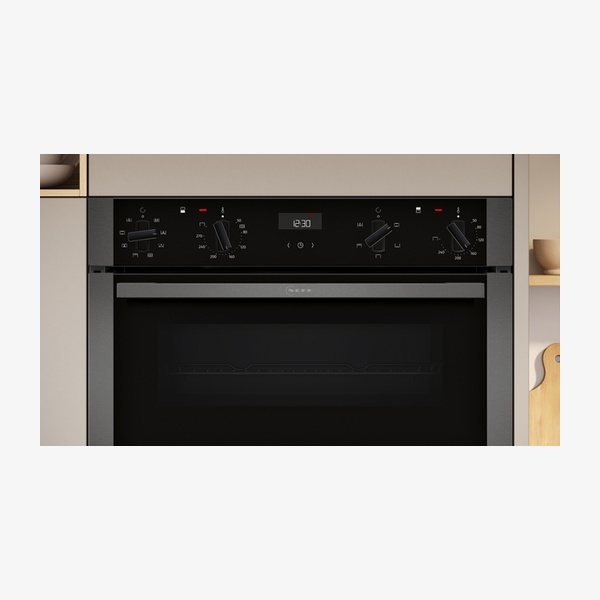

LCD display with large characters – simple, straightforward control and clear reading.

Multiple heating methods – main oven – CircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® gentle.

Multiple heating methods – top oven – Top/bottom heat, Full surface grill, Small area grill, Bottom heat.

Generous cavity capacities – approx. 71 litre main oven and 34 litre top oven.

Wide temperature range – 50°C to 275°C for both main and top ovens.

Level independent telescopic rails – available as an accessory for flexible shelf positioning.

Glass control panel and doors – with bevelled oval controls and steel trim for a coordinated design.

Enamelled oven cavities – enamel grey inner surface at the top and enamel anthracite at the bottom.

Full glass inner door (main oven) – with heat reflective glass.

Control panel lock – helps prevent unauthorised changes to settings on the main oven.

Cooling fan – fitted to the main oven.

Electronic clock timer with automatic start – plus heating up indicator for convenience.

Interior halogen light – improves visibility inside the oven.

Energy efficiency – energy efficiency rating A overall, with specified energy consumption values for each cavity and mode.

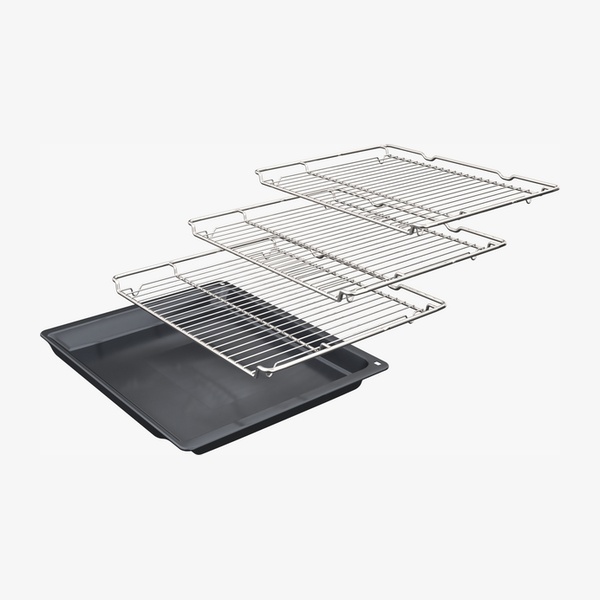

Included accessories – 3 x combination grid and 1 x universal pan.

Wide range of optional accessories – including trays, pans, cliprails, wireless food thermometer, Air Fry & Grill tray and baking stone.

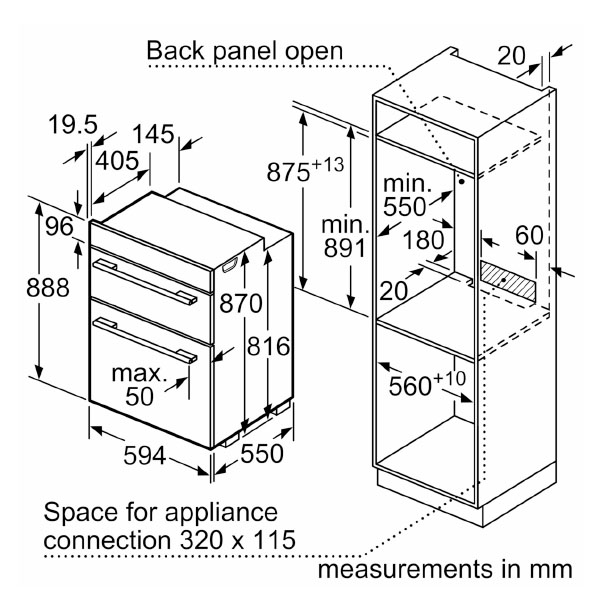

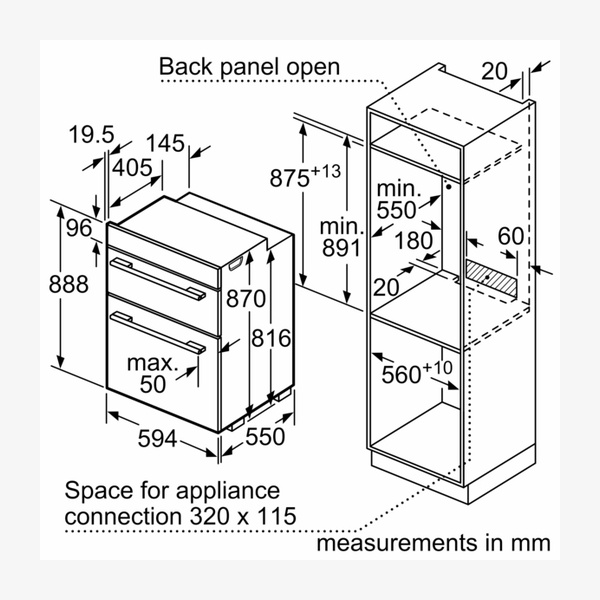

Built–in installation – designed for niche dimensions 875 mm – 888 mm (H) x 560 mm – 568 mm (W) x 550 mm (D).

Technical Spec

Product typeN 50 built–in double oven – U1ACE2AG3B

InstallationBuilt–in

Integrated cleaning systemNo (EasyClean function for main oven)

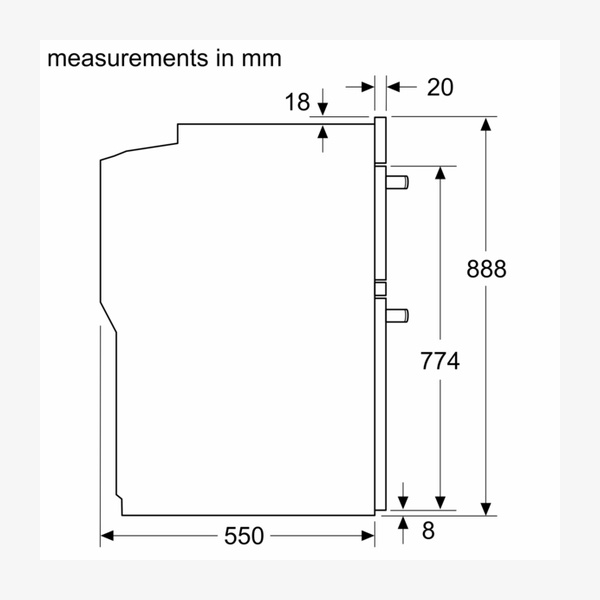

Appliance dimensions (H x W x D)888 x 594 x 550 mm

Packed product dimensions (H x W x D)960 x 660 x 690 mm

Niche dimensions (H x W x D)875 mm – 888 mm x 560 mm – 568 mm x 550 mm

Control panel materialGlass

Door materialGlass

Inner cavity surfacesTop: enamel grey; Bottom: enamel anthracite

Net weight50.0 kg

Usable volume – main cavity71 litre

Cavity volume – top oven34 litre

Temperature range (both ovens)50°C – 275°C

Cooking methods (general)Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling

Top oven heating methodsTop/bottom heat, Full surface grill, Small area grill, Bottom heat

Main oven heating methodsCircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® gentle

Shelf positions – main oven4 shelf positions

DisplayLCD display (white)

ControlsElongated designed dials, retractable control dials, bevelled oval controls with steel trim

Door hinge – top ovenBottom (small cavity)

Door hinge – main ovenDrop down door (big cavity)

Inner door – main ovenFull glass inner door with heat reflective glass

Interior lightingInterior halogen light

Cleaning – main ovenEasyClean; full glass inner door

Cleaning – top ovenFull-glass medium

Control panel lockYes (main oven)

Cooling fanYes (main oven)

Rapid heatingManual rapid heating up (main oven)

Timer functionsElectronic clock timer, automatic start, heating up indicator

HandleBar handle

Number of cavities – main ovenNumber of cavities: Main Cavity; heat source: electrical

Number of cavities – top ovenNumber of cavities: Top Cavity; heat source: electrical

Energy efficiency rating (overall)A

Energy efficiency rating – main ovenB (acc. EU Nr. 65/2014; range A+++ to D)

Energy consumption – main oven conventional0.83 kWh per cycle (acc. EU Nr. 65/2014)

Energy consumption – main oven fan-forced0.81 kWh per cycle (fan-forced convection mode)

Energy efficiency index – main oven95.3 %

Energy efficiency class – cavity 2B (2010/30/EC)

Energy consumption per cycle conventional – cavity 20.83 kWh per cycle (2010/30/EC)

Energy efficiency index – cavity 2120.3 %

Energy consumption per cycle conventional (overall)1.02 kWh/cycle (2010/30/EC)

Energy consumption per cycle forced air convection (overall)0.81 kWh/cycle (2010/30/EC)

Connection rating5900 W (total connected load electric: 5.9 kW)

Fuse protection32 A

Voltage220 – 240 V nominal

Frequency50 Hz

Plug typeNo plug; fixed connection (electrical connection by electrician)

EAN code4242004281764

Included accessories3 x combination grid, 1 x universal pan

Optional accessoriesZ11AB15A0 Baking tray, non-stick ceramic coated; Z11AU15A0 Universal pan, non-stick ceramic coated; Z11CR10X0 Baking and roasting grid (standard); Z11GU20X0 Glasspan; Z11TI15X0 Cliprails; Z12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled; Z12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z1608BX0 Full ext rails, level independent; Z1650BE0 Half tray; Z1655CA0 Air Fry & Grill tray; Z1913X0 Baking Stone.

Downloads

Download product documentation, manuals, and specification sheets.

U1ACE2AG3B Spec

PDF

Frequently Asked Questions

What is the capacity of the main and top ovens?

The main oven has a usable volume of 71 litres, and the top oven cavity volume is 34 litres.

Which heating methods does the main oven offer?

The main oven provides five heating methods: CircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill and CircoTherm® gentle.

Does this double oven help with cleaning the interior?

Yes. The main oven includes EasyClean, a special cleaning aid designed for uncomplicated, energy–saving cleaning of the oven interior, along with a full glass inner door.

What accessories are supplied and what can be added optionally?

Supplied accessories are 3 x combination grid and 1 x universal pan. Optional accessories include various baking trays and pans (non-stick ceramic coated and enamelled), cliprails, a wireless food thermometer, full extension rails, a half tray, an Air Fry & Grill tray and a baking stone, each identified by a specific accessory code.

What electrical connection is required?

The oven has a total connected load of 5.9 kW, requires a 220 – 240 V, 50 Hz supply with 32 A fuse protection, and is designed for a fixed connection without a plug. Electrical connection should be carried out by an electrician.

Can I bake on multiple levels at the same time?

Yes. CircoTherm® is described as a smart hot–air solution that lets you bake on up to three levels at once in the main oven.
