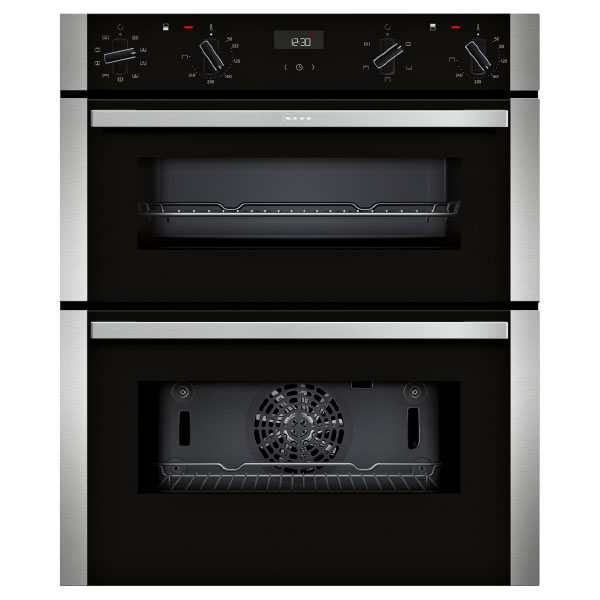

Neff N50 J1ACE2HN0B Double Oven

The NEFF N 50 J1ACE2HN0B is a built-under double oven designed for flexible baking and roasting, allowing multiple dishes to be cooked at the same time. It combines a main oven with 47 litres capacity and a 34 litre top oven, offering several heating methods including CircoTherm® hot air. Key advantages include EasyClean for uncomplicated, energy-saving cleaning, an LCD display with large characters, and cliprails to position dishes precisely where needed.

SKU:J1ACE2HN0B

EAN:4242004221982

Category::Ovens

Quantity:

Key Features

Built-under double oven – twice as flexible, twice as fast, enabling baking or roasting of multiple dishes at the same time.

EasyClean – special cleaning aid providing uncomplicated, energy-saving cleaning of the oven interior.

CircoTherm® hot-air solution – lets you bake on up to three levels at once.

LCD display (white) – simple and straightforward, with large characters for clear reading.

Cliprails with stop function – place dishes exactly where you want them in your oven.

Multiple cooking methods – full width grill, hotair gentle, hot air, conventional heat, pizza setting and hot air grilling.

Top oven flexibility – 4 heating methods: top/bottom heat, full surface grill, small area grill and bottom heat.

Main oven capacity 47 litres – suited to everyday cooking, supplied with 2 x combination grid and 1 x universal pan.

Top oven capacity 34 litres – additional space for grilling or baking.

Full glass inner door – for a clean, modern appearance and easy viewing.

Interior halogen light – illuminates the oven interior.

Control panel lock – helps prevent unintentional changes to the settings.

Energy efficiency rating A – main cavity with 0.84 kWh per cycle (conventional) and 0.71 kWh per cycle (forced air convection).

Built-in installation – designed for built-under fitting with glass control panel and glass door.

Optional accessories – wide range including baking trays, pans, cliprails, Air Fry & Grill tray, baking stone and wireless food thermometer.

Technical Spec

Model nameJ1ACe2HN0B (N 50 built-under double oven)

Installation typeBuilt-in; built-under double oven

Integrated cleaning systemNo (EasyClean cleaning aid)

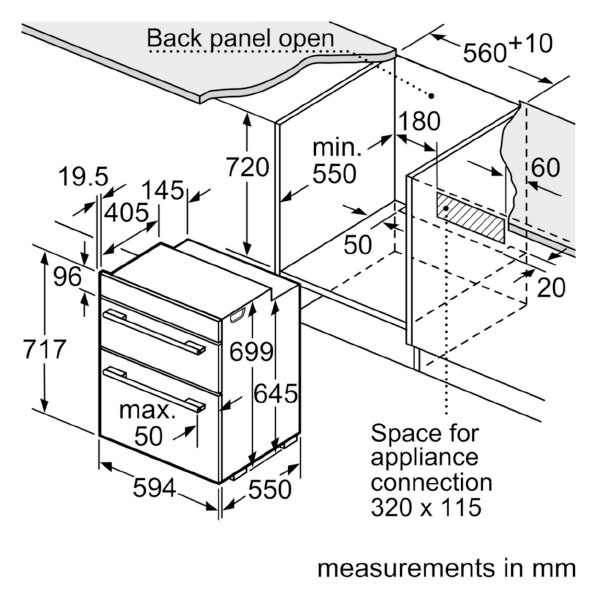

Appliance dimensions (H x W x D)717 x 594 x 550 mm

Packed product dimensions (H x W x D)790 x 660 x 690 mm

Net weight47.3 kg

Main oven usable volume47 l

Top oven cavity volume34 litre

Control panel materialGlass

Door materialGlass; full glass inner door

Cavity inner surface (top)Enamel grey

Cavity inner surface (bottom)Enamel anthracite

Main cooking methodsFull width grill; hotair gentle; hot air; conventional heat; pizza setting; hot air grilling

Top oven heating methodsTop/bottom heat; full surface grill; small area grill; bottom heat

Temperature range (top oven)50 °C – 275 °C

Energy efficiency rating (main cavity)A

Energy consumption per cycle (conventional, main cavity)0.84 kWh/cycle (2010/30/EC)

Energy consumption per cycle (forced air convection, main cavity)0.71 kWh/cycle (2010/30/EC)

Energy efficiency class – cavity 2B (2010/30/EC)

Energy consumption per cycle (conventional, cavity 2)0.83 kWh/cycle (2010/30/EC)

Energy efficiency index (main cavity)94.7 %

Energy efficiency index (cavity 2)120.3 %

Connection rating5300 W

Fuse protection25 A

Voltage220–240 V

Frequency50 Hz

Plug typeNo plug; fixed connection (electrical connection by electrician)

Door hinge (small cavity)Bottom

Door hinge (big cavity)Drop down door

Interior lightingInterior halogen light

Included accessories2 x combination grid; 1 x universal pan

Optional accessoriesZ11AB15A0 baking tray, non-stick ceramic coated; Z11AU15A0 universal pan, non-stick ceramic coated; Z11CR10X0 baking and roasting grid (standard); Z11TI15X0 cliprails; Z12CB10A0 baking tray, enamelled; Z12CM10A0 moussaka pan, enamelled; Z12CP10A0 pizza pan, enamelled; Z12CU10A0 multipurpose pan, enamelled; Z1365WX0 wireless food thermometer; Z13CR10X0 baking and roasting grid (steam); Z1608BX0 full ext rails, level independent; Z1655CA0 Air Fry & Grill tray; Z1913X0 baking stone

EAN code4242004221982

Downloads

Download product documentation, manuals, and specification sheets.

J1ACE2HN0B Spec

PDF

Frequently Asked Questions

What is the capacity of the main and top ovens?

The main oven has a cavity volume of 47 litres, and the top oven has a cavity volume of 34 litres.

Which cooking functions does this double oven offer?

The main oven offers full width grill, hotair gentle, hot air, conventional heat, pizza setting and hot air grilling. The top oven offers top/bottom heat, full surface grill, small area grill and bottom heat.

How does CircoTherm® help with cooking?

CircoTherm® is a smart hot-air solution that lets you bake on up to three levels at once, supporting baking or roasting of multiple dishes at the same time.

What cleaning support does the oven provide?

EasyClean is a special cleaning aid that provides uncomplicated, energy-saving cleaning of the oven interior. The oven does not have an integrated cleaning system beyond this aid.

What accessories are included and which are optional?

Included accessories are 2 x combination grid and 1 x universal pan. Optional accessories listed include several baking trays and pans (some enamelled or non-stick ceramic coated), cliprails, baking and roasting grids, full extension rails, an Air Fry & Grill tray, a wireless food thermometer and a baking stone.

What electrical connection is required?

The connection rating is 5300 W, with nominal voltage 220–240 V, frequency 50 Hz and fuse protection of 25 A. The oven has no plug and requires a fixed connection by an electrician.
