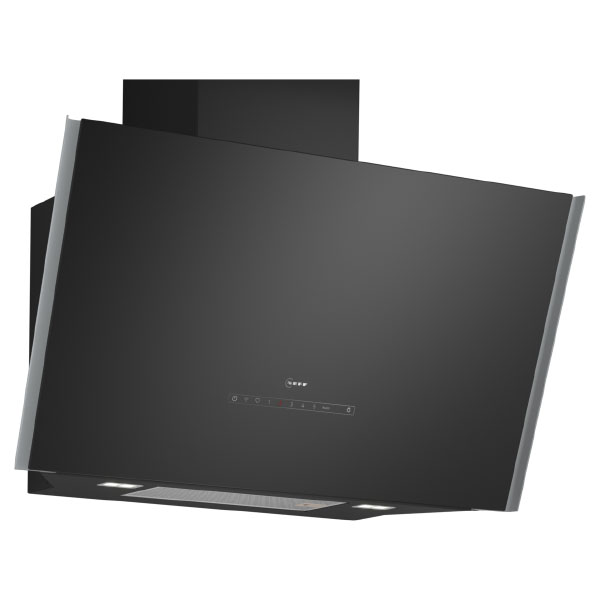

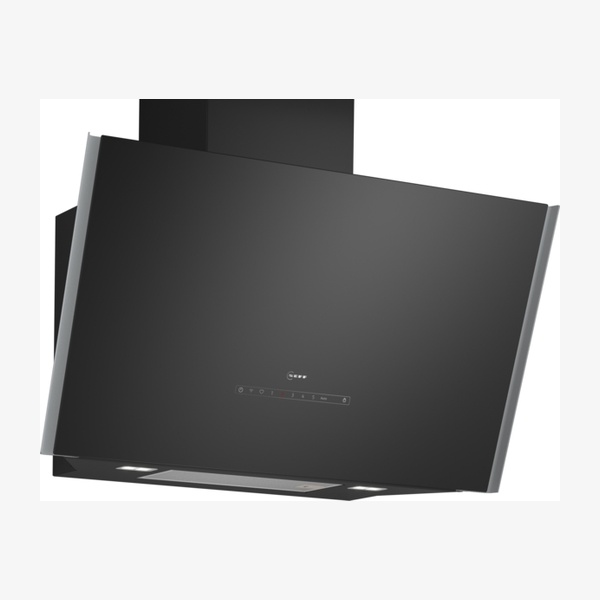

Neff N90 D98IPT2S0B Chimney Hood

This 90 cm N 90 wall–mounted cooker hood in black clear glass offers angled glass design with front and bottom capture areas for effective extraction. It is suitable for both ducted extraction and recirculation, with optional kits available. Featuring an Efficient Drive BLDC motor, Automatic Air Sensor and Home Connect control, it combines strong extraction performance with adjustable LED softLight illumination and convenient cleaning access.

SKU:D98IPT2S0B

EAN:4242004272083

Category::Cooker Hoods

Quantity:

Key Features

High Extraction Rate – ensures a clear view while cooking thanks to efficient motor technology.

Efficient Drive Motor – quiet and energy–efficient hood motor for a calmer kitchen.

Home Connect control – operate, monitor and set preferences via smartphone or tablet where service is available.

Automatic Air Sensor – sensor–based performance control that automatically adjusts the extraction rate.

Cooktop–based hood control – hob–hood control automatically activates and adjusts the hood with a suitable Wi–Fi enabled hob.

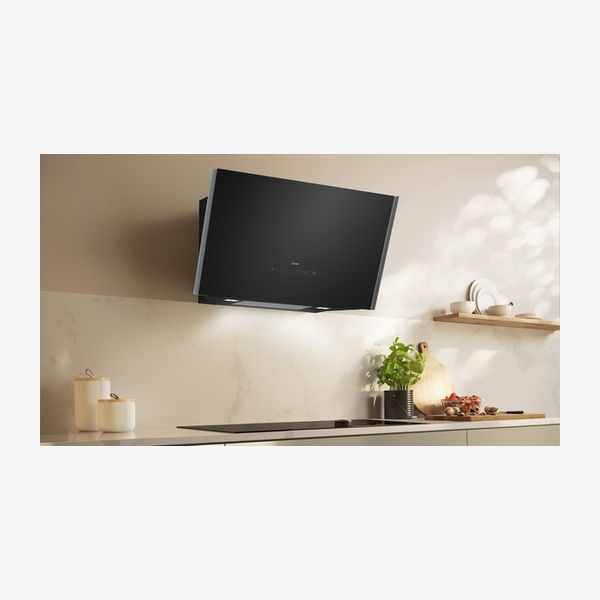

Angled glass design – black glass with anthracite grey side trim for wall–mounted installation.

Dual capture areas – front and bottom capture areas to increase catch rate of strong smells and steam.

Powerboost position – hood opens to a defined boost position to handle particularly strong cooking smells and large amounts of steam.

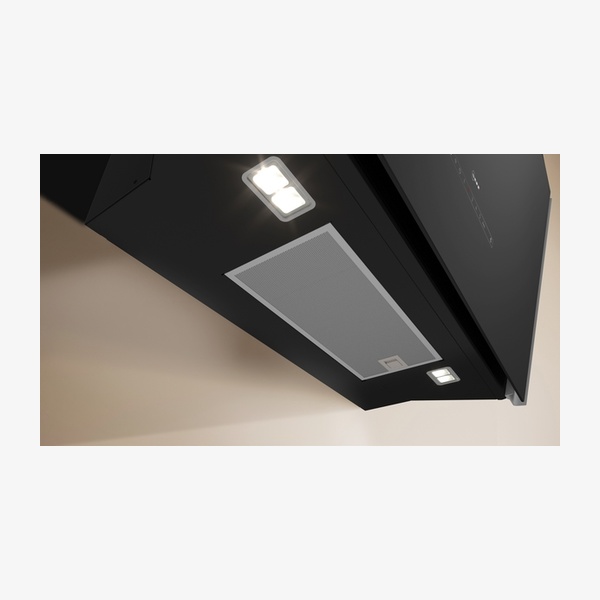

LED softLight with dimmer – 2 LEDs (3 W) with adjustable colour temperature, soft on/off and dimmable brightness.

Adjustable light temperature – 3500 K, 422 lux, and further adjustment via Home Connect App.

Multiple power levels – 3 power levels plus 2 intensive settings, with automatic reset from intensive to normal after 6 minutes.

After–run automatic – automatic fan run–on for 10 minutes.

Filter saturation indicators – saturation indicator for metal and charcoal filters.

Metal grease filters – 3 dishwasher–safe metal grease filters made from washable stainless steel.

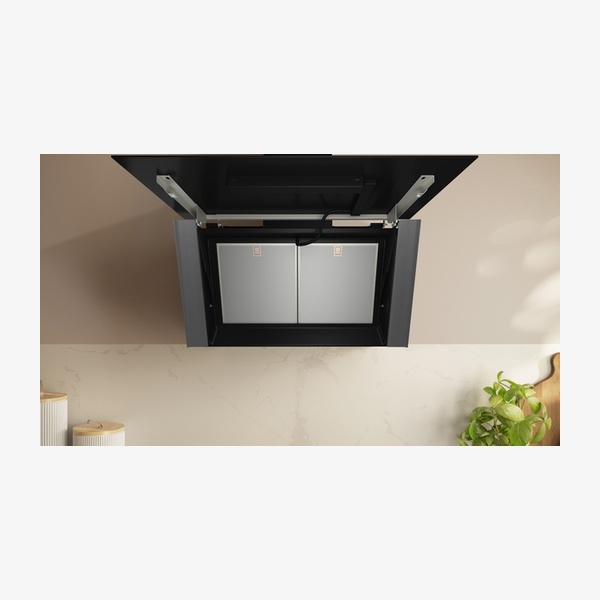

Easy cleaning access – extremely large opening angle and easy–to–clean inner frame and smooth surfaces.

Energy efficiency class A+ – with average energy consumption of 39.1 kWh/year*.

Performance profiles – choose between standard, performance or silence profiles via Home Connect App.

Voice control enabled – controllable via popular voice assistants where this service is available.

Favourite button and smart home trigger – access favourite functions and smart home triggers with a connected Home Connect account.

Suitable for extraction and recirculation – recirculation possible with optional Clean Air Plus or Long Life recirculation kits, including chimless use.

Made in Germany – produced at a CO2 neutral production site with environmentally friendly packaging.

Most efficient blower technology – described as the most efficient blower technology available on the market.

Long Life odour filter option – regenerative Long Life filter with 10 years lifetime available as an odour filter.

Simple installation system – weight–reduced mounting for easier installation.

Optional accessories – range of Clean Air Plus and Long Life recirculation kits, odour filters and chimney extensions.

Technical Spec

Product name / modelN 90, Wall–mounted cooker hood, 90 cm, clear glass black printed, black – D98IPT2S0B

Typology / installationWall–mounted; Installation typology: Wall–mounted; suitable for ducted extraction and recirculation; recirculation chimless use possible

Colour and finishBlack with anthracite grey side trim; Black glass; clear glass black printed; Colour chimney: Black

Core motor technologyEfficient BLDC technology; Efficient Drive Motor

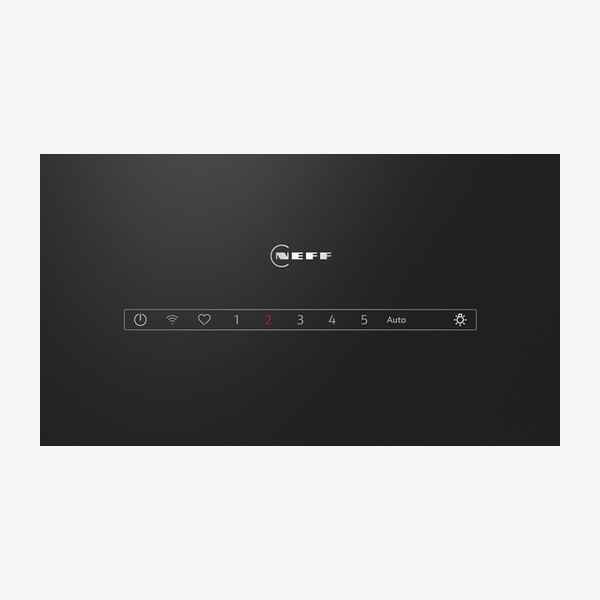

ControlsType of control: Electronic; 3 power levels and 2 intensive settings; Favourite Button (with connected Home Connect account)

Speed settings3–stage + 2 intensive; automatic reset from intensive to normal after 6 min

Maximum output air extraction441 m³/h

Boost position air extraction1007 m³/h

Maximum output recirculating air437 m³/h

Boost position output recirculating944 m³/h

Maximum airflow441 m³/h

Noise level51 dB(A) re 1pW (general); exhaust mode: Speed 1 – 35 dB(A) re1pW, Speed 2 – 43 dB(A) re1pW, Speed 3 – 51 dB(A) re1pW, Intensive 1 – 65 dB(A) re1pW, Intensive 2 – 70 dB(A) re1pW; recirculation mode with Clean Air Plus recirculation kit and chimney: Speed 1 – 42 dB(A) re1pW, Speed 2 – 51 dB(A) re1pW, Speed 3 – 59 dB(A) re1pW, Intensive 1 – 72 dB(A) re1pW, Intensive 2 – 78 dB(A) re1pW

Lighting2 PC, LED, 3 W; softLight with dimmer function; colour temperature 3500 K; light intensity 422 lux; LED light with adjustable light temperature (via Home Connect App)

Number of lights2

Grease filters3 metal grease filter(s); grease filter material: washable stainless steel; metal grease filter dishwasher–safe

Automatic functionsAutomatic Air Sensor; after run automatic 10 minutes; fully automatic hood; interval function (via Home Connect App)

ConnectivityHome Connect; hob–hood control (with Wi–Fi enabled hob); voice control enabled via popular voice assistants (where available); performance profiles via Home Connect App; smart home trigger via Favourite button (with connected Home Connect account); updateable appliance (with connected Home Connect account); integration with numerous external partner applications stated as possible

Energy efficiency classA+ (at a range of energy efficiency classes from A+++ to D)

Average energy consumption39.1 kWh/year*

Blower efficiency classA*

Lighting efficiency classA*

Grease filtering efficiency classC*

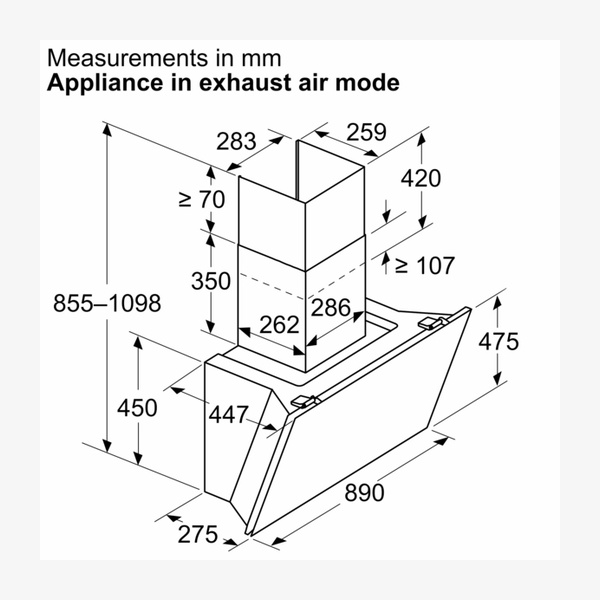

Dimensions exhaust air (H×W×D)855–1098 × 890 × 447 mm

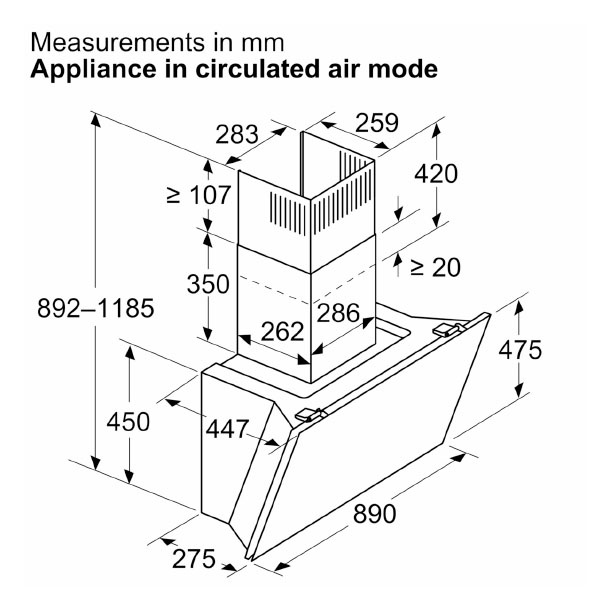

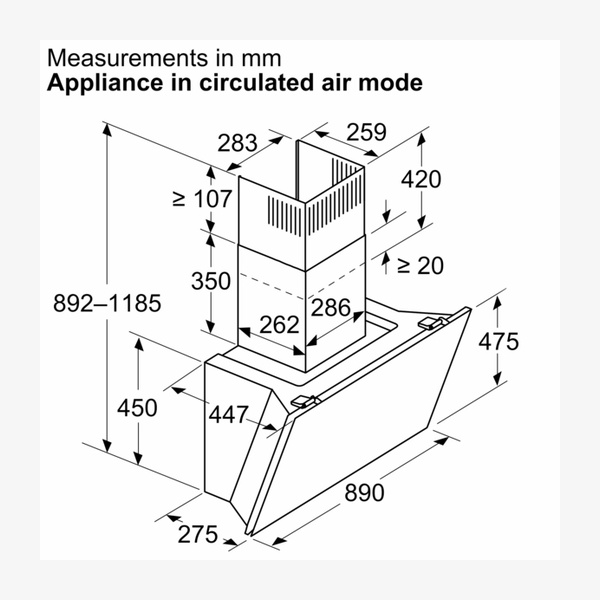

Dimensions recirculating (H×W×D)892–1185 × 890 × 447 mm

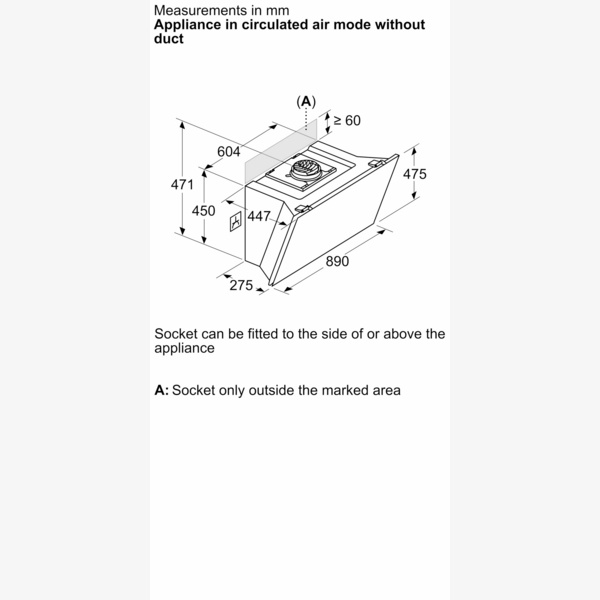

Dimensions recirculating chimless (H×W×D)471 mm × 890 mm × 447 mm

Height of the chimney420–663 / 457–750 mm

Height of the appliance450 mm

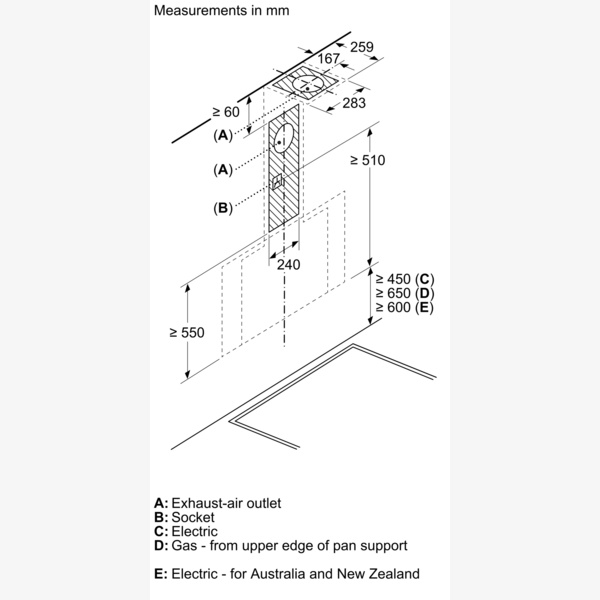

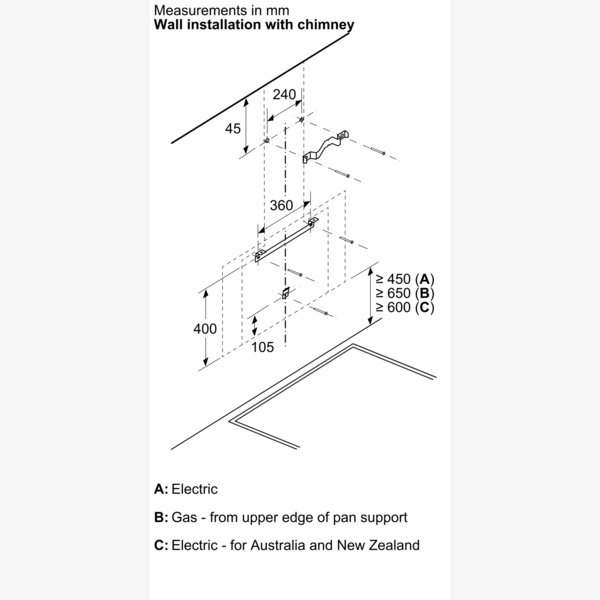

Minimum distance above electric hob450 mm

Minimum distance above gas hob650 mm

Diameter of air outlet / pipe150 mm (Diameter of air outlet; Diameter pipe Ø 150 mm)

Length of electrical supply cord130 cm (1.3 m)

Net weight26.6 kg

Connection rating250 W; Power rating: 250 W

Voltage220–240 V; Nominal voltage: 220–240 V

Frequency50; 60 Hz

Fuse protection10 A

Plug typeGB plug

EAN code4242004272083

Sustainability notesMade in Germany at a CO2 neutral production site; environmentally friendly packaging; automatic Air Sensor for best results with minimum energy consumption; most efficient blower technology available on the market as stated

Performance – exhaust (EN 61591 / EN IEC 60704–2–13)Speed 1: 228 m³/h, 35 dB(A) re1pW; Speed 2: 325 m³/h, 43 dB(A) re1pW; Speed 3: 441 m³/h, 51 dB(A) re1pW; Intensive 1: 753 m³/h, 65 dB(A) re1pW; Intensive 2: 1007 m³/h, 70 dB(A) re1pW

Performance – recirculation (Clean Air Plus kit with chimney)Speed 1: 211 m³/h, 42 dB(A) re1pW; Speed 2: 315 m³/h, 51 dB(A) re1pW; Speed 3: 435 m³/h, 59 dB(A) re1pW; Intensive 1: 752 m³/h, 72 dB(A) re1pW; Intensive 2: 964 m³/h, 78 dB(A) re1pW

Downloads

Download product documentation, manuals, and specification sheets.

D98IPT2S0B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in both extraction and recirculation modes?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculation operation, a Clean Air Plus recirculation kit or a Long Life recirculation kit is needed, and chimless recirculation use is possible with the appropriate kit.

What is the maximum extraction rate of the D98IPT2S0B?

The maximum output air extraction is 441 m³/h, with a boost position air extraction of up to 1007 m³/h. In recirculation mode, the maximum output recirculating air is 437 m³/h, and the boost position output recirculating is 944 m³/h.

How noisy is the hood during operation?

The stated noise level is 51 dB(A) re 1pW. In exhaust mode, noise ranges from 35 dB(A) re1pW at Speed 1 up to 70 dB(A) re1pW at Intensive 2. In recirculation mode with the Clean Air Plus kit and chimney, noise ranges from 42 dB(A) re1pW at Speed 1 to 78 dB(A) re1pW at Intensive 2.

What is the energy efficiency rating and annual energy consumption?

The hood has an energy efficiency class of A+ on a scale from A+++ to D. The average energy consumption is 39.1 kWh/year* as stated.

Are the filters easy to clean?

Yes. The hood has an extremely large opening angle for easy filter accessibility, and the 3 metal grease filters are made from washable stainless steel and are dishwasher–safe. There is also a saturation indicator for metal and charcoal filters.

Does this hood support smart features and voice control?

The hood includes Home Connect functionality, allowing operation, monitoring and preference setting via smartphone or tablet where the service is available. It is voice control enabled via popular voice assistants where this service is available and offers performance profiles, interval function, a Favourite button and smart home trigger with a connected Home Connect account.
