Neff N50 D94BHM1S5B Chimney Hood

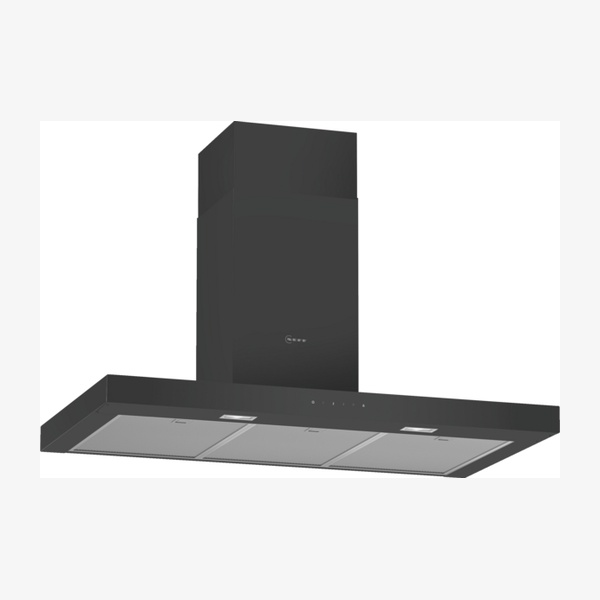

The N 50 D94BHM1S5B is a 90 cm black wall–mounted chimney cooker hood with a modern box design, suitable for both ducted extraction and recirculation. It offers 3 speeds plus an intensive setting via touch control, with high extraction rates to maintain a clear view while cooking. LED lighting provides clear illumination of the hob, while washable aluminium grease filters and optional recirculation kits support flexible installation.

SKU:D94BHM1S5B

EAN:

Category::Cooker Hoods

Quantity:

Key Features

Modern box chimney design – 90 cm wide wall–mounted hood in black, coordinating with contemporary kitchens.

High extraction rate – up to 372 m³/h in normal exhaust mode and 604 m³/h on intensive for effective steam removal.

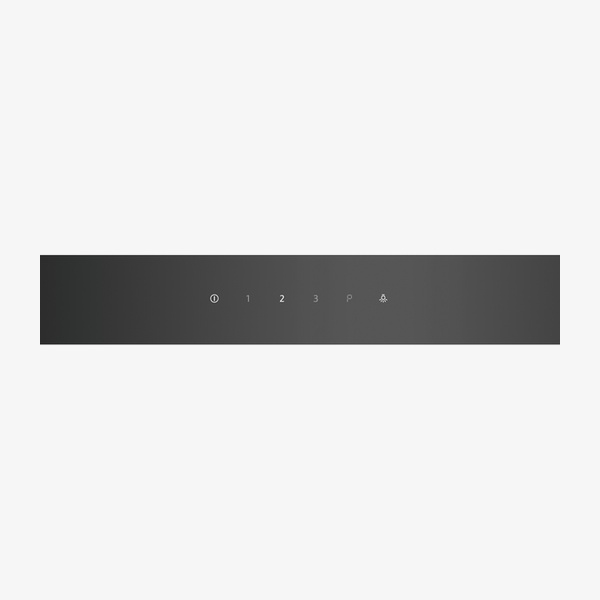

Touch control operation – integrated flat surface electronic control panel enabling smooth, finger–swipe speed selection.

3 speeds plus intensive – choose between three standard stages and an intensive setting for more demanding cooking.

LED lighting – 2 x 1.5 W LED lights with 3500 K colour temperature for clear illumination while you cook.

Suitable for extraction or recirculation – can be ducted to the outside or used in recirculation mode with appropriate kit.

Optional Clean Air Plus recirculation kit – supports up to 337 m³/h (normal) and 441 m³/h (intensive) in recirculation mode.

Energy efficiency class B – with Blower Efficiency Class A*, Lighting Efficiency Class A* and average energy consumption of 48.5 kWh/year*.

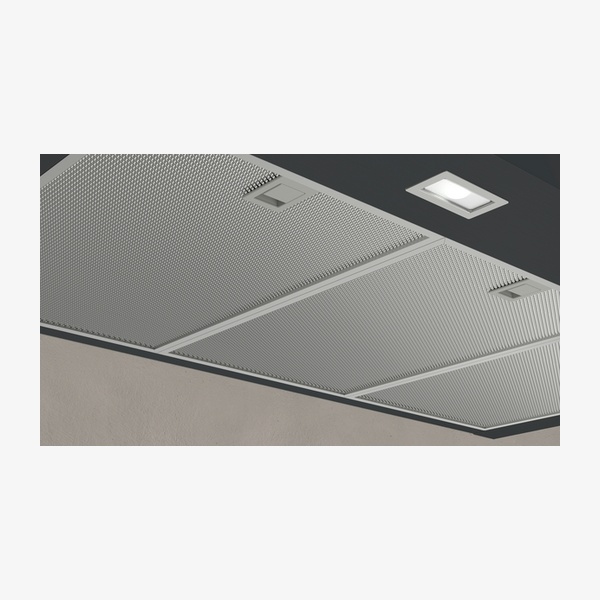

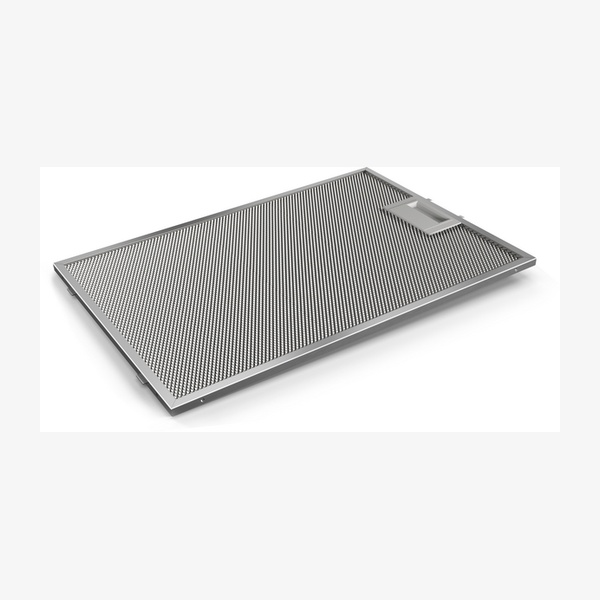

Washable aluminium grease filters – 3 metal grease filter cassettes for effective grease capture and easy maintenance.

Automatic intensive revert – intensive setting automatically reverts after 6 minutes.

Twin channel high performance fan motor – designed to deliver efficient extraction performance.

Multiple optional accessories – including Long Life and Clean Air Plus odour filters and various recirculation kits.

Technical Spec

Product nameN 50 wall–mounted cooker hood, 90 cm, Black

Model referenceD94BHM1S5B / D94BHM1S5B

Typology / installationWall–mounted chimney hood, box design

Width90 cm wide

ColourBlack (colour chimney: Black)

Suitable modesSuitable for ducted extraction and recirculation

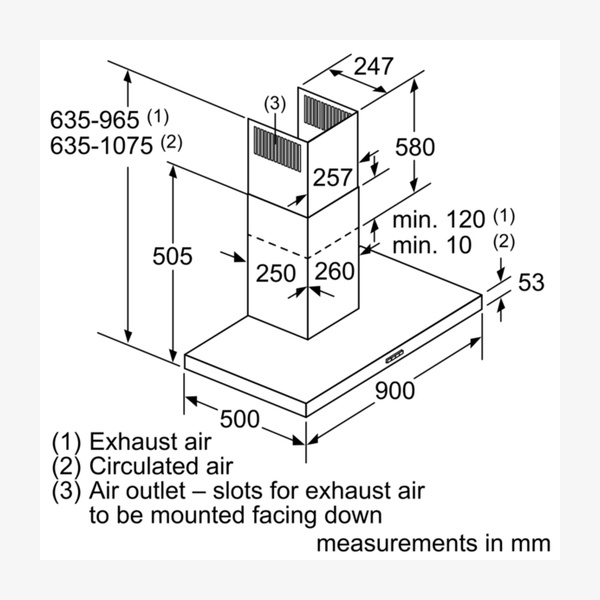

Dimensions – exhaust air (H x W x D)635–965 x 900 x 500 mm

Dimensions – recirculating (H x W x D)635–1075 x 900 x 500 mm

Height of the chimney583–912 / 583–1022 mm

Height of the appliance53 mm

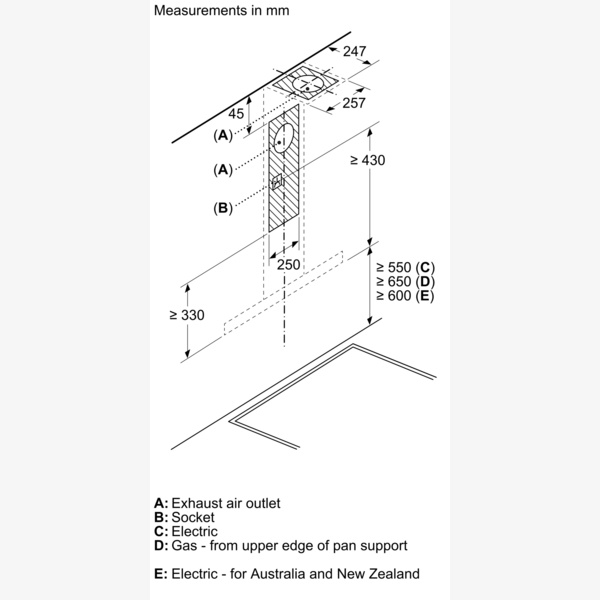

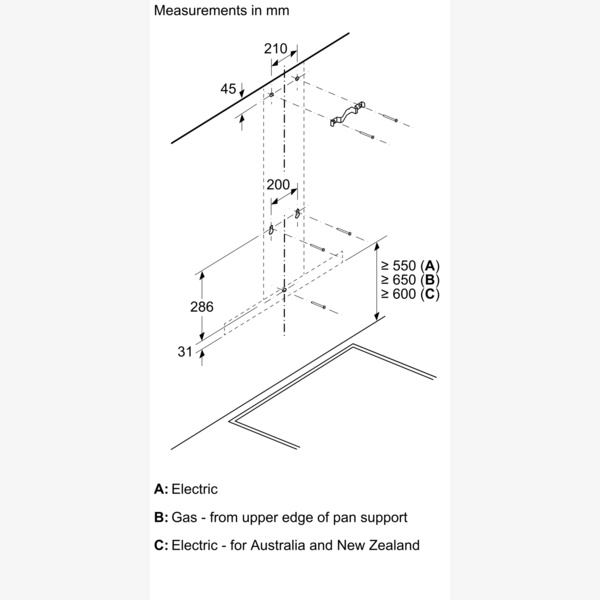

Minimum distance above an electric hob550 mm

Minimum distance above a gas hob650 mm

Net weight13.5 kg

Type of controlElectronic, Touch control, integrated flat surface control panel

Number of speed settings3–stages + intensive setting (3 speeds plus intensive)

Maximum output air extraction (exhaust)372 m³/h (max. normal use according to EN 61591)

Boost position air extraction (exhaust)604 m³/h (intensive according to EN 61591)

Maximum air flow372 m³/h

Noise level – exhaust max. normal use60 dB(A) re 1 pW according to EN 60704–3 and EN 60704–2–13

Noise level – exhaust intensive70 dB(A) re 1 pW

Maximum output recirculating air337 m³/h (with Clean Air Plus recirculation kit)

Boost position output recirculating441 m³/h (with Clean Air Plus recirculation kit)

Noise level – recirculation max. normal use70 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Noise level – recirculation intensive74 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Number of lights2 x 1.5 W LED light

Colour temperature3500 K

Grease filter materialWashable aluminium; 3 metal grease filter cassettes

Diameter of air outlet120 / 150 mm (Diameter pipe Ø 150 mm (Ø 120 mm enclosed))

Blower Efficiency ClassA*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassC*

Energy Efficiency ClassB (at a range of energy efficiency classes from A+++ to D)

Average Energy Consumption48.5 kWh/year*

Electrical cable length1.3 m (Length electrical supply cord: 130 cm)

Connection rating / power rating220 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

Grease filter classes / notesCapacitor energy efficient; 3 metal grease filter cassettes

EAN code4242004280002

Downloads

Download product documentation, manuals, and specification sheets.

D94BHM1S5B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in both extraction and recirculation modes?

Yes, the hood is suitable for ducted extraction and recirculation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit (available as an accessory) is needed.

What is the maximum extraction rate of this hood?

In exhaust air mode, the maximum extraction rate in normal use is 372 m³/h and 604 m³/h on intensive. With the Clean Air Plus recirculation kit, the maximum in recirculation mode is 337 m³/h in normal use and 441 m³/h on intensive.

How noisy is the hood during operation?

In exhaust air mode, the noise level is 60 dB(A) re 1 pW in max. normal use and 70 dB(A) re 1 pW on intensive. In recirculation mode with the Clean Air Plus kit, the noise level is 70 dB(A) re 1 pW in max. normal use and 74 dB(A) re 1 pW on intensive.

What type of lighting does the hood provide?

The hood features 2 x 1.5 W LED lights with a colour temperature of 3500 K, offering clear illumination while you cook.

What clearances are required above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.

What kind of filters are used and are they washable?

The hood uses washable aluminium grease filters arranged as 3 metal grease filter cassettes. Optional odour filters and recirculation kits are available as accessories.
