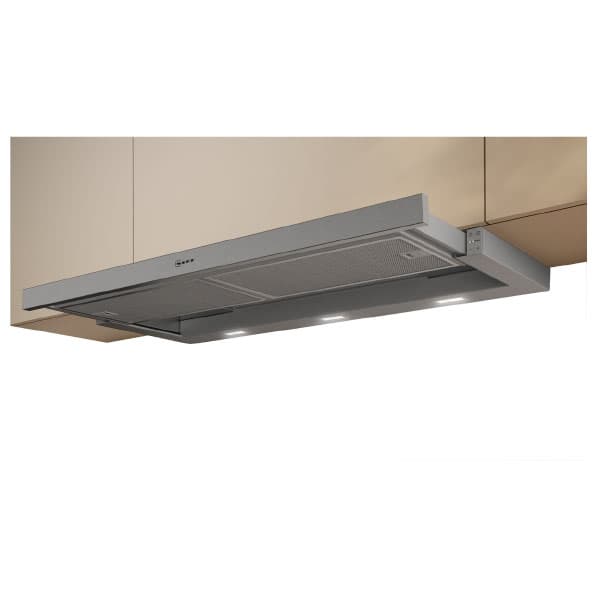

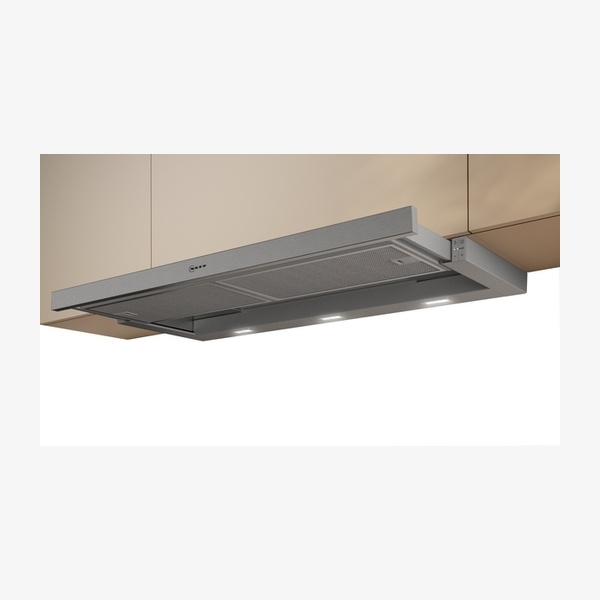

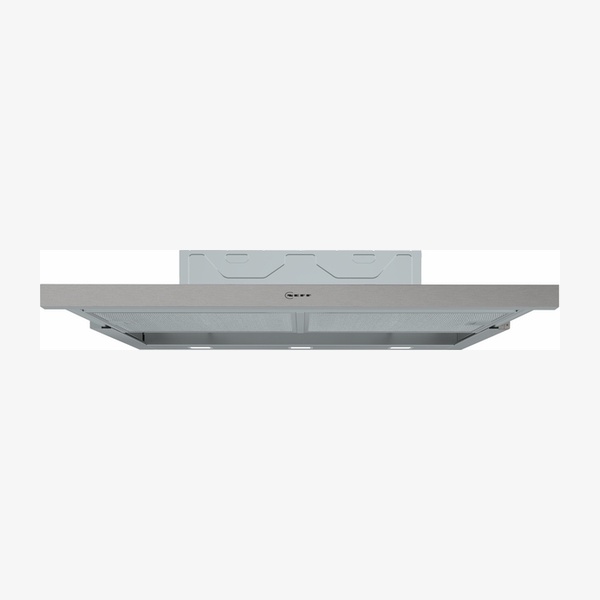

Neff N50 D49ED22N1B Telescopic Hood

The N 50 D49ED22N1B is a 90 cm telescopic cooker hood in silver metallic grey, designed to pull out from underneath a cabinet for powerful extraction without disrupting your kitchen design. Suitable for ducted extraction and recirculation, it features an Efficient Drive Motor, LED lighting and electronic soft touch controls with 3 speeds plus intensive. Automatic after–running and intensive revert functions help keep kitchen air clear after cooking.

SKU:D49ED22N1B

EAN:4242004251163

Category::Cooker Hoods

Quantity:

Key Features

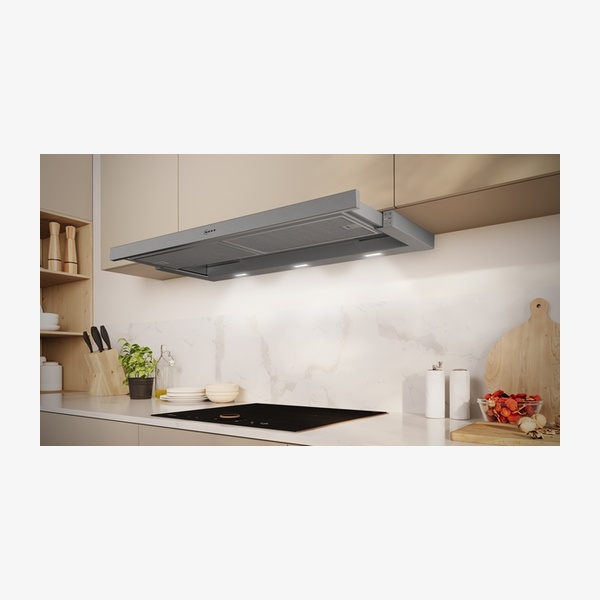

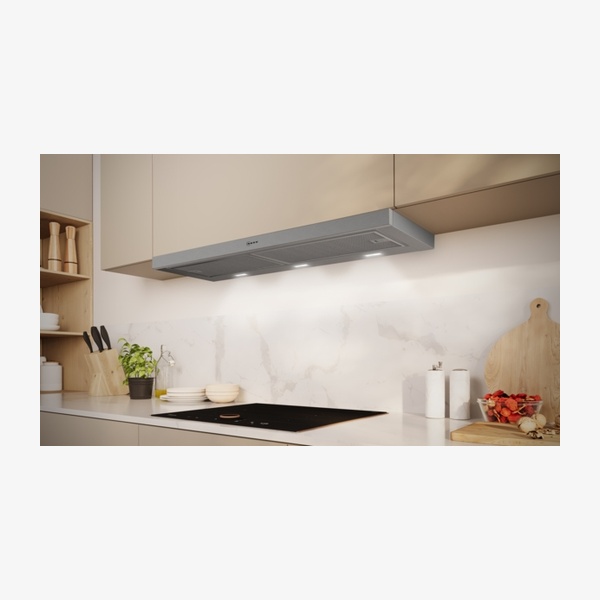

Telescopic pull–out design – hood pulls out from underneath a cabinet for a streamlined kitchen.

Efficient Drive Motor – quiet and energy–efficient hood motor for a calmer kitchen.

3 speeds plus intensive setting – 3–stages + intensive for increased extraction when steam gets intense.

LED lighting – 3 × 1.5 W LEDs provide clear illumination while you cook.

Automatic intensive revert – intensive setting automatically reverts after 6 minutes.

Automatic after–running – ventilation continues automatically for 10 minutes after switch–off.

Suitable for ducted and recirculation use – can be installed for ducted extraction or recirculated extraction (recirculating kit needed for recirculation).

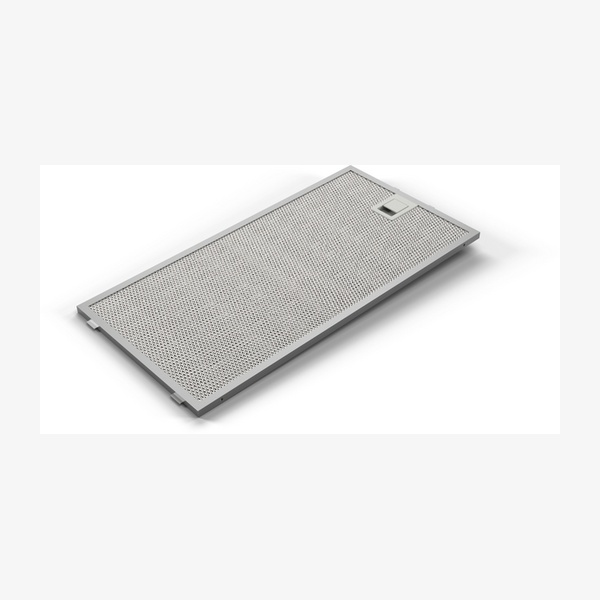

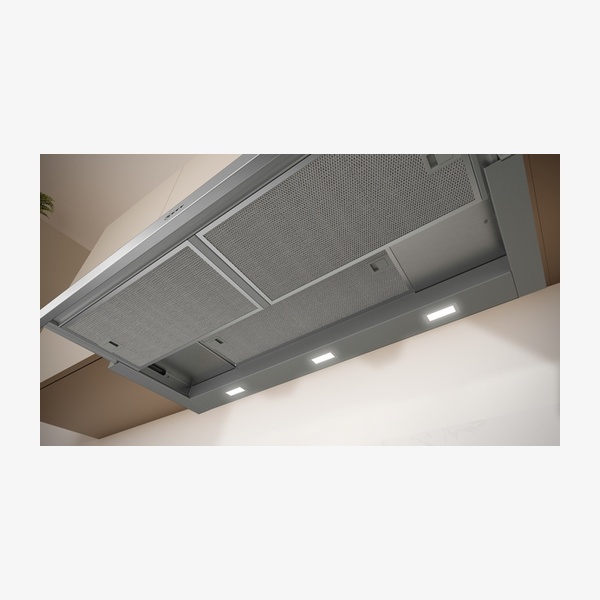

Washable aluminium grease filters – 3 metal grease filter cassettes with stainless steel, perforated and dishwasher–safe filter cover.

Energy Efficiency Class A – with Blower Efficiency Class B, Lighting Efficiency Class A and Grease Filtering Efficiency Class C (in accordance with EU–Regulation No 65/2014).

High extraction performance – maximum normal use extraction rate 266 m³/h and intensive extraction 412 m³/h (ø 15 cm).

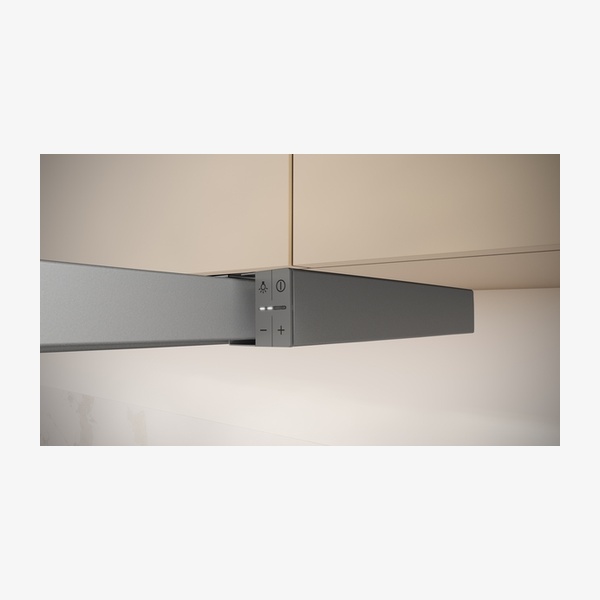

Soft touch electronic controls – easy electronic operation via soft touch control panel.

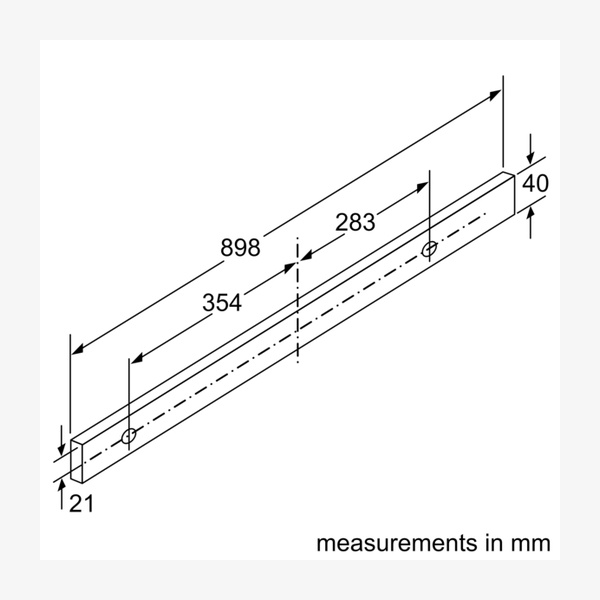

Design handle strip – stainless steel handle strip with logo; optional design and handle strips available.

Moderate noise levels – 63 dB(A) re 1 pW at maximum normal use exhaust air and 70 dB(A) re 1 pW at intensive exhaust air.

Optimised lighting – colour temperature 3500 K and light intensity 355 lux.

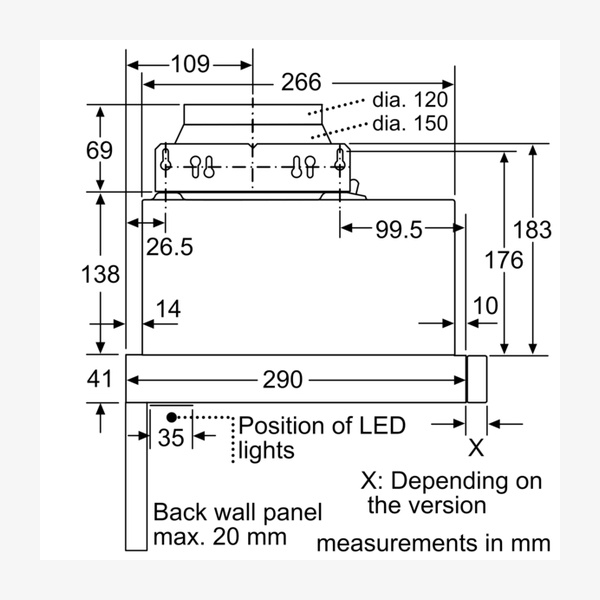

Compact built–in installation – 203 × 898 × 290 mm appliance dimensions with 162 × 526 × 290 mm built–in dimensions.

Optional Clean Air accessories – Clean Air Standard odour filter (replacement) and recirculation kit available.

Technical Spec

ModelD49ED22N1B

Product seriesN 50 Telescopic cooker hood, 90 cm, silver metallic

TypologyPull–out

Installation typologyBuilt–in

Width90 cm wide (appliance width 898 mm)

Colour / finishSilver metallic grey; handle strip specification: stainless steel with logo; filter cover stainless steel, perforated and dishwasher safe

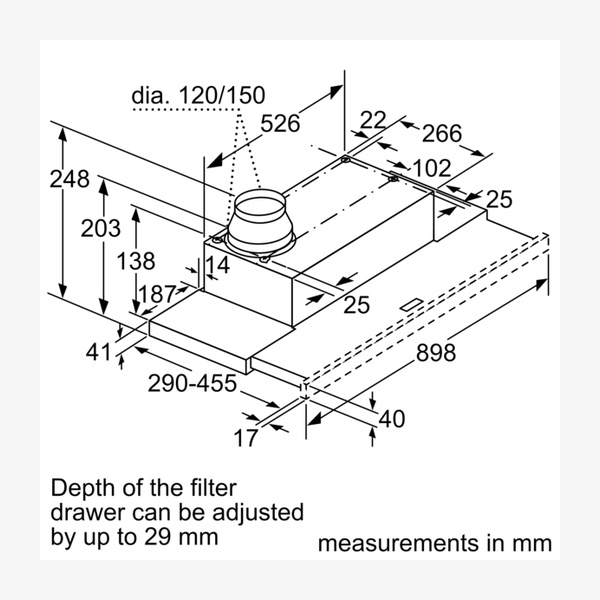

Dimensions (HxWxD)203 × 898 × 290 mm

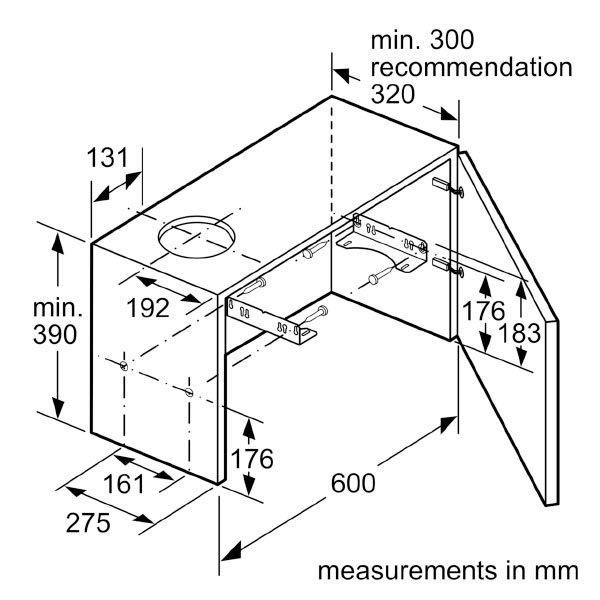

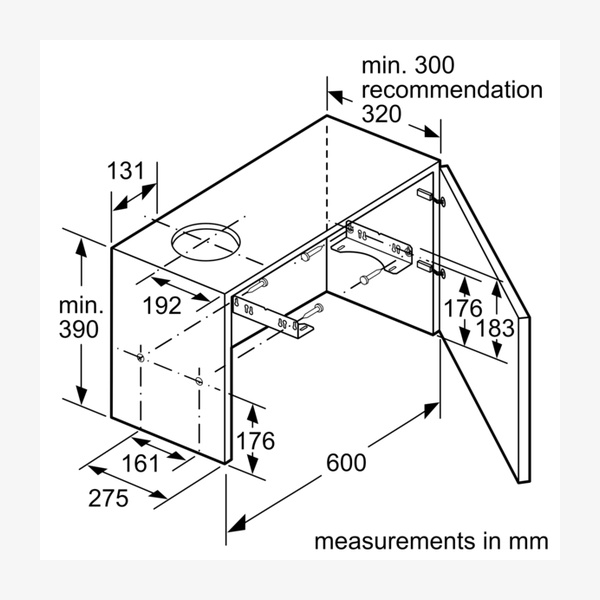

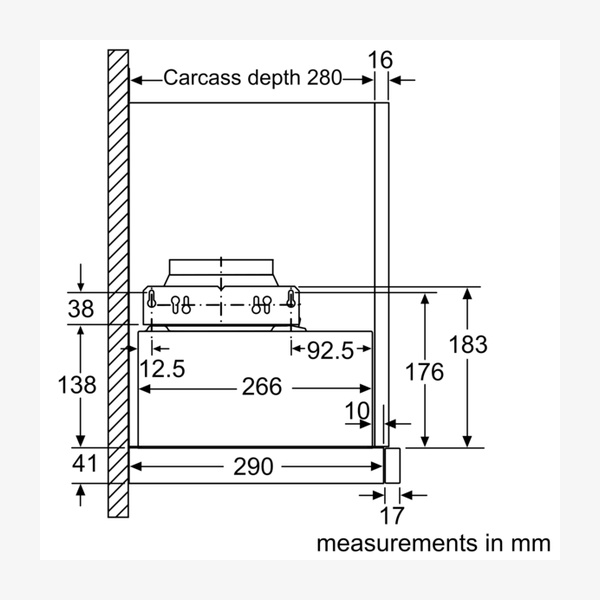

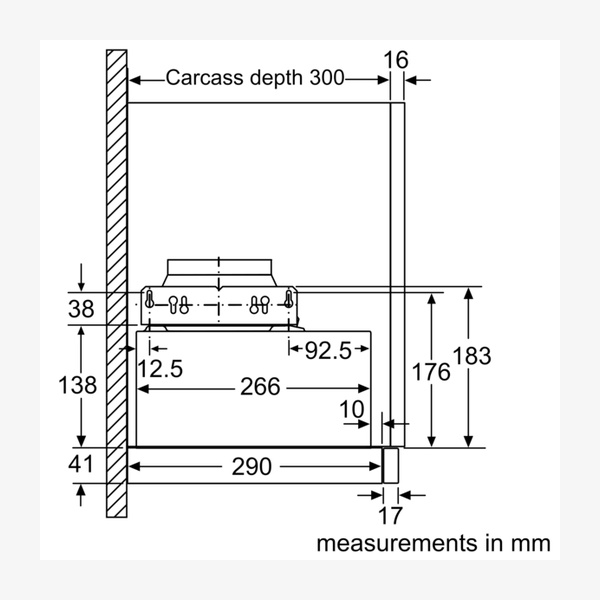

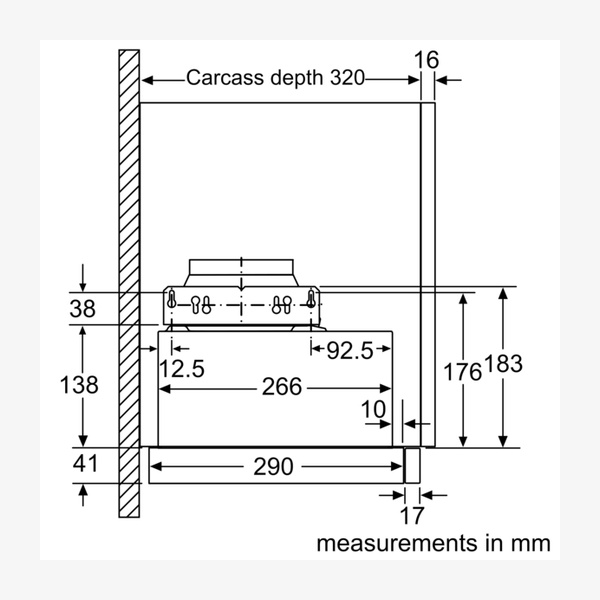

Built–in dimensions (HxWxD)162 × 526 × 290 mm

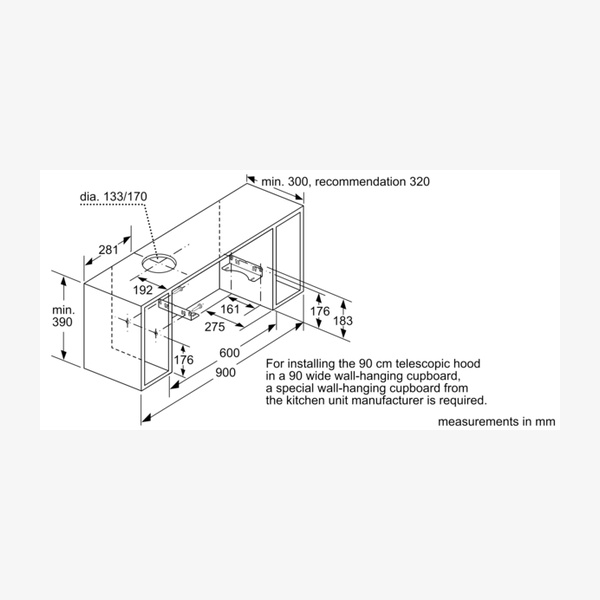

Required niche size (HxWxD)162 mm × 526.0 mm × 290 mm

Height of the appliance203 mm

Minimum distance above electric hob430 mm

Minimum distance above gas hob650 mm

Net weight10.2 kg

Type of controlElectronic controls via soft touch control

Number of speed settings3–stages + intensive setting (3 speeds plus intensive)

Maximum output air extraction266 m³/h

Boost position air extraction (intensive)412 m³/h (extraction rate according to EN 61591 ø 15 cm)

Maximum output recirculating air263 m³/h

Boost position output recirculating353 m³/h

Maximum air flow266 m³/h

Number of lights3 × 1.5 W LED

Colour temperature3500 K

Light intensity355 lux

Noise level – max normal use exhaust air63 dB(A) re 1 pW (according to EN 60704–3 and EN 60704–2–13)

Noise level – intensive exhaust air70 dB(A) re 1 pW (according to EN 60704–3 and EN 60704–2–13)

Noise level63 dB(A) re 1 pW (maximum normal use exhaust air)

Grease filter materialWashable aluminium; 3 metal grease filter cassettes; filter cover stainless steel, perforated and dishwasher safe

Diameter of air outlet / pipe120 / 150 mm (diameter pipe Ø 150 mm (Ø 120 mm enclosed))

Energy Efficiency ClassA (at a range of energy efficiency classes from A+++ to D)

Average energy consumption22.2 kWh/year* (* in accordance with the EU–Regulation No 65/2014)

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassC*

TechnologyEfficient BLDC technology

Connection rating / power rating76 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

Length of electrical supply cord175 cm (electrical cable length 1.75 m)

EAN code4242004251163

Suitable forDucted extraction and recirculation (recirculating kit accessory needed for recirculated extraction)

Downloads

Download product documentation, manuals, and specification sheets.

D49ED22N1B Spec

PDF

Frequently Asked Questions

Is this cooker hood suitable for both ducted and recirculation use?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, a recirculating kit (accessory) is needed.

What is the maximum extraction rate of the N 50 D49ED22N1B?

The extraction rate according to EN 61591 with ø 15 cm ducting is up to 266 m³/h in maximum normal use and 412 m³/h on the intensive setting.

How noisy is the hood during operation?

The noise level at maximum normal use exhaust air is 63 dB(A) re 1 pW, and 70 dB(A) re 1 pW on the intensive exhaust air setting, according to EN 60704–3 and EN 60704–2–13.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 430 mm, and the minimum distance above a gas hob is 650 mm.

Are the grease filters washable?

Yes. The hood uses 3 metal grease filter cassettes made from washable aluminium, and the stainless steel filter cover is perforated and dishwasher safe.

What is the energy efficiency rating?

The cooker hood has an Energy Efficiency Class A (at a range of energy efficiency classes from A+++ to D), with an average energy consumption of 22.2 kWh/year in accordance with EU–Regulation No 65/2014.
